190-491-190 - White Outdoor 36" Snow Thrower Attachment (1991) 36" Snow Thrower Drive Assembly Parts Diagram

36" Snow Thrower Attachment

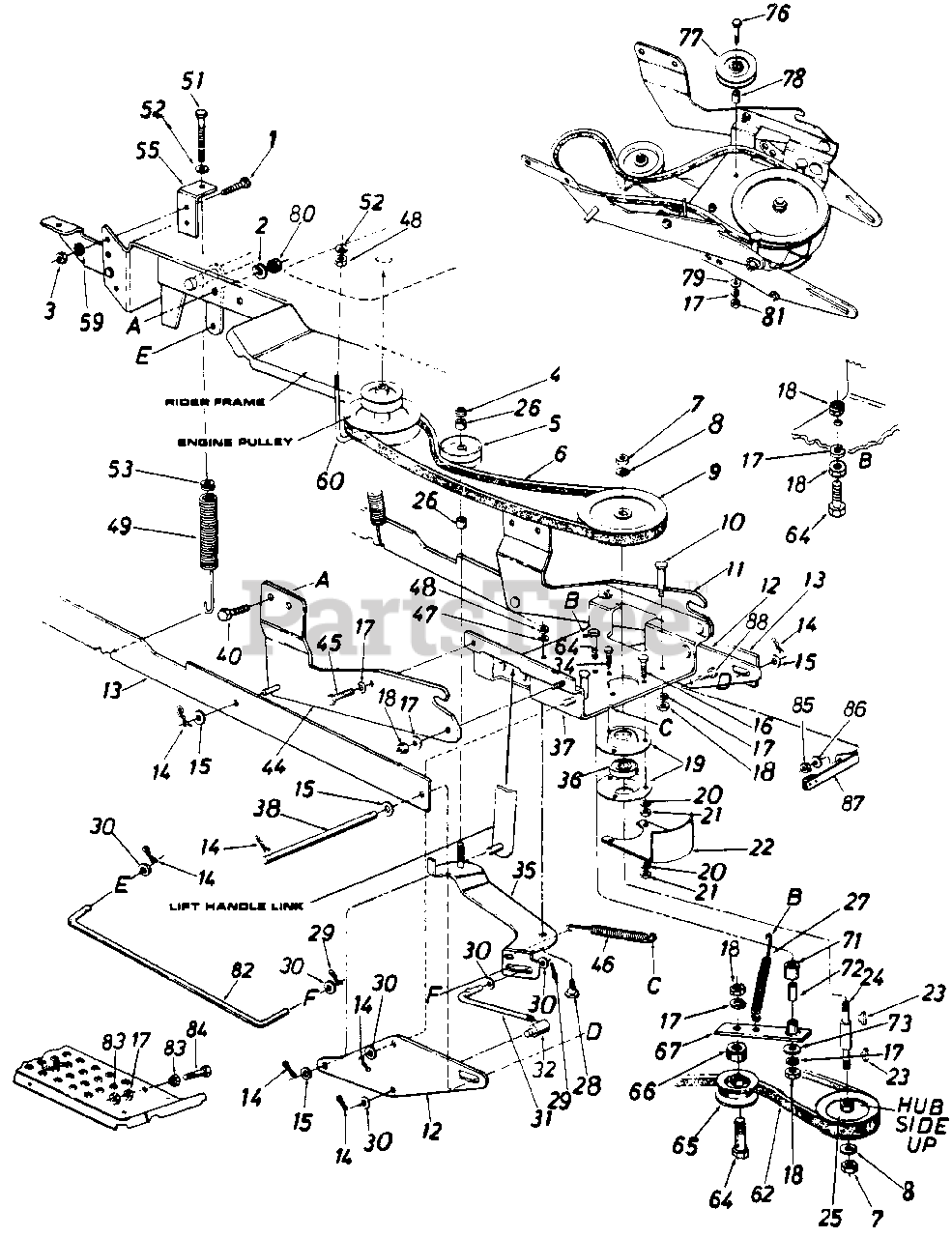

36" Snow Thrower Drive Assembly Parts Diagram

  • Title

1

White Outdoor 710-0299

Hex Bolt 1/4-28 x 1.0" Lg.-Gr. 5

$4.49

$

Usually ships in 3-6 days

0

2

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

3

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

4

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

5

White Outdoor 756-0417

Idler Pulley
(Superseded to 956-0417)

$

$

Not available

6

White Outdoor 754-0299

"V"-Belt
(Superseded to 954-0299)

$

$

Not available

7

White Outdoor 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

8

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

9

White Outdoor 756-0216

5/8 Pulley x 6.5" O.D.

$

$

Not available

10

White Outdoor 738-0129

Shoulder Bolt

$10.99

$

In Stock, only 1 left!

0

11

White Outdoor 05826A

Channel Support Brkt.-Pl.H.

$

$

Not available

12

05835

Linkage Brkt.

$

$

Not available

13

White Outdoor 05836

Linkage Arm Ass'y.

$

$

Not available

14

White Outdoor 714-0101

Intern. Cotter Pin .50" Dia.

$4.49

$

In Stock, only 4 left!

0

15

White Outdoor 736-0192

Fl-Wash.

$3.99

$

In Stock, only 2 left!

0

16

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 08253B

Bearing Housing

$17.99

$

In Stock, only 3 left!

0

20

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 712-0267

Hex Nut 5/118 Thd.
(Superseded to 912-3010)

$

$

Not available

22

White Outdoor 05406

Belt Guard
(Superseded to 05406-0637)

Variations

White Outdoor 05406-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 714-0388

#Hi-Pro-Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

24

White Outdoor 738-0246

Pulley Spindle

$

$

Not available

25

White Outdoor 756-0457

5/8 Pulley 6.28n l.D. x 5.56" O.D.

$

$

Not available

26

White Outdoor 750-0503

Spacer .383" I.D. x .503" O.D. x.562" Lg.
(Superseded to 950-0503)

$

$

Not available

27

White Outdoor 732-0470A

Extension Spring .54" O.D. x 5.25"
(Superseded to 932-0470A)

$9.49

$

In Stock, Qty 20+

0

28

White Outdoor 738-0140

Shoulder Bolt

$5.49

$

In Stock, Qty 17

0

29

White Outdoor 714-0111

Cotter Pin 3/32n Dia.

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 736-0300

Fl-Wash.

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 747-0533

Control Rod
(Superseded to 747-0533A)

Note: (Clutch)

$

$

Not available

32

White Outdoor 711-0723

Ferrule
(Superseded to 911-0723A)

$15.99

$

Usually ships in 3-6 days

0

34

White Outdoor 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

35

White Outdoor 05409A

Clutch Idler Brkt. Ass'y.

$

$

Not available

36

White Outdoor 741-0919

Ball Bearing
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

37

White Outdoor 05411B

Channel Ass'y.

$

$

Not available

38

White Outdoor 738-0242

Lift Handle Shaft

$

$

Not available

40

White Outdoor 710-0642

Hex Selt-Tap Scr. 1/420 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 05827A

Channel Supporting Brkt.-L.H.
(Superseded to 05827B-0637)

$

$

Not available

45

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 732-0146

Extension Spring

$

$

Not available

47

White Outdoor 736-0119

L-Wash. 6/16" l.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

49

White Outdoor 732-0323

Helper Spring

$

$

Not available

51

White Outdoor 710-0646

Hex Bolt 5/16-18 x 2.0" Lg. Special
(Superseded to 710-04039)

$4.49

$

In Stock, only 4 left!

0

52

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D. x .06"

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 711-0509

Spring Insert

$55.99

$

Usually ships in 3-6 days

0

55

White Outdoor 05933

Helper Spring

Variations

White Outdoor 05933-0637

No Longer Available BRACKET-HELPER SPR - POWDER BLACK (0637)

$

$

Not available

$

$

59

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

60

White Outdoor 710-0836

J-Bolt 5/16-18 Thd.

$

$

Not available

62

White Outdoor 754-0294

"V"-Belt
(Superseded to 954-0294)

$68.99

$

Usually ships in 3-6 days

0

64

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 756-0417

Idler Pulley
(Superseded to 956-0417)

$

$

Not available

66

White Outdoor 750-0503

Spacer .385" l.D. x .503" O.D. x .562" Lg.
(Superseded to 950-0503)

$

$

Not available

67

White Outdoor 703-1292

Idler Arm Ass'y.
(Superseded to 703-1396-0637)

$161.99

$

Usually ships in 3-6 days

0

71

White Outdoor 711-0242

Spacer.38" l.D.

$3.99

$

In Stock, Qty 14

0

72

White Outdoor 750-0252

Spacer .3775" I.D. x .6" O.D. x 8.3" Lg.
(Superseded to 950-0252)

$19.99

$

In Stock, Qty 5

0

73

White Outdoor 736-0258

Fl-Wash. 3/8" l.D. x 1" O.D. x 1.27"

$4.49

$

In Stock, only 2 left!

0

76

White Outdoor 710-0859

Hex Bolt 3/8-16 x 2.5" Lg. (Grade 5)

$6.49

$

In Stock, Qty 20+

0

77

White Outdoor 756-0116

Idler Pulley .38" l.D. x 3.06' O.D.
(Superseded to 756-04209)

$20.99

$

In Stock, Qty 20+

0

78

White Outdoor 711-0396

Spacer .385" l.D. x .63" O.D. x.76" Lg.

$10.99

$

Usually ships in 3-6 days

0

79

White Outdoor 07386

Fl-Wash. .39" l.D. x 1-3/4" O.D. x 3/16"

$

$

Not available

80

White Outdoor 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

81

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

82

White Outdoor 747-0532

Clutch Control Rod

$

$

Not available

83

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

84

White Outdoor 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$6.49

$

In Stock, Qty 7

0

85

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

86

White Outdoor 736-0356

Bell-Wash. 3/8" I.D.
(Superseded to 936-0356)

$

$

Not available

87

White Outdoor 761-0195

Auger Brake Brkt. Ass'y.

$

$

Not available

88

White Outdoor 710-0201

Hex Bolt 3/8-16 x 5/8" Lg.

$

$

Not available

730-0116

Reflectors

Note: (Not Shown)

$

$

Not available

14632

Index Brkt. (Hardened)

Note: (Not Shown)

$

$

Not available

White Outdoor 14802A

Lift Link
(Superseded to 14802A-0637)

Note: (Not Shown)

Variations

White Outdoor 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$
