190-602-190 - MTD Grass Catcher (2000) Grass Catcher Assembly Parts Diagram

Grass Catcher

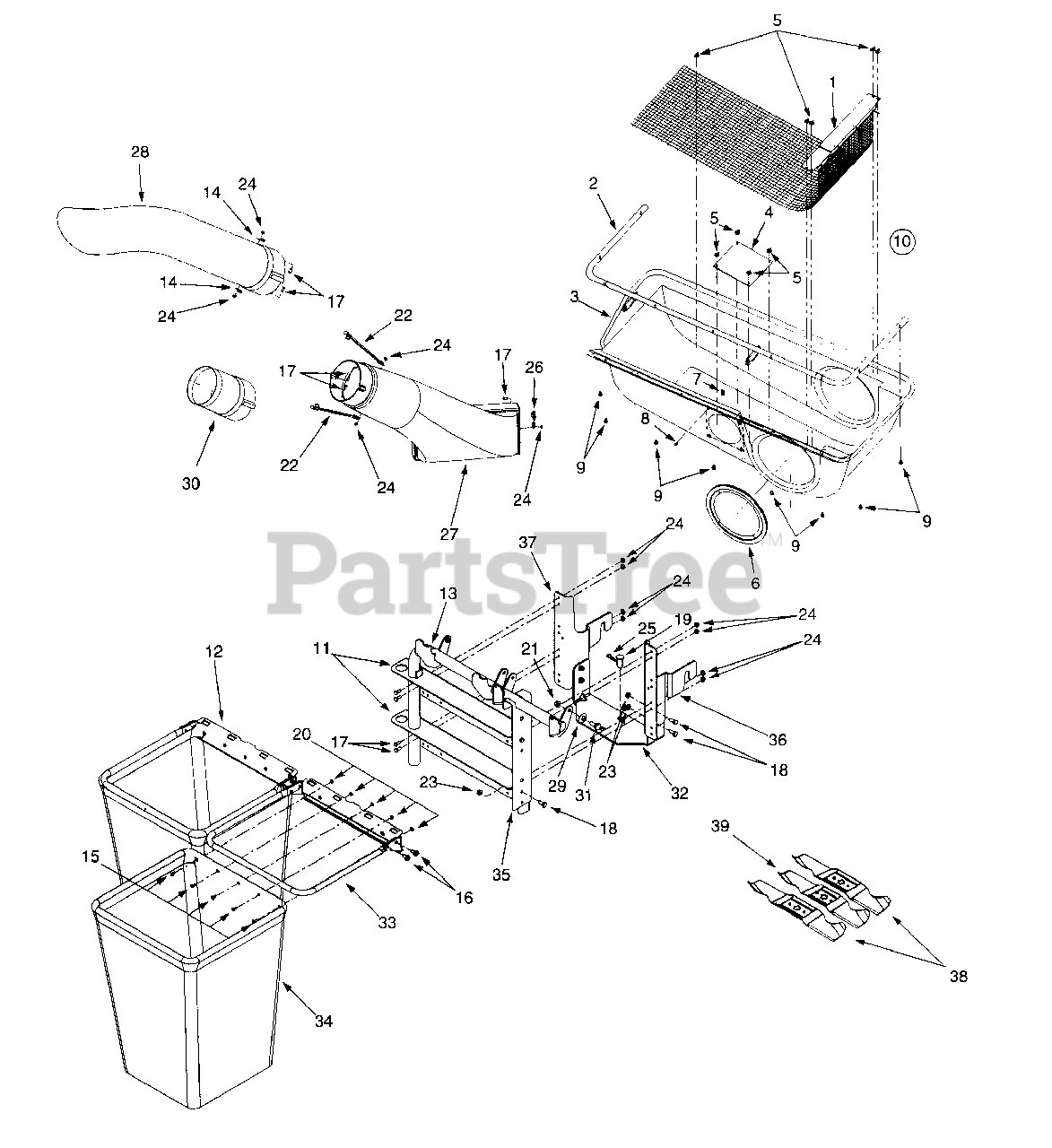

Grass Catcher Assembly Parts Diagram

  • Title

1

MTD 16847A

Screen Assembly

Note: NLA

Variations

MTD 16847A-0637

No Longer Available SCREEN ASM - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 16596-0637

Hinge Bracket Assembly

$98.99

$

Usually ships in 3-6 days

0

3

MTD 731-0821A

Grass Catcher Cover

Note: NLA

$

$

Not available

3

MTD 731-1417

Grass Catcher Cover

Note: NLA

$

$

Not available

4

MTD 731-0824A

Plastic Plate, 1/8 x 5.6 sq.

Note: NLA

$

$

Not available

5

MTD 726-0258

Zip Twist Fastener

$3.99

$

Usually ships in 3-6 days

0

6

MTD 723-0412

Tube Seal

Note: (Model 601)

$32.99

$

Usually ships in 3-6 days

0

6

MTD 723-0413

Tube Seal

Note: (Model 602)

$28.99

$

In Stock, only 2 left!

0

7

MTD 712-0147

U-Type Speed Nut, #10-24

$6.49

$

Usually ships in 3-6 days

0

8

MTD 710-0351

Screw, #10-16 x .5

Note: (Model 601)

$4.49

$

In Stock, only 4 left!

0

8

MTD 710-0473

Screw, #10-24 x .5

Note: (Model 602)

$3.99

$

In Stock, only 1 left!

0

9

MTD 710-0599

Hex Screw, 1/4-20 x .5

Note: (Model 601)

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0896

Hex Screw, 1/4-14 x ..625

Note: (Model 602)

$3.99

$

In Stock, Qty 20+

0

10

MTD 16594A

Cover Assembly

Note: NLA

$

$

Not available

10

MTD 631-0007

Cover Assembly

Note: NLA

$

$

Not available

11

MTD 16587D-0637

Catcher Support Tube Mounting Bracket

$76.99

$

Usually ships in 3-6 days

0

12

MTD 16591A-0637

Bag Frame Hanger Bracket

$60.99

$

Usually ships in 3-6 days

0

13

MTD 16592-0637

Catcher Support Tube Assembly

$180.99

$

Usually ships in 3-6 days

0

14

MTD 96606

Retainer Hook Bracket

$6.99

$

In Stock, Qty 14

0

15

MTD 710-0473

Screw, #10-24 x .5

$3.99

$

In Stock, only 1 left!

0

16

MTD 710-0604A

Self-Tapping Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

19

MTD 711-0309A

Clevis Pin

$11.99

$

In Stock, Qty 10

0

20

MTD 712-0272

Hex Sems Nut, 10-24

$3.99

$

In Stock, only 1 left!

0

21

MTD 912-0431

Hex Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

22

MTD 723-0476

Retainer Strap Assembly

$30.99

$

In Stock, only 3 left!

0

23

MTD 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

24

MTD 912-3027

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

MTD 714-0117

Internal Cotter Pin, .148 x 3

$3.99

$

In Stock, Qty 11

0

26

MTD 923-0383

Retainer Strap Assembly

$14.99

$

In Stock, Qty 13

0

27

MTD 731-0827D

Discharge Chute

Note: (Model 601)

$133.99

$

In Stock, only 1 left!

0

27

MTD 731-0925C

Discharge Chute

Note: (Model 602)

$151.99

$

In Stock, only 2 left!

0

28

MTD 731-0899E

Chute Tube

Note: (Model 601)

$103.99

$

In Stock, only 3 left!

0

28

MTD 731-0926B

Chute Tube

Note: (Model 602)

$132.99

$

Usually ships in 3-6 days

0

29

MTD 936-0255

Bell Washer
(Superseded to 736-0255)

Note: (Model 601)

$

$

Not available

29

MTD 936-0253

Bell Washer
(Superseded to 736-0253)

Note: (Model 602)

$

$

Not available

30

MTD 931-3372

Extension Tube

Note: (Model 601)

$

$

Not available

30

MTD 731-2299A

Extension Tube

Note: (Model 602)

$68.99

$

Usually ships in 3-6 days

0

31

MTD 938-0380

Shoulder Screw, .50 x .27, 3/8-16
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 18

0

32

MTD 783-0765-0637

Support Cross Bracket

$72.99

$

In Stock, only 1 left!

0

33

MTD 749-0701A-0637

Bag Frame Tube

$60.99

$

Usually ships in 3-6 days

0

34

MTD 964-0221

Bag

$70.99

$

In Stock, Qty 20+

0

35

MTD 783-0601-0637

Catcher Support Bracket

$32.99

$

Usually ships in 3-6 days

0

36

MTD 783-0673B-0637

RH Catcher Support Bracket

$63.99

$

Usually ships in 3-6 days

0

37

MTD 783-0764B-0637

LH Catcher Support Bracket

$64.99

$

Usually ships in 3-6 days

0

38

MTD 942-0644

Star Center Blade, 16.28

Note: (Model 602)

$26.99

$

In Stock, Qty 10

0

39

MTD 942-0645

Star Center Blade, 14.88

Note: (Model 602)

$25.99

$

In Stock, Qty 5

0
