190-604-101 - White Outdoor Tool Box Assembly (2001) Tool Box & Bracket Assembly Parts Diagram

Tool Box Assembly

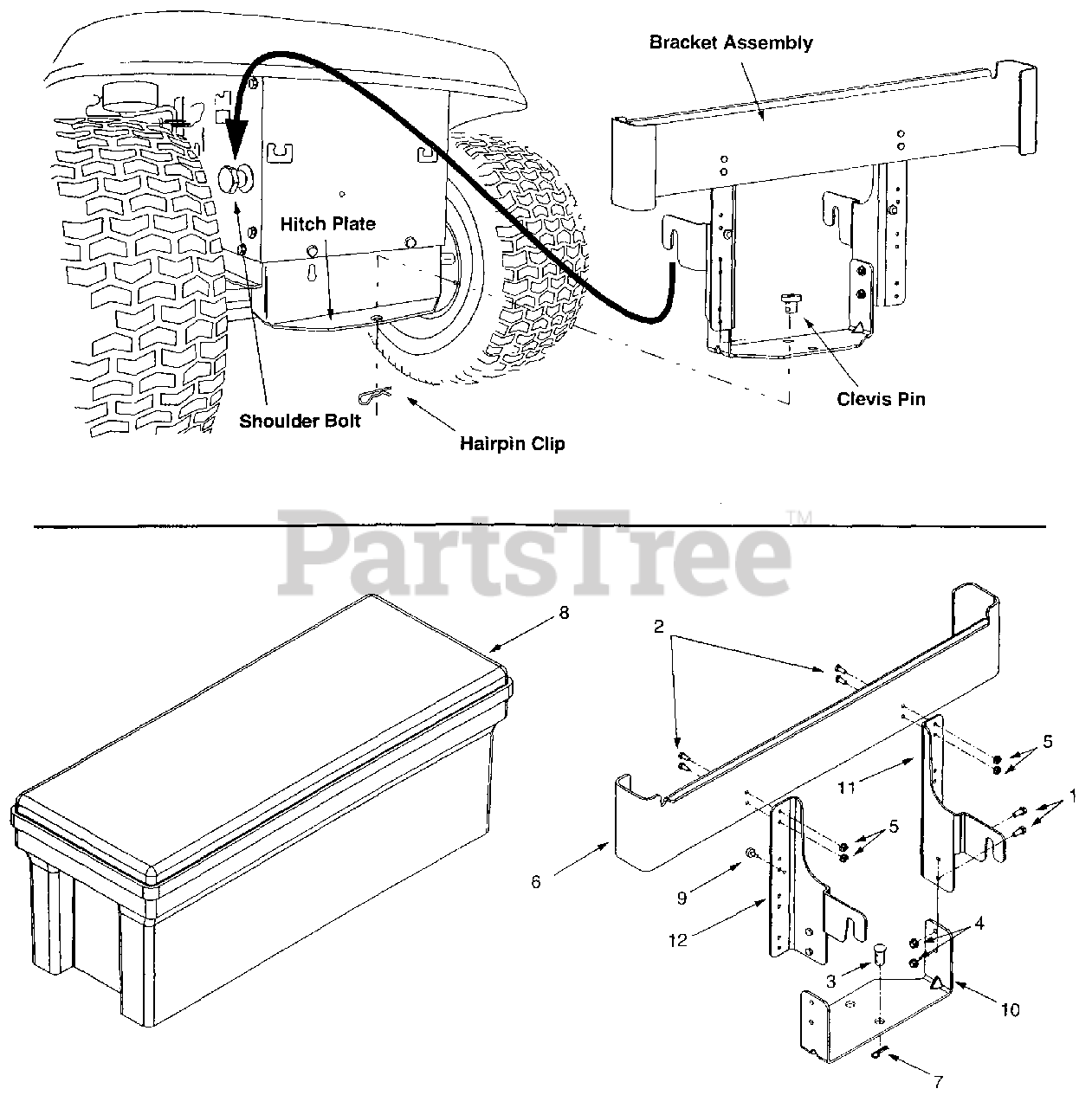

Tool Box & Bracket Assembly Parts Diagram

  • Title

1

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

3

MTD 711-0309A

Clevis Pin

$12.99

$

In Stock, only 4 left!

0

4

MTD 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

MTD 912-3027

Hex Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

6

MTD 783-0777

Tool Box Support Bracket

Note: NLA

Variations

783-0777-0637

MTD 783-0777-0637

No Longer Available BRKT-SUPT - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 714-0117

Internal Cotter Pin, .148 x 3

$4.49

$

In Stock, Qty 15

0

8

MTD 731-2110

Plastic Tool Box

Note: NLA

$

$

Not available

9

MTD 735-0271A

Bumper, .62 Dia. x .3

$9.49

$

In Stock, Qty 16

0

10

MTD 783-0765-0637

Cross Support Bracket

$82.99

$

In Stock, only 1 left!

0

11

MTD 783-0764B-0637

LH Support Bracket

$73.99

$

Usually ships in 3-6 days

0

12

MTD 783-0673B-0637

RH Support Bracket

$72.99

$

Usually ships in 3-6 days

0
