190-620-000 - White Outdoor 42" Snow Blade Assembly (2001) Blade Assembly Parts Diagram

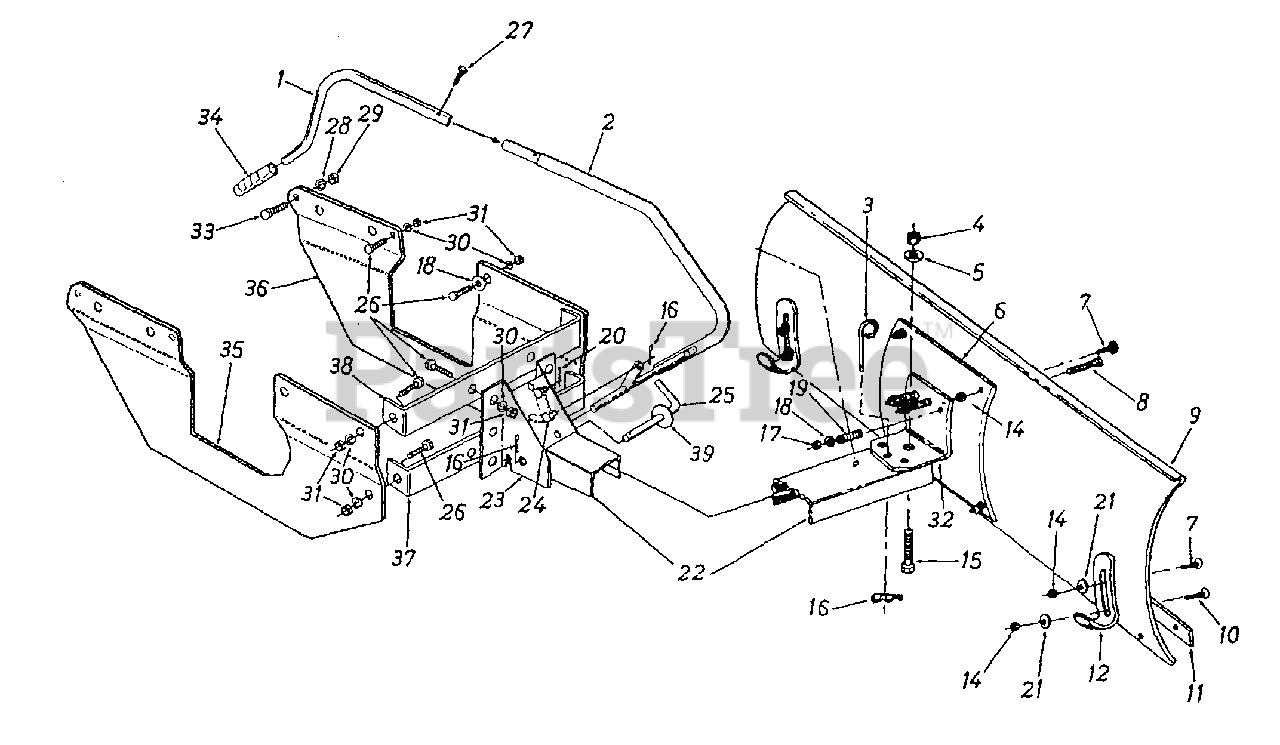

42" Snow Blade Assembly

Blade Assembly Parts Diagram

  • Title

1

MTD AF-46553

Upper Lift Handle

$102.99

$

Usually ships in 3-6 days

0

2

MTD AF-63283

Lift Handle Ass'y.

$229.99

$

Usually ships in 3-6 days

0

3

MTD AF-43038

Pivot Lock Pin

$14.99

$

Usually ships in 3-6 days

0

4

MTD 912-0384

Hex Cent. L-Nut 1/2-13 Thd.

$6.49

$

In Stock, only 3 left!

0

5

MTD 936-0179

Fl-Wash. 17/32" I.D.
(Superseded to 736-0179)

$4.49

$

In Stock, Qty 20+

0

6

MTD AF-23061

Reinforcement Plate

Note: NLA

$

$

Not available

7

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

8

MTD AF-43036

Hex Bolt 3/8-16 x 4" Lg.

$

$

Not available

9

MTD AF-23114

42" Blade

$

$

Not available

10

MTD 710-0276

Carriage Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

11

MTD AF-23117

42" Wear Plate

$

$

Not available

12

MTD 20505

Shoe Skid

Note: NLA

$

$

Currently unavailable

14

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 20+

0

15

MTD 710-0474

Hex Bolt 1/2-13 x 1.25" Lg.

$

$

Not available

16

MTD 914-0101

Int. Cotter Pin
(Superseded to 714-0101)

$

$

Not available

17

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

18

MTD 736-0258

Fl-Wash. 3/8" I.D.

$4.49

$

In Stock, only 2 left!

0

19

MTD AF-43035

Compression Spring

$

$

Not available

20

MTD 914-0121

Cotter Pin 1/8" Dia, x 1" Lg.

$

$

Not available

21

MTD 936-0159

Fl-Wash. 5/16" I.D.
(Superseded to 736-0159)

$

$

Not available

22

MTD AF-63284

Push Bar Channel

Note: NLA

$

$

Not available

23

MTD AF-24023-0637

Pivot Support Bracket

$161.99

$

In Stock, only 1 left!

0

24

MTD AF-63034

Lift Link
(Superseded to AF-69740)

$21.99

$

In Stock, only 1 left!

0

25

MTD AF-46065

Channel Pivot Shaft

$42.99

$

In Stock, only 1 left!

0

26

MTD 910-0253

Hex Bolt 3/8-16 x 1" Lg. Grade 5
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

27

MTD 710-04082

Hex Bolt #10 x 5/8" Lg.

$

$

Not available

28

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 13

0

29

MTD 912-0287

Hex Nut 1/4-20" Thd.

$4.49

$

In Stock, only 2 left!

0

30

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

31

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

32

MTD AF-23115

Support Bracket

$

$

Not available

33

MTD 710-3015

Hex Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

34

MTD 720-0204

Rubber Grip

$12.99

$

Usually ships in 3-6 days

0

35

MTD AF-24134

Frame Support Brkt. (R.H.)

$

$

Not available

36

MTD AF-24133

Frame Support Brkt. (L.H.)

$

$

Not available

37

MTD AF-24388

Support Brkt. (Lower)

$

$

Not available

38

MTD AF-24389

Support Brkt. (Upper)

Note: NLA

$

$

Not available

39

MTD AF-R19171614

Fl-Wash. 17/32" I.D. x 1" O.D.

Note: NLA

$

$

Currently unavailable
