190-623-000 - White Outdoor 45" Snow Thrower Attachment (1998) Blower Housing Parts Diagram

45" Snow Thrower Attachment

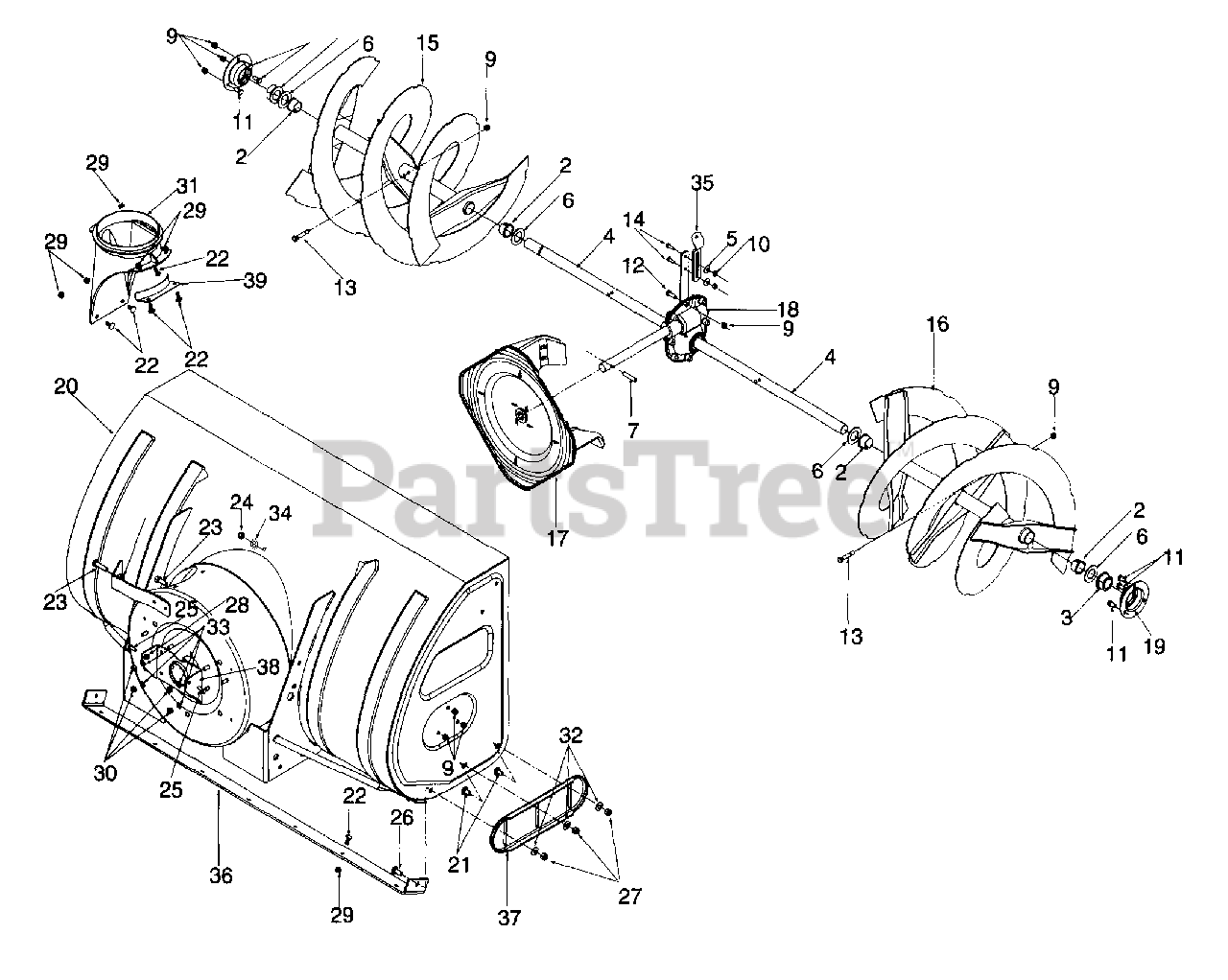

Blower Housing Parts Diagram

  • Title

?1

White Outdoor 784-5710

PLT:SUPT
(Superseded to 784-5710-0637)

Variations

White Outdoor 784-5710-0637

PLATE-SUPPORT - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

2

White Outdoor 741-0494

BUSH:FLG:1.05 ID X 1.16 OD

$4.49

$

In Stock, Qty 16

0

3

White Outdoor 741-0192

BRG:FLG:W/FLATS
(Superseded to 941-0170)

$20.99

$

In Stock, only 4 left!

0

4

White Outdoor 738-0492

SPIRAL AXLE 1.00 X 44.12

$218.99

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0270

WASH:BELL:.265 X.75 X .062

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 736-0250

FL-WASH 1.00 ID X 1.75 OD X .1

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 715-0118

SPRING PIN SPIR 5/16 DIA X 1.7

$13.99

$

In Stock, Qty 10

0

9

White Outdoor 712-0429

NUT:HX:5/16-18:GRC:LOCK

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 712-0138

NUT:1/4-28:GRA:HX

$7.49

$

Usually ships in 3-6 days

0

11

White Outdoor 710-3025

HHCS:5/16-18:.625:GR5:STD

$4.49

$

In Stock, Qty 7

0

12

White Outdoor 710-3008

HHCS:5/16-18:.75:GR5:STD

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0891

SHEAR BOLT 5/16 - 18 X 1-3/4

$7.99

$

In Stock, only 4 left!

0

14

White Outdoor 710-0412

HHCS:1/4-28:.75:GR5:STD

$5.99

$

In Stock, Qty 9

0

15

White Outdoor 684-0073

SPRL ASM:LH:16"
(Superseded to 684-04197)

Variations

White Outdoor 684-0073-0637

SPIRAL ASSY-LH 45" - POWDER BLACK (0637)

$284.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0073-0650

SPIRAL ASSY-LH 45" - RED METALLIC (0650)

$284.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0073-0662

SPIRAL ASSY-LH 45" - OYSTER GRAY (0662)

$284.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

16

White Outdoor 684-0072

SPRL ASM:RH
(Superseded to 684-04196-0637)

Variations

White Outdoor 684-0072-0637

SPIRAL ASSY-RH 45" - POWDER BLACK (0637)

$309.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0072-0650

SPIRAL ASSY-RH 45" - RED METALLIC (0650)

$309.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0072-0662

SPIRAL ASSY-RH 45" - OYSTER GRAY (0662)

$309.99

$

Usually ships in 3-6 days

0

$309.99

$

Usually ships in 3-6 days

0

17

White Outdoor 684-0069

IMPLR ASM:16"

Variations

White Outdoor 684-0069-0498

Impeller Assembly - OLD CUB YELLOW (0498)

$298.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0069-0637

Impeller Assembly - POWDER BLACK (0637)

$298.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0069-0716

Impeller Assembly - CUB YELLOW-99 (0716)

$298.99

$

Usually ships in 3-6 days

0

$277.99

$

Usually ships in 3-6 days

0

18

White Outdoor 618-0244

GEAR ASM:AUGER
(Superseded to 918-0244)

$

$

Not available

19

White Outdoor 05845A

HSG:BRG:1.50 DBL-T
(Superseded to 05845C-0637)

Variations

White Outdoor 05845A-0637

Housing Bearing - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

20

White Outdoor 684-0068

HSG ASM:SPRL:45"
(Superseded to 684-0068B)

Variations

White Outdoor 684-0068-0498

HOUSING-45" BLOWER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 684-0068-0637

HOUSING-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

21

White Outdoor 710-0389

CARRIAGE BOLT 3/8-16 X .75

$4.99

$

Usually ships in 3-6 days

0

22

White Outdoor 710-0451

BOLT:CAR:5/16-18:.75

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 710-0520

HHCS:3/8-16:1.50:GR5:STD

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 710-0726

SCR:AB:5/16-12:0.750:HXINDWSH

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 710-3015

HHCS:1/4-20:.75:GR5:STD

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 710-3168

BOLT:CARR:3/8-16

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 712-0130

NUT:HX:3/8-16:GRC:LOCK

$4.49

$

In Stock, only 4 left!

0

28

White Outdoor 712-0324

NUT:HX:1/4-20:GRC:LOCK

$3.99

$

In Stock, only 4 left!

0

29

White Outdoor 712-0429

NUT:HX:5/16-18:GRC:LOCK

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 712-3010

NUT:5/16-18:GRB:HX

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 731-1696

CHUT:ADAP:6" DIA
(Superseded to 731-1696B)

$96.99

$

In Stock, Qty 9

0

32

White Outdoor 736-0105

WASH:SPR:.401 X .870 X .063

$4.99

$

In Stock, Qty 20+

0

33

White Outdoor 736-0119

WASH:LOCK:5/16:REGULAR DUTY
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

White Outdoor 736-0242

WASH:BELVL:.340 ID X .872 OD

$4.99

$

In Stock, Qty 20+

0

35

White Outdoor 784-5076

GEAR HOUSG.SUPP.BRKT
(Superseded to 784-5076-0637)

Variations

White Outdoor 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

36

White Outdoor 784-5696

PLT:SHAVE
(Superseded to 790-00280-0637)

Variations

White Outdoor 784-5696-0637

Shave Plate, 45" Black - POWDER BLACK (0637)

$64.99

$

In Stock, only 2 left!

0

White Outdoor 784-5696-0650

Shave Plate, 45" Black - RED METALLIC (0650)

$64.99

$

In Stock, only 2 left!

0

$64.99

$

In Stock, only 2 left!

0

37

White Outdoor 784-5697

SHOE:SKID

Variations

White Outdoor 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$46.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$46.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$46.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$46.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$46.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$46.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$46.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$46.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$46.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$46.99

$

In Stock, only 2 left!

0

$48.99

$

Usually ships in 3-6 days

0

38

White Outdoor 784-5703

BRKT:MT:BRG
(Superseded to 784-5703-0637)

Variations

White Outdoor 784-5703-0637

Bearing Mounting Bracket - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

39

White Outdoor 784-5711

BRKT:CHUT:6.0
(Superseded to 784-5711-0637)

Variations

White Outdoor 784-5711-0498

Chute Bracket - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-5711-0637

Chute Bracket - POWDER BLACK (0637)

$

$

Not available

$

$
