190-623-000 - White Outdoor 45" Snow Thrower Attachment (1998) Chute Parts Diagram

45" Snow Thrower Attachment

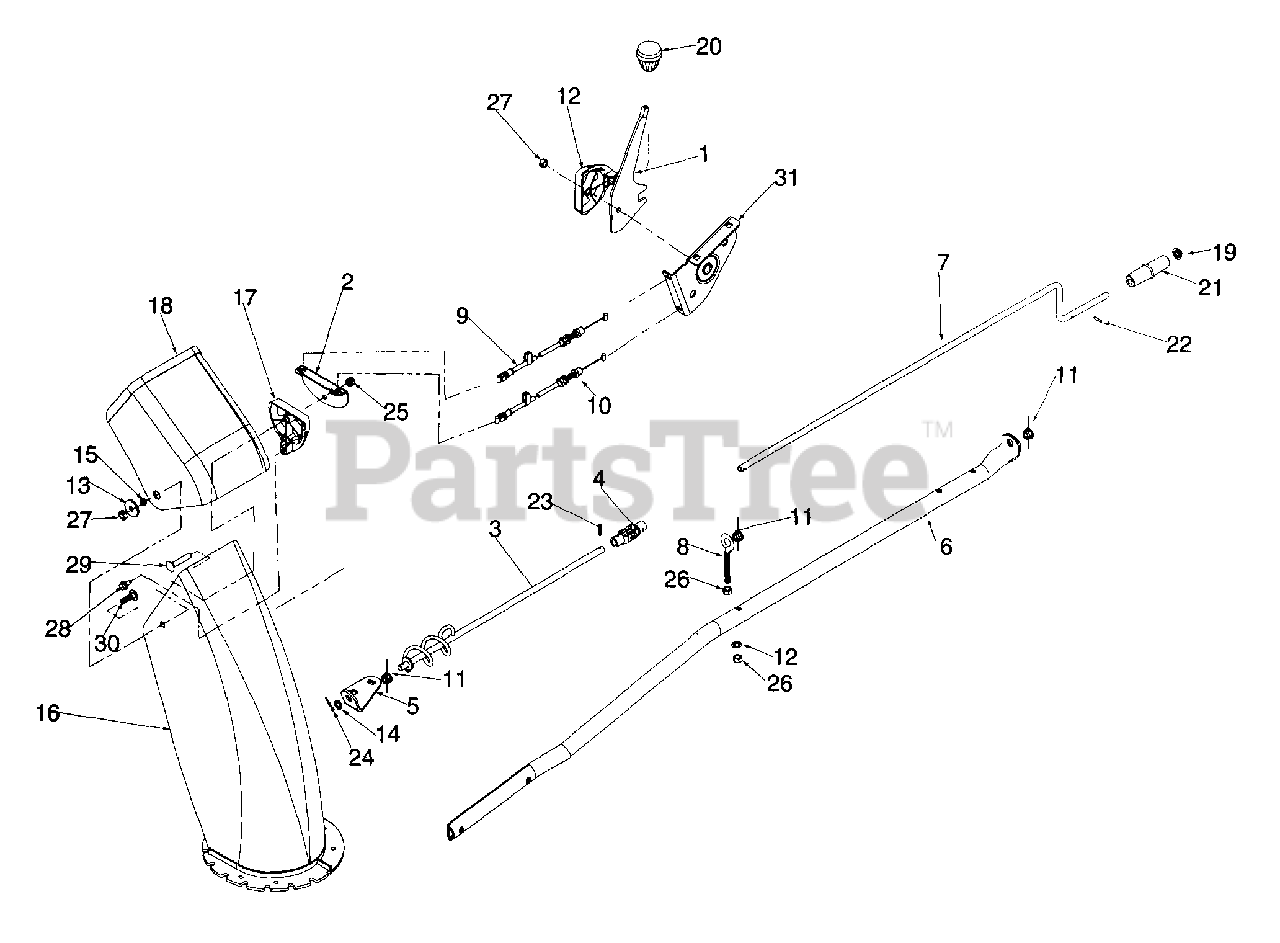

Chute Parts Diagram

  • Title

1

White Outdoor 784-5604

HNDL:TILT:CHUTE
(Superseded to 784-5604A-0637)

Variations

White Outdoor 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

2

White Outdoor 784-5594

CABLE BRACKET

Variations

White Outdoor 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

White Outdoor 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

White Outdoor 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

3

White Outdoor 784-5401

CHUTE CRANK ASSY 18.0 LG - RH
(Superseded to 784-5401A)

$

$

Not available

4

White Outdoor 784-5149

BLOCK ASS:JOINT
(Superseded to 684-04350)

$26.99

$

In Stock, only 4 left!

0

5

White Outdoor 784-5123

CHUTE CRANK BRACKET
(Superseded to 784-5123-0637)

Variations

White Outdoor 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0

6

White Outdoor 749-3072

TUBE:SUPT:CRANK

Variations

White Outdoor 749-3072-0637

No Longer Available TUBE-CRANK SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 747-0931

ROD:CRK:CHUT .380 DIA X 28.0 LG
(Superseded to 747-0931A)

$24.99

$

In Stock, only 2 left!

0

8

White Outdoor 747-0481A

EYE BOLT 5/16-18 X 3.0 LG

$

$

Not available

9

White Outdoor 746-0903

CBL:CHUTE:W/CULP, 66 LG
(Superseded to 946-0903)

$49.99

$

In Stock, only 1 left!

0

10

White Outdoor 746-0902

CBL:CHUTE 66 LG
(Superseded to 946-0902)

$45.99

$

Usually ships in 3-6 days

0

11

White Outdoor 741-0475

PLASTIC BUSHING .380 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 736-0242

WASH:BELVL:.340 ID X .872 OD

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 736-0231

WASH:FL:.344 ID:1.125 OD:.12

$4.49

$

In Stock, only 4 left!

0

14

White Outdoor 736-0140

FL-WASH .385 ID X .62 OD X .06

$6.99

$

In Stock, Qty 9

0

15

White Outdoor 731-1319

SPCR:CHUT:PIVOT
(Superseded to 931-1319)

$

$

Not available

16

White Outdoor 731-1318

CHUT:LWR:EXTENDED 6" DIA
(Superseded to 731-0903E)

$40.99

$

In Stock, Qty 14

0

17

White Outdoor 731-1313B

GDE:CBL:CHUTE TILT
(Superseded to 731-1313C)

$11.99

$

Usually ships in 3-6 days

0

18

White Outdoor 731-0849

6" DIA UPPER CHUTE
(Superseded to 731-0846C)

$48.99

$

In Stock, only 1 left!

0

19

White Outdoor 726-0100

CAP:PUSH X 3/8 ROD

$3.99

$

In Stock, Qty 7

0

20

White Outdoor 720-0232

KNOB:SHFT:1.60 OD X 1.56
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

21

White Outdoor 720-0201A

KNOB:CRK:1.00 DIA X 3.2 CHUTE

$10.99

$

In Stock, Qty 6

0

22

White Outdoor 715-0138

PIN:ROLL:1/8 OD:.63
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

23

White Outdoor 715-0129

SPIROL PIN - 1/8 DIA X .812 LN

$4.49

$

In Stock, only 1 left!

0

24

White Outdoor 714-0507

PIN:COT:3/32 X .750

$4.49

$

In Stock, only 4 left!

0

25

White Outdoor 712-0429

NUT:HX:5/16-18:GRC:LOCK

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 712-0267

NUT:5/16-18:GRA:HX
(Superseded to 912-3010)

$

$

Not available

27

White Outdoor 712-0158

NUT:LOCK:5/16-18:CEN
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

28

White Outdoor 710-0896

SCR:1/4-14:.625:HXINDWSH

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 710-0458

CARRIAGE BOLT 5/16-18 X 1.75

$4.49

$

In Stock, only 4 left!

0

30

White Outdoor 710-0276

SCR:CARR:5/16-18:1.00

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 603-0302

ASM:CHUTE TILT BRKT
(Superseded to 603-0302A-0637)

Variations

White Outdoor 603-0302-0637

Chute Tilt Bracket - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

White Outdoor 603-0302-0716

Chute Tilt Bracket - CUB YELLOW-99 (0716)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0
