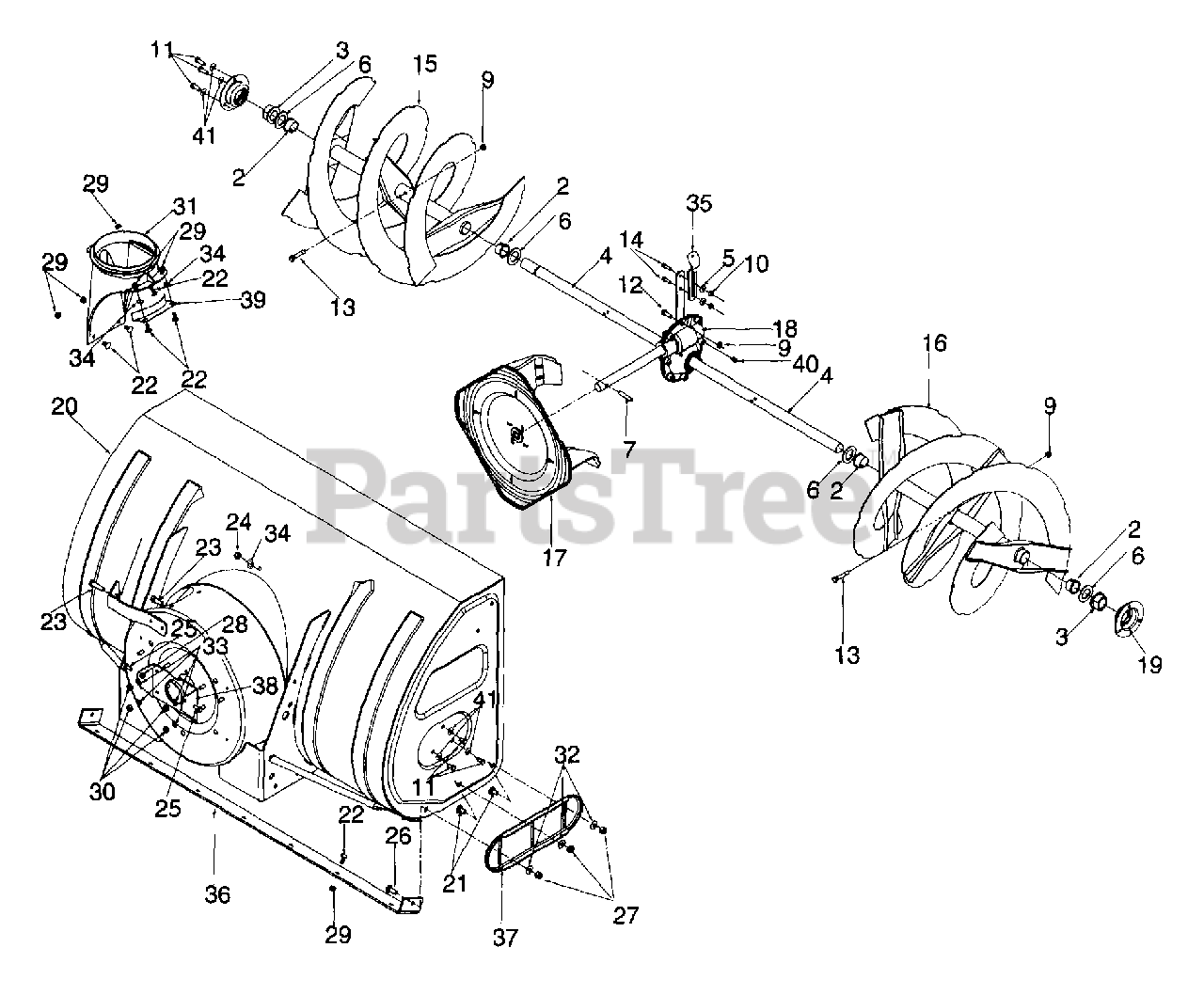

190-624-000 - White Outdoor 45" Snow Thrower Attachment (1998) Blower Assembly Parts Diagram

45" Snow Thrower Attachment

Blower Assembly Parts Diagram

  • Title

1

MTD 784-5710-0637

Pit:Supt.

$7.99

$

Usually ships in 3-6 days

0

2

MTD 741-0494

Bush:Fig:1.05 I.D. x 1.16 O.D.

$3.99

$

In Stock, only 4 left!

0

3

MTD 941-0170

Brg:Flg:w/Flats

$17.99

$

In Stock, only 2 left!

0

4

MTD 738-0492

Spiral Axle 1.00 X 44.12

$196.99

$

Usually ships in 3-6 days

0

5

MTD 736-0270

Wash: Bell:.265 x .75 x .062

$3.99

$

In Stock, Qty 14

0

6

MTD 736-0250

Fl. 1.00 1.D. x 1.75 O.D. X .1

$4.49

$

In Stock, Qty 12

0

7

MTD 915-0118

Spring Pin Spir 5/16 Dia. X 1.7
(Superseded to 715-0118)

$

$

Not available

9

MTD 912-0429

Hx. Nut:: 5/16-18:Gr.C:Lock
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

10

MTD 912-0138

Hx. Nut:1/4-28:Gr.A
(Superseded to 712-0138)

$

$

Not available

11

MTD 710-0604A

Scr. TT Hx Ind Wash 5/16-18:.625 Lg

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-3038

HHCS:5/16-18:.875:Gr.5:Std.

$4.49

$

In Stock, Qty 5

0

13

MTD 710-0891

Shear Bolt 5/16 - 18 x 1-3/4

$6.99

$

In Stock, Qty 20+

0

14

MTD 710-0412

HHCS:1/4-28:.75:Gr.5:Std.

$5.49

$

In Stock, Qty 9

0

15

MTD 684-04197

Sprl. Asm:LH:16"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04197-0716

Spiral Assembly, LH 45" - CUB YELLOW-99 (0716)

$271.99

$

Usually ships in 3-6 days

0

MTD 684-04197-0637

SPIRAL ASM-LH 45" - POWDER BLACK (0637)

$271.99

$

Usually ships in 3-6 days

0

MTD 684-04197-0650

SPIRAL ASM-LH 45" - RED METALLIC (0650)

$271.99

$

Usually ships in 3-6 days

0

MTD 684-04197-0662

SPIRAL ASM-LH 45" - OYSTER GRAY (0662)

$271.99

$

Usually ships in 3-6 days

0

$219.99

$

Usually ships in 3-6 days

0

16

MTD 684-0072

Sprl. Asm: RH
(Superseded to 684-04196-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0072-0637

SPIRAL ASM-RH 45" - POWDER BLACK (0637)

$271.99

$

Usually ships in 3-6 days

0

MTD 684-0072-0650

SPIRAL ASM-RH 45" - RED METALLIC (0650)

$271.99

$

Usually ships in 3-6 days

0

MTD 684-0072-0662

SPIRAL ASM-RH 45" - OYSTER GRAY (0662)

$271.99

$

Usually ships in 3-6 days

0

$271.99

$

Usually ships in 3-6 days

0

17

MTD 684-0069

Impeller Ass'y:16"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0069-0498

Impeller Assembly - OLD CUB YELLOW (0498)

$261.99

$

In Stock, only 1 left!

0

MTD 684-0069-0637

Impeller Assembly - POWDER BLACK (0637)

$261.99

$

In Stock, only 1 left!

0

MTD 684-0069-0716

Impeller Assembly - CUB YELLOW-99 (0716)

$261.99

$

In Stock, only 1 left!

0

$243.99

$

Usually ships in 3-6 days

0

18

MTD 918-0244

Gear Asm:Auger

$

$

Not available

19

MTD 05845C-0637

Hsg:Brg:1.50 DBL-T

$22.99

$

In Stock, only 2 left!

0

20

MTD 684-0068B

Hsg Asm:Spr L:45"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0068B-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0068B-0716

"No Longer Available HOUSING-45"" BLOWER" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

21

MTD 710-0389

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 10

0

22

MTD 710-0451

Bolt:Car:5/16-18:.75

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0520

HHCS:3/8-16:1.50:Gr.5:Std.

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0726

Scr:AB:5/16-12:0:.750: Hx Ind Wsh

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-3015

HHCS:1/4-20:.75: Gr.5: Std.

$3.99

$

In Stock, Qty 20+

0

26

MTD 710-3168

Bolt:Carr:3/8-16

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-0130

Nut: Hx.:3/8-16:Gr.C:Lock

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0324

Nut:Hx: 1/4-20:Gr.C:Lock

$3.49

$

In Stock, Qty 20+

0

29

MTD 912-0429

Nut:Hx: 5/16-18:Gr.C:Lock
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

30

MTD 912-3010

Hx. Nut: 5/16-18:Gr.B
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 731-1696B

Chute: Adap:6" Dia.

$84.99

$

In Stock, only 2 left!

0

32

MTD 736-0105

Wash:Spr:.401 x .870 x .063

$3.99

$

In Stock, Qty 20+

0

33

MTD 936-0119

Wash:Lock: 5/16:Regular Duty

$4.49

$

In Stock, Qty 20+

0

34

MTD 736-0242

Wash: Belvl:.340 I.D. x .872 O.D.

$3.99

$

In Stock, Qty 20+

0

35

MTD 784-5076-0637

Gear Housg.Supp.Brkt

$43.99

$

Usually ships in 3-6 days

0

36

MTD 790-00280-0637

Pit: Shave

$57.99

$

In Stock, only 1 left!

0

37

MTD 784-5697

Shoe:Skid

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$42.99

$

In Stock, only 2 left!

0

MTD 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$42.99

$

In Stock, Qty 7

0

MTD 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$42.99

$

In Stock, only 2 left!

0

MTD 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$42.99

$

Usually ships in 3-6 days

0

MTD 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$42.99

$

In Stock, only 2 left!

0

MTD 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$42.99

$

In Stock, only 2 left!

0

MTD 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$42.99

$

Usually ships in 3-6 days

0

MTD 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

MTD 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$42.99

$

In Stock, only 2 left!

0

MTD 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$42.99

$

In Stock, only 2 left!

0

$42.99

$

Usually ships in 3-6 days

0

38

MTD 784-5703-0637

Brkt:Mt: Brg.

$44.99

$

Usually ships in 3-6 days

0

39

MTD 784-5711-0637

Brkt:Chut:6.0

$

$

Not available

40

MTD 914-0135

Woodruff Key 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

41

MTD 736-0242

Wash. Bell .340 I.D. x .872 O.D.

$3.99

$

In Stock, Qty 20+

0
