190-624-000 - White Outdoor 45" Snow Thrower Attachment (1998) Carriage Assembly Parts Diagram

45" Snow Thrower Attachment

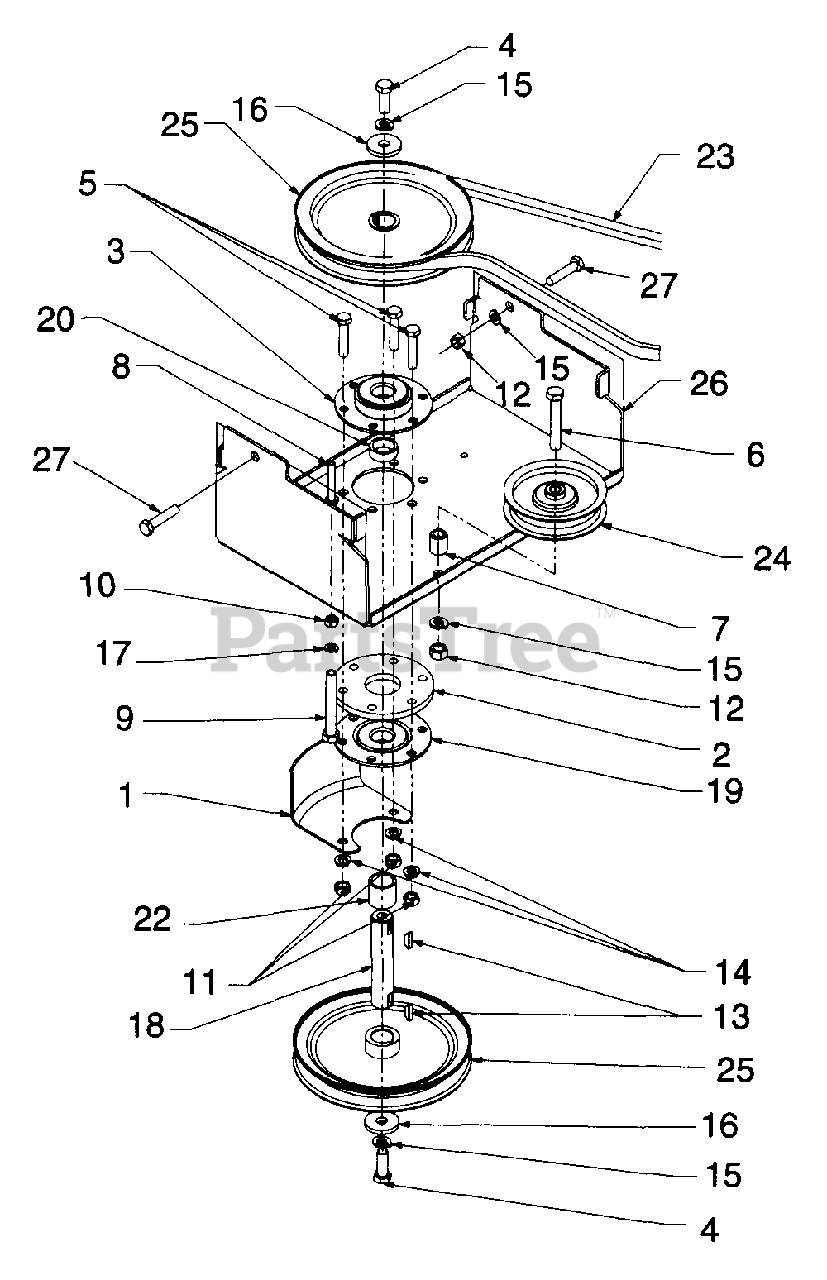

Carriage Assembly Parts Diagram

  • Title

1

MTD 05406-0637

Belt Guard

$

$

Not available

2

MTD 14088B-0637

Plt:Spdl:Spcr.

$27.99

$

Usually ships in 3-6 days

0

3

MTD 15297A

Open Brg. Housing 1.85

$64.99

$

Usually ships in 3-6 days

0

4

MTD 710-0591

HHCS:3/8-24:1.00:Gr.5:Lock

$4.49

$

In Stock, only 1 left!

0

5

MTD 710-0624

HHCS:5/16-24:1.50:Gr.5:Std.

$5.49

$

Usually ships in 3-6 days

0

6

MTD 710-3011

HHCS:3/8-16:2.25:Gr.5:Std.

$6.49

$

In Stock, Qty 20+

0

7

MTD 711-0396

Spcr:.385 x .623 x .750 Lg.

$10.99

$

Usually ships in 3-6 days

0

8

MTD 911-0747

Pin:Gde:.250 Dia. x 1.68 Lg.

$9.49

$

Usually ships in 3-6 days

0

9

MTD 711-0793

Pin:Clevis:.375 Dia. x 2.63 Lg.

Note: NLA

$

$

Not available

10

MTD 912-0107

Nut:Lock:1/4-20

$4.49

$

In Stock, only 1 left!

0

11

MTD 912-3057

Hx. Nut:5/16-24:Gr.A:

$6.49

$

In Stock, Qty 13

0

12

MTD 712-0798

Hx. Nut:3/8-16:Gr. A

$3.99

$

Usually ships in 3-6 days

0

13

MTD 914-0161

Key:Hi-Pro 3/16 X 5/8

$4.49

$

In Stock, Qty 12

0

14

MTD 936-0119

Wash:Lock: 5/16:Regular Duty

$4.49

$

In Stock, Qty 20+

0

15

MTD 936-0169

Wash:Lock:3/8:Regular Duty
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

16

MTD 736-0247

Flat Washer .406 I.D. x 1 1/4 O.D.

$8.99

$

In Stock, Qty 20+

0

17

MTD 936-0329

Wash:Lock:1/4:Regular Duty

$4.49

$

In Stock, Qty 13

0

18

MTD 938-0680

Shaft- .787 Dia. x 3.81 Lg.

$95.99

$

Usually ships in 3-6 days

0

19

MTD 741-0163A

Hsg. Asm.:Bearing

$45.99

$

Usually ships in 3-6 days

0

20

MTD 950-0456

Spacer .790 I.D. x.347 Lg.
(Superseded to 750-0456)

$3.99

$

In Stock, Qty 20+

0

22

MTD 750-0660

Spacer .80 I.D. x 1.00 O.D. x .900

Note: NLA

$

$

Not available

23

MTD 954-0229

Belt: V: 1/2 x 52.00 Lg.

$59.99

$

Usually ships in 3-6 days

0

24

MTD 756-0405

Fl-Idler w/ Flanges 3.75 O.D.

$66.99

$

Usually ships in 3-6 days

0

25

MTD 956-0438

Pulley:V Typ:6.50 O.D.

$77.99

$

Usually ships in 3-6 days

0

26

MTD 784-5146-0637

Brkt: Carriage

$

$

Not available

27

MTD 710-0514

HHCS. 3/8-16:1.00 Gr.5

$3.99

$

In Stock, Qty 20+

0
