190-624-000 - White Outdoor 45" Snow Thrower Attachment (1998) Hardware Pack Parts Diagram

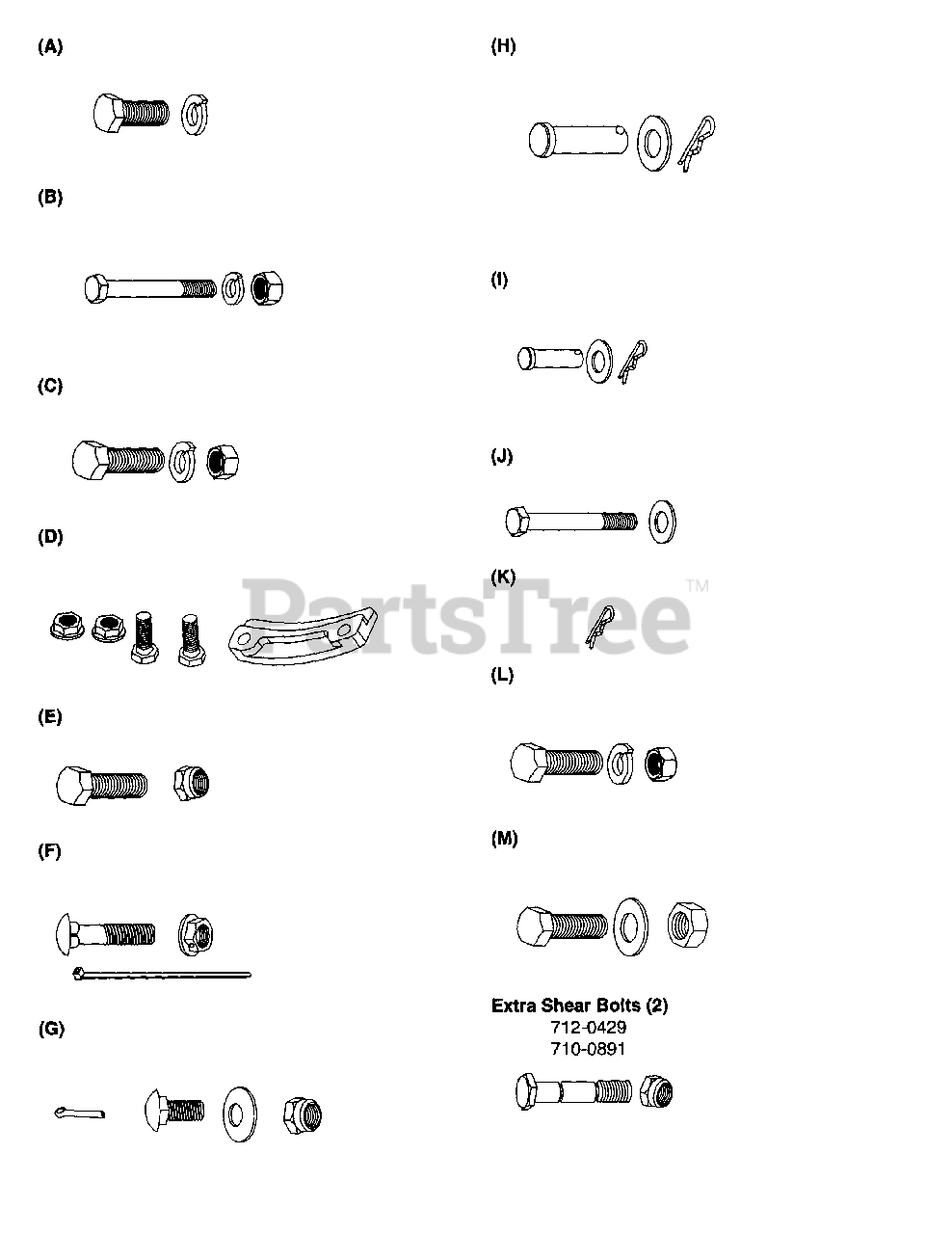

45" Snow Thrower Attachment

Hardware Pack Parts Diagram

  • Title

A

MTD 710-0514

Hex Bolts 3/8-16:1.00" Lg.

Note: Attaching front frame ass'y and auger housing.

$3.99

$

In Stock, Qty 20+

0

A

MTD 936-0169

Lock washer 3/8 I.D.
(Superseded to 736-0169)

Note: Attaching front frame ass'y and auger housing.

$3.49

$

In Stock, Qty 20+

0

B

MTD 710-0786

Hex Cap Screw 1/2-13:4.00" Lg.

Note: Attaching rear frame rails and front frame ass'y.

$15.99

$

Usually ships in 3-6 days

0

B

MTD 936-0921

Lock Washer 1/2 I.D.
(Superseded to 736-0921)

Note: Attaching rear frame rails and front frame ass'y.

$4.49

$

In Stock, Qty 20+

0

B

MTD 912-0206

Hex Nut 1/2-13 Thd.
(Superseded to 712-0206)

Note: Attaching rear frame rails and front frame ass'y.

$3.99

$

In Stock, Qty 20+

0

B

MTD 984-5199

Bracket (Lift plate)

Note: (Not Pictured). Attaching rear frame rails and front frame ass'y.

$

$

Not available

C

MTD 710-0514

Hex Bolt 3/8-16 x 1" Lg.

Note: Attaching the carriage assembly.

$3.99

$

In Stock, Qty 20+

0

C

MTD 936-0169

Lock Washer 3/8 I.D.
(Superseded to 736-0169)

Note: Attaching the carriage assembly.

$3.49

$

In Stock, Qty 20+

0

C

MTD 912-3017

Hex Nuts 3/8-16 Thd.
(Superseded to 712-3017)

Note: Attaching the carriage assembly.

$3.99

$

In Stock, Qty 20+

0

D

MTD 731-0851A

Chute Flange Keepers

Note: Attaching the chute assembly.

$3.99

$

In Stock, Qty 20+

0

D

MTD 710-3015

Hex Bolt 1/4-20:.75" Lg.

Note: Attaching the chute assembly.

$3.99

$

In Stock, Qty 20+

0

D

MTD 912-3027

Hex Flange Nut 1/4-20 Thd.

Note: Attaching the chute assembly.

$3.99

$

In Stock, Qty 20+

0

E

MTD 712-0130

Hex Nut 3/8-16 Thd.

Note: Attaching the chute crank support tube.

$3.99

$

In Stock, Qty 20+

0

E

MTD 710-0520

Hex Bolt 3/8-16: 1.50 Lg.

Note: Attaching the chute crank support tube.

$4.49

$

In Stock, Qty 20+

0

F

MTD 710-0262

Carriage bolt 5/16-18: 1.5" Lg.

Note: Attaching the chute tilt handle.

$3.99

$

In Stock, Qty 14

0

F

MTD 712-3004A

Hex Flg. Lock Nut 5/16-18 Thd.

Note: Attaching the chute tilt handle.

$3.49

$

In Stock, Qty 20+

0

F

MTD 725-0157

Cable tie 3/16 x .05 x 7.4" Lg.

Note: Attaching the chute tilt handle.

$3.49

$

In Stock, only 4 left!

0

G

MTD 914-0507

Cotter pin 3/32 x .75" Lg.

Note: Attaching the chute crank.

$4.49

$

In Stock, Qty 19

0

G

MTD 710-0451

Carriage Bolt 5/16-18:.75 Lg.

Note: Attaching the chute crank.

$3.99

$

In Stock, Qty 20+

0

G

MTD 736-0242

Bell Washer .340 I.D x .872 O.D.

Note: Attaching the chute crank.

$3.99

$

In Stock, Qty 20+

0

G

MTD 912-0429

Lock Nut, Nylon 5/16-18 Thd.
(Superseded to 712-0429)

Note: Attaching the chute crank.

$3.99

$

In Stock, Qty 20+

0

H

MTD 911-0231

Clevis pin 1/2 x 1.59" Lg.
(Superseded to 711-0231A)

Note: Attaching the rear frame sections to the rear hanger brackets. Attaching bracket to snow thrower attachment frame.

$5.99

$

In Stock, Qty 6

0

H

MTD 936-0272

Flat Washer 1/2 I.D.
(Superseded to 736-0272)

Note: Attaching the rear frame sections to the rear hanger brackets. Attaching bracket to snow thrower attachment frame.

$4.49

$

In Stock, Qty 20+

0

H

MTD 914-0101

Hair Pin .08 x 1.42" Lg.
(Superseded to 714-0101)

Note: Attaching the rear frame sections to the rear hanger brackets. Attaching bracket to snow thrower attachment frame.

$

$

Not available

I

MTD 911-0332

Clevis Pin .50 Dia. x .78" Lg.

Note: Attaching the adjustable lift links to the brackets.

$14.99

$

In Stock, Qty 20+

0

I

MTD 936-0272

Flat Washer 1/2" I.D.
(Superseded to 736-0272)

Note: Attaching the adjustable lift links to the brackets.

$4.49

$

In Stock, Qty 20+

0

I

MTD 914-0101

Hair Pin .08 x 1.42" Lg.
(Superseded to 714-0101)

Note: Attaching the adjustable lift links to the brackets.

$

$

Not available

J

MTD 710-0959

Hex Bolt 5/16-18:1.50" Lg.

Note: Attaching helper springs.

$7.49

$

Usually ships in 3-6 days

0

J

MTD 736-0242

Bell Washer .340 I.D. x .872 O.D.

Note: Attaching helper springs.

$3.99

$

In Stock, Qty 20+

0

K

MTD 714-0147

Hair Pin .125 x 1.75 Lg.

Note: Attaching the Guide Bracket

$4.49

$

In Stock, Qty 12

0

L

MTD 710-0514

Hex bolt 3/8-16: 1.00 Lg.

Note: Attaching The Rear Hanger Brackets To Tractor Frame.

$3.99

$

In Stock, Qty 20+

0

L

MTD 936-0169

Lock washer 3/8 I.D.
(Superseded to 736-0169)

Note: Attaching The Rear Hanger Brackets To Tractor Frame.

$3.49

$

In Stock, Qty 20+

0

L

MTD 912-3017

Hex nut 3/8-16 Thd.
(Superseded to 712-3017)

Note: Attaching The Rear Hanger Brackets To Tractor Frame.

$3.99

$

In Stock, Qty 20+

0

M

MTD 710-0959

Hex Bolts 5/16-18:1.50 Lg.

Note: Attaching Helper Springs To Tractor

$7.49

$

Usually ships in 3-6 days

0

M

MTD 936-0231

Flat Washer .344 I.D.x 1.125 O.D.
(Superseded to 736-0231)

Note: Attaching Helper Springs To Tractor

$

$

Not available

M

MTD 912-3010

Hex Nut 5/16-18 Thd.
(Superseded to 712-3010)

Note: Attaching Helper Springs To Tractor

$4.49

$

In Stock, Qty 20+

0

712-0429

MTD 912-0429

Lock nut, Nylon 5/15-18 Thd.
(Superseded to 712-0429)

Note: Extra Shear Bolts

$3.99

$

In Stock, Qty 20+

0

710-0891

MTD 710-0891

Shear Bolt

Note: Extra Shear Bolts

$6.99

$

In Stock, Qty 20+

0
