190-624-000 - White Outdoor 45" Snow Thrower Attachment (1998) Upper Chute And Chute Controls Parts Diagram

45" Snow Thrower Attachment

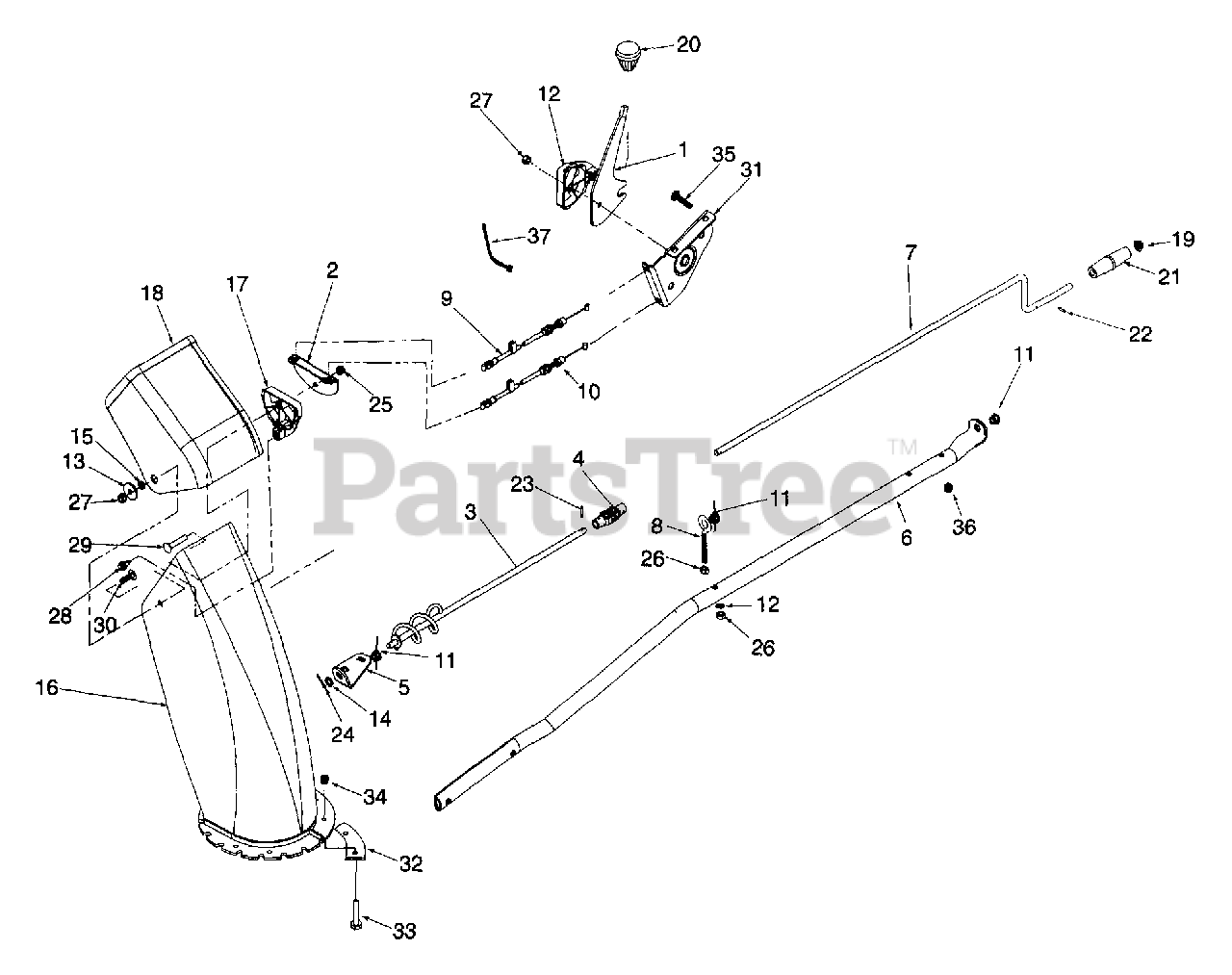

Upper Chute And Chute Controls Parts Diagram

  • Title

1

MTD 784-5604A-0637

Hndl:Tilt:Chute

$23.99

$

Usually ships in 3-6 days

0

2

MTD 784-5594

Cable Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

3

MTD 784-5401A

Chute Crank Assy.18.0 Lg. - RH

$

$

Not available

4

MTD 684-04350

Block Ass'y: Joint

$26.99

$

In Stock, only 4 left!

0

5

MTD 784-5123-0637

Chute Crank Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

$16.99

$

In Stock, only 1 left!

0

6

MTD 749-3072

Tube:Supt:Crank

Note: NLA

Variations

MTD 749-3072-0498

No Longer Available TUBE-CRANK - OLD CUB YELLOW (0498)

$

$

Not available

MTD 749-3072-0637

No Longer Available TUBE-CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 747-0931A

Rod:Crk:Chute .380 Dia. x 28.0 Lg.

$24.99

$

In Stock, only 2 left!

0

8

MTD 747-0481A

Eye Bolt 5/16-18 x 3.0 Lg.

$

$

Not available

9

MTD 946-0903

Cable:Chute:w/Culp, 66 Lg.

$49.99

$

In Stock, only 1 left!

0

10

MTD 946-0902

Cable:Chute 66 Lg.

$45.99

$

Usually ships in 3-6 days

0

11

MTD 941-0475

Plastic Bushing .380 I.D.

$3.99

$

In Stock, Qty 20+

0

12

MTD 736-0242

Wash:Belvl:.340 I.D. x .872 O.D.

$3.99

$

In Stock, Qty 20+

0

13

MTD 936-0231

Wash:Fl:.344 I.D.:1.125 O.D.:.12
(Superseded to 736-0231)

$

$

Not available

14

MTD 936-0140

Fl. Wash .385 I.D. x .62 O.D. x .06
(Superseded to 736-0140)

$

$

Not available

15

MTD 931-1319

Spcr:Chut:Pivot

$

$

Not available

16

MTD 731-0903E

Chut:.:Extended 6" Dia.

$40.99

$

In Stock, Qty 14

0

17

MTD 731-1313C

Gde:Cable:Chute Tilt

$11.99

$

Usually ships in 3-6 days

0

18

MTD 731-0846C

6" Dia. Upper Chute

$48.99

$

In Stock, only 1 left!

0

19

MTD 926-0100

Cap:Push x 3/8 Rod
(Superseded to 726-0100)

$

$

Not available

20

MTD 920-0232

Knob:Shift:1.60 O.D. x 1.56

$9.99

$

In Stock, only 4 left!

0

21

MTD 720-0201A

Knob:Crk:1.00 Dia. x 3.2 Chute

$10.99

$

In Stock, Qty 6

0

22

MTD 915-0138

Pin:Roll:1/8 O.D.:.63

$4.49

$

In Stock, only 1 left!

0

23

MTD 715-0129

Spiral Pin - 1/8 Dia. x .812 Lg.

$4.49

$

In Stock, only 1 left!

0

24

MTD 914-0507

Pin:Cot: 3/32 x .750

$4.49

$

In Stock, Qty 19

0

25

MTD 912-0429

Nut:Hx.: 5/16-18:Gr.C:Lock
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

26

MTD 912-0267

Hx. Nut:5/16-18:Gr.A:
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 912-0158

Nut:Lock:5/16-18:Cen.

$3.49

$

In Stock, Qty 20+

0

28

MTD 710-0896

Scr:1/4-14:. 625: Hx Ind Wsh

$3.99

$

In Stock, Qty 20+

0

29

MTD 710-0458

Carriage Bolt 5/16-18 X 1.75

$4.49

$

In Stock, only 4 left!

0

30

MTD 710-0276

Scr:Carr:5/16-18:1.00

$3.99

$

In Stock, Qty 20+

0

31

MTD 603-0302-0637

Asm:Chute Tilt Brkt
(Superseded to 603-0302A-0637)

$64.99

$

Usually ships in 3-6 days

0

32

MTD 731-0851A

Chute Flange Keeper

$3.99

$

In Stock, Qty 20+

0

33

MTD 710-3015

Hx. Bolt 1/4-20:.75 Lg.

$3.99

$

In Stock, Qty 20+

0

34

MTD 912-3027

Hx. Flg. Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

35

MTD 710-0262

Carr. Bolt 5/16-18:1.50 Gr.2

$3.99

$

In Stock, Qty 14

0

36

MTD 712-3004A

Nut-Lock 5/16-18 Gr.5

$3.49

$

In Stock, Qty 20+

0

37

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0
