190-627-000 - White Outdoor 42" 2-Stage Snow Thrower Attachment (2001) Main Assembly Parts Diagram

42" 2-Stage Snow Thrower Attachment

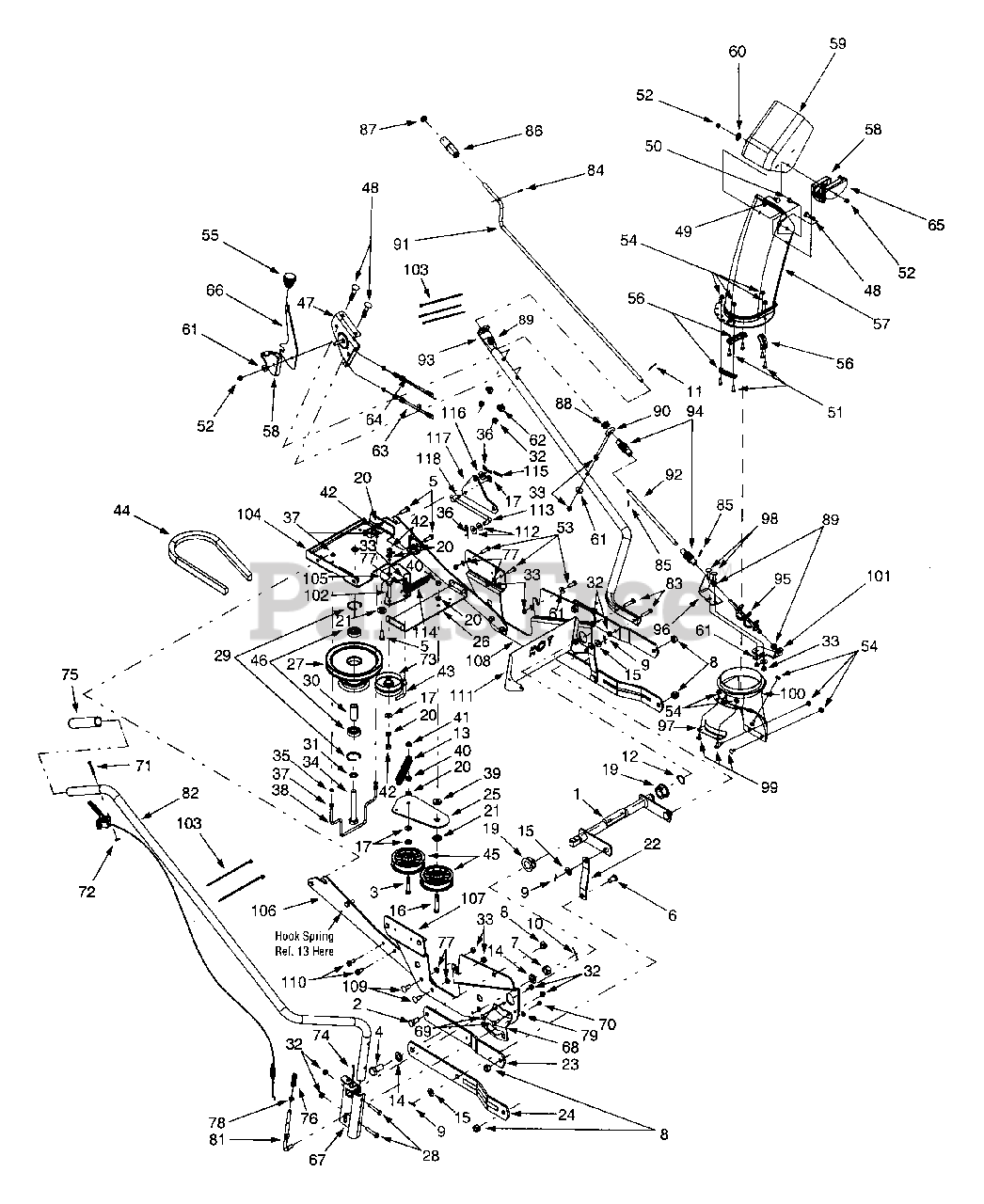

Main Assembly Parts Diagram

  • Title

1

MTD 611-0132A-0637

Rod Assembly

$328.99

$

Usually ships in 3-6 days

0

2

MTD 710-3131

Hex Cap Screw, 1/2-13 x 1.0

$4.99

$

In Stock, only 1 left!

0

3

MTD 710-0151

Hex Cap Screw, 3/8-24 x 2.0

$6.99

$

In Stock, Qty 5

0

4

MTD 710-0964A

Hex Cap Screw, 5/8-18 x 1.31

$10.99

$

Usually ships in 3-6 days

0

5

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

6

MTD 911-0332

Clevis Pin, .5 x .78

$14.99

$

In Stock, Qty 20+

0

7

MTD 712-0386A

Slotted Hex Nut, 5/8-18

$7.49

$

Usually ships in 3-6 days

0

8

MTD 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

9

MTD 914-0474

Cotter Pin, .125 x .75
(Superseded to 714-0474)

$

$

Not available

10

MTD 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

11

MTD 914-0507

Cotter Pin

$4.49

$

In Stock, Qty 19

0

12

MTD 916-0102

Snap Ring
(Superseded to 716-0102)

$4.99

$

In Stock, Qty 20+

0

13

MTD 932-0262

Extension Spring

$20.99

$

Usually ships in 3-6 days

0

14

MTD 736-0366

Flat Washer, .64 x 1.12 x .125

$4.49

$

In Stock, Qty 14

0

15

MTD 936-0272

Flat Washer, .51 x 1.0 x .060
(Superseded to 736-0272)

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0331

Hex Cap Screw, 3/8-24 x 2.25

$6.49

$

In Stock, Qty 7

0

17

MTD 756-0300

Flat Washer, .406 x .875 x .059

Note: NLA

$

$

Currently unavailable

18

MTD 738-0234

Shoulder Screw, .5 x .29, 3/8-16

$9.99

$

In Stock, only 4 left!

0

19

MTD 941-0170

Flange Bearing wl Flats

$17.99

$

In Stock, only 2 left!

0

20

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

21

MTD 938-0347

Shoulder Spacer, .625 x .169

$9.49

$

In Stock, Qty 15

0

22

MTD 783-0382-0637

Link, 4.88

$

$

Not available

23

MTD 783-0878B-0637

Link, 13.25

$47.99

$

Usually ships in 3-6 days

0

24

MTD 783-1263-0637

Link, 17.30

$

$

Not available

25

MTD 784-5727-0637

Idler Pivot Arm

$68.99

$

Usually ships in 3-6 days

0

26

MTD 784-5728-0637

Idler Support Bracket

$

$

Not available

27

MTD 756-3080

Double Pulley, 7.0 x 3.5

$

$

Not available

28

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

29

MTD 916-3020

Internal Snap Ring

$4.49

$

In Stock, Qty 20+

0

30

MTD 750-3164

Spacer, .635 x 2.0

$14.99

$

Usually ships in 3-6 days

0

31

MTD 736-0290

Flat Washer, 5/8 x 1.0 x .063

$6.49

$

In Stock, Qty 20+

0

32

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

33

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-3151

Hex Cap Screw, 5/8-18 x 4.25

$18.99

$

In Stock, Qty 20+

0

35

MTD 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 13

0

36

MTD 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

37

MTD 712-3006

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

38

MTD 747-3250

Belt Guard Rod

$

$

Not available

39

MTD 911-0242

Spacer

$3.99

$

In Stock, Qty 14

0

40

MTD 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

41

MTD 912-0116

Nylon Jam Lock Nut, 3/8-24
(Superseded to 712-0116)

$

$

Not available

42

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$3.99

$

In Stock, Qty 20+

0

43

MTD 747-0871

Belt Keeper Rod

$

$

Not available

44

MTD 954-0449

Upper V-belt

$73.99

$

Usually ships in 3-6 days

0

45

MTD 756-0627D

Idler Pulley, 3.5" Diameter

$28.99

$

In Stock, Qty 20+

0

46

MTD 941-0524A

Sealed Ball Bearing, .625 x 1.574 x .470

$21.99

$

In Stock, Qty 20+

0

47

MTD 603-0302-0637

Chute Tilt Bracket Assembly
(Superseded to 603-0302A-0637)

$64.99

$

Usually ships in 3-6 days

0

48

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 14

0

49

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

50

MTD 710-0896

Hex Index Washer Screw, 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

51

MTD 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

52

MTD 912-0429

Nylon Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

53

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 17

0

54

MTD 912-3027

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

55

MTD 920-0232

Knob

$9.99

$

In Stock, only 4 left!

0

56

MTD 731-0851A

Chute Flange Keeper

$3.99

$

In Stock, Qty 20+

0

57

MTD 731-1300E

Lower Chute

$54.99

$

In Stock, Qty 9

0

58

MTD 731-1313C

Chute Tilt Cable Guide

$11.99

$

Usually ships in 3-6 days

0

59

MTD 731-04427A

Upper Chute
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

60

MTD 936-0231

Flat Washer, .344 x 1.125 x .125
(Superseded to 736-0231)

$

$

Not available

61

MTD 736-0242

Bell Washer, .34 x .872

$3.99

$

In Stock, Qty 20+

0

62

MTD 936-0451

Saddle Washer, .32 x .93
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

63

MTD 946-0929

Chute Cable w/ Clip, 54.5"

$

$

Not available

64

MTD 746-0928

Chute Cable, 54.5"

$70.99

$

Usually ships in 3-6 days

0

65

MTD 784-5594

Cable Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

66

MTD 784-5604A-0637

Chute Tilt Handle

$23.99

$

Usually ships in 3-6 days

0

67

MTD 683-0298

Lift Bracket Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0298-0637

BRACKET ASM-LIFT - POWDER BLACK (0637)

$

$

Not available

MTD 683-0298-0716

BRACKET ASSY LIFT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

68

MTD 703-2728A

Snow Thrower Lift Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2728A-0637

Lift Latch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

69

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

70

MTD 710-1268

Hex Index Washer Screw #10-16 x .375

$3.99

$

In Stock, only 2 left!

0

71

MTD 710-3143

Pan Phillips Screw, #10-24 x .75

$10.99

$

Usually ships in 3-6 days

0

72

MTD 712-0127

Flat Weld Nut, #10-24

$3.49

$

In Stock, Qty 13

0

73

MTD 756-0218

Flat Idler Pulley, 3.25

$34.99

$

Usually ships in 3-6 days

0

74

MTD 915-0114

Heavy Duty Spirol Pin, 1/4 x 1.5
(Superseded to 715-0114)

$8.49

$

In Stock, Qty 9

0

75

MTD 720-0274

Handle Grip

$10.99

$

In Stock, Qty 6

0

76

MTD 932-0306A

Compression Spring, .406 x .531 x 1.75

$7.99

$

In Stock, Qty 20+

0

77

MTD 936-0119

Lock Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

78

MTD 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

79

MTD 936-0400

Flat Washer, .194 x .62 x .063
(Superseded to 736-0400)

$

$

Not available

?80

MTD 946-3060B

Lift Cable, 42" w/ Trigger Control

$

$

Not available

81

MTD 747-1203

Lift Index Rod

$51.99

$

In Stock, only 4 left!

0

82

MTD 750-1028A

Lift Handle Tube

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 750-1028A-0637

TUBE-LIFT HANDLE - POWDER BLACK (0637)

$

$

Not available

MTD 750-1028A-0716

No Longer Available TUBE-LIFT HANDLE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

83

MTD 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

84

MTD 915-0138

Rolled Pin, 1/8 x .63

$4.49

$

In Stock, only 1 left!

0

85

MTD 715-0129

Spirol Pin, .125 x .82

$4.49

$

In Stock, only 1 left!

0

86

MTD 720-0201A

Crank Knob

$10.99

$

In Stock, Qty 6

0

87

MTD 926-0100

Push Cap, 3/8 ID
(Superseded to 726-0100)

$

$

Not available

88

MTD 735-0234

Rubber Grommet, .44 x .94 x.5

$4.99

$

In Stock, only 3 left!

0

89

MTD 941-0475

Plastic Bushing

$3.99

$

In Stock, Qty 20+

0

90

MTD 747-0697

Eye Bolt

$7.99

$

In Stock, only 1 left!

0

91

MTD 747-0931A

Chute Crank Rod, .38 x 28

$24.99

$

In Stock, only 2 left!

0

92

MTD 747-0932

Rod, .375 x 11.375

$

$

Not available

93

MTD 750-1054

Support Chute Tube

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 750-1054-0716

TUBE-CHUTE SUPPORT - CUB YELLOW-99 (0716)

$108.99

$

In Stock, only 1 left!

0

MTD 750-1054-0637

TUBE-CHUTE SUPPORT - POWDER BLACK (0637)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

94

MTD 684-04350

Joint Block Assembly

$26.99

$

In Stock, only 4 left!

0

95

MTD 684-0061A

Chute Crank Assembly

$38.99

$

Usually ships in 3-6 days

0

96

MTD 703-2735A

Chute Crank Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2735A-0716

BRACKET-CHUTE - CUB YELLOW-99 (0716)

$16.99

$

Usually ships in 3-6 days

0

MTD 703-2735A-0498

BRACKET-CHUTE - OLD CUB YELLOW (0498)

$18.99

$

Usually ships in 3-6 days

0

MTD 703-2735A-0637

BRACKET-CHUTE - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

97

MTD 705-5226

Chute Reinforcer

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$9.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$9.99

$

In Stock, Qty 7

0

$9.49

$

Usually ships in 3-6 days

0

98

MTD 710-0276

Splined Carriage Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

99

MTD 710-0167

Carriage Screw, 1/4-20 x .5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

100

MTD 731-1379D

Adapter Chute

$61.99

$

In Stock, only 1 left!

0

101

MTD 784-5647-0637

Chute Crank Bracket

$13.99

$

In Stock, Qty 8

0

102

MTD 710-3144

Hex Cap Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

103

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

104

MTD 683-0133

Pulley Mounting Bracket Assembly

Note: NLA

Variations

MTD 683-0133-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

105

MTD 783-0358A

Idler Bracket

Note: NLA

Variations

MTD 783-0358A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

106

MTD 783-0362A-0637

Mounting Strap Hanger Bracket

$

$

Not available

107

MTD 783-0372-0637

RH Side Plate

$

$

Not available

108

MTD 783-0373-0637

LH Side Plate

$

$

Not available

109

MTD 710-3168

Carriage Bolt, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

110

MTD 710-0650

Self-tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

111

MTD 783-1274B

Heat Shield

$

$

Not available

112

MTD 936-0101

Flat Washer, .406 x 1.0 x .030

$4.49

$

Usually ships in 3-6 days

0

113

MTD 747-0533A

Clutch Adjustment Control Rod

$

$

Not available

114

MTD 732-0626

Extension Spring, .75 x 5.06

$11.99

$

In Stock, only 4 left!

0

115

MTD 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

116

MTD 736-3019

Flat Washer, .531 x 1.062 x .134

$5.49

$

In Stock, Qty 19

0

117

MTD 783-0359-0637

Idler Engagement Bracket

$46.99

$

Usually ships in 3-6 days

0

118

MTD 911-0198

Ferrule, 3/8-24 x .375

$12.99

$

In Stock, Qty 20+

0
