190-627-000 - White Outdoor 42" 2-Stage Snow Thrower Attachment (2003) Main Assembly Parts Diagram

42" 2-Stage Snow Thrower Attachment

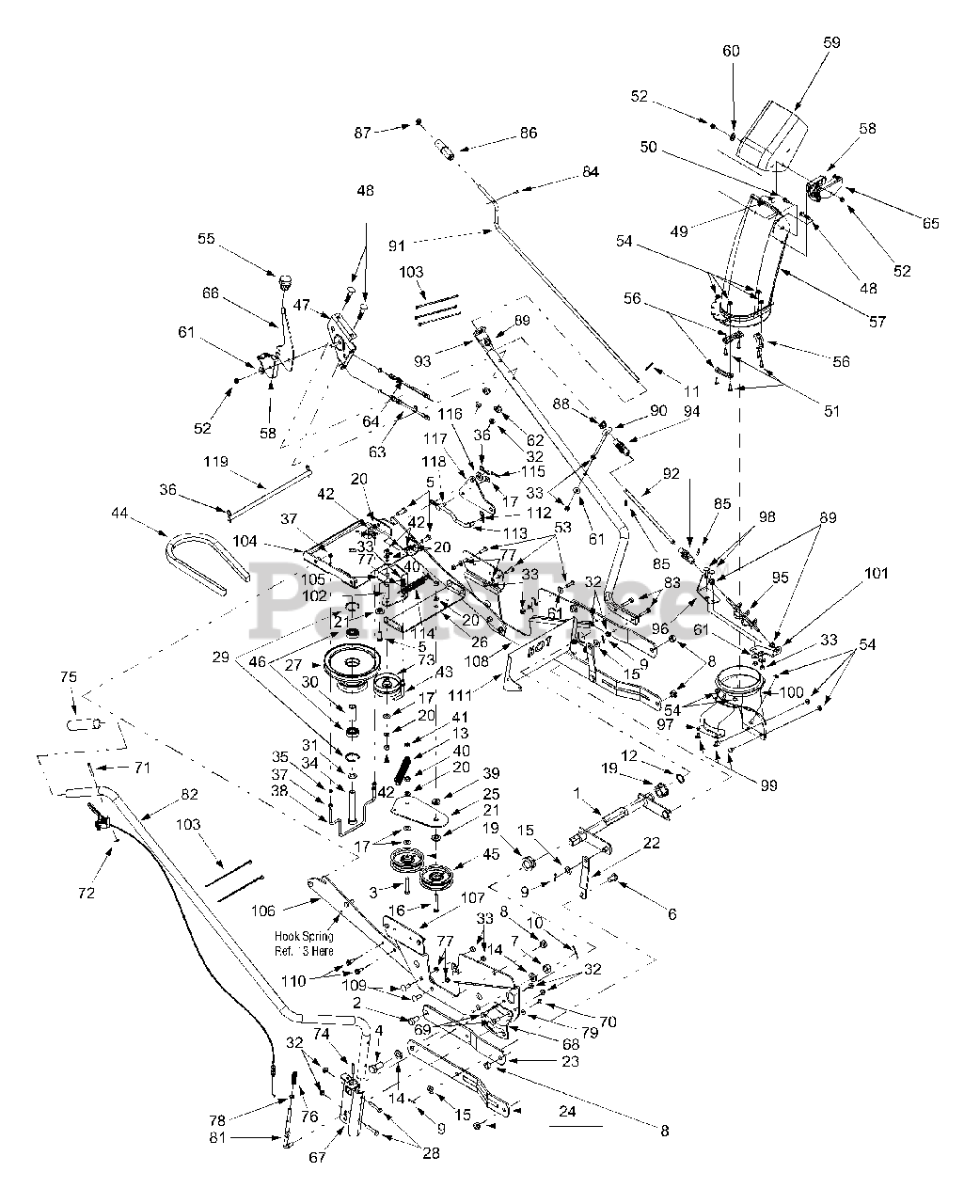

Main Assembly Parts Diagram

  • Title

1

White Outdoor 611-0132

Rod Assembly
(Superseded to 611-0132A-0637)

Variations

White Outdoor 611-0132-0637

ROD ASSEMBLY 1.00 X 14.0 - POWDER BLACK (0637)

$328.99

$

Usually ships in 3-6 days

0

$328.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-3131

Hex Cap Screw, 1/2-13 x 1.0

$4.99

$

In Stock, only 1 left!

0

3

White Outdoor 710-0151

Hex Cap Screw, 3/8-24 x 2.0

$6.99

$

In Stock, Qty 5

0

4

White Outdoor 710-0964A

Hex Cap Screw, 5/8-18 x 1.31

$10.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-0386A

Slotted Hex Nut, 5/8-18

$7.49

$

Usually ships in 3-6 days

0

8

White Outdoor 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 714-0474

Cotter Pin, .125 x .75

$4.49

$

In Stock, Qty 16

0

10

White Outdoor 714-0470

Cotter Pin, 1/8 x 1.25

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 714-0507

Cotter Pin

$4.49

$

In Stock, only 4 left!

0

12

White Outdoor 716-0102

Snap Ring

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 732-0262

Extension Spring
(Superseded to 932-0262)

$20.99

$

Usually ships in 3-6 days

0

14

White Outdoor 736-0366

Flat Washer, .64 x 1.12 x .125

$4.49

$

In Stock, Qty 14

0

15

White Outdoor 736-0272

Flat Washer, .51 x 1.0 x .060

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 710-0331

Hex Cap Screw, 3/8-24 x 2.25

$6.49

$

In Stock, Qty 7

0

17

756-0300

Flat Washer, .406 x .875 x .059

$

$

Not available

?18

White Outdoor 738-0234

Shoulder Screw, .5 x .29, 3/8-16

$9.99

$

In Stock, only 4 left!

0

19

White Outdoor 741-0170

Flange Bearing w/ Flats
(Superseded to 941-0170)

$17.99

$

In Stock, only 2 left!

0

20

White Outdoor 736-0169

Lock Washer, 3/8

$3.49

$

In Stock, Qty 20+

0

21

White Outdoor 738-0347

Shoulder Spacer, .625 x .169
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 15

0

22

White Outdoor 783-0382

Link, 4.88
(Superseded to 783-0382-0637)

Variations

White Outdoor 783-0382-0637

LINK-4.88 LG - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 783-0878

Link, 13.25
(Superseded to 783-0878B-0637)

Variations

White Outdoor 783-0878-0637

LINK-UPPER SHAVED - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

24

White Outdoor 783-1263

Link, 17.30
(Superseded to 783-1263-0637)

Variations

White Outdoor 783-1263-0637

LINK-17.30"LG - POWDER BLACK (0637)

$

$

Not available

$

$

25

White Outdoor 784-5727

Idler Pivot Arm
(Superseded to 784-5727-0637)

Variations

White Outdoor 784-5727-0637

ARM PIVOT IDLER - POWDER BLACK (0637)

$68.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

26

White Outdoor 784-5728

Idler Support Bracket
(Superseded to 784-5728-0637)

Variations

White Outdoor 784-5728-0637

BRACKET IDLER SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 756-3080

Double Pulley, 7.0 x 3.5

$

$

Not available

28

White Outdoor 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 716-3020

Internal Snap Ring
(Superseded to 916-3020)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 750-3164

Spacer, .635 x 2.0

$14.99

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0290

Flat Washer, 5/8 x 1.0 x .063

$6.49

$

In Stock, Qty 20+

0

32

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

33

White Outdoor 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 710-3151

Hex Cap Screw, 5/8-18 x 4.25

$18.99

$

In Stock, Qty 20+

0

35

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

36

White Outdoor 714-0145

Click Pin, .092 x 1.64

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 747-3250

Belt Guard Rod

$

$

Not available

39

White Outdoor 711-0242

Spacer

$3.99

$

In Stock, Qty 14

0

40

White Outdoor 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 712-0116

Nylon Jam Lock Nut, 3/8-24

$4.49

$

In Stock, Qty 7

0

42

White Outdoor 712-3017

Hex Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 747-0871

Belt Keeper Rod

$

$

Not available

44

White Outdoor 754-0449

Upper V-belt
(Superseded to 954-0449)

$73.99

$

Usually ships in 3-6 days

0

45

White Outdoor 756-0627

Idler Pulley, 3.5" Diameter
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

46

White Outdoor 741-0524

Sealed Ball Bearing, .625 x 1.574 x .470
(Superseded to 941-0524A)

$21.99

$

In Stock, Qty 20+

0

47

White Outdoor 603-0302

Chute Tilt Bracket Assembly
(Superseded to 603-0302A-0637)

Variations

White Outdoor 603-0302-0637

Chute Tilt Bracket - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

White Outdoor 603-0302-0716

Chute Tilt Bracket - CUB YELLOW-99 (0716)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

48

White Outdoor 710-0262

Carriage Bolt, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 14

0

49

White Outdoor 710-0451

Carriage Bolt, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 710-0896

Hex Index Washer Screw, 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

52

White Outdoor 712-0429

Nylon Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 17

0

54

White Outdoor 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 720-0232

Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

56

White Outdoor 731-0851A

Chute Flange Keeper

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 731-1300A

Lower Chute
(Superseded to 731-1300E)

$54.99

$

In Stock, Qty 9

0

58

White Outdoor 731-1313C

Chute Tilt Cable Guide

$11.99

$

Usually ships in 3-6 days

0

59

White Outdoor 731-1320

Upper Chute
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

60

White Outdoor 736-0231

Flat Washer, .344 x 1.125 x .125

$4.49

$

In Stock, only 4 left!

0

61

White Outdoor 736-0242

Bell Washer, .34 x .872

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0451

Saddle Washer, .32 x .93

$3.99

$

In Stock, only 2 left!

0

63

White Outdoor 746-0929

Chute Cable w/ Clip, 54.5"
(Superseded to 946-0929)

$

$

Not available

64

White Outdoor 746-0928

Chute Cable, 54.5"

$70.99

$

Usually ships in 3-6 days

0

65

White Outdoor 784-5594

Cable Bracket

Variations

White Outdoor 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

White Outdoor 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

White Outdoor 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

66

White Outdoor 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

White Outdoor 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

67

White Outdoor 683-0298

Lift Bracket Assembly

Variations

White Outdoor 683-0298-0637

BRACKET ASSY-LIFT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0298-0716

BRACKET ASSY LIFT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

68

White Outdoor 703-2728A

Snow Thrower Lift Bracket

Variations

White Outdoor 703-2728A-0637

Lift Latch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

69

White Outdoor 710-3008

Hex Cap Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

70

White Outdoor 710-1268

Hex Index Washer Screw #10-16 x .375

$3.99

$

In Stock, only 2 left!

0

71

White Outdoor 710-3143

Pan Phillips Screw, #10-24 x .75

$10.99

$

Usually ships in 3-6 days

0

72

White Outdoor 712-0127

Flat Weld Nut, #10-24

$3.49

$

In Stock, Qty 13

0

73

White Outdoor 756-0218

Flat Idler Pulley, 3.25

$34.99

$

Usually ships in 3-6 days

0

74

White Outdoor 715-0114

Heavy Duty Spirol Pin, 1/4 x 1.5

$8.49

$

In Stock, Qty 9

0

75

White Outdoor 720-0274

Handle Grip

$10.99

$

In Stock, Qty 6

0

76

White Outdoor 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$7.99

$

In Stock, Qty 20+

0

77

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 736-0140

Flat Washer, .385 x .62 x .063

$6.99

$

In Stock, Qty 9

0

79

White Outdoor 736-0400

Flat Washer, .194 x .62 x .063

$4.99

$

In Stock, Qty 16

0

?80

White Outdoor 746-3060A

Lift Cable, 42" w/ Trigger Control
(Superseded to 946-3060B)

$

$

Not available

81

White Outdoor 747-1203

Lift Index Rod

$51.99

$

In Stock, only 4 left!

0

82

White Outdoor 750-1028A

Lift Handle Tube

Variations

White Outdoor 750-1028A-0637

TUBE-LIFT HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

83

White Outdoor 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

84

White Outdoor 715-0138

Rolled Pin, 1/8 x .63
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

85

White Outdoor 715-0129

Spirol Pin, .125 x .82

$4.49

$

In Stock, only 1 left!

0

86

White Outdoor 720-0201A

Crank Knob

$10.99

$

In Stock, Qty 6

0

87

White Outdoor 726-0100

Push Cap, 3/8 ID

$3.99

$

In Stock, Qty 7

0

88

White Outdoor 735-0234

Rubber Grommet , .44 x .94 x .5

$4.99

$

In Stock, only 3 left!

0

89

White Outdoor 741-0475

Plastic Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

90

White Outdoor 747-0697

Eye Bolt

$7.99

$

In Stock, only 1 left!

0

91

White Outdoor 747-0931

Chute Crank Rod, .38 x 28
(Superseded to 747-0931A)

$24.99

$

In Stock, only 2 left!

0

92

White Outdoor 747-0932

Rod, .375 x 11.375

$

$

Not available

93

White Outdoor 750-1054

Support Chute Tube

Variations

White Outdoor 750-1054-0716

TUBE-CHUTE SUPPORT - CUB YELLOW-99 (0716)

$108.99

$

In Stock, only 1 left!

0

White Outdoor 750-1054-0637

TUBE-CHUTE SUPPORT - POWDER BLACK (0637)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

94

White Outdoor 784-5149

Joint Block Assembly
(Superseded to 684-04350)

$26.99

$

In Stock, only 4 left!

0

95

White Outdoor 684-0061

Chute Crank Assembly
(Superseded to 684-0061A)

$38.99

$

Usually ships in 3-6 days

0

96

White Outdoor 703-2735A

Chute Crank Bracket

Variations

White Outdoor 703-2735A-0716

BRACKET-CHUTE - CUB YELLOW-99 (0716)

$16.99

$

Usually ships in 3-6 days

0

White Outdoor 703-2735A-0498

BRACKET-CHUTE - OLD CUB YELLOW (0498)

$18.99

$

Usually ships in 3-6 days

0

White Outdoor 703-2735A-0637

BRACKET-CHUTE - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

97

White Outdoor 705-5226

Chute Reinforcer

Variations

White Outdoor 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$9.99

$

In Stock, Qty 7

0

White Outdoor 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$9.99

$

In Stock, Qty 7

0

$9.49

$

Usually ships in 3-6 days

0

98

White Outdoor 710-0276

Splined Carriage Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

99

White Outdoor 710-0167

Carriage Screw, 1/4-20 x .5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

100

White Outdoor 731-1379A

Adapter Chute
(Superseded to 731-1379D)

$61.99

$

In Stock, only 1 left!

0

101

White Outdoor 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

White Outdoor 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 8

0

$13.99

$

In Stock, Qty 8

0

102

White Outdoor 710-3144

Hex Cap Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

103

White Outdoor 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

104

White Outdoor 683-0133

Pulley Mounting Bracket Assembly

Variations

White Outdoor 683-0133-0637

BRACKET ASSY-PUL M - POWDER BLACK (0637)

$

$

Not available

$

$

105

White Outdoor 783-0358A

Idler Bracket

Variations

White Outdoor 783-0358A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

106

White Outdoor 783-0362A

Mounting Strap Hanger Bracket
(Superseded to 783-0362A-0637)

Variations

White Outdoor 783-0362A-0637

BRACKET-MT HANGER - POWDER BLACK (0637)

$

$

Not available

$

$

107

White Outdoor 783-0372

RH Side Plate
(Superseded to 783-0372-0637)

Variations

White Outdoor 783-0372-0637

PLATE-SIDE RH - POWDER BLACK (0637)

$

$

Not available

$

$

108

White Outdoor 783-0373

LH Side Plate
(Superseded to 783-0373-0637)

Variations

White Outdoor 783-0373-0637

PLATE-SIDE LH - POWDER BLACK (0637)

$

$

Not available

$

$

109

White Outdoor 710-3168

Carriage Bolt, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

110

White Outdoor 710-0650

Self-tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

111

White Outdoor 783-1274

Heat Shield
(Superseded to 783-1274B)

$

$

Not available

112

White Outdoor 736-0101

Flat Washer, .406 x 1.0 x .030
(Superseded to 936-0101)

$4.49

$

Usually ships in 3-6 days

0

113

White Outdoor 747-04126

Clutch Adjustment Control Rod

$

$

Not available

114

White Outdoor 732-0626

Extension Spring, .75 x 5.06

$11.99

$

In Stock, only 4 left!

0

115

White Outdoor 714-0101

Internal Cotter Pin

$4.49

$

In Stock, only 4 left!

0

116

White Outdoor 736-3019

Flat Washer, .531 x 1.062 x .134

$5.49

$

In Stock, Qty 19

0

117

White Outdoor 783-0359

Idler Engagement Bracket
(Superseded to 783-0359-0637)

Variations

White Outdoor 783-0359-0637

BRACKET-IDLER ENGA - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

118

White Outdoor 711-0198

Ferrule, 3/8-24 x .375
(Superseded to 911-0198)

$12.99

$

In Stock, Qty 20+

0

119

White Outdoor 747-04125

Support Rod

$40.99

$

Usually ships in 3-6 days

0
