190-740-000 - White Outdoor 60" Deck Mower Deck Assembly (1997) Blade Spindle Assembly Parts Diagram

60" Deck Mower Deck Assembly

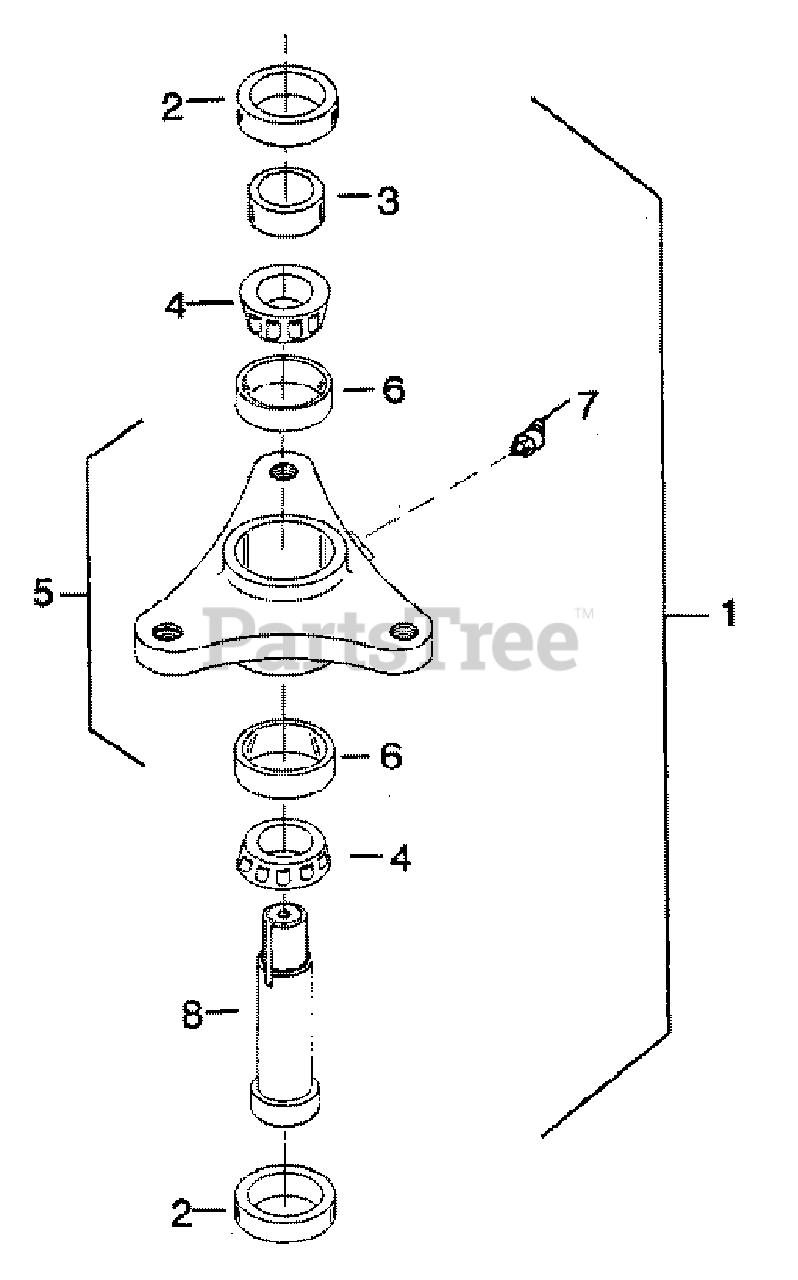

Blade Spindle Assembly Parts Diagram

  • Title
1

MTD WM-66562

CW Blade spindle assembly

$

$

Not available

2

MTD WM-66755

Seal, 1.063 x 2.004 x .256

$

$

Not available

3

MTD WM-66842

Sleeve, .84 x 1.06 x .310

$

$

Not available

4

MTD WM-04107

Bearing cone #M12649

$

$

Not available

5

MTD WM-66843

Spindle housing with cups

$

$

Not available

6

MTD WM-04106

Bearing Cup #M12610

$

$

Not available

7

MTD WM-1267

45° 1/8 Pipe thread grease fitting

Note: NLA - Obtain Locally

$

$

Currently unavailable

8

MTD WM-66841

Spindle shaft, 1.06 x 3.88-right hand threads

$200.99

$

Usually ships in 3-6 days
