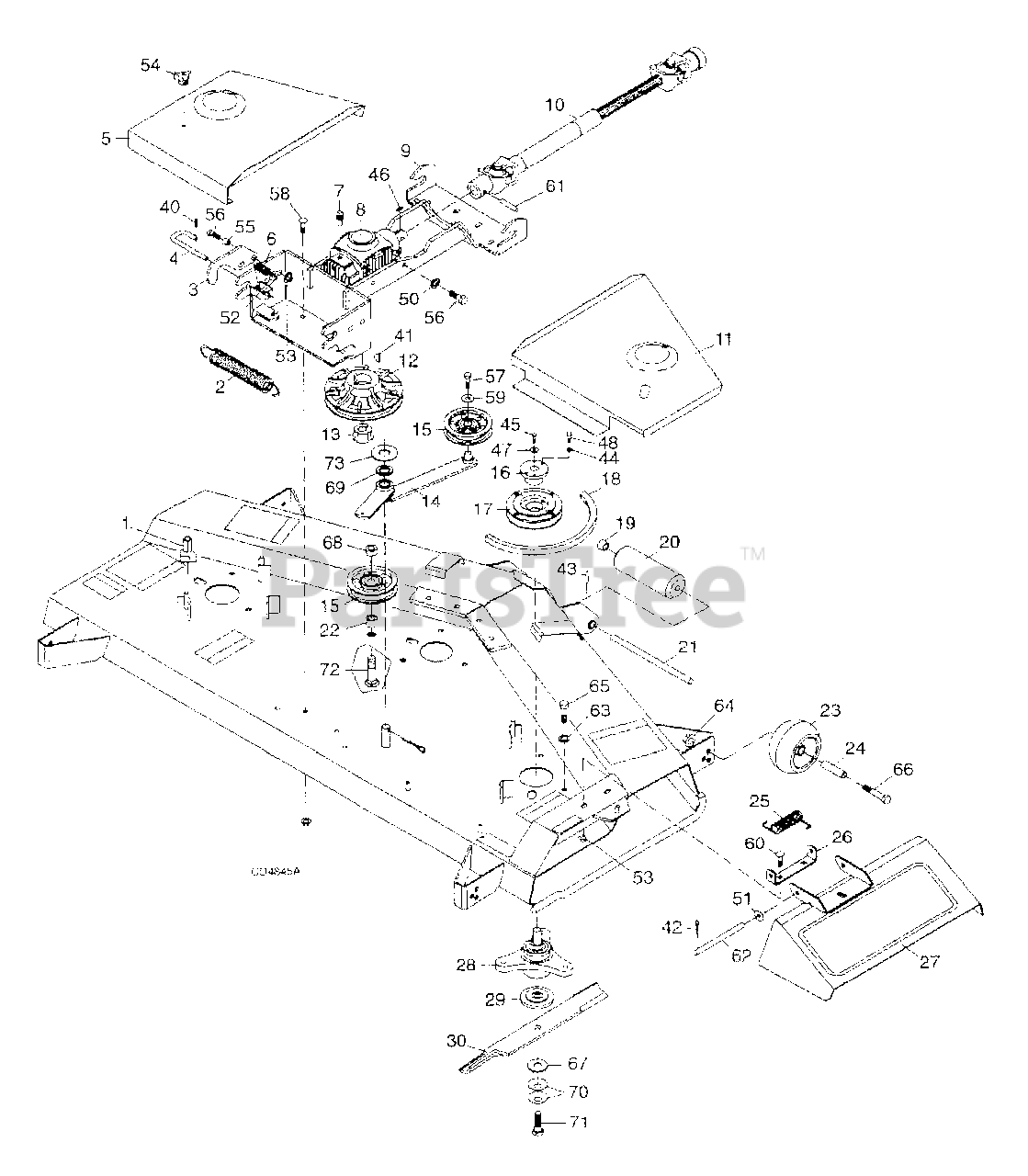

190-740-000 - White Outdoor 60" Deck Mower Deck Assembly (1998) Main Frame Assembly Parts Diagram

60" Deck Mower Deck Assembly

Main Frame Assembly Parts Diagram

  • Title

1

White Outdoor WM-34531

Belt guide assembly

$

$

Not available

2

White Outdoor WM-31360

Spring-extension 1.45 x .20 x 8.1 x 35

$

$

Not available

3

White Outdoor WM-66479

Link - .25 x 2.50 x 6.08

$

$

Not available

4

WM-66427

Pin, Bent-U .375 diameter x 3.00

$

$

Not available

5

White Outdoor WM-34597

Left belt shield

$

$

Not available

6

WM-21957

Spring-compression .58 x .08 x 2.4 x 40

$

$

Not available

7

White Outdoor WM-34576

Plastic gearbox vent plug

$

$

Not available

8

White Outdoor WM-64933

Finned 1:1 bevel gearbox assembly

$

$

Not available

9

White Outdoor WM-66470

Gearbox stand

$

$

Not available

10

White Outdoor WM-67490

Drive asy complete - 0600, 14.0 x 17.7

$

$

Not available

11

White Outdoor WM-34596

Right belt shield

$

$

Not available

12

White Outdoor WM-66428

Sheave - 6.65 PD offset

$

$

Not available

13

White Outdoor WM-66505

.81 Bore taper lockbushing with set screws

$

$

Not available

14

White Outdoor WM-66476

Idler arm

$

$

Not available

14

White Outdoor WM-16162

3/4 ID x 1 OD x 1-1/2 Bronze bushing

$

$

Not available

15

White Outdoor WM-24260

4-7 1/6 OD Flat idler & bearing

$120.99

$

Usually ships in 3-6 days

0

15

White Outdoor WM-24259

.625 ID x 1.78 OD Ball bearing

$

$

Not available

16

White Outdoor WM-34425

H 3/4 Straight bore bushing with key P.1
(Superseded to WM-34756)

$67.99

$

Usually ships in 3-6 days

0

17

White Outdoor WM-34505

1 BK 4.6 H Sheave

$

$

Not available

18

White Outdoor WM-1469

1 V-Belt W113

$

$

Not available

19

White Outdoor WM-27887

1/2 x 3/4 x 3/4 Sleeve

$

$

Not available

20

White Outdoor WM-16173

Front roller

$

$

Not available

21

White Outdoor WM-66981

Pin-headless .5 x 9.75

$74.99

$

Usually ships in 3-6 days

0

22

White Outdoor WM-1791

5/8 x 1 x 9/16 Sleeve

$

$

Not available

23

White Outdoor WM-67365

Roller-scalp 4.94 x 2.75

$33.99

$

Usually ships in 3-6 days

0

24

White Outdoor WM-66446

Sleeve - .505 x .625 x 2.63

$

$

Not available

25

White Outdoor WM-66815

Spring-Torsion .207 x .94 x 4.86

$

$

Not available

26

White Outdoor WM-66865

Deck bracket

$

$

Not available

27

White Outdoor WM-66866

Discharge chute

$

$

Not available

28

White Outdoor WM-66562

Clockwise blade spindle assembly

$

$

Not available

29

White Outdoor WM-33736

5/8 ID x 3 x 7/16 Shoulder washer

$

$

Not available

30

White Outdoor WM-34615

Clockwise 20-3/4 Flat blade
(Superseded to 759-3779)

$212.99

$

In Stock, only 1 left!

0

40

WM-35626

1/8 x 5/8 Spring pin

$

$

Not available

41

WM-62233

.187 x .75 Woodruff key

$

$

Not available

42

WM-1256

3/16 x 1 Cotter pin

Note: Obtain Locally

$

$

Not available

43

MTD WM-4115

3/16 x 1-1/8 Spring pin
(Superseded to 715-0150)

Note: Obtain Locally

$3.99

$

In Stock, Qty 20+

0

44

MTD WM-1985

1/4 Standard lockwasher
(Superseded to 936-0329)

Note: Obtain Locally

$4.49

$

In Stock, Qty 12

0

45

MTD WM-2457

1/4 NC x 3/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

46

WM-62234

1/4 Square x 7/8 key

Note: Obtain Locally

$

$

Not available

47

White Outdoor WM-32806

1/4 x 7/8 x 7 Gauge washer

$

$

Not available

48

WM-10378

1/4 NC x 1 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

?49

WM-1285

1/4 x 1-1/2 Cotter pin

Note: Obtain Locally

$

$

Not available

50

MTD WM-838

3/8 Standard lockwasher

Note: Obtain Locally

$3.99

$

Usually ships in 3-6 days

0

51

WM-565

3/8 Standard flat washer

Note: Obtain Locally

$

$

Not available

52

MTD WM-21757

3/8 Standard SAE flat washer

Note: Obtain Locally

$

$

Not available

53

White Outdoor WM-14350

3/8 NC Flange hex locknut

$

$

Not available

54

White Outdoor WM-66840

3/8 NC 3-Prong knob

$

$

Not available

55

White Outdoor WM-35092

3/8 x 1/2 x 9/32 Sleeve

$

$

Not available

56

MTD WM-839

3/8 NC x 1 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

57

White Outdoor WM-64518

3/8 NF x 1 Hex head cap screw GR5

$

$

Not available

58

White Outdoor WM-6697

3/8 NC x 1 Carriage bolt

$

$

Not available

59

White Outdoor WM-21298

3/8 x 1 x 7 Gauge washer

$

$

Not available

60

WM-24890

3/8 NC x 1-1/4 Carriage bolt

Note: Obtain Locally

$

$

Not available

61

White Outdoor WM-11606

3/8 x 1-1/2 Spirol pin

$7.99

$

Usually ships in 3-6 days

0

62

White Outdoor WM-11760

3/8 x 7-1/4 Pin and chain

$

$

Not available

63

MTD WM-855

1/2 Extra-heavy lockwasher
(Superseded to 936-0921)

Note: Obtain Locally

$4.49

$

In Stock, Qty 20+

0

64

MTD WM-11900

1/2 NC Flange hex locknut

Note: Obtain Locally

$4.99

$

In Stock, only 1 left!

0

65

White Outdoor WM-4119

1/2 NF x 1 Hex head cap screw GR5

$

$

Not available

66

WM-14069

1/2 NC x 3-1/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

67

WM-692

5/8 Standard flat washer

Note: Obtain Locally

$

$

Not available

68

WM-6239

5/8 NC Hex locknut

Note: Obtain Locally

$

$

Not available

69

White Outdoor WM-22060

5/8 x 1 x 1/4 Felt seal

$

$

Not available

70

White Outdoor WM-10635

5/8 x 1-3/4 x 14 Gauge cup washer

$

$

Not available

71

White Outdoor WM-34582

5/8 NC x 2 Hex head cap screw GR5 Nylok

$

$

Not available

72

WM-5836

5/8 NC x 2-1/2 Carriage bolt

Note: Obtain Locally

$

$

Not available

73

White Outdoor WM-11036

3/4 x 1-1/2 x 18 Gauge shim washer

$

$

Not available

White Outdoor WM-34590

Spindle lock wrench

Note: (Not shown)

$

$

Not available

White Outdoor WM-34595

Spindle wrench handle

Note: (Not shown)

$

$

Not available
