190-746-190 - White Outdoor 28" Tiller Attachment (1988) 28-Inch Tiller Tine Assembly Parts Diagram

28" Tiller Attachment

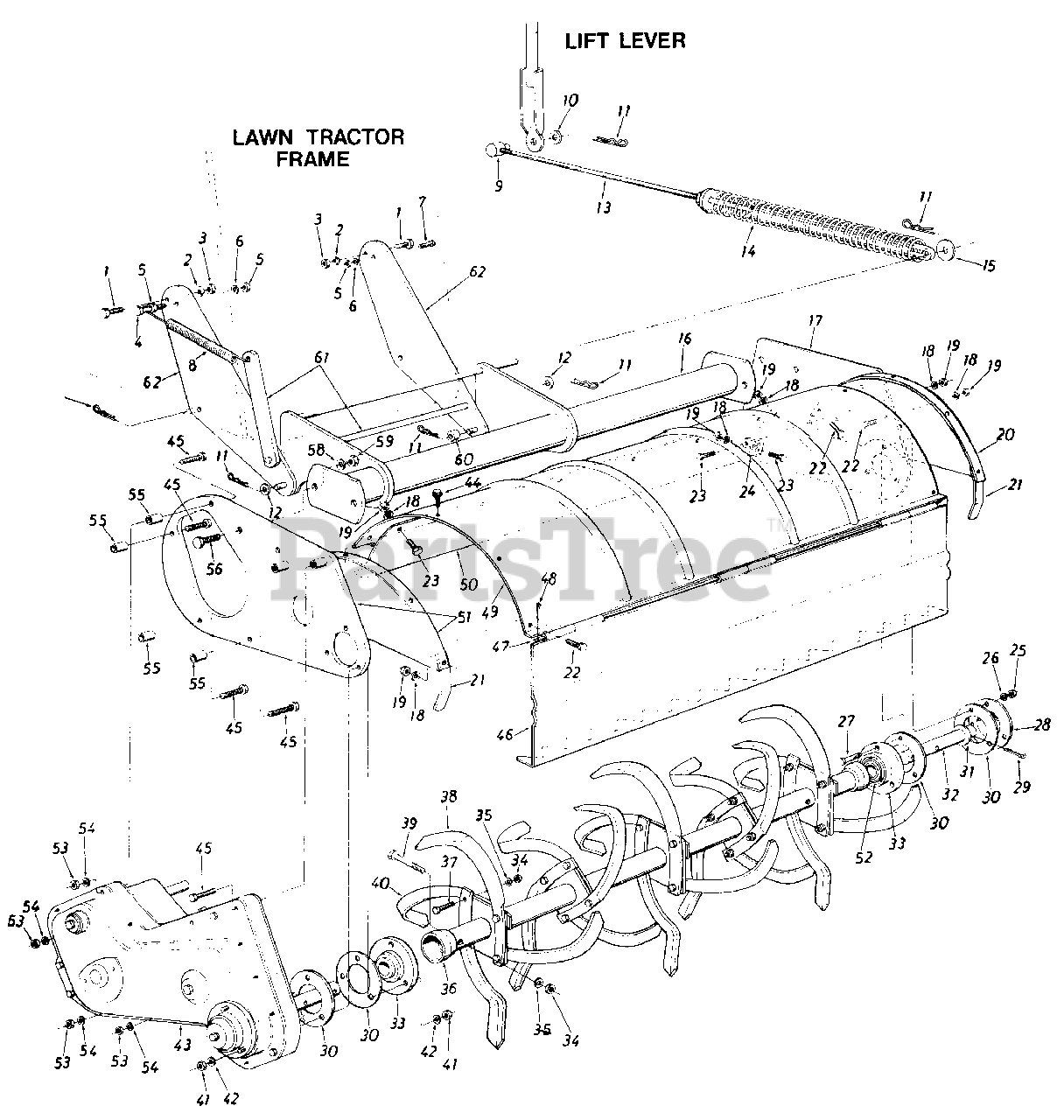

28-Inch Tiller Tine Assembly Parts Diagram

  • Title

1

MTD 710-0696

Hex Bolt 3/8-24 x .88" Lg.*

$6.49

$

In Stock, only 2 left!

0

2

MTD 936-0217

L.-Wash. 3/8" I.D. Heavy Duty
(Superseded to 736-0217)

$3.99

$

In Stock, Qty 13

0

3

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0624

Hex Bolt 5/16-24 x 1.50" Lg.*

$5.49

$

Usually ships in 3-6 days

0

5

MTD 912-3057

Hex Nut 5/16-24 Thd.*

$6.49

$

In Stock, Qty 13

0

6

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg.*

$3.99

$

In Stock, Qty 12

0

8

MTD 732-0185A

Extension Spring .56" O.D. x 7.75" Lg.

$

$

Not available

9

MTD 911-0770

Adjustment Ferrule 1/2-13 Thd.

$59.99

$

In Stock, only 1 left!

0

10

MTD 736-0187

Fl.-Wash. .640" I.D. x 1.24" O.D. x.060

$4.49

$

In Stock, Qty 20+

0

11

MTD 914-0145

Intern. Cotter Pin 1/2" Dia.
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

12

MTD 936-0272

Fl.-Wash. .510" I.D. x 1.0" O.D. x .060
(Superseded to 736-0272)

$4.49

$

In Stock, Qty 20+

0

13

MTD 784-0050

Lift Rod Ass'y. 39.0" Lg.

Note: NLA

$

$

Currently unavailable

14

MTD 732-0460

Compression Spring 1.50" O.D. x 15.0" Lg.

Note: NLA

$

$

Not available

15

MTD 936-0208

Fl.-Wash. .51" I.D. x 1.50" O.D. x .075
(Superseded to 736-0208)

$

$

Not available

16

MTD 784-0063

Pivot Bracket Assembly

Note: NLA

$

$

Not available

17

MTD 784-0056

Tiller Housing Plate-R.H.

Note: NLA

Variations

MTD 784-0056-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0056-0637

No Longer Available PLATE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

19

MTD 912-3057

Hex Nut 5/16-24 Thd.*

$6.49

$

In Stock, Qty 13

0

20

MTD 784-0058

End Cover-Tine Shield-R . H .

Note: NLA

Variations

MTD 784-0058-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0058-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 784-0069

Tine Shield Hinge Flap Support

Note: NLA

Variations

MTD 784-0069-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg. *

$3.99

$

In Stock, Qty 16

0

23

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg. *

$4.49

$

Usually ships in 3-6 days

0

24

MTD 12541

Chute Pivot Bracket

Note: NLA

$

$

Currently unavailable

25

MTD 912-0158

Hex Cent. L-Nut 5/16-18 0 Thd.

$3.49

$

In Stock, Qty 20+

0

26

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg. (Grade 5)

$3.99

$

In Stock, Qty 17

0

28

MTD 784-0068

Grease Housing Cup

Note: NLA

Variations

MTD 784-0068-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 784-0068-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0068-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 784-0068-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

29

MTD 914-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.*
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

30

MTD 721-0133

Gasket for Brg. Housing

Note: NLA

$

$

Not available

31

MTD 736-0246

Fl.-Wash. 1.25" I.D. x 2.00" O.D. x .60

$

$

Not available

32

MTD 738-0630

Tine Shaft R.D. 1.25" Dia. x 6.25" Lg.

Note: NLA

$

$

Not available

33

MTD 741-0417

Bearing Housing w/Bearing

Note: NLA

$

$

Not available

34

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

35

MTD 936-0217

L.-Wash. 3/8" I.D. Heavy Duty
(Superseded to 736-0217)

$3.99

$

In Stock, Qty 13

0

36

MTD 784-0107

Tine Adapter Ass'y.

Note: NLA

Variations

MTD 784-0107-0637

No Longer Available ADAPTER-TI - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 710-0459A

Hex Bolt 3/8-24 x 1.50" Lg.*

$6.99

$

In Stock, Qty 10

0

38

MTD 742-0243-0637

Tine 14" x 5/16"

$

$

Not available

39

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.*

$6.49

$

In Stock, Qty 8

0

40

MTD 742-0244-0637

Tine 14" x 5/16"

$29.99

$

Usually ships in 3-6 days

0

41

MTD 912-0158

Hex Cent. L.-Nut 5/16-18Thd.

$3.49

$

In Stock, Qty 20+

0

42

MTD 936-0119

L. Wash. 5/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

43

MTD 884-0061-5

Chain Case Ass'y. Comp.

Note: NLA

$

$

Not available

44

MTD 710-0604A

Hex Wash. TT Tap. Scr. 5/16-18 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

45

MTD 710-0564

Hex Bolt 1/4-20 x 2.75" Lg.*

$6.49

$

In Stock, only 3 left!

0

46

MTD 784-0076

Tine Shield-Hinge Flap Ass'y. 30"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-0076-0498

No Longer Available HINGE ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0076-0637

HINGE ASSY-FLAP - POWDER BLACK (0637)

$

$

Not available

$

$

47

MTD 747-0479

Tiller Flap Rod 1/4" Dia. x 29.7" Lg

$

$

Not available

48

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.00" Lg. *
(Superseded to 714-0115)

$3.49

$

In Stock, Qty 20+

0

49

MTD 784-0074

Tine Shield Ass y. 30" Lg.

Note: NLA

Variations

MTD 784-0074-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0074-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 784-0060

Reinforcement Brk't.-Tine Shield

Note: NLA

$

$

Not available

51

MTD 784-0055

Tiller Housing Plate Ass y.

Note: NLA

Variations

MTD 784-0055-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0055-0637

No Longer Available PLATE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 721-0192

Oil Seal Double Lip-1-1/4" Shaft

Note: NLA

$

$

Not available

53

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.49

$

In Stock, only 2 left!

0

54

MTD 936-0329

L.-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 13

0

55

MTD 950-0599

Spacer.28" I.D. x .62" O.D. x .90" Lg.

$

$

Not available

56

MTD 710-0592

Hex Bolt 1/2-13 x 1.00" Lg.*

Note: NLA

$

$

Not available

58

MTD 936-0921

L.-Wash. 1/2" I.D.*
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

59

MTD 912-0206

Hex Nut 1/2-13 Thd.*
(Superseded to 712-0206)

$3.99

$

In Stock, Qty 20+

0

60

MTD 711-0212

Spacer.50" I.D. x 1.00" O.D. x .50" Lg.

$

$

Not available

61

MTD 784-0073

Idler Bracket Support Arm Ass'y

Note: NLA

$

$

Not available

62

MTD 784-0064B-0637

Pivot Bracket SunDort

$

$
