190-749-000 - MTD Electric Lift Kit (1993) Electric Lift Kit Parts Diagram

Electric Lift Kit

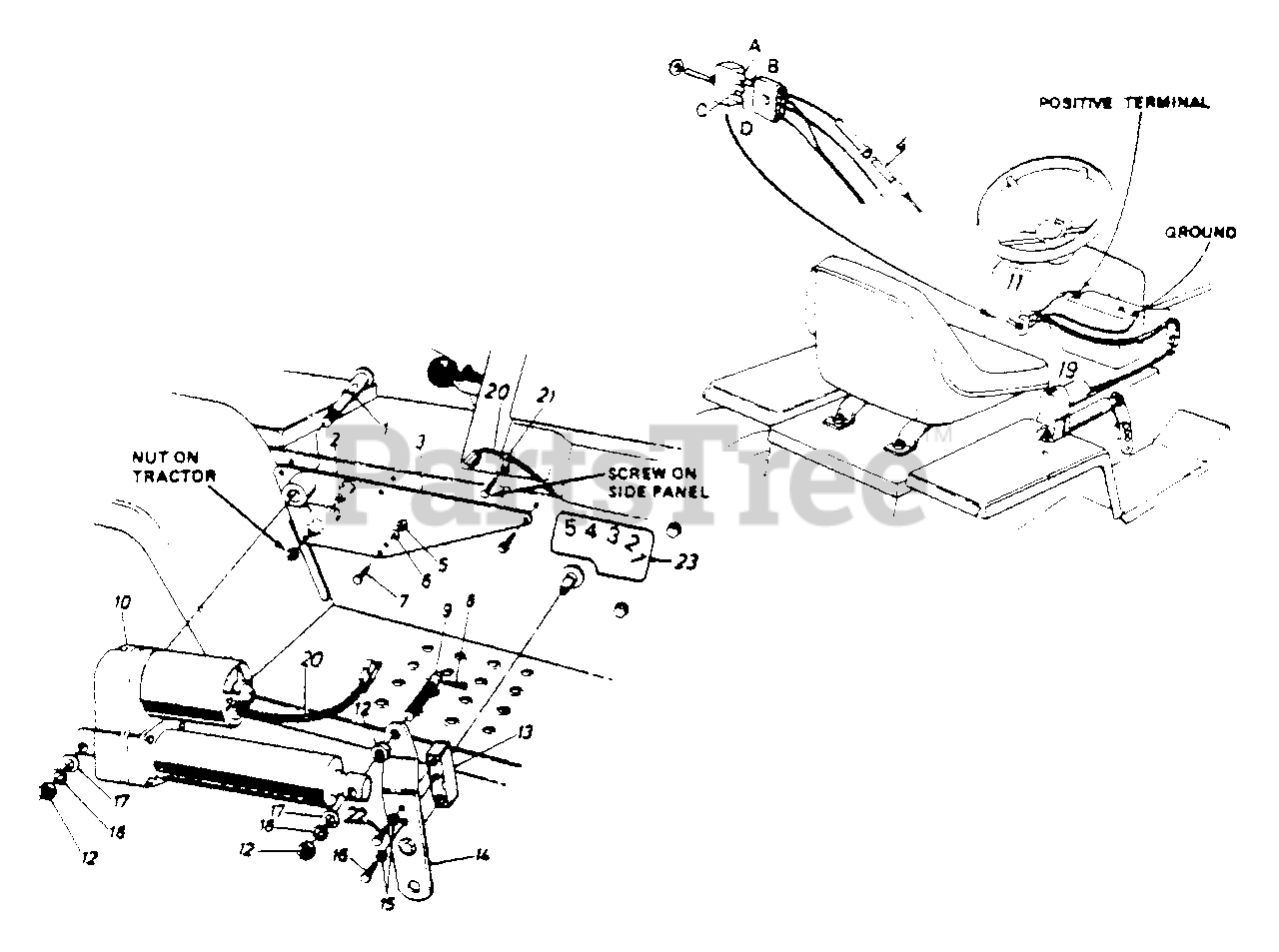

Electric Lift Kit Parts Diagram

  • Title
1

MTD Part# 738-0639

Pivot Pin
Usually ships in 5 to 10 days

$

$52.90

0

2

MTD Part# 738-0150

Shld. Bolt .626 Dia x .96"
(Superseded to 938-0150)
Usually ships in 5 to 10 days

$

$19.57

0

3

MTD Part# 16385

Mtg. Plate Ass'y

Variations

MTD Part# 16385-0637

No Longer Available PLATE ASM - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

?4

MTD Part# 725-0300

Fuse 30 AMP

Note: (For Service Only)

Usually ships same day

Currently unavailable

$

$

5

MTD Part# 712-0138

Hex Nut 1/4-28 Thd.
(Superseded to 912-0138)
Usually ships same day

Not available

$

$

6

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

7

MTD Part# 710-0412

Hex Bolt 1/4-28 x .75" Lg. (Grade 5)
Usually ships in 1 day

$

$3.97

0

8

MTD Part# 714-0115

Cotter Pin
(Superseded to 914-0115)
Usually ships in 1 day

$

$2.79

0

9

MTD Part# 738-0640

Indicator & Mtg. Pin
Usually ships same day

Not available

$

$

10

MTD Part# 717-0620

Electric Actuator
(Superseded to 917-0620)
Usually ships in 5 to 10 days

$

$1013.11

0

?11

MTD Part# 725-1053

Toggle Switch
(Superseded to 925-1053)
Usually ships in 5 to 10 days

$

$74.39

0

12

MTD Part# 712-0461

Hex Jam Nut 1/2-13 Thd.
(Superseded to 912-3048)
Usually ships same day

Not available

$

$

13

MTD Part# 748-0307A

Lift Shaft Drive
Usually ships in 5 to 10 days

$

$36.90

0

14

MTD Part# 16387

Lift Bracket Ass'y

Variations

MTD Part# 16387-0637

Lift Bracket Ass'y. - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

15

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

16

MTD Part# 710-0117

Hex Bolt 5/16-24 x 1.0" Lg. (Grade 5)
(Superseded to 710-0888)
Usually ships in 1 day

$

$3.06

0

17

MTD Part# 736-0192

Fl-Wash..53" I.D x 93" O.D.
(Superseded to 936-0192)
Usually ships in 1 day

$

$3.00

0

18

MTD Part# 712-0921

L-Wash. 1/2" I.D.
Usually ships same day

Currently unavailable

$

$

19

MTD Part# 725-1108

Wire Harness
Usually ships same day

Not available

$

$

20

MTD Part# 731-0759

Plastic Tubing-7"
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

22

MTD Part# 710-0376

Hex Bolt 5/16-18 x 1" Lg (Grade 5)
Usually ships in 1 day

$

$2.91

0

23

MTD Part# 777-5406

Label WIRING
Usually ships same day

Currently unavailable

$

$
