190-749-190 - White Outdoor Electric Lift Kit (1991)

Electric Lift Kit

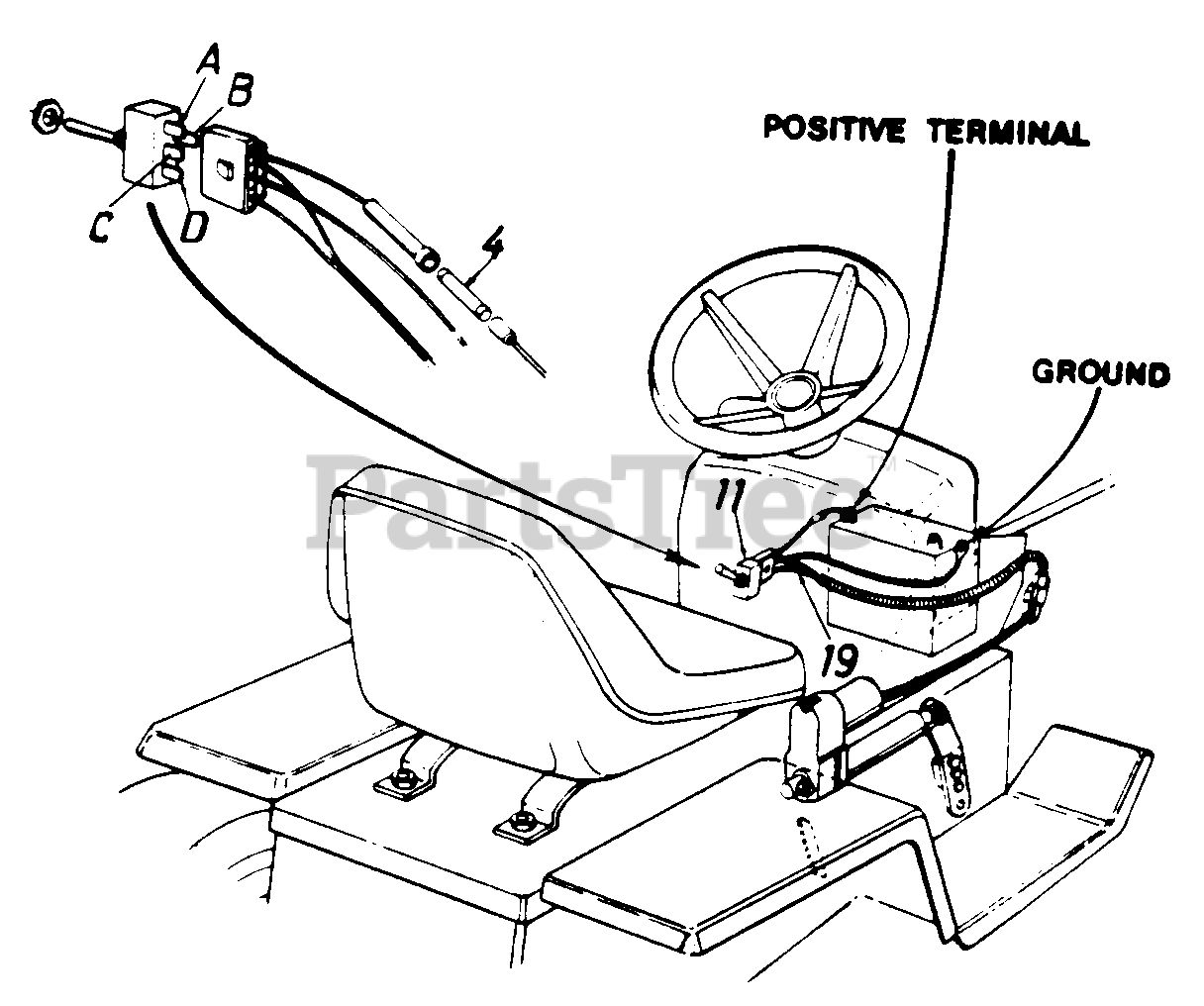

190-749-190 - White Outdoor Electric Lift Kit (1991) > Parts Diagrams (2) > Wiring (Electric Lift Kit) Diagram

  • Title
725-0300

4

Fuse 30 AMP

Part# 725-0300

Note: (For Service Only)

Not available

725-1053

11

Toggle Switch

Part# 725-1053 (Superseded to 925-1053)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $68.77

725-1108

19

Wire Harness

Part# 725-1108

OEM Warranty Repair Part for White Outdoor

Not available

A

Blue Wire-Connects to Positive Terminal on Battery

Part#

Not available

B

Yellow Wire-Connects to Actuator

Part#

Not available

C

Black Wire-Ground Wire-to Frame

Part#

Not available

D

Red Wire-Connects to Actuator

Part#

Not available
