190-758-100 - MTD Tiller Attachment (1998) General Assembly Parts Diagram

Tiller Attachment

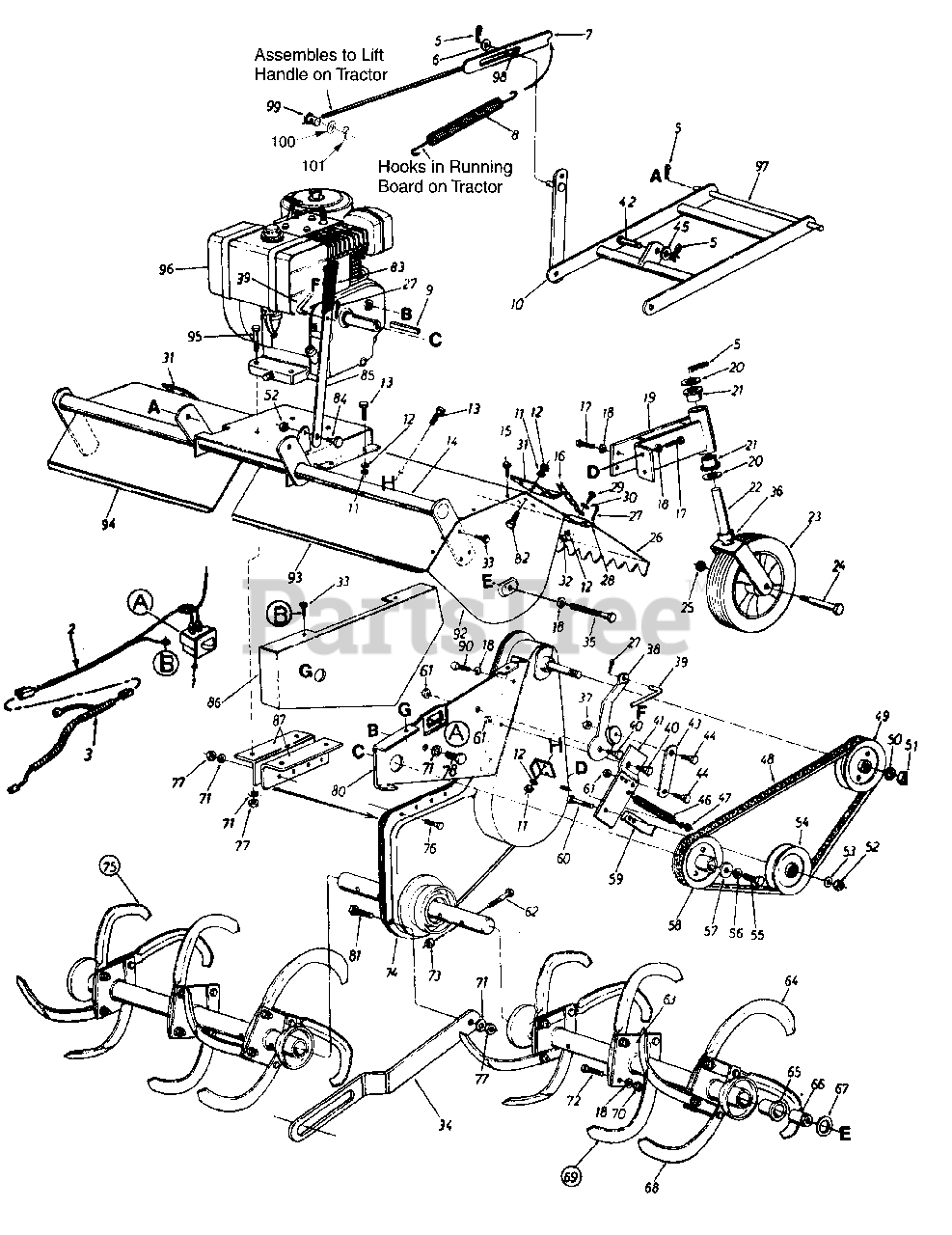

General Assembly Parts Diagram

  • Title
1

MTD Part# 725-0713

Safety Switch
Usually ships same day

Not available

$

$

2

MTD Part# 725-1290

Wire Harness
Usually ships same day

Not available

$

$

3

MTD Part# 725-1393

Adapter Harness
Usually ships same day

Not available

$

$

5

MTD Part# 714-0147

Internal Cotter Pin
Usually ships in 1 day

$

$3.36

0

6

MTD Part# 736-0179

Fl-Wash. 1/2" I.D. x .93" O.D.
(Superseded to 936-0179)
Usually ships in 5 to 10 days

$

$3.23

0

7

MTD Part# 638-0016

Link Rod Assembly

Variations

MTD Part# 638-0016-0637

No Longer Available ROD ASM - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

8

MTD Part# 732-0390

Extension Spring 1.25" O.D. x 12.75" Lg.
Usually ships same day

Not available

$

$

9

MTD Part# 714-0114

Sq. Key 1/4" x 1/4" x 2.00" Lg.
(Superseded to 914-0114)
Usually ships in 1 day

$

$2.96

0

10

MTD Part# 689-0004

Hitch Bar Assembly

Variations

MTD Part# 689-0004-0637

BRACKET ASS'Y- HIT - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

11

MTD Part# 712-0138

Hex Nut 1/4-28 Thd.
(Superseded to 912-0138)
Usually ships same day

Not available

$

$

12

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

13

MTD Part# 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)
Usually ships in 1 day

$

$2.53

0

14

MTD Part# 04966

Support Frame Assembly

Variations

MTD Part# 04966-0498

FRAME ASSEMBLY-SUPPORT - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 04966-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

15

MTD Part# 710-0429

Hex Hd. "B"-Tap Scr. #10 x .62" Lg.
(Superseded to 910-0429)
Usually ships in 5 to 10 days

$

$2.57

0

16

MTD Part# 727-0225

#2 Dog Chain x 20" Lg.

Note: (2 Req'd.)

Usually ships same day

Not available

$

$

17

MTD Part# 710-0623

Hex Wash. Hd. Self-Tap Scr. 3/8-24 x .75" Lg.
Usually ships in 1 day

$

$3.12

0

18

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

19

MTD Part# 04978

Swivel Wheel Support

Variations

MTD Part# 04978-0498

SUPPORT-SWIVEL WHE - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 04978-0637

SUPPORT-SWIVEL WHE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

20

MTD Part# 736-0188

Fl-Wash. 3/4" I.D. x 1.50" O.D.
Usually ships in 1 day

$

$3.00

0

21

MTD Part# 741-0382

Flange Bearing 3/4" I.D. x 1.00" O.D.
Usually ships same day

Not available

$

$

22

MTD Part# 04981

Swivel Wheel Caster

Variations

MTD Part# 04981-0637

Swivel Wheel Caster - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

23

MTD Part# 734-0979

Wheel Assembly 10.0 x 2.75
Usually ships same day

Not available

$

$

24

MTD Part# 738-0476

Shoulder Bolt .623" I.D. x 3.62" Lg.
Usually ships same day

Not available

$

$

25

MTD Part# 712-0290

Hex Cent. L-Nut 7/16-14 Thd.
Usually ships in 1 day

$

$3.24

0

26

MTD Part# 04985

L.H. Shield Hinge Flap

Variations

MTD Part# 04985-0498

No Longer Available - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 04985-0637

No Longer Available FLAP-HINGE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

MTD Part# 04986

R.H. Shield Hinge Flap

Note: (Not Shown)

Variations

MTD Part# 04986-0498

No Longer Available - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 04986-0637

No Longer Available FLAP-HINGE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

27

MTD Part# 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.
(Superseded to 914-0115)
Usually ships in 1 day

$

$2.79

0

28

MTD Part# 747-0340

L.H. Flap Rod
Usually ships same day

Currently unavailable

$

$

MTD Part# 747-0339

R.H. Flap Rod

Note: (Not Shown)

Usually ships same day

Currently unavailable

$

$

29

MTD Part# 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

30

MTD Part# 736-0173

Fl-Wash. 1/4" I.D.
Usually ships in 1 day

$

$2.99

0

31

MTD Part# 14891

Brace - Tine Shield

Variations

MTD Part# 14891-0498

No Longer Available - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 14891-0637

No Longer Available BRACE TINE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

32

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

33

MTD Part# 710-0776A

Hex Wash. Hd. Self-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)
Usually ships in 1 day

$

$3.06

0

34

MTD Part# 14890

Stabilizer Link

Variations

MTD Part# 14890-0637

Stabilizer Link - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

35

MTD Part# 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)
Usually ships in 1 day

$

$2.86

0

36

MTD Part# 711-0469

Spacer .752" I.D. x 1.25" O.D.
Usually ships in 1 day

$

$5.67

0

37

MTD Part# 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

38

MTD Part# 04987

Clutch Lever

Variations

MTD Part# 04987-0637

No Longer Available LEVER-CLUT - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

39

MTD Part# 747-0379

Clutch Rod
Usually ships same day

Not available

$

$

40

MTD Part# 738-0140

Shoulder Bolt 7/16" Dia. x 1.75"
(Superseded to 938-0140)
Usually ships same day

Not available

$

$

41

MTD Part# 04992

Idler Bracket

Variations

MTD Part# 04992-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

42

MTD Part# 711-0310

Clevis Pin
(Superseded to 911-0310)
Usually ships same day

Not available

$

$

43

MTD Part# 747-0342

Clutch Link 3.62" Lg.

Variations

MTD Part# 747-0342-0637

No Longer Available CLUTCH LIN - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

44

MTD Part# 738-0155

Shoulder Bolt .435" Dia. x .160"
(Superseded to 938-0155)
Usually ships in 1 day

$

$4.81

0

45

MTD Part# 736-0273

Fl-Wash. .50" I.D. x 1.0" O.D. x .06
(Superseded to 936-0176)
Usually ships in 1 day

$

$3.18

0

46

MTD Part# 732-0384

Extension Spring .62" O.D. x 6.12" Lg.
(Superseded to 932-0384)
Usually ships in 1 day

$

$10.52

0

47

MTD Part# 712-0214

Hex Crown Nut 3/8-24 Thd.
(Superseded to 912-0214)
Usually ships same day

Not available

$

$

48

MTD Part# 754-0253

"V"-Belt (Kevlar)
Usually ships same day

Not available

$

$

49

MTD Part# 756-0351

1/2" "V"-Pulley 4.75" O.D. x .625" Bore
Usually ships same day

Not available

$

$

50

MTD Part# 736-0158

L-Wash. 5/8" I.D.
(Superseded to 936-0158)
Usually ships in 1 day

$

$3.11

0

51

MTD Part# 712-0221

Hex Ins. L-Nut 5/8-16 Thd.
Usually ships in 5 to 10 days

$

$2.53

0

52

MTD Part# 712-0375

Hex Cent. L-Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.19

0

53

MTD Part# 736-0140

Fl-Wash. 3/8" I.D.
(Superseded to 936-0140)
Usually ships same day

Not available

$

$

54

MTD Part# 756-0293A

Idler Pulley 4.0" O.D.
(Superseded to 756-0487)
Usually ships in 1 day

$

$36.07

0

55

MTD Part# 710-0314

Hex Bolt 7/16-20 x 1" Lg.
Usually ships in 1 day

$

$3.15

0

56

MTD Part# 736-0171

L-Wash. 7/16" I.D.
(Superseded to 936-0171)
Usually ships in 5 to 10 days

$

$3.10

0

57

MTD Part# 736-0319

Fl-Wash. 7/16" I.D. x 1.38"
(Superseded to 936-0319)
Usually ships in 5 to 10 days

$

$8.83

0

58

MTD Part# 756-0350

1/2" "V"-Pulley .475" O.D. x 1.00" Bore
Usually ships same day

Not available

$

$

59

MTD Part# 13819

Belt Guard

Variations

MTD Part# 13819-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

60

MTD Part# 710-0520

Hex Bolt 3/8-16 x 1.50" Lg.
Usually ships in 1 day

$

$3.15

0

61

MTD Part# 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

62

MTD Part# 710-0780

Hex Bolt 7/16-14 x 2.00" Lg.
Usually ships same day

Not available

$

$

63

MTD Part# 04970

Tine Adapter Assembly

Variations

MTD Part# 04970-0637

No Longer Available ADAPTER AS - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

64

MTD Part# 742-0243

Tine - L.H.

Variations

MTD Part# 742-0243-0637

Tine 14" x 5/16" - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

65

MTD Part# 731-0374

Flange Bearing 1.00" I.D.
(Superseded to 931-0374)
Usually ships in 1 day

$

$5.42

0

66
Usually ships same day

Not available

$

$

67

MTD Part# 736-0281

Thrust Wash. 1/2" I.D. x 1.55"
(Superseded to 936-0163)
Usually ships in 5 to 10 days

$

$3.21

0

68

MTD Part# 742-0244

Tine - R.H.

Variations

MTD Part# 742-0244-0637

TINE-RH BLADE - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$24.02

0

Usually ships same day

$

$

69

MTD Part# 04995

Tine Assembly Comp. - L.H.

Variations

MTD Part# 04995-0637

Tine Assembly Comp.-L.H. - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

70

MTD Part# 712-0241

Hex Nut 3/8-24 Thd.
Usually ships in 1 day

$

$3.10

0

71

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

72

MTD Part# 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)
Usually ships in 1 day

$

$5.15

0

73

MTD Part# 712-0290

Hex Cent. L-Nut 7/16-14 Thd.
Usually ships in 1 day

$

$3.24

0

74

MTD Part# 04991

Chain Case Ass'y. Comp.

Variations

MTD Part# 04991-0498

No Longer Available - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 04991-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 04991-0716

No Longer Available - CUB YELLOW-99 (0716)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

75

MTD Part# 04996

Tine Assembly Comp. - R.H.

Variations

MTD Part# 04996-0637

No Longer Available TINE ASM- - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

76

MTD Part# 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.
Usually ships in 1 day

$

$2.91

0

77

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

78

MTD Part# 710-0237

Hex Bolt 5/16-24 x .62"
Usually ships in 1 day

$

$3.15

0

80

MTD Part# 04988A

Clutch Support Bracket
Usually ships same day

Currently unavailable

$

$

81

MTD Part# 738-0296

Shld. Bolt .435" Dia. x .265" 5/16-18 Thd.
(Superseded to 938-0296)
Usually ships same day

Not available

$

$

82

MTD Part# 710-0412

Hex Bolt 1/4-28 x .75" Lg.
Usually ships in 1 day

$

$3.97

0

83

MTD Part# 720-0142

Plastic Grip
Usually ships in 5 to 10 days

$

$2.58

0

84

MTD Part# 738-0183

Shoulder Bolt .498" Dia. x .212" Lg.
(Superseded to 938-0183)
Usually ships same day

Not available

$

$

85

MTD Part# 747-0378

Clutch Handle

Variations

MTD Part# 747-0378-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

86

MTD Part# 14298

Clutch Support Shroud

Variations

MTD Part# 14298-0498

SHROUD-CLUTCH SUP - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 14298-0637

SHROUD-CLUTCH SUP - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

87

MTD Part# 04519

Engine Mounting Bracket

Variations

MTD Part# 04519-0637

Engine Mounting Bracket - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

90

MTD Part# 710-0201

Hex Bolt 3/8-16 x .62" Lg.
Usually ships same day

Not available

$

$

92

MTD Part# 04975

L.H. - Side Plate

Variations

MTD Part# 04975-0498

PLATE ASSY-SIDE-LH - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 04975-0637

PLATE ASSY-SIDE-LH - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

MTD Part# 04976

R.H. - Side Plate

Note: (Not Shown)

Variations

MTD Part# 04976-0498

No Longer Available PLATE ASM - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 04976-0637

No Longer Available PLATE ASM - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

93

MTD Part# 04983

L.H. - Tine Shield

Variations

MTD Part# 04983-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 04983-0637

L.H.-Tine Shield - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

94

MTD Part# 04984

R.H. - Tine Shield

Variations

MTD Part# 04984-0498

No Longer Available - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 04984-0637

No Longer Available SHIELD-TIN - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

95

MTD Part# 710-0116

Hex Bolt 5/16-18 x 2.00" Lg.
(Superseded to 710-3103)
Usually ships in 1 day

$

$3.19

0

96

Part#

8 H.P. Engine
Usually ships same day

Not available

$

$

97

MTD Part# 738-0992

Hitch Rod
Usually ships in 5 to 10 days

$

$23.84

0

98

MTD Part# 750-0336

Push Bar Sleeve .503" I.D. x .624" O.D.
(Superseded to 950-0336)
Usually ships same day

Not available

$

$

99

MTD Part# 711-0770

Ferrule
(Superseded to 911-0770)
Usually ships in 1 day

$

$44.90

0

100

MTD Part# 736-0187

Flat Wash 5/8 ID x 1 1/4 OD
Usually ships in 1 day

$

$3.19

0

101

MTD Part# 714-0145

Hairpin clip
(Superseded to 914-0145)
Usually ships same day

Not available

$

$
