190-760-000 - White Outdoor Sleeve Hitch Attachment (1998) Sleeve Hitch Parts Diagram

Sleeve Hitch Attachment

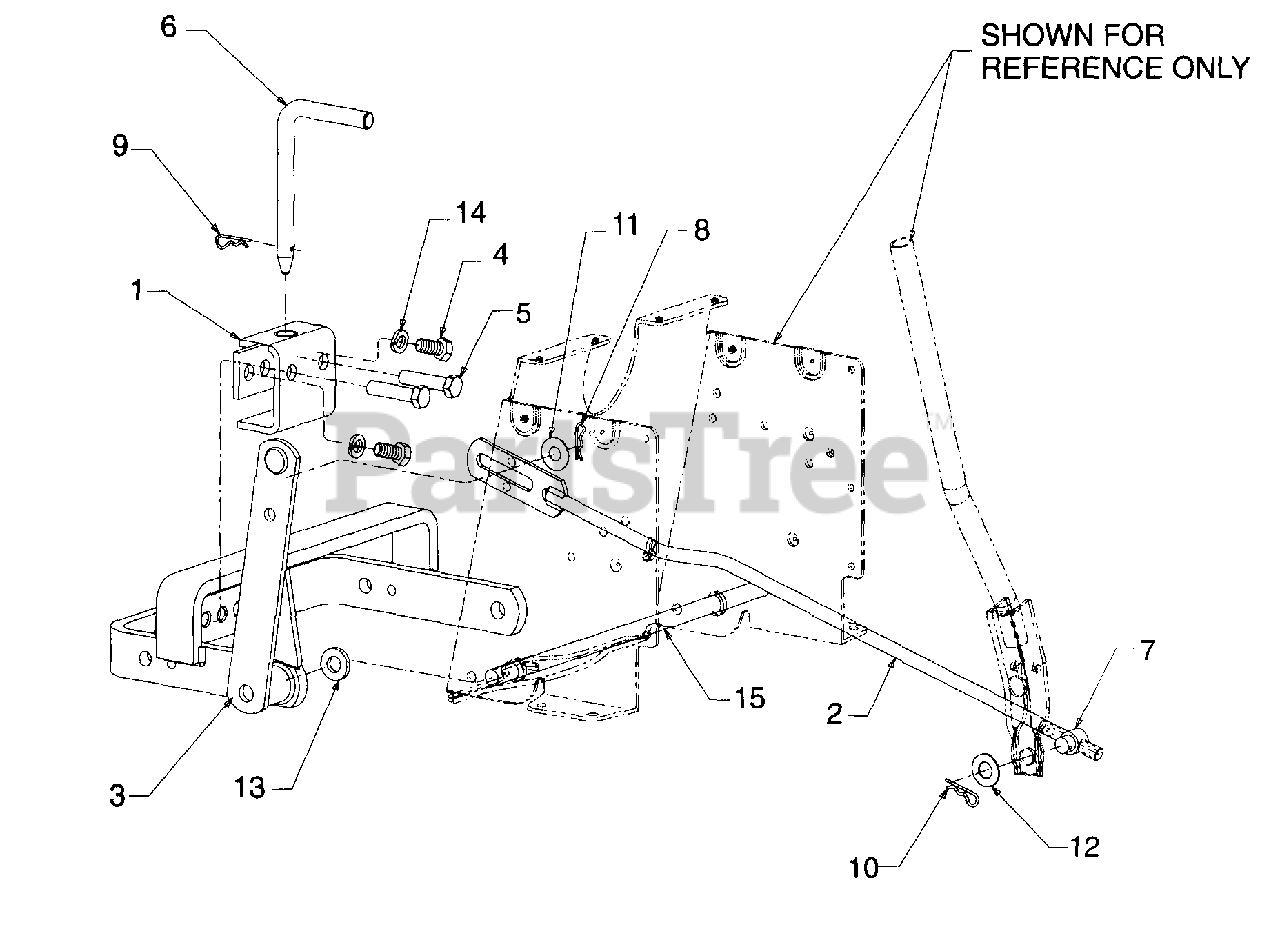

Sleeve Hitch Parts Diagram

  • Title

1

MTD 13269-0637

BRKT ASM:HITCH

$

$

Not available

2

MTD 638-0015-0637

ROD ASM:LIFT

$

$

Not available

3

MTD 689-0003

BRKT ASM:HITCH

Note: NLA

Variations

MTD 689-0003-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 710-3131

HHCS:1/2-13:1.00:GR2:STD

$4.99

$

In Stock, only 1 left!

0

5

MTD 710-3104

HHCS:1/2-13:2.25:GR5:SPEC

$7.99

$

Usually ships in 3-6 days

0

6

MTD 711-0282

PIN:HITCH

$67.99

$

Usually ships in 3-6 days

0

7

MTD 911-0770

ADJUSTMENT FERRULE 1/2-13

$59.99

$

In Stock, only 1 left!

0

8

MTD 914-0101

PIN:COT: INT .08 X 1.42
(Superseded to 714-0101)

$

$

Not available

9

MTD 714-0117

PIN:COT:.148 X 3.0 INTERNAL

$3.99

$

In Stock, Qty 11

0

10

MTD 914-0145

PIN:COT:.092 X 1.63 INTERNAL
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-0100

FL-WASH .531 ID X 1.25 OD X .0

$6.49

$

In Stock, Qty 11

0

12

MTD 736-0187

FL-WASH .640 ID X 1.24 OD X .06

$4.49

$

In Stock, Qty 20+

0

13

MTD 936-04088

WASH:FLAT:.635 X 1.24 X .181
(Superseded to 736-04088)

$4.49

$

In Stock, Qty 11

0

14

MTD 936-0921

WASH:LOCK:1/2:REGULAR DUTY
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

15

MTD 738-0992

ROD:.625 X 16.94 LG

$29.99

$

Usually ships in 3-6 days

0
