190-765-000 - MTD Mower Deck Assembly Only (1987) 38" Deck Parts Diagram

Mower Deck Assembly Only

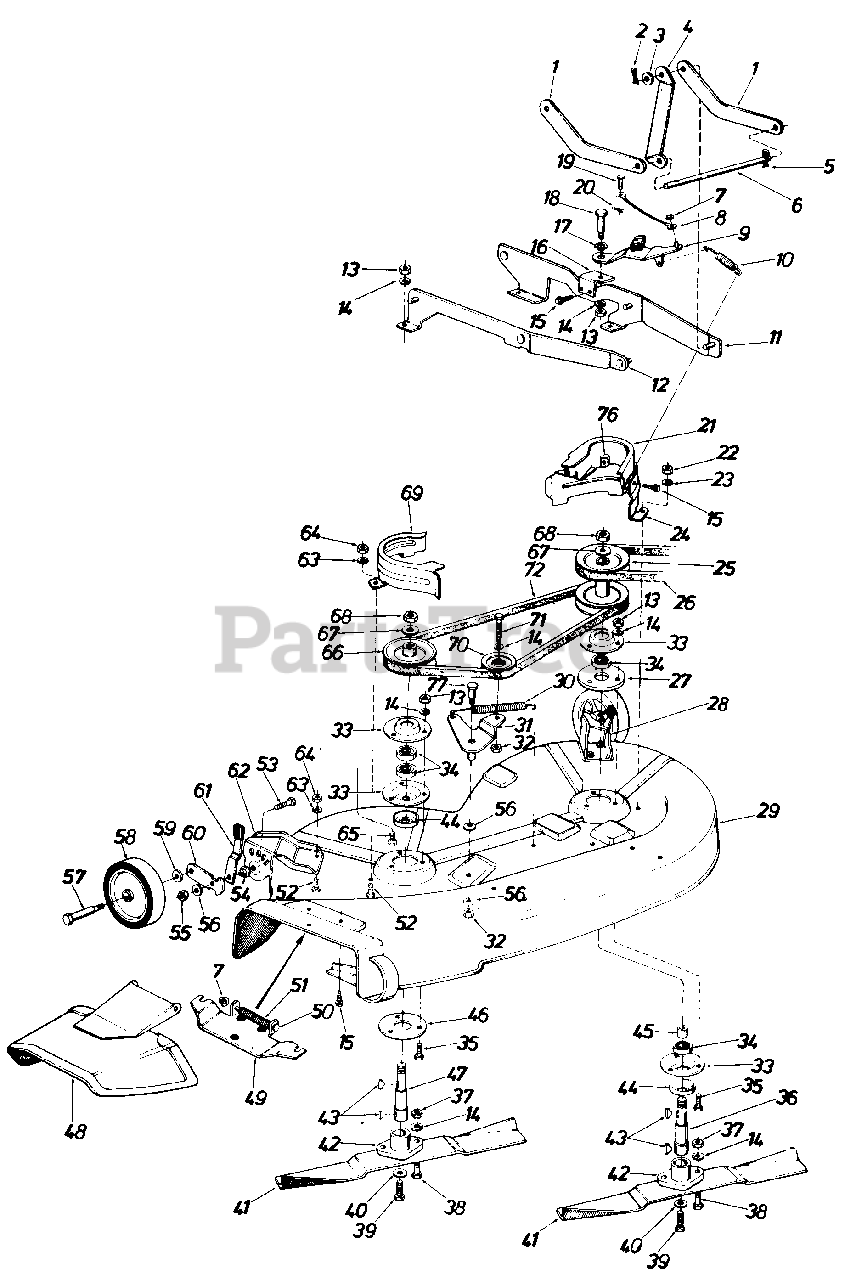

38" Deck Parts Diagram

  • Title
1

MTD Part# 13866

Deck Stabilizer

Variations

MTD Part# 13866-0637

No Longer Available STABILIZER - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

2

MTD Part# 714-0111

Cotter Pin 3/32" Dia. x 1.00" Lg.
(Superseded to 914-0111)
Usually ships in 1 day

$

$3.36

0

3

MTD Part# 736-0192

Fl-Wash. 50" I.D. x 1.00" O.D. x .090 Thk.
(Superseded to 936-0192)
Usually ships in 1 day

$

$3.00

0

4

MTD Part# 13867

Diagonal Brace

Variations

MTD Part# 13867-0637

No Longer Available BRACE-DIAG - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

5

MTD Part# 714-0149

Hairpin Cotter
(Superseded to 914-0149B)
Usually ships same day

Not available

$

$

6

MTD Part# 738-0392

Deck Connecting Rod
Usually ships in 5 to 10 days

$

$24.79

0

7

MTD Part# 720106

Push Cap 1/4" Rod
Usually ships same day

Currently unavailable

$

$

8

MTD Part# 746-0237

Brake Cable Ass'y.
(Superseded to 946-0237)
Usually ships in 5 to 10 days

$

$15.94

0

9

MTD Part# 13908

Spindle Brake Arm Ass'y.
Usually ships same day

Currently unavailable

$

$

10

MTD Part# 732-0250

Extension Spring
(Superseded to HG-50384)
Usually ships same day

Not available

$

$

11

MTD Part# 14091

Hanger Brkt. Ass'y. - L.H. Side
Usually ships same day

Currently unavailable

$

$

12

MTD Part# 14092

Hanger Brkt. Ass'y. - R.H. Side
Usually ships same day

Currently unavailable

$

$

13

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

14

MTD Part# 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

15

MTD Part# 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.
Usually ships in 1 day

$

$3.06

0

16

MTD Part# 14096

Spindle Brake Pivot Brkt.
Usually ships same day

Currently unavailable

$

$

17

MTD Part# 736-0141

Wave Wash. .438" I . D. x .750" O. D. x .15 Thk.
(Superseded to 936-0141)
Usually ships in 5 to 10 days

$

$4.81

0

18

MTD Part# 738-0155

Shld. Bolt.437" Dia. x .162" Lg. 5/16-18 Thd.
(Superseded to 938-0155)
Usually ships in 1 day

$

$4.81

0

19

MTD Part# 711-0701

Clevis Pin 1/4" Dia. x 1.00" Lg.
(Superseded to 911-0701)
Usually ships in 5 to 10 days

$

$4.81

0

20

Part# 7140100

Hairpin Cotter 1/4" Dia.
Usually ships same day

Not available

$

$

21

MTD Part# 14090

Upper Belt Guard - L.H. Side
Usually ships same day

Currently unavailable

$

$

22

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

23

MTD Part# 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

24

MTD Part# 14089

Lower Belt Guard-L.H. Side
Usually ships same day

Currently unavailable

$

$

25

MTD Part# 756-0346

Deck Drive Pulley
Usually ships same day

Not available

$

$

26

Part# 7540251

"V"-Belt 1/2" x 51.0" Lg. (Kevlar) "A" Sec.
Usually ships same day

Not available

$

$

27

MTD Part# 14088

Spindle Spacer Plate
(Superseded to 14088B-0637)
Usually ships in 5 to 10 days

$

$20.61

0

28

MTD Part# 09082

Wheel Brkt.-L.H. Side
Usually ships same day

Not available

$

$

29

MTD Part# 14767

38" Deck Ass'y.
Usually ships same day

Currently unavailable

$

$

30

MTD Part# 732-0121

Extension Spring
(Superseded to 932-0121)
Usually ships in 1 day

$

$10.49

0

31

MTD Part# 14768

Deck Idler Brkt. Ass'y.
Usually ships same day

Currently unavailable

$

$

32

MTD Part# 712-0375

Hex Cent. L-Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.19

0

33

MTD Part# 08253

Bearing Housing
(Superseded to 08253B)
Usually ships in 1 day

$

$14.27

0

34

MTD Part# 741-0919

Ball Brg. .787 I.D. x 1.85 O.D x .55
(Superseded to 941-0919B)
Usually ships in 1 day

$

$18.12

0

35

MTD Part# 710-0322

Hex Bolt 5/16-18 x 1.0" Lg.*
Usually ships same day

Not available

$

$

36

MTD Part# 738-0466

Blade Spindle
Usually ships same day

Not available

$

$

37

MTD Part# 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)
Usually ships in 1 day

$

$4.76

0

38

MTD Part# 710-0888

Hex Bolt 5/16-24 x 1.00" Lg.*

Note: (Special)

Usually ships in 1 day

$

$3.06

0

39

MTD Part# 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.*
(Superseded to 710-0459A)
Usually ships in 1 day

$

$5.15

0

40

MTD Part# 736-0217

L-Wash. 3/8" I.D. Heavy Duty
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

41

MTD Part# 742-0122

19" Blade
Usually ships same day

Not available

$

$

42

MTD Part# 10769

Blade Adpater Kit
Usually ships same day

Not available

$

$

43

MTD Part# 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.
(Superseded to 914-0365)
Usually ships same day

Not available

$

$

44

MTD Part# 13703

Bearing Shield
Usually ships same day

Not available

$

$

45

MTD Part# 750-0142

Spacer.790" I.D. x 1.0" O.D x.315 Lg.
(Superseded to 950-0142)
Usually ships in 5 to 10 days

$

$7.63

0

46

MTD Part# 09164

Deck Reinforcement Plate
(Superseded to 09164A-0637)
Usually ships in 1 day

$

$23.55

0

47

MTD Part# 711-0255

Blade Spindle
(Superseded to 911-0255)
Usually ships same day

Not available

$

$

48

MTD Part# 11574

Chute Cover Ass'y.
Usually ships same day

Currently unavailable

$

$

49

MTD Part# 11396

Adapter Plate
Usually ships same day

Not available

$

$

50

Part# 71t-0570

Hinge Pin
Usually ships same day

Not available

$

$

51

MTD Part# 732-0261

Torsion Spring
Usually ships same day

Not available

$

$

52

MTD Part# 710289

Hex Bolt1/4-20x.50" Lg.
Usually ships same day

Currently unavailable

$

$

53

MTD Part# 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.*
(Superseded to 710-3005)
Usually ships in 1 day

$

$2.86

0

54

MTD Part# 748-0279

Shoulder Spacer
Usually ships same day

Not available

$

$

55

MTD Part# 712-0181

Hex Jam L-Nut 3/8-16 Thd.
(Superseded to 912-0181)
Usually ships same day

Not available

$

$

56

MTD Part# 736-0219

BellevilleWash..400" I.D. x 1.13" O.D. x .030
(Superseded to 936-0219)
Usually ships in 1 day

$

$3.06

0

57

MTD Part# 738-0373

Shld. Bolt. 498 Dia. x 1.53" Lg.
(Superseded to 938-0373)
Usually ships in 1 day

$

$6.70

0

58

MTD Part# 734-0973

Deck Wheel 5" Plastic-Comp.
Usually ships in 1 day

$

$9.60

0

59

MTD Part# 736-0105

Belleville Wash. .400" I.D. x .88" O.D. x .060
Usually ships in 1 day

$

$3.15

0

60

MTD Part# 10937

Wheel Pivot Bar-Deck
Usually ships same day

Not available

$

$

61

MTD Part# 14082

Spring Lever Ass'y. w/Knob
Usually ships same day

Not available

$

$

62

MTD Part# 09080

Wheel Brkt. - R.H.
Usually ships same day

Not available

$

$

63

MTD Part# 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

64

MTD Part# 712-0287

Hex Nut 1/4-2 Thd.*
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

65

MTD Part# 710-0399

Sems Truss Hd. Scr. 5/16-18 x.50" Lg.
(Superseded to 710-0473)
Usually ships in 1 day

$

$3.09

0

63

MTD Part# 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

64

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

65

MTD Part# 710-0399

Sems Truss Hd. Scr. 5/16-18 x.50" Lg.*
(Superseded to 710-0473)
Usually ships in 1 day

$

$3.09

0

66

MTD Part# 756-0352

Pulley 4.75" O.D.
Usually ships same day

Not available

$

$

67

MTD Part# 736-0158

L-Wash. 5/8" I.D.*
(Superseded to 936-0158)
Usually ships in 1 day

$

$3.11

0

68

MTD Part# 712-0242

Hex Jam Nut 5/8-18 Thd.
(Superseded to 912-0261)
Usually ships in 5 to 10 days

$

$7.63

0

69

MTD Part# 14095

Belt Guard

Note: (R.H. Side)

Usually ships same day

Currently unavailable

$

$

70

MTD Part# 756-0293

4" "V"-Idler Pulley
(Superseded to 756-0487)
Usually ships in 1 day

$

$36.07

0

71

MTD Part# 710-0342

Hex Bolt 3/8-16x 1.25" Lg.*
(Superseded to 710-3005)
Usually ships in 1 day

$

$2.86

0

72

MTD Part# 754-0250

"V"-Belt.50" x 53.0 Lg.(4L)
(Superseded to 954-0250)
Usually ships same day

Not available

$

$

76

MTD Part# 726-0292

Speed Nut 1/4-20 Thd.
Usually ships same day

Currently unavailable

$

$

77

MTD Part# 738-0297

Shld. Bolt .50" Dia. x .71" Lg. 3/8-1 Thd.
(Superseded to 938-0297)
Usually ships same day

Not available

$

$
