190-805-000 - MTD Mower Deck Assembly Only (1987) 38" Side Discharge Mowing Deck Parts Diagram

Mower Deck Assembly Only

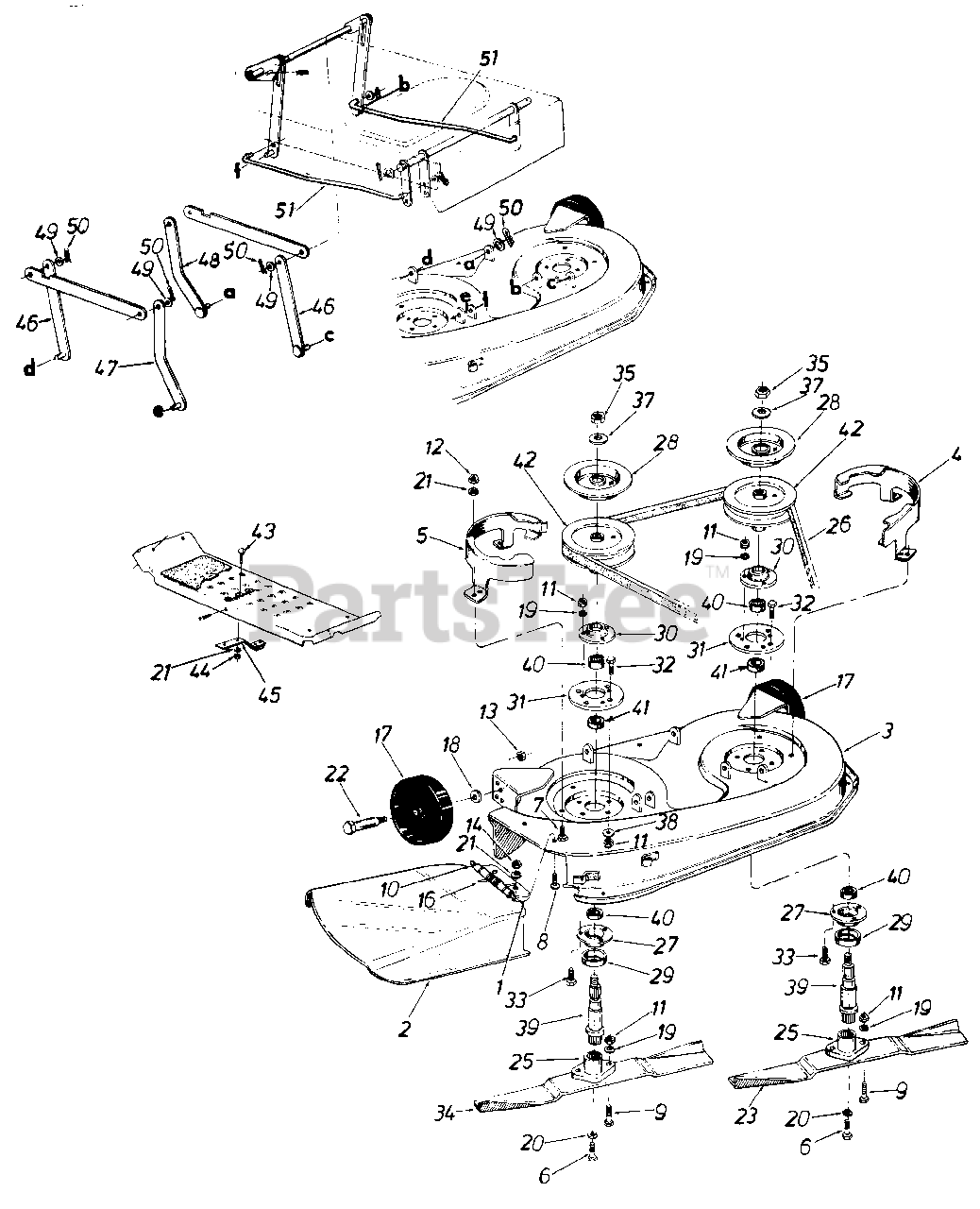

38" Side Discharge Mowing Deck Parts Diagram

  • Title

1

MTD 16521

Chute Bracket

$

$

Not available

2

MTD 16566

Chute Deflector
(Superseded to 753-0567)

$144.99

$

Usually ships in 3-6 days

0

3

MTD 16575

38" Deep Deck Ass'y.
(Superseded to 753-04376)

$

$

Not available

MTD 801-6576

38" Deep Deck Ass'y. Comp.
(Superseded to 753-0694)

Note: (For Service Only)

$

$

Not available

4

MTD 16607

Belt Guard Deck-L.H.

Variations

MTD 16607-0637

Belt Guard Deck-L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 16608

Belt Guard Deck-R.H.

$

$

Not available

6

MTD 710-0152

Hex Bolt 3/8-24 x 1.00"
(Superseded to 710-1039)

$4.99

$

In Stock, Qty 15

0

7

MTD 710-0195

Hex Bolt 1/4-28 x .62"
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

8

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.99

$

In Stock, Qty 20+

0

9

MTD 710-0888

Hex Scr Special 5/16-24 x 1 .O"

$4.49

$

In Stock, Qty 5

0

10

MTD 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, Qty 12

0

11

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

12

MTD 712-0138

Hex Nut 1/4-28 Thd.

$7.49

$

Usually ships in 3-6 days

0

13

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

14

MTD 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.99

$

Usually ships in 3-6 days

0

16

MTD 732-0542

Torsion Spring
(Superseded to 932-0542)

$

$

Not available

17

MTD 734-0973

Deck Wheel-5"
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

18

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 20+

0

19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, only 3 left!

0

21

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

22

MTD 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

23

MTD 742-0472

High-Lift Blade-L.H.
(Superseded to 942-0473A)

$33.99

$

In Stock, only 1 left!

0

25

MTD 748-0300

Blade Adapter

$14.99

$

In Stock, Qty 20+

0

26

MTD 754-0329

5L V-Belt
(Superseded to 954-0329A)

$55.99

$

In Stock, only 3 left!

0

27

MTD 08253

Bearing Housing 1.85" I.D.
(Superseded to 08253B)

$20.99

$

In Stock, only 4 left!

0

28

MTD 09322

Brake Disc

$

$

Not available

29

MTD 13703

Bearing Shield

$

$

Not available

30

MTD 15296

Open Brg. Housing 1.85" I.D.
(Superseded to 15296A)

$9.49

$

In Stock, Qty 11

0

31

MTD 16603

Spindle Meeting Plate
(Superseded to 16603A)

$29.99

$

Usually ships in 3-6 days

0

32

MTD 710-0157

Hex Bolt 5/16-24 x .75"

$4.49

$

In Stock, only 3 left!

0

33

MTD 710-0888

Hex Bolt Special 5/16-24 x 1 .O"

$4.49

$

In Stock, Qty 5

0

34

MTD 742-0473

High-Lift Blade-R.H.
(Superseded to 942-0473A)

$33.99

$

In Stock, only 1 left!

0

35

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 9

0

37

MTD 736-0158

L-Wash. 518" I.D.

$4.99

$

In Stock, Qty 5

0

38

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.99

$

In Stock, Qty 20+

0

39

MTD 738-0707

Blade Spindle
(Superseded to 938-0707A)

$45.99

$

Usually ships in 3-6 days

0

40

MTD 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

41

MTD 750-0456

Spacer 1.0" O.D. x .790" I.D. x .350"

$4.99

$

In Stock, Qty 20+

0

42

MTD 756-0486

5" Dia. Pulley

$57.99

$

In Stock, only 3 left!

0

43

MTD 710-0134

Carr. Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 11

0

44

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

45

MTD 761-0168

Blade Brake Ass'y
(Superseded to 961-0168D)

$33.99

$

Usually ships in 3-6 days

0

46

MTD 14804

Link Deck Hanger Ass'y.

$

$

Not available

47

MTD 14800

Link Deck Hanger Ass'y.
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

48

MTD 15925

Link Deck Hanger Ass'y.-L.H.

Variations

MTD 15925-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 736-0160

Fl-Wash. .53" I.D. x .93" O.D.

$4.49

$

Usually ships in 3-6 days

0

50

MTD 714-0101

Inter. Cotter Pin .50" Dia.

$4.99

$

In Stock, only 2 left!

0

51

MTD 711-0790

Stabilizer Rod
(Superseded to 711-0790A)

$

$

Not available
