190-821-000 - MTD Grass Collector (1999) Grass Collectors Parts Diagram

Grass Collector

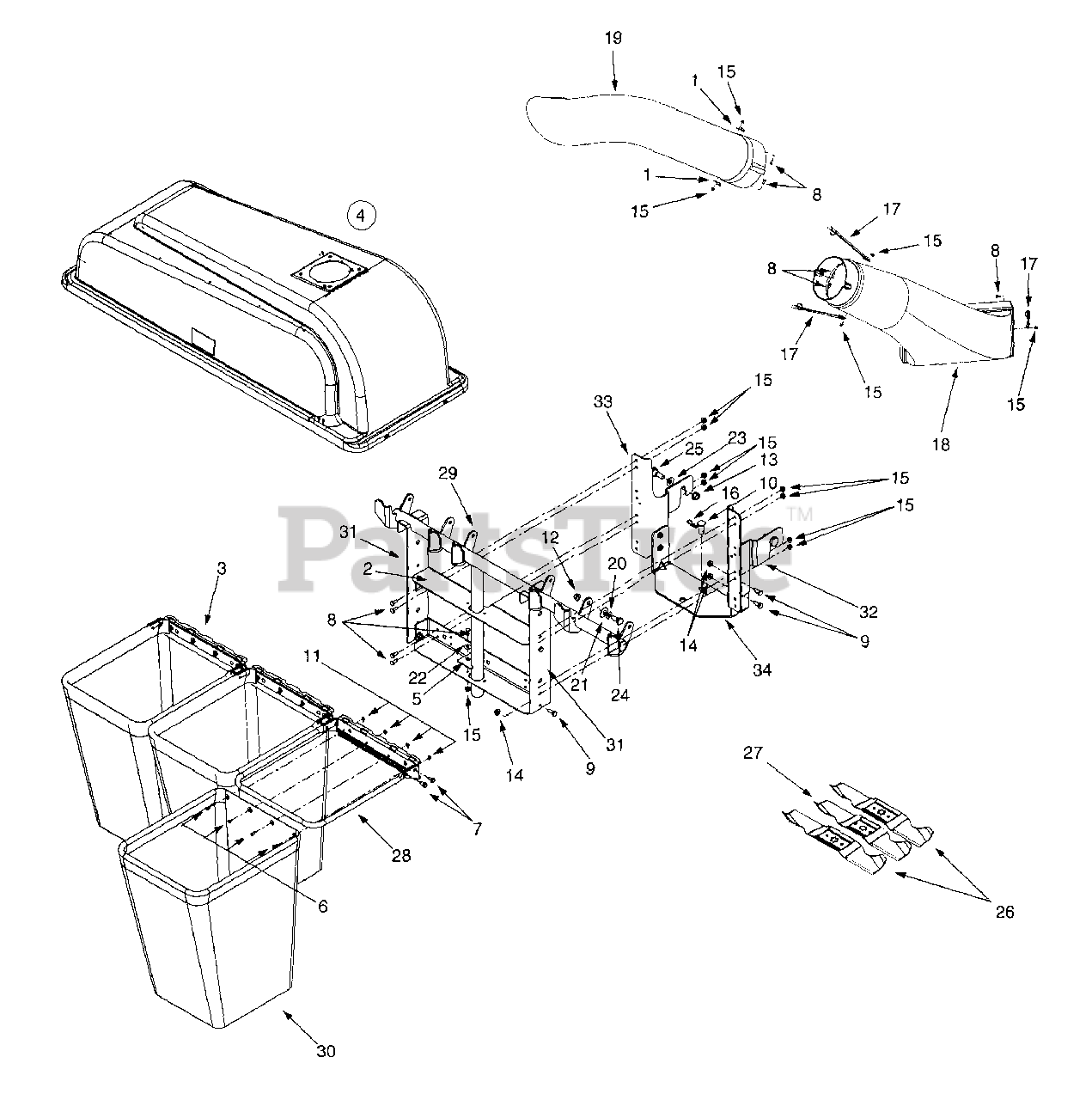

Grass Collectors Parts Diagram

  • Title

1

MTD 16606

Retainer Hook Bracket
(Superseded to 96606)

$6.99

$

In Stock, Qty 14

0

2

MTD 17200A

Catcher Support Bracket

Variations

MTD 17200A-0637

No Longer Available BRKT. CATC - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 17201A

Bag Frame Hanger Bracket
(Superseded to 17201A-0637)

Variations

MTD 17201A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

4

MTD 17204

Cover Assembly Complete

$

$

Not available

5

MTD 17247

Support Tube Bracket
(Superseded to 17247-0637)

Variations

MTD 17247-0637

BRACKET.-TUBING ADAPT - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

6

MTD 710-0473

Screw, #10-24 x .5

$3.99

$

In Stock, only 1 left!

0

7

MTD 710-0604

Self Tapping Screw, 5/16-18 x .625
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

10

MTD 711-0309

Clevis Pin
(Superseded to 711-0309A)

$11.99

$

In Stock, Qty 10

0

11

MTD 712-0272

Hex Sems Nut, 10-24

$3.99

$

In Stock, only 1 left!

0

12

MTD 712-0431

Hex Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

MTD 712-0459

Hex Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

15

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

16

MTD 714-0117

Internal Cotter Pin, .148 x 3

$3.99

$

In Stock, Qty 11

0

17

MTD 723-0383

Retainer Strap Assembly
(Superseded to 923-0383)

$14.99

$

In Stock, Qty 13

0

18

MTD 731-0925A

Discharge Chute
(Superseded to 731-0925C)

$151.99

$

In Stock, only 2 left!

0

19

MTD 731-0926

Chute Tube
(Superseded to 731-0926B)

$132.99

$

Usually ships in 3-6 days

0

20

MTD 736-0108

Flat Washer, .51 x .75 x .033

$6.49

$

Usually ships in 3-6 days

0

21

MTD 736-0255

Bell Washer, .51 x 1.14 x .04

$4.49

$

In Stock, only 3 left!

0

22

MTD 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 13

0

23

MTD 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 7

0

24

MTD 738-0380

Shoulder Screw, .50 x .27, 3/8-16

$7.49

$

In Stock, Qty 18

0

25

MTD 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

26

MTD 742-0644

Star-center Blade, 16.28
(Superseded to 942-0644)

$26.99

$

In Stock, Qty 10

0

27

MTD 742-0645

Star-center Blade, 14.88
(Superseded to 942-0645)

$25.99

$

In Stock, Qty 5

0

28

MTD 749-0745A

Grassbag Frame Tube
(Superseded to 749-0745A-0637)

Variations

MTD 749-0745A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$56.99

$

In Stock, only 1 left!

0

$56.99

$

In Stock, only 1 left!

0

29

MTD 749-0750

Catcher Support Tube
(Superseded to 689-00002-0637)

Variations

MTD 749-0750-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 764-0251

Grassbag
(Superseded to 964-0251)

$83.99

$

In Stock, Qty 20+

0

31

MTD 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

MTD 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

32

MTD 783-0673

RH Catcher Support Bracket
(Superseded to 783-0673B-0637)

Variations

MTD 783-0673-0637

Catcher Support Bracket, RH - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

33

MTD 783-0764

LH Catcher Support Bracket
(Superseded to 783-0764B-0637)

Variations

MTD 783-0764-0637

Catcher Support Bracket, LH - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

34

MTD 783-0765

Support Cross Bracket
(Superseded to 783-0765-0637)

Variations

MTD 783-0765-0637

Cross Support Bracket - POWDER BLACK (0637)

$72.99

$

In Stock, only 1 left!

0

$72.99

$

In Stock, only 1 left!

0
