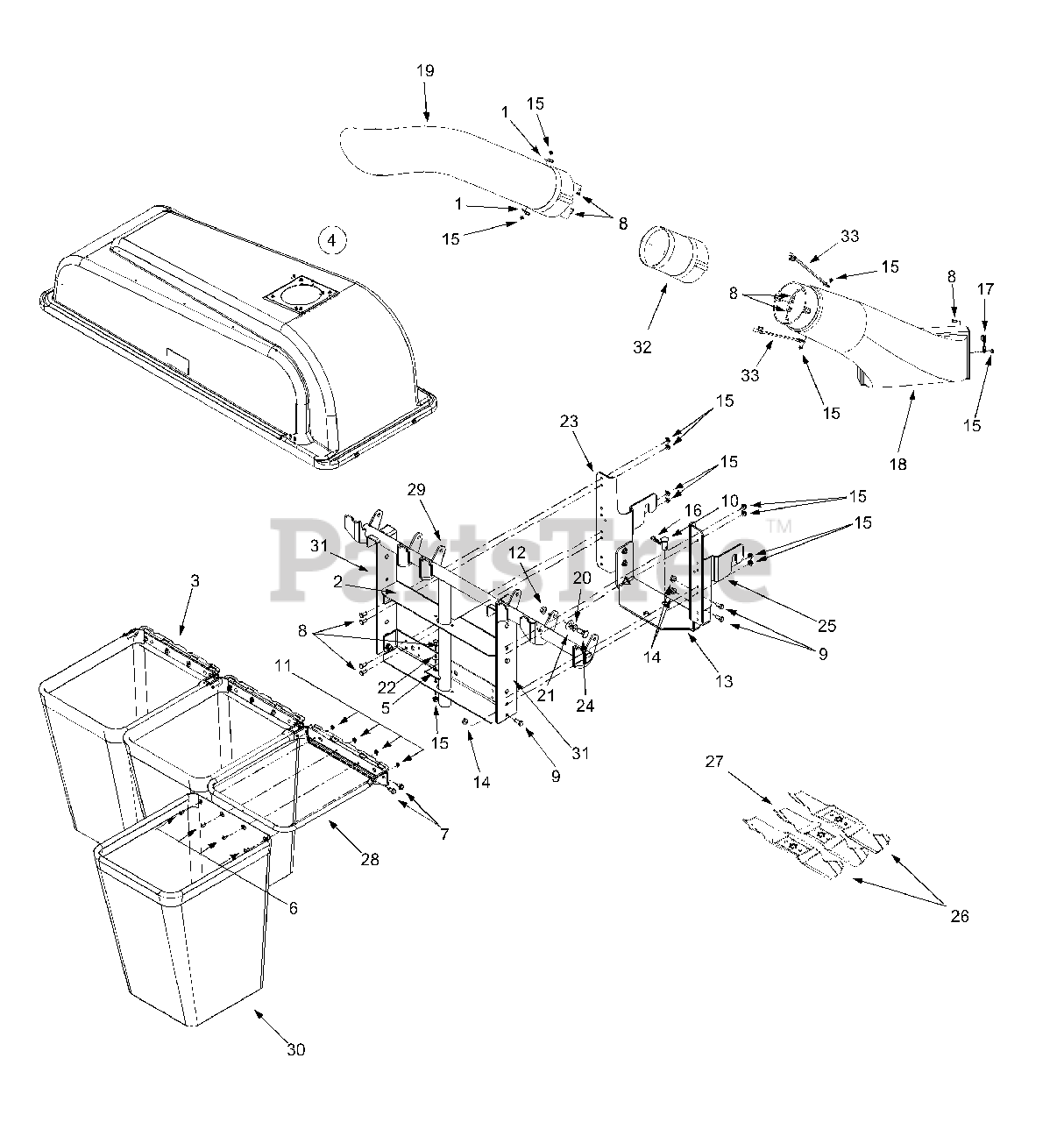

190-821-101 - White Outdoor Triple Bag Grass Collector (2001) > Parts Diagrams (1) > Bagger Assembly

  • Title
16606

1

Retainer Hook Bracket

Part# 16606 (Superseded to 96606)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.32

17200A

2

Catcher Support Bracket

Part# 17200A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET. CATCHER MOUNTING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

17201A

3

Bag Frame Hanger Bracket

Part# 17201A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Bag Hanger Bracket, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $50.65

17204

4

Cover Assembly Complete

Part# 17204

OEM Warranty Repair Part for White Outdoor

Not available

17247

5

Support Tube Bracket

Part# 17247

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET.-TUBING ADAPTER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.23

710-0473

6

Screw, #10-24 x .5

Part# 710-0473

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0604

7

Self Tapping Screw, 5/16-18 x .625

Part# 710-0604 (Superseded to 710-0604A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0751

8

Hex Cap Screw, 1/4-20 x .62

Part# 710-0751

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

710-3008

9

Hex Cap Screw, 5/16-18 x .75

Part# 710-3008

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

711-0309A

10

Clevis Pin

Part# 711-0309A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.99

712-0272

11

Hex Sems Nut, 10-24

Part# 712-0272

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

712-0431

12

Hex Flange Lock Nut, 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.45

783-0765

13

Support Cross Bracket

Part# 783-0765

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Cross Support Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $57.21

712-3004A

14

Hex Flange Lock Nut, 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

712-3027

15

Hex Flange Lock Nut, 1/4-20

Part# 712-3027 (Superseded to 912-3027)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.05

714-0117

16

Internal Cotter Pin, .148 x 3

Part# 714-0117

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.05

723-0383

17

Retainer Strap Assembly

Part# 723-0383 (Superseded to 923-0383)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.98

731-0925B

18

Discharge Chute

Part# 731-0925B (Superseded to 731-0925C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $114.45

731-0926

19

Chute Tube

Part# 731-0926 (Superseded to 731-0926B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $111.18

736-0108

20

Flat Washer, .51 x .75 x .033

Part# 736-0108 (Superseded to 936-0108)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.87

736-0253

21

Belleville Washer

Part# 736-0253 (Superseded to 936-0253)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

736-0270

22

Bell Washer, .265 x .75 x .062

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

783-0764

23

LH Catcher Support Bracket

Part# 783-0764

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Catcher Support Bracket, LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $48.61

738-0380

24

Shoulder Screw, .50 x .27, 3/8-16

Part# 738-0380 (Superseded to 938-0380)

OEM Warranty Repair Part for White Outdoor

Not available

783-0673

25

RH Catcher Support Bracket

Part# 783-0673

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Catcher Support Bracket, RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $48.16

742-0644

26

Star-center Blade, 16.28

Part# 742-0644 (Superseded to 942-0644)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.85

742-0645

27

Star-center Blade, 14.88

Part# 742-0645 (Superseded to 942-0645)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $22.06

749-0745A

28

Grassbag Frame Tube

Part# 749-0745A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Grass Catcher Bag Frame

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $42.47

749-0750

29

Catcher Support Tube

Part# 749-0750

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

SUPPORT ASSY-GRASSCATCHER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

764-0251

30

Grassbag

Part# 764-0251 (Superseded to 964-0251)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $64.34

783-0601

31

Catcher Support Bracket

Part# 783-0601

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Support Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.02

731-2299

32

Extension Tube

Part# 731-2299 (Superseded to 731-2299A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $58.16

723-0476

33

Retainer Strap Assembly

Part# 723-0476

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.51
