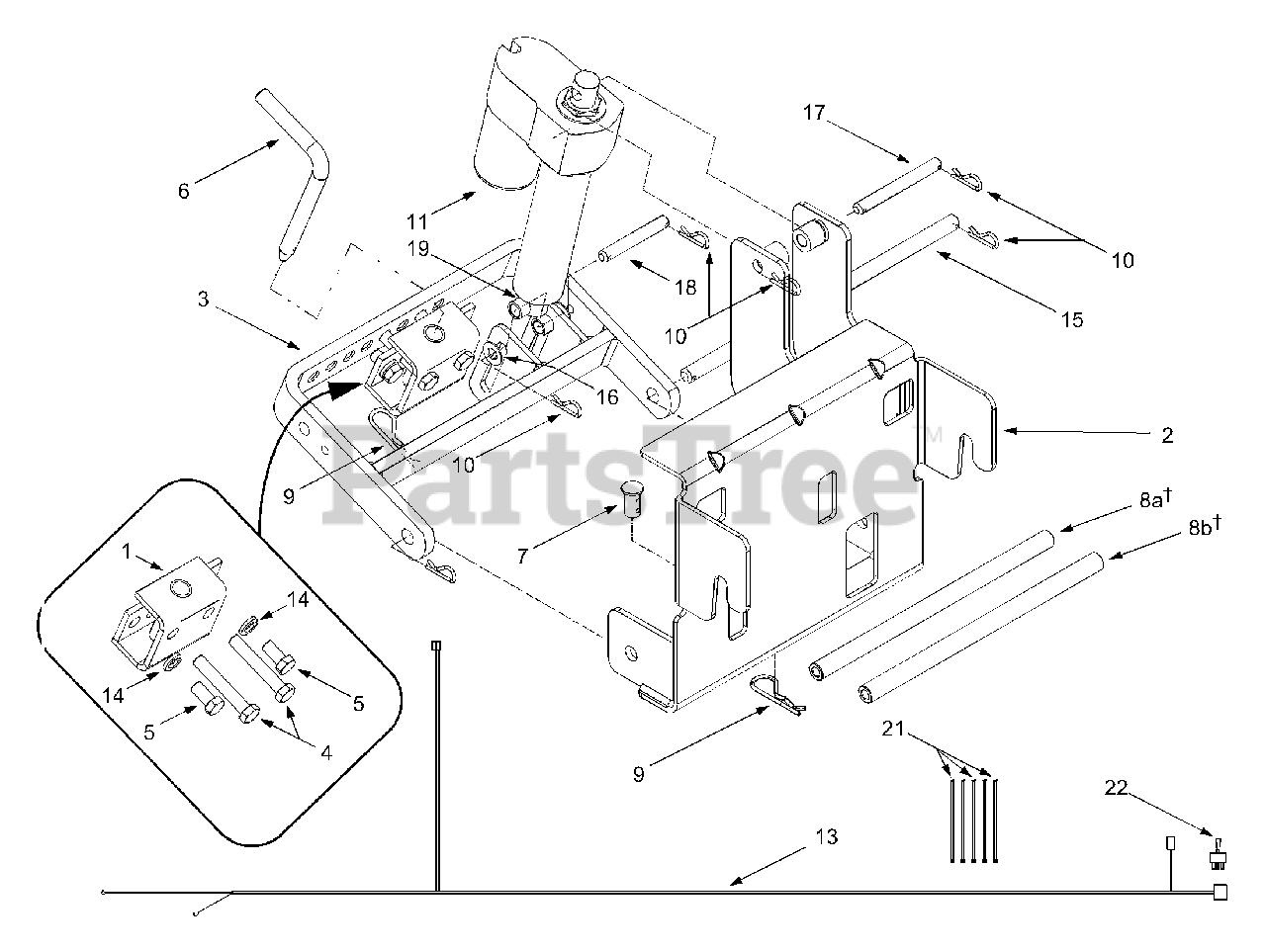

190-825-101 - White Outdoor 30" Hydraulic Tiller Attachment (2004) General Assembly Parts Diagram

30" Hydraulic Tiller Attachment

General Assembly Parts Diagram

  • Title

1

MTD 13269-0637

Hitch Bracket Assembly

$

$

Not available

2

MTD 683-0272A-0637

Sleeve Hitch Bracket Assembly

$

$

Not available

3

MTD 683-0273-0637

Sleeve Hitch Assembly

$

$

Not available

4

MTD 710-0182

Hex Cap Screw, 1/2-13 x 3 (Grade 5)
(Superseded to 710-0182A)

$7.49

$

In Stock, only 2 left!

0

5

MTD 710-3131

Hex Cap Screw, 1/2-13 x 1 (Grade 5)

$4.99

$

In Stock, only 1 left!

0

6

MTD 711-0282

Hitch Pin

$67.99

$

Usually ships in 3-6 days

0

7

MTD 711-0309A

Clevis Pin

$11.99

$

In Stock, Qty 10

0

8A

MTD 711-1440

Support Rod, 3/4 x 13" ( 7/16-20)

Note: Tapped to accept 7/16"-20 shoulder bolts.

$

$

Not available

8B

MTD 711-04188-0637

Support Rod, 3/4 x 13" (3/8-16)

Note: Tapped to accept 3/8"-16 shoulder bolts.

$

$

Not available

9

MTD 714-0117

Internal Cotter Pin, .148 x 3

$3.99

$

In Stock, Qty 11

0

10

MTD 914-0149B

Internal Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

11

MTD 917-0620

Electromechanical Linear Actuator

$1244.99

$

Usually ships in 3-6 days

0

12

MTD 936-0272

Flat Washer, .51 x 1.0 x .06
(Superseded to 736-0272)

$4.49

$

In Stock, Qty 20+

0

13

MTD 929-0919

Wire Harness

$

$

Not available

14

MTD 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

15

MTD 738-0482

Hitch Rod

$

$

Not available

16

MTD 736-3084

Flat Washer, .51 x 1.12 x .060

$4.49

$

In Stock, Qty 20+

0

17

MTD 747-1170

Upper Cylinder Support Rod

$

$

Not available

18

MTD 747-1171

Lower Cylinder Support Rod

$

$

Not available

19

MTD 750-1206

Spacer, .542 x .750 x .5

$15.99

$

In Stock, only 1 left!

0

20

MTD 783-0668

Hitch Plate

Note: NLA

Variations

MTD 783-0668-0498

No Longer Available PLATE-HITC - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0668-0637

No Longer Available PLATE-HITC - POWDER BLACK (0637)

$

$

Not available

MTD 783-0668-0665

No Longer Available PLATE-HITC - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0668-0691

No Longer Available PLATE-HITC - BLACK JACK (0691)

$

$

Not available

$

$

21

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

22

MTD 925-1053

Toggle Switch

$98.99

$

Usually ships in 3-6 days

0
