190-831-190 - White Outdoor 45" Snow Thrower Attachment (1993)

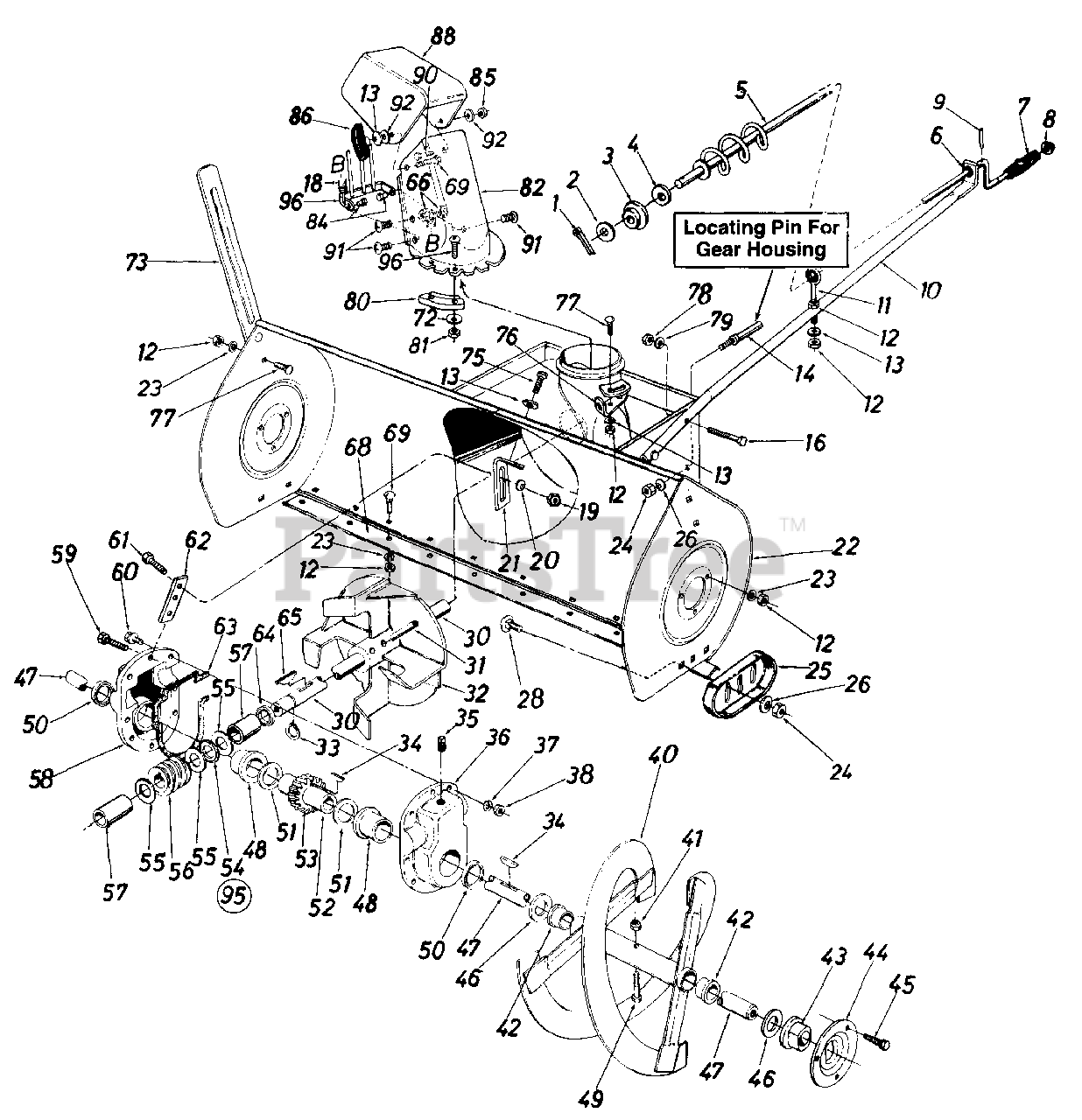

45" Snow Thrower Attachment

190-831-190 - White Outdoor 45" Snow Thrower Attachment (1993) > Parts Diagrams (2) > 45" Snow Thrower Attachment

  • Title
714-0507

1

Cotter Pin 3/32" x .75"

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0140

2

Fl-Wash. .385" I.D. x .62" O.D. x .06"

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.60

741-0475

3

Plastic Bushing .380" I.D.

Part# 741-0475 (Superseded to 941-0475)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.82

736-0140

4

Fl-Wash. .385" I.D. x .62" O.D. x .06"

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.60

05983

5

Chute Crank Ass'y.

Part# 05983

OEM Warranty Repair Part for White Outdoor

Not available

741-0475

6

Plastic Bushing .38" I.D.

Part# 741-0475 (Superseded to 941-0475)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.82

720-0171

7

Knob - Black

Part# 720-0171 (Superseded to 920-0171)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.19

726-0100

8

Cap Speed Nut 3/8" Rod

Part# 726-0100 (Superseded to 926-0100)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

715-0138

9

Spring Pin

Part# 715-0138 (Superseded to 915-0138)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08

749-0230

10

Chute Crank Supporting Tube

Part# 749-0230

OEM Warranty Repair Part for White Outdoor

Not available

747-0416

11

Eyebolt Chute Crank Support

Part# 747-0416

OEM Warranty Repair Part for White Outdoor

Not available

712-0267

12

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

736-0242

13

Bell-Wash. .345" I.D. x .88" O.D. x .06"

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

711-0640

14

Belt Keeper Studs 3/8-16 x 2.75"

Part# 711-0640 (Superseded to 911-0640)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.15

710-0191

16

Hex Bolt 3/8-24 x 1.25" Lg.

Part# 710-0191

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

732-0118

18

Extension Spring

Part# 732-0118 (Superseded to 732-0118A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.98

712-0138

19

Hex Nut 1/4-28 Thd.

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.44

736-0270

20

Bell-Wash. .25" I.D. x .88" O.D. x .062"

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

784-5076

21

Gear Hsg. Support Brkt.

Part# 784-5076

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PLATE-SUPPORT-GEAR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.23

784-5036C

22

45" Snow Thrower Hsg. Ass'y.

Part# 784-5036C

Note: Code: N Notates a new part (not previously existing)

Not available

736-0119

23

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0342

24

Hex Jam Nut 3/8-16 Thd.

Part# 712-0342 (Superseded to 912-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

784-5038A

25

Reversible Slide Shoe

Part# 784-5038A (Superseded to 784-5038B-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $18.98

736-0105

26

Bell-Wash. .4" I.D. x .88" O.D. x .06"

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0790

28

Carr. Bolt 3/8-16 x .62" Lg.

Part# 710-0790 (Superseded to 710-0389)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

738-0679

30

Blower Axle 14.75" Lg.

Part# 738-0679

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $103.60

715-0118

31

Spr. Spiral Pin - H.D.

Part# 715-0118 (Superseded to 915-0118)

OEM Warranty Repair Part for White Outdoor

Not available

784-5145

32

Blower Fan Ass'y.

Part# 784-5145

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Blower Fan Assembly, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

716-0111

33

Snap Ring for .875" Dia. Shaft

Part# 716-0111

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.29

714-0135

34

#91 Woodruff Key 1/4" x 3/4" Dia.

Part# 714-0135 (Superseded to 914-0135)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

737-0175

35

Plastic Vented Plug 1/4-18 Pipe Thd.

Part# 737-0175

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.45

717-0297

36

Gear Hsg. Half - L.H.

Part# 717-0297 (Superseded to 753-0889)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $137.15

736-0271

37

Shakeproof Spr. Wash.

Part# 736-0271 (Superseded to 936-0271)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

712-0429

38

Hex Ins. L-Nut 5/16-18 Thd.

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

05608

40

Spiral Ass'y. - R.H.

Part# 05608

Note: (Not shown)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

USE 684-04196 SPIRAL ASM-RH 4

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

05609

Spiral Ass'y. - L.H.

Part# 05609

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

USE 684-04197 SPIRAL ASM-LH 4

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

712-0429

41

Hex Ins. L-Nut 5/16-18 Thd.

Part# 712-0429 (Superseded to 912-0429)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

741-0494

42

Flange Bearing

Part# 741-0494

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.67

741-0192

43

Flange Bearing w/Flats

Part# 741-0192 (Superseded to 941-0170)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.10

05845

44

Bearing Housing

Part# 05845 (Superseded to 05845C-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.48

710-0198

45

Hex Sems Bolt 5/16-18 x .75" Lg.

Part# 710-0198 (Superseded to 910-0198)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.77

736-0250

46

Fl-Wash.

Part# 736-0250

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

738-0492

47

Spiral Axle

Part# 738-0492

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $137.29

741-0182

48

Flange Bearing

Part# 741-0182

OEM Warranty Repair Part for White Outdoor

Not available

710-0891

49

Shear Bolt 5/16-18 x 1.75

Part# 710-0891

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.84

721-0146

50

Oil Seal 1.5" I.D. Garlock

Part# 721-0146 (Superseded to 921-0146)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.40

736-0266

51

Fl-Wash. 1.5" I.D. x .2" O.D. x .03"

Part# 736-0266 (Superseded to 936-0266)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

738-0275

52

Worm Gear Shaft

Part# 738-0275

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $72.95

717-1425

53

Worm Wheel - L.H. Double Thd.

Part# 717-1425 (Superseded to 917-1425)

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $115.86

741-0184

54

Thrust Brg. .88" I.D. x 1.44" O.D. x .078"

Part# 741-0184

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.94

736-0291

55

Fl-Wash. .88" I.D. x 1.4" O.D. x .125"

Part# 736-0291 (Superseded to 936-0291)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.90

717-0299

56

Worm Gear - L.H. Double Thd.

Part# 717-0299 (Superseded to 917-0299)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $95.15

741-0217

57

Sleeve Brg. .875" I.D.

Part# 741-0217 (Superseded to 941-0217)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.33

717-0298

58

Gear Hsg. Half - R.H.

Part# 717-0298 (Superseded to 753-0889)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $137.15

710-0528

59

Hex Bolt 5/16-18 x 1.25" Lg.

Part# 710-0528

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-0376

60

Hex Bolt 5/16 x 1" Lg.

Part# 710-0376

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

710-0412

61

Hex Bolt 1/4-28 x .75" Lg.

Part# 710-0412

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.68

784-5075

62

Gear Hsg. Support Plate

Part# 784-5075

OEM Warranty Repair Part for White Outdoor

Not available

721-0144

63

Rubber Gasket

Part# 721-0144 (Superseded to 921-0144)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.79

721-0145

64

Oil Seal for .875" I.D. Garlock

Part# 721-0145 (Superseded to 921-0145)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.44

714-0126

65

#9 Hi-Pro Key 3/16" x 3/4" Dia. - H.T.

Part# 714-0126 (Superseded to 914-0126)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.00

712-0291

66

Hex L-Nut 1/4-20 Thd.

Part# 712-0291 (Superseded to 912-0291)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

05598

68

Shave Plate

Part# 05598

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Shave Plate, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $79.31

710-0276

69

Carr-Bolt 5/16-18 x 1" Lg.

Part# 710-0276

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.71

736-0142

72

Fl-Wash. .281" I.D. x .5" O.D. x .063"

Part# 736-0142 (Superseded to 936-0142)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

05139A

73

Guide Blade

Part# 05139A

OEM Warranty Repair Part for White Outdoor

Variations

OLD CUB YELLOW (0498)

BLADE-GUIDE (DRIFT

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.13

POWDER BLACK (0637)

BLADE-GUIDE (DRIFT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.13

MTD/TROY-BILT RED (0638)

BLADE-GUIDE (DRIFT

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.13

OYSTER GRAY (0662)

BLADE-GUIDE (DRIFT

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.13

YARDMAN GREEN (0665)

BLADE-GUIDE (DRIFT

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.13

YARDMAN YELLOW (0674)

BLADE-GUIDE (DRIFT

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.13

CUB YELLOW-99 (0716)

BLADE-GUIDE (DRIFT

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.13

710-0726

75

Hex AB-Tap Scr. 5/16 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

784-5123

76

Chute Crank Brkt.

Part# 784-5123

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Chute Crank Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.61

710-0451

77

Carr. Bolt 5/16-18 x .75" Lg.

Part# 710-0451

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

712-0116

78

Hex Nut 3/8-24 Thd.

Part# 712-0116 (Superseded to 912-0116)

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

79

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

731-0851

80

Chute Flange Keeper

Part# 731-0851 (Superseded to 731-0851A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

712-0107

81

Hex L-Nut 1/4-20 Thd.

Part# 712-0107 (Superseded to 912-0107)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

731-0843B

82

Lower Chute

Part# 731-0843B (Superseded to 931-0843B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $46.47

738-0561

84

Shld. Nut 1/4-20 Thd.

Part# 738-0561 (Superseded to 938-0561)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.89

712-0158

85

Hex L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.10

09966

86

Hand Knob

Part# 09966 (Superseded to 720-04072A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.50

731-0846B

88

Upper Chute

Part# 731-0846B (Superseded to 731-0846C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $33.90

710-0323

90

Truss Mach. Scr. 5/16-18 x .75" Lg.

Part# 710-0323

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

710-0286

91

Truss Mach. Scr. 1/4-20 x .5" Lg.

Part# 710-0286

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

736-0231

92

Fl-Wash. .344" I.D. x 1.125" O.D. x .125"

Part# 736-0231 (Superseded to 936-0231)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97

717-0871A

95

Gear Box Ass'y. Complete

Part# 717-0871A (Superseded to 917-0871A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $463.11

710-0255

96

Truss Mach. Scr. 1/4-20 x 3/4" Lg.

Part# 710-0255 (Superseded to 710-0924)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94
