190-831-190 - White Outdoor 45" Snow Thrower Attachment (1993)

45" Snow Thrower Attachment

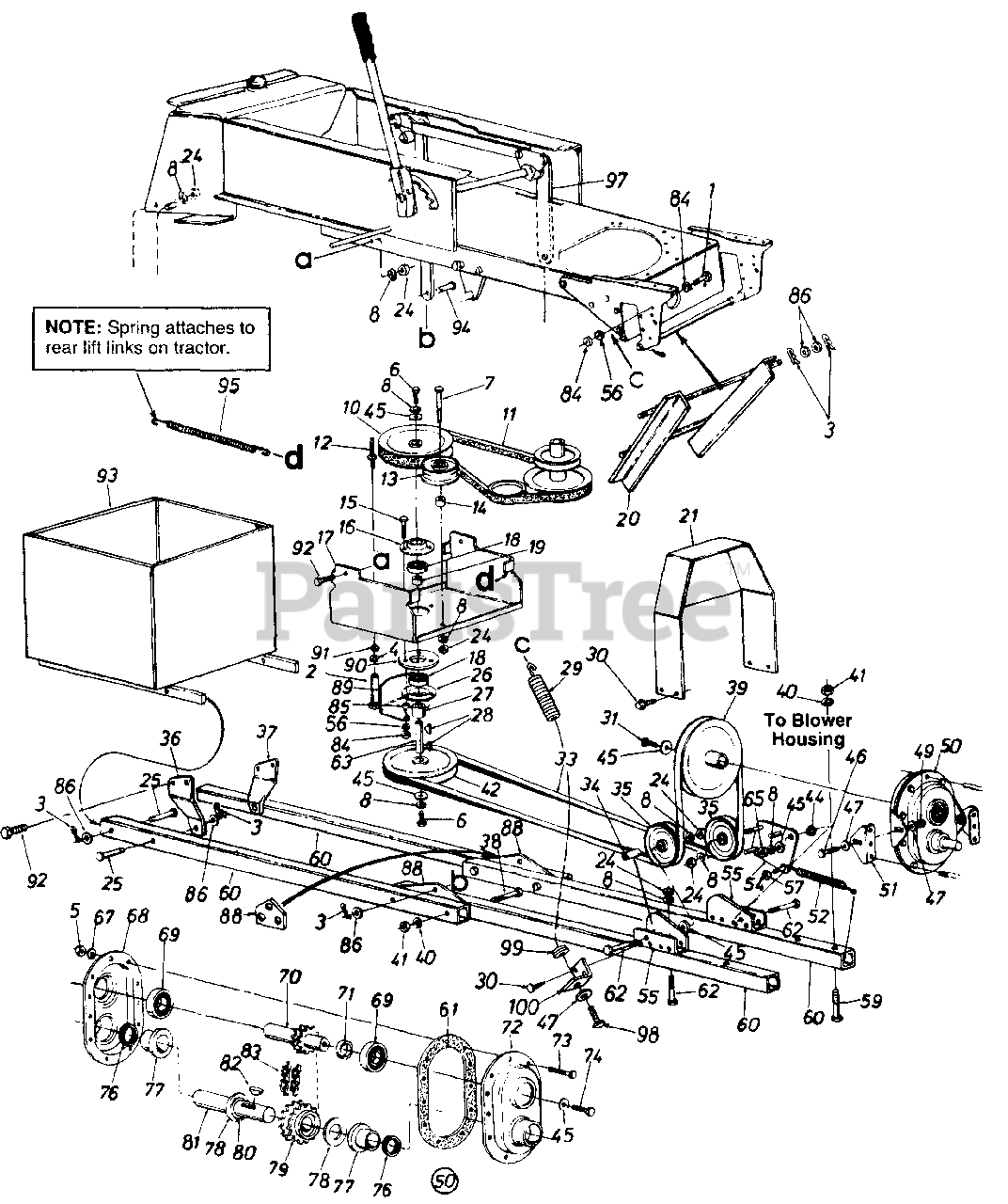

190-831-190 - White Outdoor 45" Snow Thrower Attachment (1993) > Parts Diagrams (2) > Deck Lift Link & Chain Gear Box Assemblies

  • Title
710-0772

1

Hex Bolt 5/16-24 x 2" Lg.

Part# 710-0772

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

711-0793

2

Clevis Pin Spec. 3/8" Dia. x 2.62" Lg.

Part# 711-0793

OEM Warranty Repair Part for White Outdoor

Not available

714-0101

3

Intern. Cot. Pin

Part# 714-0101 (Superseded to 914-0101)

OEM Warranty Repair Part for White Outdoor

Not available

736-0329

4

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0138

5

Hex Nut 1/4-28 Thd.

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.44

710-0591

6

Hex L-Scr. 3/8-24 x 1.0" Lg.

Part# 710-0591

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.92

710-0756

7

Hex Bolt 3/8-16 x 2.25" Lg.

Part# 710-0756

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

8

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

756-0438

10

5/8" "V"-Pulley .79" I.D. x .65" O.D.

Part# 756-0438 (Superseded to 956-0438)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $54.13

754-0229

11

"V"-Belt

Part# 754-0229 (Superseded to 954-0229)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.74

711-0747

12

Belt Guard Pin

Part# 711-0747 (Superseded to 911-0747)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.66

756-0405

13

Fl-Idler 3.75" O.D.

Part# 756-0405

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $49.07

711-0396

14

Spacer .385" I.D. x .63" O.D. x .76"

Part# 711-0396

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.44

710-0624

15

Hex Bolt 5/16-24 x 1.50

Part# 710-0624

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.95

15296A

16

Open Brg. Hsg.

Part# 15296A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.80

15297A

Open Brg. Hsg. Ass'y.

Part# 15297A

Note: (Incl. Ref. 18)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $48.61

784-5146

17

Carr. Brkt.

Part# 784-5146

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-CARRIAGE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $175.57

741-0919

18

Ball Brg. .787" I.D.

Part# 741-0919 (Superseded to 941-0919B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.76

750-0456

19

Spacer .8" I.D. x 1" O.D.

Part# 750-0456 (Superseded to 950-0456)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

784-5148

20

Guide Brkt. Ass'y.

Part# 784-5148 (Superseded to 784-5148B-0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-5227

21

Belt Cover Ass'y.

Part# 784-5227

Not available

712-0798

24

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

711-0231

25

Clevis Pin .50" Dia. x 1.75" Lg.

Part# 711-0231 (Superseded to 911-0231)

OEM Warranty Repair Part for White Outdoor

Not available

741-0163

26

Brg. Hsg. Ass'y.

Part# 741-0163 (Superseded to 741-0163A)

Note: (Incl. Ref. 18)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.74

750-0660

27

Spacer .8" I.D. x 1" O.D. x .125"

Part# 750-0660

OEM Warranty Repair Part for White Outdoor

Not available

714-0161

28

Woodruff Key 3/16" x 5/8" HT

Part# 714-0161 (Superseded to 914-0161)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

732-0323

29

Helper Spring

Part# 732-0323

OEM Warranty Repair Part for White Outdoor

Not available

710-0600

30

Hex Wash. HD-Tap Scr. 5/16-18 x .50

Part# 710-0600

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.34

710-0591

31

Hex L-Scr. 3/8-24 x 1.0" Lg.

Part# 710-0591

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.92

754-0295

33

"V"-Belt

Part# 754-0295 (Superseded to 954-0295)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $74.56

750-0668

34

Spacer .39" I.D. x .62" O.D. x 1.74" Lg.

Part# 750-0668

OEM Warranty Repair Part for White Outdoor

Not available

756-0487

35

V-Idler Pulley

Part# 756-0487

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $33.35

784-5204

36

Rear Hanger Brkt. - R.H.

Part# 784-5204

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BRACKET-HANGER-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-5203

37

Rear Hanger Brkt. - L.H.

Part# 784-5203

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-HANGER-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-0786

38

Hex Bolt 1/2-13 x 4.0" Lg.

Part# 710-0786

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.02

756-0474

39

5/8" "V"-Pulley 7.5" O.D.

Part# 756-0474

OEM Warranty Repair Part for White Outdoor

Not available

736-0921

40

L-Wash. 1/2" I.D.

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0206

41

Hex Nut 1/2-13 Thd.

Part# 712-0206 (Superseded to 912-0206)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.89

756-0438

42

5/8" "V"-Pulley

Part# 756-0438 (Superseded to 956-0438)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $54.13

738-0347

44

Shld. Spacer

Part# 738-0347 (Superseded to 938-0347)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.61

736-0247

45

Fl-Wash. .4" I.D. x 1.25" O.D. x .16"

Part# 736-0247

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.47

710-0528

46

Hex Bolt 5/16-18 x 1.25" Lg.

Part# 710-0528

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-0242

47

Bell-Wash. .345" I.D. x .88" O.D. x .06"

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

712-0267

49

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

717-0870

50

Comp. Chain Gear Box Ass'y.

Part# 717-0870

OEM Warranty Repair Part for White Outdoor

Not available

05607

51

Gear Box Support Brkt.

Part# 05607

OEM Warranty Repair Part for White Outdoor

Not available

732-0491

52

Ext. Spring .6" Lg.

Part# 732-0491

OEM Warranty Repair Part for White Outdoor

Not available

784-5200

54

Idler Brkt. Ass'y.

Part# 784-5200

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BRACKET ASSY-IDLER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-5211A

55

Idler Support Brkt.

Part# 784-5211A

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

56

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0116

57

Hex Nut 3/8-24 Thd.

Part# 712-0116 (Superseded to 912-0116)

OEM Warranty Repair Part for White Outdoor

Not available

710-0182

59

Hex Bolt 1/2-13 x 3" Lg.

Part# 710-0182

OEM Warranty Repair Part for White Outdoor

Not available

784-5573

60

Sq. Tubing 43" Lg.

Part# 784-5573

OEM Warranty Repair Part for White Outdoor

Not available

721-0158

61

Gasket

Part# 721-0158

OEM Warranty Repair Part for White Outdoor

Not available

710-0521

62

Hex Bolt 3/8-16 x 3" Lg.

Part# 710-0521

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.37

738-0680

63

Shaft - .787" Dia. x 3.81" Lg.

Part# 738-0680 (Superseded to 938-0680)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $66.81

712-0266

65

Hex L-Nut 3/8-16 Thd.

Part# 712-0266 (Superseded to 712-0266A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.55

736-0175

67

Wave Spring Wash. .27" I.D. x .51" O.D. x .03"

Part# 736-0175 (Superseded to 936-0175)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

717-0359

68

Complete Gear Hsg. Half - L.H.

Part# 717-0359

OEM Warranty Repair Part for White Outdoor

Not available

741-0131

69

Ball Brg. 1" I.D. x 2" O.D.

Part# 741-0131 (Superseded to 941-0131)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $35.00

713-0346A

70

11-2 x .5 Pitch Sprocket Shaft Ass'y.

Part# 713-0346A

OEM Warranty Repair Part for White Outdoor

Not available

750-0612A

71

Spacer 1" I.D. x 1.18" O.D. x .44"

Part# 750-0612A

OEM Warranty Repair Part for White Outdoor

Not available

717-0360

72

Comp. Gear Hsg. Half - R.H.

Part# 717-0360

OEM Warranty Repair Part for White Outdoor

Not available

710-0299

73

Hex Bolt 1/4-28 x 1" Lg.

Part# 710-0299

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.92

710-0591

74

Hex L-Scr. 3/8-24 x 1" Lg.

Part# 710-0591

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.92

721-0117

76

Oil Seal 1.25" I.D.

Part# 721-0117 (Superseded to 921-0117)

OEM Warranty Repair Part for White Outdoor

Not available

748-0194

77

Flange Brg. 1.25" I.D.

Part# 748-0194

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $21.44

736-0246

78

Fl-Wash. 1.25" I.D. x 2" O.D. x .036"

Part# 736-0246

OEM Warranty Repair Part for White Outdoor

Not available

713-0348

79

DBL Sprocket 19-2 Teeth x .5" Pitch

Part# 713-0348

OEM Warranty Repair Part for White Outdoor

Not available

716-0116

80

Snap Ring for 1.25" Dia. Shaft

Part# 716-0116

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.10

738-0677

81

Gear Shaft 1.25 Dia. x 6" Lg.

Part# 738-0677

OEM Warranty Repair Part for White Outdoor

Not available

714-0113

82

Hi-Pro Key 1/4" x 7/8"

Part# 714-0113

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.57

713-0349

83

40-2 Chain 1/2" Pitch x 25 Links

Part# 713-0349

OEM Warranty Repair Part for White Outdoor

Not available

713-0152

Master Link #40 Type IV

Part# 713-0152 (Superseded to 913-0152)

OEM Warranty Repair Part for White Outdoor

Not available

712-0123

84

Hex Nut 5/16-24 Thd.

Part# 712-0123 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

750-0535

85

Spacer .380" I.D. x .625" O.D. x .227

Part# 750-0535 (Superseded to 950-0535)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-0272

86

Fl-Wash. .53" I.D. x 1" O.D. x .06"

Part# 736-0272 (Superseded to 936-0272)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.20

784-5199

88

Attaching Plate

Part# 784-5199 (Superseded to 984-5199)

Note: (46" Decks)

OEM Warranty Repair Part for White Outdoor

Not available

784-5202

Attaching Plate

Part# 784-5202

Note: (All Other Units)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available PLATE-LIFT LINKAGE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

05406

89

Belt Guard

Part# 05406

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

GUARD-BELT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

14088B

90

Spindle Spacer

Part# 14088B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Spindle Spacer

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $19.05

712-0107

91

Hex L-Nut 1/4-20 Thd.

Part# 712-0107 (Superseded to 912-0107)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-0514

92

Hex Bolt 3/16 x 1" Lg.

Part# 710-0514

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.78

784-5147

93

Weight Box Ass'y.

Part# 784-5147

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BOX&ASSY-WEIGHT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

711-0332

94

Lift Brkt. Pin

Part# 711-0332 (Superseded to 911-0332)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.99

732-0388

95

Extension Spring

Part# 732-0388 (Superseded to 932-0388)

OEM Warranty Repair Part for White Outdoor

Not available

17304

97

Deck Lift Link Ass'y.

Part# 17304

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.53

710-0959

98

Hex Bolt 5/16-18 x 1.5" Lg.

Part# 710-0959

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.19

711-0509

99

Spring Insert

Part# 711-0509

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $42.07

784-5686

100

Spring Mtg .Brkt.

Part# 784-5686

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-SPRING MOUNTING

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

737-0120

Sunplex Grease - 8 oz.

Part# 737-0120 (Superseded to 737-0300A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $27.16
