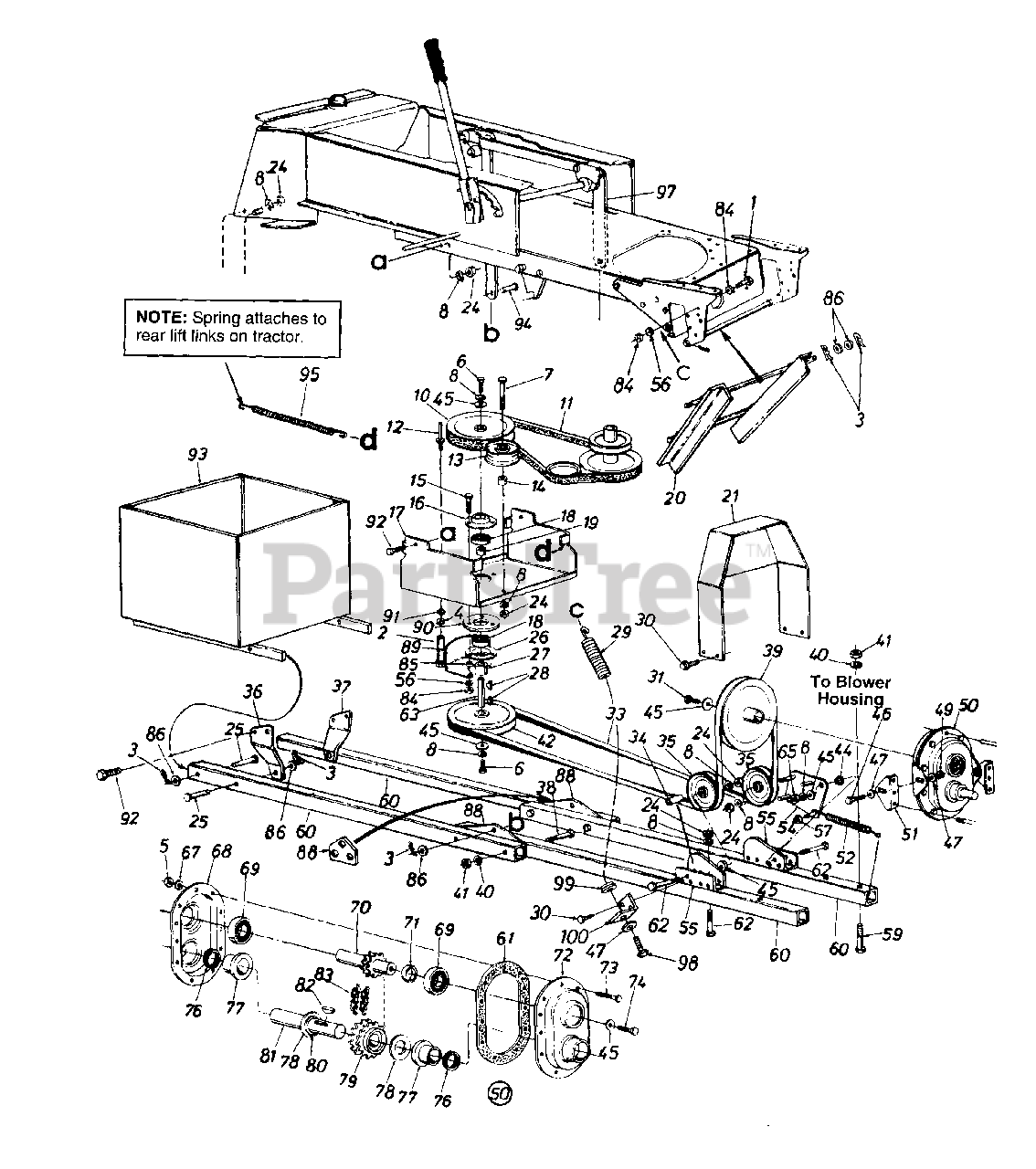

190-831-190 - White Outdoor 45" Snow Thrower Attachment (1994) Chain Gear Box Parts Diagram

45" Snow Thrower Attachment

Chain Gear Box Parts Diagram

  • Title

1

MTD 710-0772

Hex Bolt 5/16-24 x 2" Lg.

$4.99

$

Usually ships in 3-6 days

0

2

MTD 711-0793

Clevis Pin Spec. 3/8" Dia. x 2.62" Lg.

Note: NLA

$

$

Not available

3

MTD 914-0101

Intern. Cot. Pin
(Superseded to 714-0101)

$

$

Not available

4

MTD 936-0329

L-Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 12

0

5

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

6

MTD 710-0591

Hex L-Scr. 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

7

MTD 710-0756

Hex Bolt 3/8-16 x 2.25" Lg.

Note: NLA

$

$

Not available

8

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 11

0

10

MTD 956-0438

5/8" "V"-Pulley .79" I.D. x .65" 0 D.

$88.99

$

Usually ships in 3-6 days

0

11

MTD 954-0229

V-Belt

$59.99

$

Usually ships in 3-6 days

0

12

MTD 911-0747

Belt Guard Pin

$10.99

$

Usually ships in 3-6 days

0

13

MTD 756-0405

Fl-Idler 3.75" O.D.

$76.99

$

In Stock, only 2 left!

0

14

MTD 711-0396

Spacer .385" I.D. x .63" O.D. x .76"

$12.99

$

Usually ships in 3-6 days

0

15

MTD 710-0624

Hex Bolt 5/16-24 x 1.50

$6.49

$

Usually ships in 3-6 days

0

16

MTD 15296A

Open Brg. Hsg.

$9.49

$

In Stock, Qty 9

0

16

MTD 15297A

Open Brg. Hsg. Ass'y.

Note: (Incl. Ref. 18)

$73.99

$

Usually ships in 3-6 days

0

17

MTD 784-5146-0637

Carr. Brkt.

$

$

Not available

18

MTD 941-0919A

Ball Brg. .787" 1.0.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

19

MTD 950-0456

Spacer .8" I.D. x 1" O.D.
(Superseded to 750-0456)

$4.99

$

In Stock, Qty 20+

0

20

MTD 784-5148

Guide Brkt. Ass'y.

Note: NLA

$

$

Not available

21

MTD 784-5227

Belt Cover Ass'y.

Note: NLA

$

$

Currently unavailable

24

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

25

MTD 911-0231

Clevis Pin .50" Dia. x 1.75" Lg.
(Superseded to 711-0231A)

$6.99

$

In Stock, only 2 left!

0

26

MTD 741-0163A

Brg. Hsg. Ass'y.

Note: (Incl. Ref. 18)

$48.99

$

Usually ships in 3-6 days

0

27

MTD 750-0660

Spacer. 8" I.D. x 1" O.D. x .125"

Note: NLA

$

$

Not available

28

MTD 914-0161

Woodruff Key 3/16" x 5/8" HT

$4.99

$

In Stock, Qty 12

0

29

MTD 732-0323

Helper Spring

$

$

Not available

30

MTD 710-0600

Hex Wash. HD-Tap Scr. 5/16-18 x .50

$

$

Not available

31

MTD 710-0591

Hex L-Scr. 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

33

MTD 954-0295

V-Belt

$96.99

$

Usually ships in 3-6 days

0

34

MTD 750-0668

Spacer .39" I.D. x .62" O.D. x 1.74" Lg.

$

$

Not available

35

MTD 756-0487

V-idler Pulley

$51.99

$

In Stock, Qty 5

0

36

MTD 784-5204

Rear Hanger Brkt. - R.H.

Note: NLA

Variations

784-5204-0637

MTD 784-5204-0637

No Longer Available BRACKET-HA - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 784-5203-0637

Rear Hanger Brkt. - L.H.

$

$

Not available

38

MTD 710-0786

Hex Bolt 1/2-13 x 4.0" Lg.

$17.99

$

Usually ships in 3-6 days

0

39

MTD 756-0474

5/8" "V"-Pulley 7.5" O.D.

Note: NLA

$

$

Not available

40

MTD 936-0921

L-Wash. 1/2" I.D.
(Superseded to 736-0921)

$4.99

$

In Stock, Qty 9

0

41

MTD 912-0206

Hex Nut 1/2-13 Thd.
(Superseded to 712-0206)

$4.99

$

In Stock, Qty 20+

0

42

MTD 956-0438

5/8" "V"-Pulley

$88.99

$

Usually ships in 3-6 days

0

44

MTD 938-0347

Shld. Spacer

$10.99

$

In Stock, only 2 left!

0

45

MTD 736-0247

Fl-Wash. .4" I.D. x 1.25" O.D. x .16"

$10.99

$

In Stock, Qty 10

0

46

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.99

$

In Stock, Qty 20+

0

47

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D. x .06"

$4.99

$

In Stock, Qty 20+

0

49

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

50

MTD 717-0870

Comp. Chain Gear Box Ass'y.

Note: NLA

$

$

Not available

51

MTD 05607

Gear Box Support Brkt.

Note: NLA

$

$

Not available

52

MTD 732-0491

Ext. Spring .6" Lg.

Note: NLA

$

$

Not available

54

MTD 784-5200

Idler Brkt. Ass'y.

Note: NLA

Variations

784-5200-0637

MTD 784-5200-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 784-5211A

Idler Support Brkt.

Note: NLA

$

$

Not available

56

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

57

MTD 912-0116

Hex Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

59

MTD 710-0182

Hex Bolt 1/2-13 x 3" Lg.
(Superseded to 710-0182A)

$8.49

$

In Stock, Qty 15

0

60

MTD 784-5573

Sq. Tubing 43" Lg.

$

$

Not available

61

MTD 721-0158

Gasket

Note: NLA

$

$

Not available

62

MTD 710-0521

Hex Bolt 3/8-16 x 3" Lg.

$5.49

$

In Stock, only 3 left!

0

63

MTD 938-0680

Shaft - .787" Dia. x 3.81" Lg.

$108.99

$

Usually ships in 3-6 days

0

65

MTD 712-0266A

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 10

0

67

MTD 936-0175

Wave Spring Wash. .27" I.D. x .51" O.D. x .03"

$4.49

$

In Stock, only 3 left!

0

68

MTD 717-0359

Complete Gear Hsg. Half - L.H.

Note: NLA

$

$

Not available

69

MTD 941-0131

Ball Brg. 1" I.D. x 2" O.D.

$56.99

$

In Stock, only 3 left!

0

70

MTD 713-0346A

11-2 x .5 Pitch Sprocket Shaft Ass'y.

Note: NLA

$

$

Not available

71

MTD 750-0612A

Spacer 1" I.D. x 1.18" O.D. x .44"

Note: NLA

$

$

Not available

72

MTD 717-0360

Comp. Gear Hsg. Half - R.H.

$

$

Not available

73

MTD 710-0299

Hex Bolt 1/4-28 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

74

MTD 710-0591

Hex L-Scr. 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

76

MTD 921-0117

Oil Seal 1.25" I.D.

$

$

Not available

77

MTD 748-0194

Flange Brg. 1.25" I.D.

$34.99

$

Usually ships in 3-6 days

0

78

MTD 736-0246

Fl-Wash. 1.25" I.D. x 2" O.D. x .036"

$

$

Not available

79

MTD 713-0348

DBL Sprocket 19-2 Teeth x .5" Pitch

Note: NLA

$

$

Not available

80

MTD 716-0116

Snap Ring for 1.25" Dia. Shaft

$5.49

$

Usually ships in 3-6 days

0

81

MTD 738-0677

Gear Shaft 1.25 Dia. x 6" Lg.

Note: NLA

$

$

Not available

82

MTD 714-0113

Hi-Pro Key 1/4" x 7/8"

$6.99

$

Usually ships in 3-6 days

0

83

MTD 713-0349

40-2 Chain 1/2" Pitch x 25 Links

Note: NLA

$

$

Not available

83

MTD 913-0152

Master Link #40 Type IV

$

$

Not available

84

MTD 912-3057

Hex Nut 5/16-24 Thd.

$7.49

$

In Stock, Qty 8

0

85

MTD 950-0535

Spacer .380" I.D. x .625" O.D. x .227

$4.99

$

In Stock, Qty 7

0

86

MTD 936-0272

Fl-Wash. .53" I.D. x 1" O.D. x .06"
(Superseded to 736-0272)

$5.49

$

In Stock, Qty 20+

0

88

MTD 984-5199

Attaching Plate

Note: (46" Decks)

$

$

Not available

88

MTD 784-5202

Attaching Plate

Note: NLA (All Other Units)

Variations

784-5202-0637

MTD 784-5202-0637

No Longer Available PLATE-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

89

MTD 05406-0637

Belt Guard

$

$

Not available

90

MTD 14088B-0637

Spindle Spacer

$31.99

$

Usually ships in 3-6 days

0

91

MTD 912-0107

Hex L-Nut 1/4-20 Thd.

$4.99

$

Usually ships in 3-6 days

0

92

MTD 710-0514

Hex Bolt 3/16 x 1" Lg.

$4.49

$

In Stock, Qty 16

0

93

MTD 784-5147

Weight Box Ass'y.

Note: NLA

Variations

784-5147-0637

MTD 784-5147-0637

No Longer Available BOX&ASSY-W - POWDER BLACK (0637)

$

$

Not available

$

$

94

MTD 911-0332

Lift Brkt. Pin

$17.99

$

In Stock, Qty 20+

0

95

MTD 932-0388

Extension Spring

$

$

Not available

97

MTD 17304

Deck Lift Link Ass'y.

$40.99

$

Usually ships in 3-6 days

0

98

MTD 710-0959

Hex Bolt 5/16-18 x 1.5" Lg.

$7.49

$

Usually ships in 3-6 days

0

99

MTD 711-0509

Spring Insert

$63.99

$

Usually ships in 3-6 days

0

100

MTD 784-5686-0637

Spring Mtg. Brkt.

$

$

Not available
