190-832-190 - White Outdoor 40" Snow Thrower Attachment (1990) 40" Snow Thrower Frame Assembly Parts Diagram

40" Snow Thrower Attachment

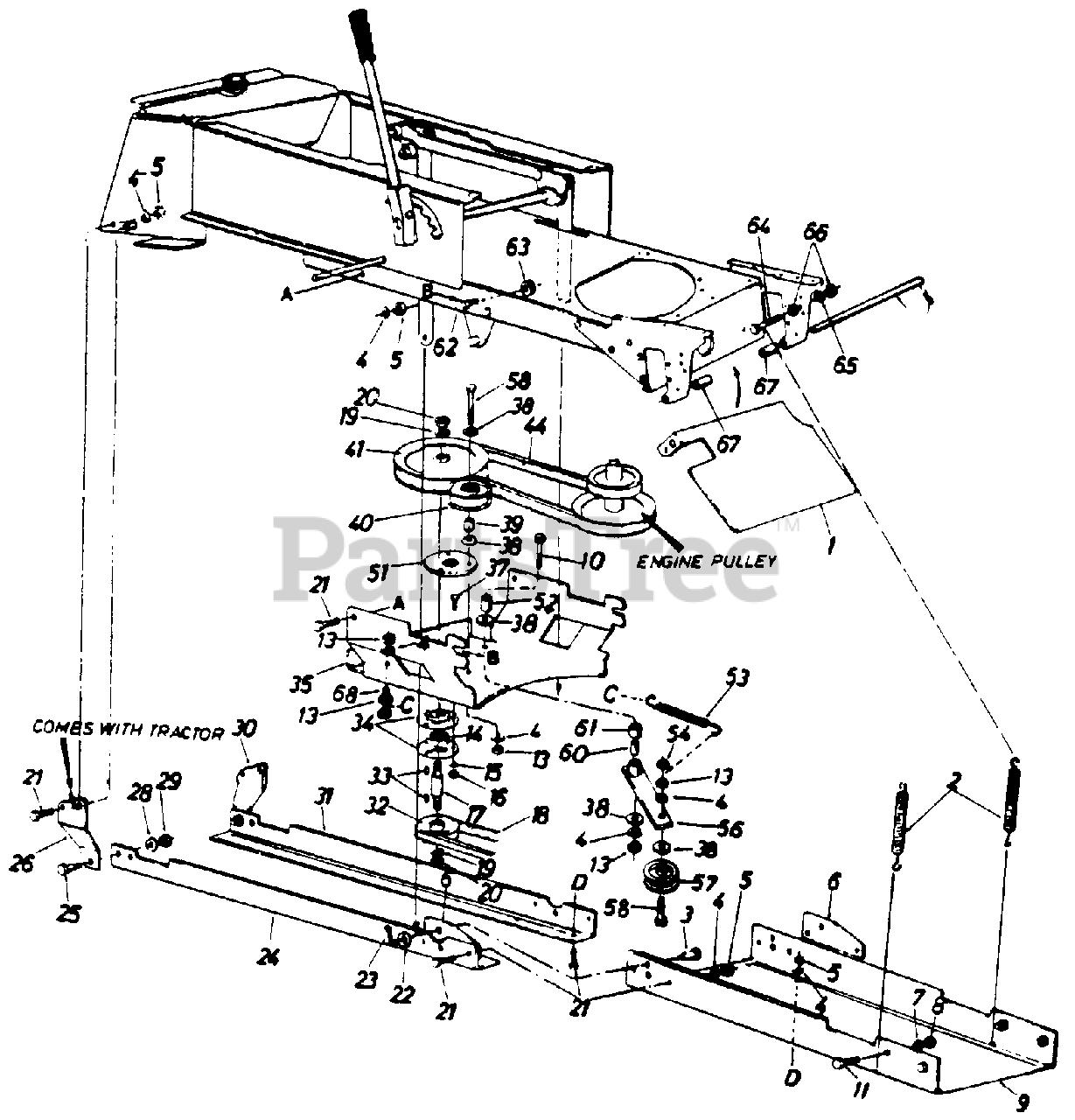

40" Snow Thrower Frame Assembly Parts Diagram

  • Title

1

White Outdoor 784-5091B

Guide Bracket

Variations

White Outdoor 784-5091B-0637

No Longer Available BRACKET-GUIDE - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 732-0233

Helper Spring
(Superseded to 932-0233)

$

$

Not available

3

White Outdoor 711-0332

Clevis Pin
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

4

White Outdoor 736-0169

L.-Wash. 318" I.D.*

$3.49

$

In Stock, Qty 20+

0

5

White Outdoor 712-0241

Hex L.-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 05714

Attaching Plata

$

$

Not available

7

White Outdoor 736-0921

L.-Wash. 112" I.D.*

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-0239

Hex L-Nut 1/2-20 Thd.

$5.49

$

In Stock, Qty 20+

0

9

White Outdoor 05719B

Front Support Channd

Variations

White Outdoor 05719B-0637

No Longer Available CHANNEL-SUPPORT-FR - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 710-0771

Hex Bolt 318-18 x 3.75" Lg.
(Superseded to 710-04576)

$4.99

$

Usually ships in 3-6 days

0

11

White Outdoor 710-0504

Hex Eblt 112-20 x 1.25" Lg.*

$

$

Not available

13

White Outdoor 712-0342

Hex Jam Nut 3/8-18 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 741-0919

Ball Bearing
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

15

White Outdoor 736-0119

L.-Wash. 5/16" I.D*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-0287

Hex Nut 5/16-18 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

17

738-0248

Spindle

$

$

Not available

18

White Outdoor 754-0294

"V"-Bdt
(Superseded to 954-0294)

$68.99

$

Usually ships in 3-6 days

0

19

White Outdoor 736-0158

L-Wash. 5/8"I.D.*

$4.49

$

In Stock, only 1 left!

0

20

White Outdoor 712-0242

Hex Jam Nut 518-11 Thd.
(Superseded to 912-0261)

$

$

Not available

21

White Outdoor 710-0152

Hex Bolt 318-24 x 1.00" Lg.*
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

22

White Outdoor 736-0192

Flat Washer

$3.99

$

In Stock, only 2 left!

0

23

White Outdoor 714-0101

Intemal Cottar Pin

$4.49

$

In Stock, only 4 left!

0

24

White Outdoor 05718

Rear Support Angle-R.H.

Variations

White Outdoor 05718-0637

No Longer Available ANGLE-SUPPORT-RH-R - POWDER BLACK (0637)

$

$

Not available

$

$

25

White Outdoor 738-0183

Shld. Bolt .82.3" Dia.
(Superseded to 938-0183)

$

$

Not available

26

White Outdoor 05718

Rear Hanger Brkt.

Variations

White Outdoor 05718-0637

No Longer Available ANGLE-SUPPORT-RH-R - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 738-0171

L-Wash. 7/16" I.D.

$

$

Not available

29

White Outdoor 712-0275

Hex Nut 7/16"-14 Thd.
(Superseded to 912-3019)

$6.49

$

In Stock, only 4 left!

0

30

White Outdoor 05717

Rear Hanger Brkt.-L.H.
(Superseded to 05717-0637)

Variations

White Outdoor 05717-0637

ANGLE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

31

White Outdoor 05717

Rear Support Angle-L.H.
(Superseded to 05717-0637)

Variations

White Outdoor 05717-0637

ANGLE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

32

White Outdoor 756-0457

Lower Drive Pulley 5/8 x 5.56

$

$

Not available

33

White Outdoor 714-0388

#6 Hi-Pro Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

34

White Outdoor 08253B

Bearing Housing

$17.99

$

In Stock, only 4 left!

0

35

White Outdoor 05713B

Supporting Bracket

$

$

Not available

37

White Outdoor 710-0322

Hex Sems Bolt 5/16-18 x 1"*
(Superseded to 910-0322)

$

$

Not available

38

White Outdoor 736-0258

Fl.-Waah. .38" I.D. x l" O.D.

$4.49

$

In Stock, only 4 left!

0

39

White Outdoor 748-0193

Spacer .38" I.D. x .62' O.D.
(Superseded to 948-0193)

$

$

Not available

40

White Outdoor 756-0405

Fl.-idler Pulley

$66.99

$

In Stock, only 1 left!

0

41

White Outdoor 756-0216

Upper Drive Pulley

$

$

Not available

44

White Outdoor 754-0206

"V"-Belt
(Superseded to 954-0206)

$

$

Not available

51

White Outdoor 13778

Reinforcement Plate

Variations

White Outdoor 13778-0637

No Longer Available PLATE-MTG-SPINDLE - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 750-0511

Spacer .37" I.Q x 1.50" Lg.

$

$

Not available

53

White Outdoor 732-0470A

Extension Spring 4.75" Lg.
(Superseded to 932-0470A)

$9.49

$

In Stock, Qty 20+

0

54

White Outdoor 712-0268

Hex Cent. L.-Nut 3/8-16 Thd.

$

$

Not available

56

White Outdoor 703-1292

Idler Arm Ass'y.
(Superseded to 703-1396-0637)

$161.99

$

Usually ships in 3-6 days

0

57

White Outdoor 756-0417

Idler Pulley
(Superseded to 956-0417)

$

$

Not available

58

White Outdoor 710-0756

Hex Bolt 3/8-16 x 2.25" Lg.

$

$

Not available

60

White Outdoor 750-0252

Spacer.377" I.D. x .83" Lg.
(Superseded to 950-0252)

$19.99

$

In Stock, Qty 6

0

61

White Outdoor 748-0193

Spacer.38" I.Q x .565" Lg.
(Superseded to 948-0193)

$

$

Not available

62

White Outdoor 738-0143

Shoulder Bolt .498 Dia.

$3.99

$

In Stock, Qty 20+

0

63

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

64

White Outdoor 710-0698

Hex Bolt 11428 x 1.50" Lg.

$

$

Not available

65

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

66

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

67

White Outdoor 750-0757

Spacer .63" I.D. x 1.75" Lg.
(Superseded to 950-0932A)

$19.99

$

In Stock, Qty 20+

0

68

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0
