190-857-190 - White Outdoor 51" Snow Thrower Attachment (1995) 54-Inch Dozer Blade Parts Diagram

51" Snow Thrower Attachment

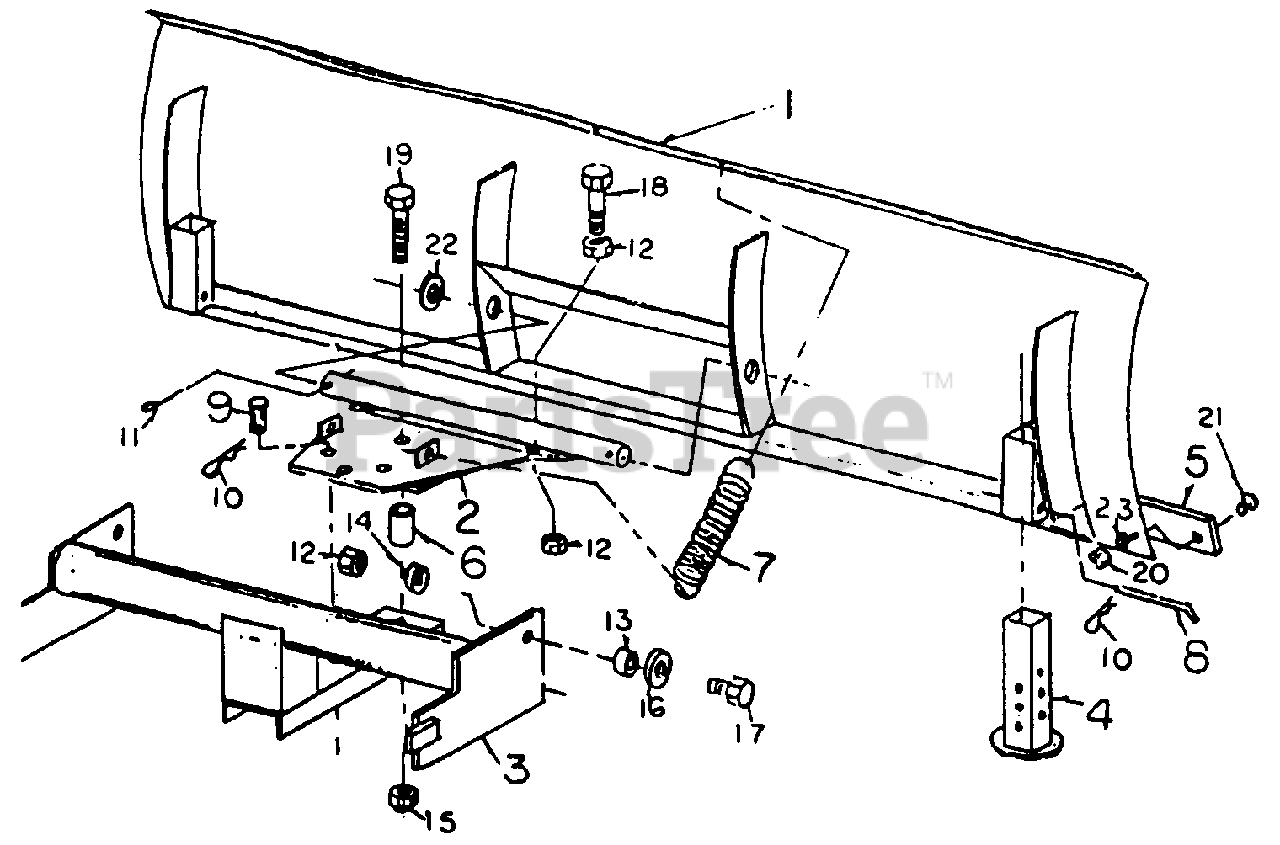

54-Inch Dozer Blade Parts Diagram

  • Title

1

MTD WD-440-0000

Blade, 54"

Note: NLA

$

$

Currently unavailable

2

MTD WD-440-0001

Pivot Mount

Note: NLA

$

$

Not available

3

MTD WD-440-0002

Blade Mount, 54"

Note: NLA

$

$

Not available

4

MTD WD-440-0004

Skid Plate

Note: NLA

$

$

Not available

5

MTD WD-440-0003

Replaceable Blade

Note: NLA

$

$

Currently unavailable

6

MTD WD-440-0005

Bushing

Note: NLA

$

$

Not available

7

MTD WD-900-5516

Spring

Note: NLA

$

$

Not available

8

MTD WD-900-5536

Pin, 3/8"

Note: NLA

$

$

Not available

9

MTD WD-900-5607

Clevis Pin, 1/2"

Note: NLA

$

$

Not available

10

MTD WD-900-5520

Hair Pin

Note: NLA

$

$

Not available

11

MTD WD-900-6178

Cotter Pin, 3/16" x 1"

Note: NLA

$

$

Currently unavailable

12

MTD 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$3.99

$

In Stock, Qty 20+

0

13

MTD WD-300-00135

Bushing

Note: NLA

$

$

Currently unavailable

14

MTD 936-0921

Lockwasher, 1/2"
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

15

MTD WD-900-6126

Hex Locknut, 1/2"

Note: NLA

$

$

Currently unavailable

16

MTD WD-900-6128

Flatwasher, 1/2"

Note: NLA

$

$

Currently unavailable

17

MTD WD-900-6130

Hex Capscrew, 1/2-13 x 1 1/2", GRS

Note: NLA

$

$

Currently unavailable

18

MTD WD-900-6131

Hex-Capscrew, 1/2-13 x 2 1/4", GRS

Note: NLA

$

$

Currently unavailable

19

MTD WD-900-6132

Hex Capscrew, 1/2-13 x 3", GRS

Note: NLA

$

$

Currently unavailable

20

MTD WD-900-6050

Hex Nut, 5/16-18

Note: NLA

$

$

Currently unavailable

21

MTD WD-900-6057

Carriage Bolt, 5/16-18 x 1"

Note: NLA

$

$

Currently unavailable

22

MTD WD-900-6003

Machine Washer, 3/4"

Note: NLA

$

$

Not available

23

MTD WD-900-6051

Lockwasher, 5/16"

Note: NLA

$

$

Currently unavailable
