190-890-190 - White Outdoor Grass Box (1996)

Grass Box

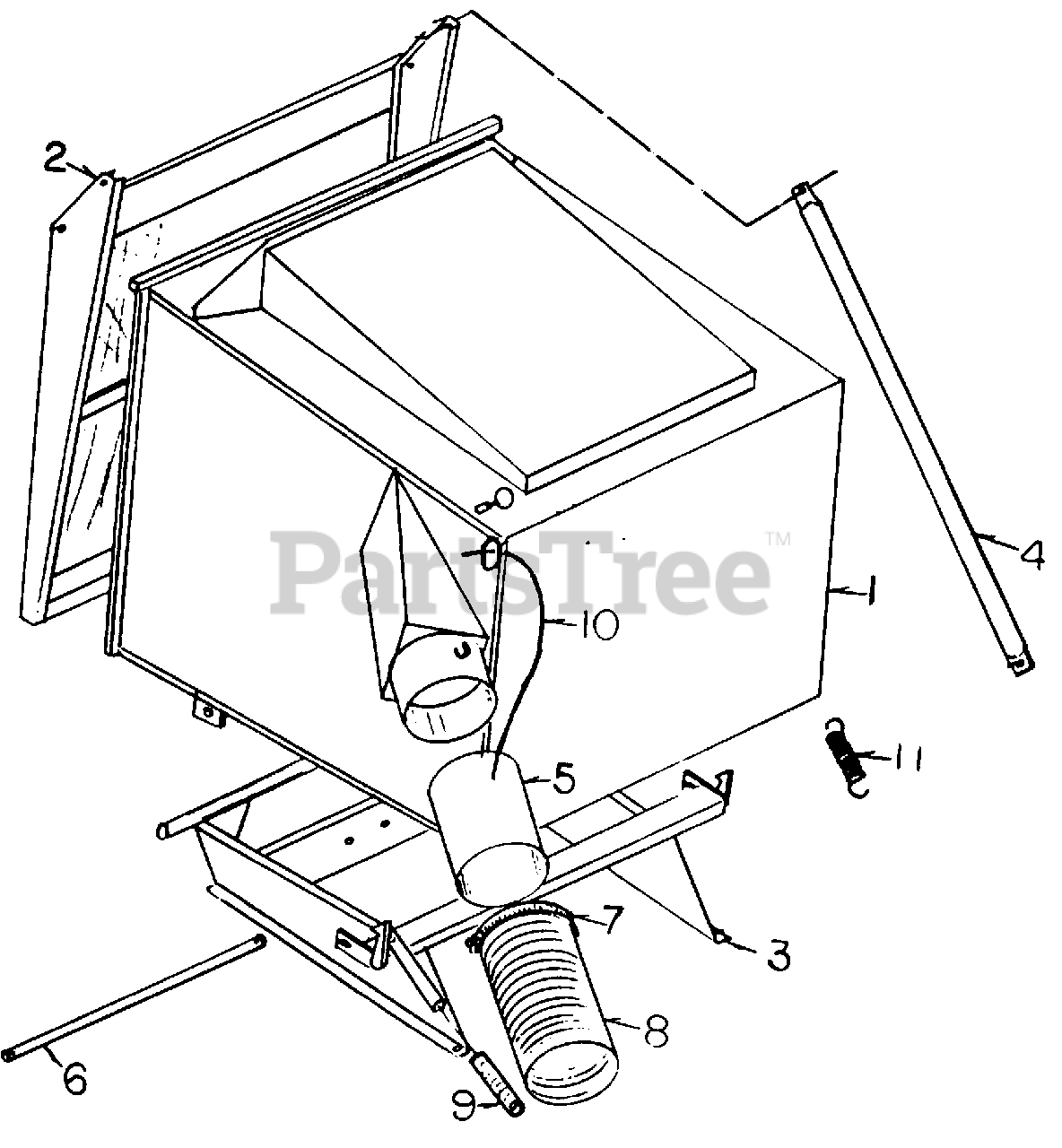

190-890-190 - White Outdoor Grass Box (1996) > Parts Diagrams (1) > 11 Bushel Metal Grass Box

  • Title
WD-420-0000

1

Grass Box

Part# WD-420-0000

Not available

WD-420-0001

2

Door

Part# WD-420-0001

OEM Warranty Repair Part for White Outdoor

Not available

WD-420-0002

3

Box Mount

Part# WD-420-0002

Not available

WD-420-0003

4

L Door Linkage, LH

Part# WD-420-0003

Note: (Shown)

Not available

WD-420-0003R

Door Linkage, RH

Part# WD-420-0003R

OEM Warranty Repair Part for White Outdoor

Not available

WD-420-0004

5

Male Tube

Part# WD-420-0004 (Superseded to WD-C38430)

OEM Warranty Repair Part for White Outdoor

Not available

WD-420-0005

6

Pivot Pin

Part# WD-420-0005

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5550

7

Hose Clamp

Part# WD-900-5550

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5552

8

Hose

Part# WD-900-5552 (Superseded to WD-C38419)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5500

9

Handle Grip

Part# WD-900-5500 (Superseded to WD-C37631)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5558

10

Male Tube Rope

Part# WD-900-5558

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5556

11

Spring

Part# WD-900-5556

OEM Warranty Repair Part for White Outdoor

Not available
