190-891-190 - White Outdoor Barrel Grass Collector (1994)

Barrel Grass Collector

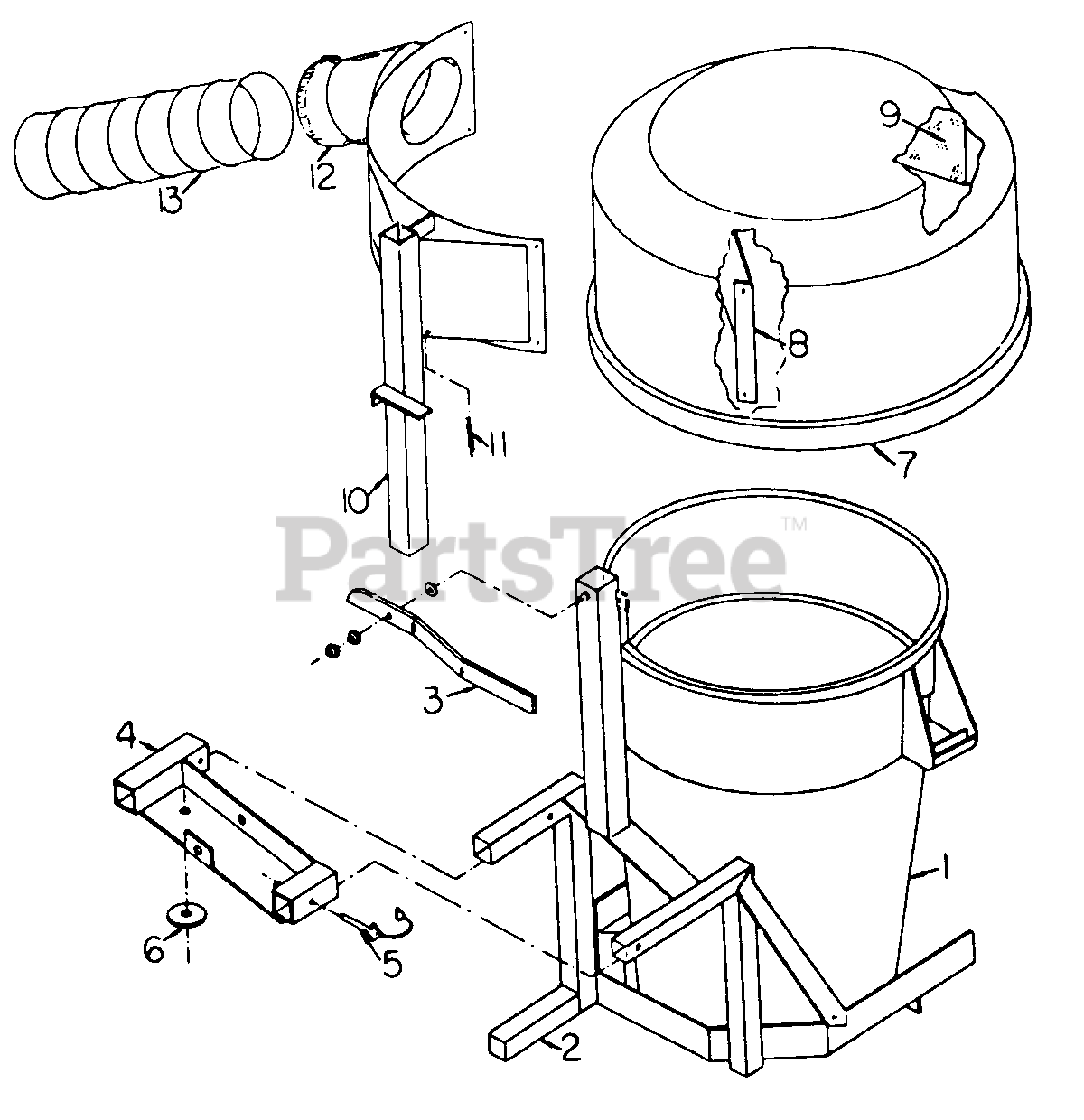

190-891-190 - White Outdoor Barrel Grass Collector (1994) > Parts Diagrams (2) > Barrel Collector (Air Cooled Mowers)

  • Title
WD-900-5726

1

Barrel

Part# WD-900-5726

OEM Warranty Repair Part for White Outdoor

Not available

WD-460-0000

2

Barrel Mount

Part# WD-460-0000

OEM Warranty Repair Part for White Outdoor

Not available

WD-460-0002

3

Handle

Part# WD-460-0002

Not available

WD-460-0001

4

Barrel Mountlng Bracket

Part# WD-460-0001

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5615

5

Fas-tatch Pln

Part# WD-900-5615

OEM Warranty Repair Part for White Outdoor

Not available

WD-200-0015

6

Body Mount Washer

Part# WD-200-0015

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5727

7

Barrel Lid

Part# WD-900-5727

OEM Warranty Repair Part for White Outdoor

Not available

WD-460-0009

8

Deflector

Part# WD-460-0009

OEM Warranty Repair Part for White Outdoor

Not available

WD-460-0004

9

Screen

Part# WD-460-0004

OEM Warranty Repair Part for White Outdoor

Not available

WD-460-0003

10

Barrel Lid Mount

Part# WD-460-0003

Not available

WD-900-5569

11

Spring

Part# WD-900-5569

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5550

12

Hose Clamp

Part# WD-900-5550

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5552

13

Hose

Part# WD-900-5552 (Superseded to WD-C38419)

OEM Warranty Repair Part for White Outdoor

Not available
