190-930-190 - White Outdoor 40" Snow Thrower Attachment (1988) 40" Snow Thrower Tine Assembly Parts Diagram

40" Snow Thrower Attachment

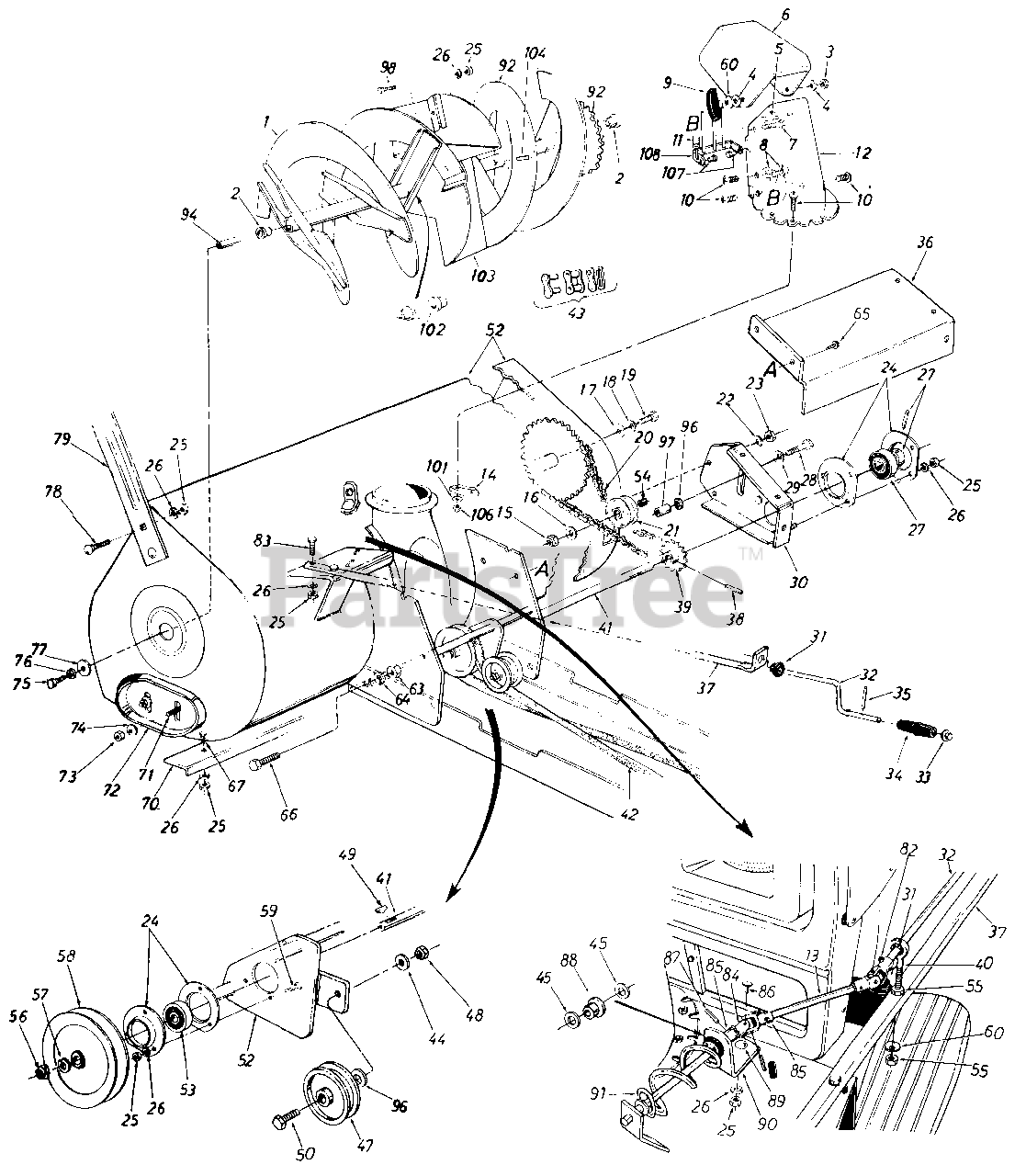

40" Snow Thrower Tine Assembly Parts Diagram

  • Title

1

White Outdoor 784-5221

Spiral Ass'y.
(Superseded to 784-5221-0637)

Note: (L.H.)

Variations

White Outdoor 784-5221-0498

SPIRAL-LH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-5221-0637

SPIRAL-LH - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 741-0227

Flange Bearing

$10.99

$

In Stock, Qty 20+

0

3

White Outdoor 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

4

White Outdoor 736-0231

Fl.-Wash. .344" I.D.

$4.49

$

In Stock, only 4 left!

0

5

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

6

White Outdoor 731-0846

Upper Chute
(Superseded to 731-0846C)

$48.99

$

In Stock, only 1 left!

0

7

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

9

White Outdoor 09966

Hand Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 732-0118

Ext. Spring
(Superseded to 732-0118A)

$9.99

$

Usually ships in 3-6 days

0

12

White Outdoor 731-0843

Lower Chute
(Superseded to 931-0843B)

$

$

Not available

13

White Outdoor 747-0523

Chute Crank Extension Rod

$

$

Not available

14

White Outdoor 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-0375

L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

16

White Outdoor 736-0300

Fl.-Wash.

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 736-0179

Fl.-Wash.

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 736-0253

Belleville Wash.

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 710-0493

Hex Bolt 1/2-13 x 1.00" 4.*
(Superseded to 710-3131)

$4.99

$

In Stock, only 1 left!

0

20

White Outdoor 713-0189

#420 Chain 1/2" Pitch x 77 0 Links

$

$

Not available

21

White Outdoor 756-0358

Plastic Idler 2.00" O.D.

$

$

Not available

22

White Outdoor 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

23

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

24

White Outdoor 741-0311

Bearing Housing
(Superseded to 941-0311)

$

$

Not available

25

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

26

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 741-0310

Self-Aligning Bearing
(Superseded to 941-0310)

$

$

Not available

28

White Outdoor 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.*

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 736-0105

Belleville Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 05721

Chain Guard Ass'y.

$

$

Not available

31

White Outdoor 741-0475

Nylon Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 747-0438

Chute Crank .375 Dia. x 34.5" Lg.
(Superseded to 747-0438A)

$

$

Not available

33

White Outdoor 726-0100

Push Nut 3/8" Rod

$3.99

$

In Stock, Qty 7

0

34

White Outdoor 720-0201

Knob (Black)
(Superseded to 720-0201A)

$10.99

$

In Stock, Qty 6

0

35

White Outdoor 715-0138

Roll Pin
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

36

White Outdoor 784-5092

Drive Shaft Cover

$

$

Not available

37

White Outdoor 749-0675

Crank Support Tubing

Variations

White Outdoor 749-0675-0637

No Longer Available TUBING-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

38

White Outdoor 715-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

$11.99

$

In Stock, Qty 7

0

39

White Outdoor 713-0188

14 Teeth Sprocket Ass'y.

$70.99

$

Usually ships in 3-6 days

0

40

White Outdoor 747-0481

Eyebolt 5/16-18 x 3.0" Lg.

$

$

Not available

41

White Outdoor 784-5078

Drive Shaft

$

$

Not available

42

White Outdoor 754-0291

"V" Belt
(Superseded to 954-0291A)

$57.99

$

In Stock, only 1 left!

0

43

White Outdoor 713-0154

Master Link for #420 Chain
(Superseded to 913-0154)

$

$

Not available

44

White Outdoor 736-0169

L.-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

45

White Outdoor 736-0140

Fl.-Wash. .385 I.D. x .62" O.D.

$6.99

$

In Stock, Qty 9

0

47

White Outdoor 756-0417

Fl.-ldler with Flanges
(Superseded to 956-0417)

$

$

Not available

48

White Outdoor 712-0342

Hex Jam L.-Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 714-0388

#61 Hi-Pro Key 3/16 x 5/8" Dia
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

50

White Outdoor 710-0347

Hex Bolt 3/8-16 x 1.75" 4.*

$4.99

$

In Stock, Qty 20+

0

52

White Outdoor 784-5081

Spiral Housing Ass'y.

$

$

Not available

53

White Outdoor 741-0309

Self-Aligning Bearing
(Superseded to 941-0309)

$69.99

$

In Stock, Qty 7

0

54

White Outdoor 741-0322

Sleeve Bearing .50" I.D.

$

$

Not available

55

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

56

White Outdoor 712-0301

Hex Nut 3/4-10 Thd.

$7.49

$

In Stock, only 1 left!

0

57

White Outdoor 736-0367

L.-Wash. 3/4" I.D.
(Superseded to 936-0364)

$

$

Not available

58

White Outdoor 756-0456

"V"Pulley .750" I.D. x 6.00" O.D.

$

$

Not available

59

White Outdoor 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

60

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

63

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$3.99

$

In Stock, Qty 20+

0

64

White Outdoor 736-0921

L.-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 710-0490

Hex Bolt 1/2-13 x 2.75" Lg.*

$

$

Not available

67

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75"*

$3.99

$

In Stock, Qty 20+

0

70

White Outdoor 05723

Shave Plate

Variations

White Outdoor 05723-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

71

White Outdoor 710-0790

Carriage Bolt 3/8-16 x .62" Lg.
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

72

White Outdoor 784-5038

Skid Shoe
(Superseded to 784-5038B-0637)

$26.99

$

In Stock, Qty 20+

0

73

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 736-0105

Belleville Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

75

White Outdoor 710-0493

Hex Bolt 1/2-13 x 1.00" Lg.*
(Superseded to 710-3131)

$4.99

$

In Stock, only 1 left!

0

76

White Outdoor 736-0253

Belleville Wash. 1/2" I.D.

$3.99

$

In Stock, Qty 20+

0

77

White Outdoor 736-0179

Fl.-Wash.

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

79

White Outdoor 05139

Drift Cutter
(Superseded to 790-00181-0637)

$40.99

$

Usually ships in 3-6 days

0

82

White Outdoor 714-0111

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

84

White Outdoor 711-0584

Joint Block

$

$

Not available

85

White Outdoor 05066

Joint Bracket Ass'y.

$

$

Not available

86

White Outdoor 728-0147

Oval Head Rivet

$

$

Not available

87

White Outdoor 715-0129

Spring Pin Roll 1/8" Dia. x .75" Lg.*

$4.49

$

In Stock, only 1 left!

0

88

White Outdoor 741-0475

Nylon Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

89

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

90

White Outdoor 784-5085

Chute Crank Bracket
(Superseded to 784-5085A)

$

$

Not available

91

White Outdoor 784-5084

Chute Crank Ass'y.

$

$

Not available

92

White Outdoor 784-5222

Spiral Ass'y. R.H.)

Variations

White Outdoor 784-5222-0637

SPIRAL-RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5222-0498

SPIRAL-RH - OLD CUB YELLOW (0498)

$

$

Not available

$

$

94

White Outdoor 05737

Spiral Axle

$

$

Not available

96

White Outdoor 736-0247

Flat Washer

$8.99

$

In Stock, Qty 20+

0

97

White Outdoor 750-0252

Idler Spacer
(Superseded to 950-0252)

$19.99

$

In Stock, Qty 5

0

98

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

101

White Outdoor 736-0142

Fl.-Wash. 1/4" I.D.

$4.49

$

In Stock, only 1 left!

0

102

White Outdoor 741-0227

Plastic Bushing

$10.99

$

In Stock, Qty 20+

0

103

White Outdoor 784-5216

Rotor Paddle Ass'y.
(Superseded to 784-5216-0637)

Variations

White Outdoor 784-5216-0637

PADDLE ASSY-ROTOR - POWDER BLACK (0637)

$

$

Not available

$

$

104

White Outdoor 715-0118

Spring Pin Spir. 5/16" Dia. x 1.75" Lg.

$11.99

$

In Stock, Qty 7

0

106

White Outdoor 712-0107

Hex L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

107

White Outdoor 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

In Stock, only 1 left!

0

108

White Outdoor 784-5192

Chute Guard Ass'y.
(Superseded to 784-5192-0637)

Variations

White Outdoor 784-5192-0637

GUARD ASSY-CHUTE - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0
