190-931-190 - White Outdoor 44" Mower Deck, Rear Discharge (1989) 44" Rear Discharge Deck Assembly Parts Diagram

44" Mower Deck, Rear Discharge

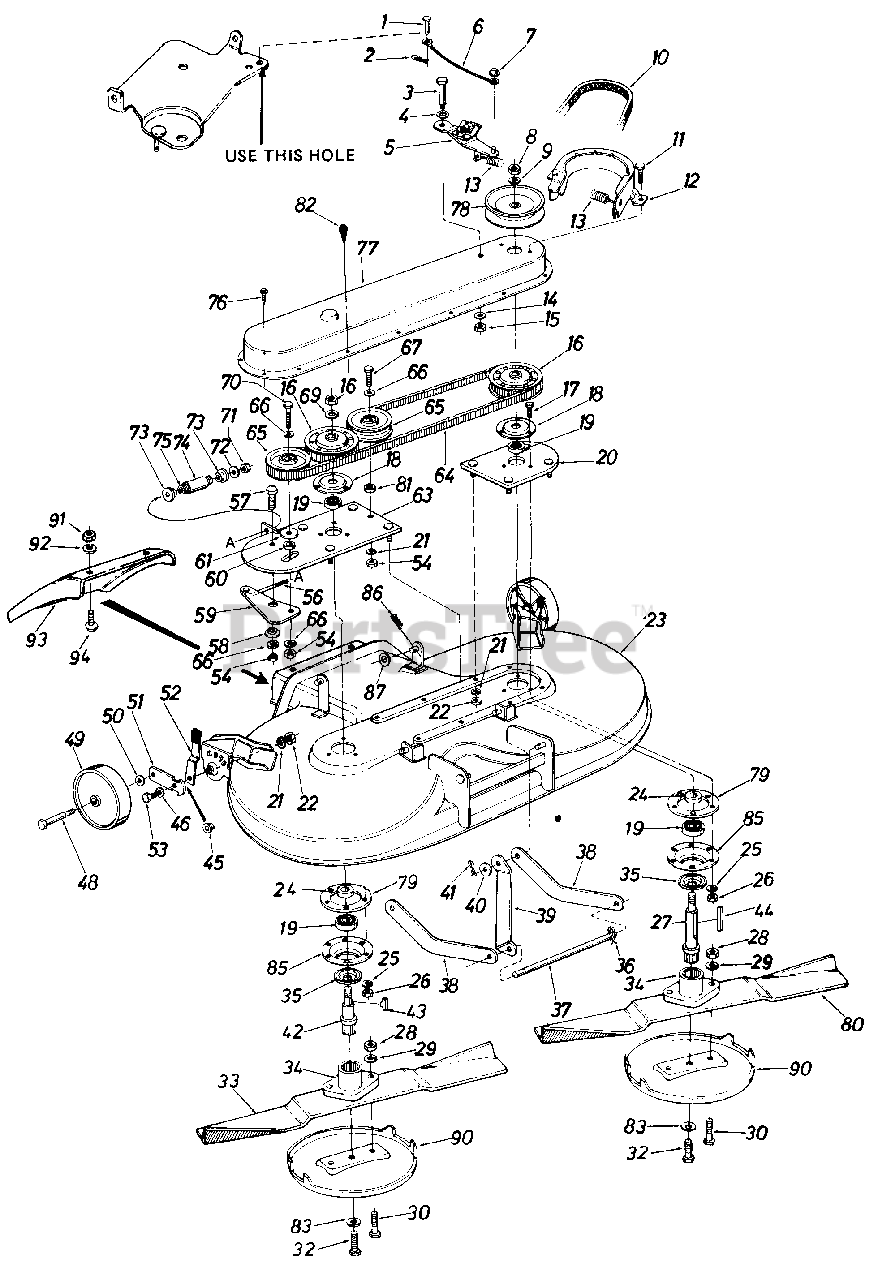

44" Rear Discharge Deck Assembly Parts Diagram

  • Title

1

White Outdoor 711-0701

Clevis Pin 1/4" Dia. x 1/2" Lg.
(Superseded to 911-0701)

$6.49

$

In Stock, only 1 left!

0

2

White Outdoor 714-0104

Hairpin Cotter 1/4" Dia.

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 738-0140

Shld. Bolt .437" Dia. x .180" Lg. 5/16-18)

$5.49

$

In Stock, Qty 17

0

4

White Outdoor 736-0141

Wave Washer 7/16" Scr.
(Superseded to 936-0141)

$6.49

$

Usually ships in 3-6 days

0

5

16339

Spindle Brake Arm Ass'y.

$

$

Not available

6

White Outdoor 746-0237

Brake Cable Ass'y.
(Superseded to 946-0237)

Note: (Deck)

$

$

Not available

7

White Outdoor 726-0106

Push Cap 1/4" Stud.

$3.99

$

Usually ships in 3-6 days

0

8

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

9

White Outdoor 736-0317

Bell.-Wash. 5/8" I.D. x 1.25" O.D.

$7.49

$

In Stock, Qty 20+

0

10

White Outdoor 754-0230

"V" Belt
(Superseded to 954-0230)

$32.99

$

Usually ships in 3-6 days

0

11

White Outdoor 710-0599

Hex Wash. Hd. Self Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 14258

Belt Guard
(Superseded to 14258B-0637)

$

$

Not available

13

732-0465

Extension Spring

$

$

Not available

14

White Outdoor 736-0242

Bell.-Wash. .340" I.D.

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

16

756-0334

Sprocket Pulley Ass'y.

$

$

Not available

17

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$3.99

$

In Stock, Qty 11

0

18

White Outdoor 08253

Bearing Housing
(Superseded to 08253B)

$17.99

$

In Stock, only 3 left!

0

19

White Outdoor 741-0919

Ball Bearing .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

20

White Outdoor 13868

Spindle Plate Ass'y.

$

$

Not available

21

White Outdoor 736-0169

L.-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

22

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

23

14251

44" R.D. Deck Ass'y.

$

$

Not available

24

White Outdoor 750-0456

Spacer

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

27

White Outdoor 738-0504

Blade Spindle-L.H.

$

$

Not available

28

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

29

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.00" Lg.

Note: ( Special)

$3.99

$

In Stock, Qty 11

0

White Outdoor 736-0217

L-Wash. 3/8" I.D., H.D.

$3.99

$

In Stock, Qty 13

0

32

White Outdoor 710-0877

h'ex Bolt Cent. L.-3/8 x 24 0 x 88" Lg.
(Superseded to 710-0696)

$6.49

$

In Stock, only 2 left!

0

33

White Outdoor 742-0216

22.5" Blade-L.H. Rotation

$

$

Not available

34

White Outdoor 748-0235

Blade Adapter

$19.99

$

In Stock, only 4 left!

0

35

White Outdoor 13703

Bearing Shield

$

$

Not available

36

White Outdoor 714-0149

Hairpin Cotter
(Superseded to 914-0149B)

$

$

Not available

37

White Outdoor 738-0392

Deck Connecting Rod

$32.99

$

Usually ships in 3-6 days

0

38

White Outdoor 13866

Deck Stabilizer

Variations

White Outdoor 13866-0637

No Longer Available STABILIZER-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

39

White Outdoor 13867

Diagonal Brace

Variations

White Outdoor 13867-0637

No Longer Available BRACE-DIAGONAL - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 736-0192

Fl.-Wash. .50" I.D. x 1.00 0 O.D. x .090

$3.99

$

In Stock, only 2 left!

0

41

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1.00" Lg.*

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 738-0505

Blade Spindle-R.H.

$

$

Not available

43

White Outdoor 714-0122

Sq. Key 3/16" x 75" Lg.*

$3.49

$

In Stock, Qty 17

0

44

White Outdoor 714-0133

Sq. Key 3/16" x 1.50" Lg.*

$4.49

$

In Stock, Qty 12

0

45

White Outdoor 748-0279

Shoulder Spacer

$

$

Not available

46

White Outdoor 736-0219

Bell.-Wash. .400" I.D.
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

48

White Outdoor 738-0455

Shld. Bolt 3/8-16 x 1.41" Lg.
(Superseded to 938-0455)

$

$

Not available

49

White Outdoor 734-0974

Wheel Ass'y. Cornp. 6" x 1.38

$19.99

$

Usually ships in 3-6 days

0

50

White Outdoor 736-0105

Bell-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 10937

Wheel Pivot Bar

$

$

Not available

52

White Outdoor 14082

Spring Lever Ass'y. w/knob

$

$

Not available

53

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" 4. Grade 5

$4.49

$

In Stock, Qty 8

0

54

White Outdoor 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$5.99

$

In Stock, Qty 20+

0

White Outdoor 736-0169

L.-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

56

White Outdoor 710-0437

Adjustment Link 5/16-18 x 4-9/16" Lg.
(Superseded to 710-0437A)

$

$

Not available

57

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.00"
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

58

White Outdoor 738-0347

Shld. Spacer.625" I.D.
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 15

0

59

White Outdoor 14256

Belt Idler Brkt.

$

$

Not available

60

White Outdoor 750-0507

Spacer.380" I.D. x.625" O.D. x .265
(Superseded to 750-04776)

$5.49

$

Usually ships in 3-6 days

0

61

White Outdoor 736-0320

Fl.-Wash. .38" I.D. x 1.37" O.D. x .125

$6.49

$

In Stock, Qty 9

0

63

White Outdoor 14254

Spindle & Idler Mount Plate Ass'y.

$

$

Not available

64

White Outdoor 754-0260

HTD Twin Power Belt
(Superseded to 954-0260)

$267.99

$

Usually ships in 3-6 days

0

65

White Outdoor 756-0365

Fl.-ldler Pulley 3.50" O.D.
(Superseded to 956-0365)

$44.99

$

In Stock, Qty 9

0

66

White Outdoor 736-0105

Bell.-Wash. .38" I.D.

$3.99

$

In Stock, Qty 20+

0

67

White Outdoor 710-0539

Hex Bolt 3/8-24 x 1.75" Lg. (Grade 5)

$4.49

$

In Stock, Qty 14

0

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

69

White Outdoor 736-0317

Bell.-Wash. 5/8" I.D.

$7.49

$

In Stock, Qty 20+

0

70

White Outdoor 710-0151

Hex Bolt 3/8-24 x 2.00" Lg.

$6.99

$

In Stock, Qty 5

0

71

White Outdoor 712-0429

Hex Insert L.-Nut5/16-18Thd.

$3.99

$

In Stock, Qty 20+

0

72

White Outdoor 736-0231

Fl.-Wash. 344" I.D. x 1.125" O.D. x .125

$4.49

$

In Stock, only 4 left!

0

73

White Outdoor 738-0347

Shld. Spacer.625" I.D.
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 15

0

74

White Outdoor 750-0455

Spacer-Adj. Bolt

$

$

Not available

75

White Outdoor 732-0377

Compression Spring

$

$

Not available

76

White Outdoor 710-0599

Hex Wash. Hd. Self Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

77

14253

Belt Cover

$

$

Not available

78

White Outdoor 756-0375

Deck Drive Pulley

$

$

Not available

79

White Outdoor 09164

Deck Reinforcement Plate
(Superseded to 09164A-0637)

$31.99

$

In Stock, only 2 left!

0

80

White Outdoor 742-0215

22.5" Blade-R.H. Rotation

$

$

Not available

81

White Outdoor 736-0206

Fl.-Wash. .38" I.D. x 1.00" O.D.
(Superseded to 936-0206)

$4.49

$

In Stock, only 2 left!

0

82

White Outdoor 710-0642

Hex Wash. Hd. Self Tap-Scr. 1/4-20 x .75" 4.

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 736-0217

L.-Wash. 3/8" I.D. Heavy Duty

$3.99

$

In Stock, Qty 13

0

White Outdoor 742-0279

Lower Blade Disc

Variations

White Outdoor 742-0279-0637

BLADE DISC-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

85

White Outdoor 15296

Open Bearing Housing
(Superseded to 15296A)

$7.99

$

In Stock, only 1 left!

0

86

White Outdoor 714-0145

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

87

White Outdoor 736-0192

Fl.-Wash. 1/2" I.D.

$3.99

$

In Stock, only 2 left!

0

90

White Outdoor 07919

Anti Scalp Plate
(Superseded to 07919B-0637)

$

$

Not available

91

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

92

White Outdoor 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

93

White Outdoor 16411

Chute Deflector

$

$

Not available

94

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0
