190-940-000 - MTD 48" Snow Blade Attachment (1987)

48" Snow Blade Attachment

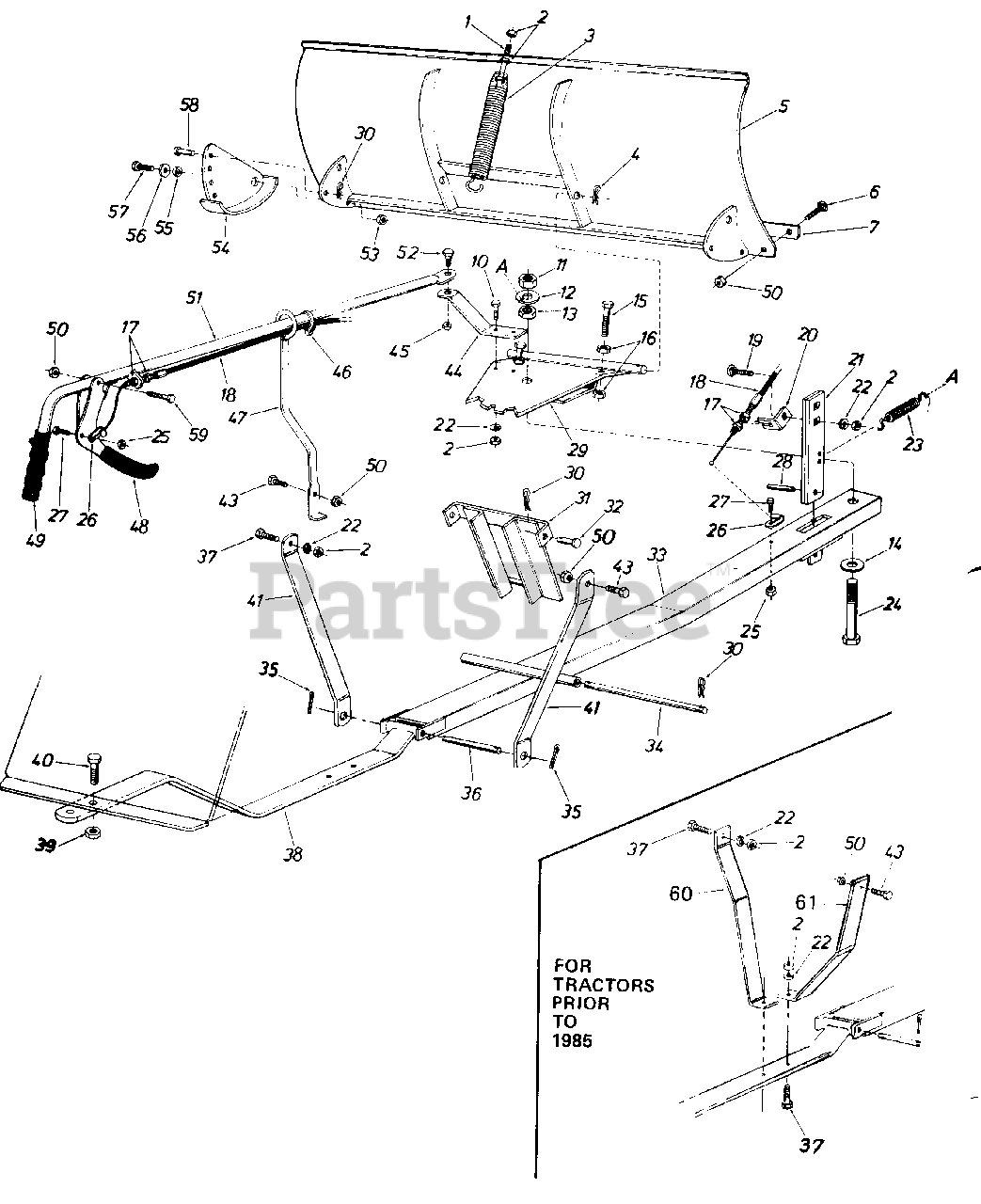

190-940-000 - MTD 48" Snow Blade Attachment (1987) > Parts Diagrams (1) > 48" Snow Blade

  • Title
710-0693

1

Hex Scr. 3/8-16 x 4.50" Lg.*

Part# 710-0693

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $9.55

712-0798

2

Hex Nut 3/8-16 Thd.*

Part# 712-0798

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

732-0359

3

Blade Adjustment Spri ng

Part# 732-0359

OEM Warranty Repair Part for MTD

Not available

714-0117

4

Hair Pin Cotter 5/32" Dia.

Part# 714-0117

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.82

05741

5

48" Blade Ass'y.

Part# 05741

OEM Warranty Repair Part for MTD

Not available

710-0451

6

Carriage Bolt 5/16-18 x.75" Lg.*

Part# 710-0451

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

05754

7

Wear Plate 48"

Part# 05754

OEM Warranty Repair Part for MTD

Not available

710-0253

10

Hex Scr. 3/8-16 x 1.00" Lg.*

Part# 710-0253 (Superseded to 710-0514)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.78

712-0205

11

Hex L.-Nut 3/4-10 Thd.

Part# 712-0205

OEM Warranty Repair Part for MTD

Not available

736-0306

12

Fl.-Wash..810" I.D. x 2.00" O.D.

Part# 736-0306

Note: (Special)

OEM Warranty Repair Part for MTD

Not available

712-0301

13

Hex Jam Nut 3/4-10 Thd.*

Part# 712-0301

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.32

736-0305

14

Fl.-Wash..810" I.D. x 2.00" O.D.

Part# 736-0305 (Superseded to 736-0306)

OEM Warranty Repair Part for MTD

Not available

710-0489

15

Hex Scr. 1/2-13 x 2.00" Lg.*

Part# 710-0489

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.65

712-0206

16

Hex Nut 1/2-13 Thd.*

Part# 712-0206 (Superseded to 912-0206)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.89

712-0256

17

Hex Jam Nut 5/16- 24 Thd.*

Part# 712-0256

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

746-0366

18

Control Cable Ass'y.

Part# 746-0366 (Superseded to AF-49808P)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $77.15

710-0305

19

Carriage Bolt 3/8-16 x 1.25" Lg.*

Part# 710-0305 (Superseded to 710-0431)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.13

05762

20

Cable Guide Bracket

Part# 05762

OEM Warranty Repair Part for MTD

Not available

05665

21

Angle - Lock Bar

Part# 05665 (Superseded to AF-23151)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $27.95

736-0169

22

L.-Wash. 3/8" Scr.*

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.47

732-0360

23

Angle Lock Spring

Part# 732-0360 (Superseded to AF-43348)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $23.81

710-0764

24

Hex Scr. 3/4-10 x 4.00" Lg.

Part# 710-0764

Note: (Special)

OEM Warranty Repair Part for MTD

Not available

712-0107

25

Hex L.-Nut 1 /4-20 Thd.

Part# 712-0107 (Superseded to 912-0107)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

746-0260

26

Clevis Lanyard F itti ng

Part# 746-0260

OEM Warranty Repair Part for MTD

Not available

710-0252

27

Hex Scr. 1/4-20 x .75" Lg.*

Part# 710-0252 (Superseded to 710-3015)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.68

715-0114

28

Spring Pin Spirol 1/4" Dia. x 1.00" Lg.

Part# 715-0114 (Superseded to 915-0114)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.37

05764

29

Pivot Plate Ass'y.

Part# 05764

OEM Warranty Repair Part for MTD

Not available

714-0101

30

Hair Pin Cotter 3/32" Dia.

Part# 714-0101 (Superseded to 914-0101)

OEM Warranty Repair Part for MTD

Not available

05751

31

Guide Bracket Ass'y.

Part# 05751

OEM Warranty Repair Part for MTD

Not available

711-0310

32

Clevis Pin 1/2" Dia. x 1.00" Lg.

Part# 711-0310 (Superseded to 911-0310)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.94

05744

33

Push Bar Ass'y.

Part# 05744

OEM Warranty Repair Part for MTD

Not available

738-0454

34

Lift Shaft

Part# 738-0454

OEM Warranty Repair Part for MTD

Not available

714-0121

35

Cotter Pin 5/32" Dia. x 1.00" Lg.*

Part# 714-0121 (Superseded to 914-0121)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.03

738-0638

36

Pivot Pin

Part# 738-0638

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $26.10

710-0342

37

Hex Scr. 3/8-16 x 1.25" Lg.*

Part# 710-0342 (Superseded to 710-3005)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.65

05749

38

Hanger Bracket Ass'y.

Part# 05749

OEM Warranty Repair Part for MTD

Not available

712-0261

39

Hex L.-Nut 5/8-11 Thd.

Part# 712-0261 (Superseded to 912-0261)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.07

710-0367

40

Hex Scr. 5/8-11 x 1.50" Lg.*

Part# 710-0367

OEM Warranty Repair Part for MTD

Currently unavailable

16367

41

Hanger Link

Part# 16367

OEM Warranty Repair Part for MTD

Not available

710-0376

43

Hex 5/16-18x 1.00" Lg.*

Part# 710-0376

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.69

05757

44

Blade Pivot Bracket

Part# 05757

OEM Warranty Repair Part for MTD

Not available

712-0266

45

Hex L.-Nut 3/8-16 Thd.

Part# 712-0266 (Superseded to 712-0266A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.55

726-0178

46

Nylon Cable Tie

Part# 726-0178 (Superseded to 725-0157)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.53

05761

47

Tube Guide Ass'y.

Part# 05761

OEM Warranty Repair Part for MTD

Not available

05639

48

Clutch Grip Ass'y.

Part# 05639

OEM Warranty Repair Part for MTD

Not available

07071

49

Grip - 3/4" Handle

Part# 07071

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.03

712-0158

50

Hex L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.10

05758

51

Tube Handle Ass'y.

Part# 05758

OEM Warranty Repair Part for MTD

Not available

738-0234

52

Shld. Scr. - Special 3/8-16 Thd.

Part# 738-0234

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.97

712-0375

53

Hex L.-Nut 3/8-16 Thd.

Part# 712-0375

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

05655

54

Skid Assembly

Part# 05655

OEM Warranty Repair Part for MTD

Not available

750-0437

55

Spacer

Part# 750-0437 (Superseded to AF-42846)

OEM Warranty Repair Part for MTD

Not available

736-0258

56

Fl.-Wash..385" I.D. x 1.00" 0. D .

Part# 736-0258

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0216

57

Hex Scr. 3/8-16 x .75" Lg.*

Part# 710-0216

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.88

711-0686

58

Clevis Pin 5/16" Dia. x.75" Lg.

Part# 711-0686

OEM Warranty Repair Part for MTD

Not available

710-0442

59

Hex Scr. 5/16-18 x 1.50" Lg.

Part# 710-0442 (Superseded to 710-0805A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

05755

60

Mounting Brkt.-L.H.

Part# 05755

OEM Warranty Repair Part for MTD

Not available

05756

61

Mounting Brkt.-.H.

Part# 05756

OEM Warranty Repair Part for MTD

Currently unavailable
