190-953-190 - White Outdoor Linkage Kit (1988) Linkage Kit Parts Diagram

Linkage Kit

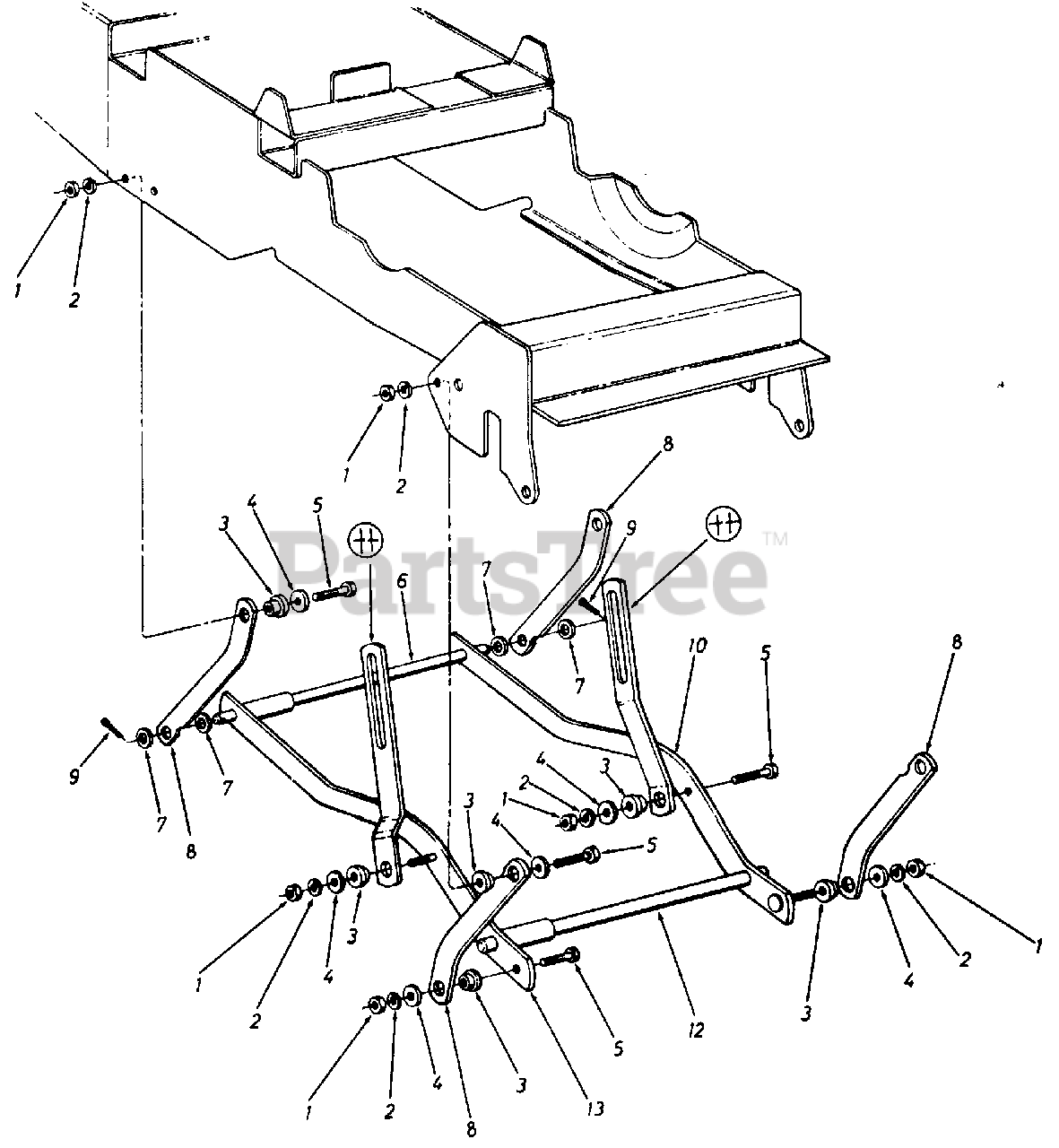

Linkage Kit Parts Diagram

  • Title

1

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 736-0217

L Wash. 3/8" Scr. Heavy Duty*

$3.99

$

In Stock, Qty 13

0

3

White Outdoor 748-0241

Shoulder Spacer

$

$

Not available

4

White Outdoor 736-0258

Fl.-Wash. 3/8"I.D. x 1.0" O.D.

$4.49

$

In Stock, only 2 left!

0

5

White Outdoor 710-0459

Hex Scr. 3/8-24 x 1.50" Lg. Grade 5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

6

13163

Cross Shaft Ass'y.-Rear

$

$

Not available

7

White Outdoor 736-0156

Fl. Wash. 5/8" I.D. x 1-1/8" O.D.

$3.99

$

In Stock, Qty 13

0

8

13043

Lift Arm

$

$

Not available

9

1544-9

Cotter Pin 5/32"Dia, x1.25"Lg.*

$

$

Not available

10

13118

Lift Arm Link Ass'y.-LH.

$

$

Not available

White Outdoor 714-0147

Hair Pin Cotter

$4.49

$

In Stock, Qty 12

0

12

13162

Cross Shaft Ass'y.-Front

$

$

Not available

13

13117

LiftArm Link Ass'y. R.H.

$

$

Not available
