190-985-000 - MTD 54" Snow Blade Attachment (1992) Snow Blade Assembly Parts Diagram

54" Snow Blade Attachment

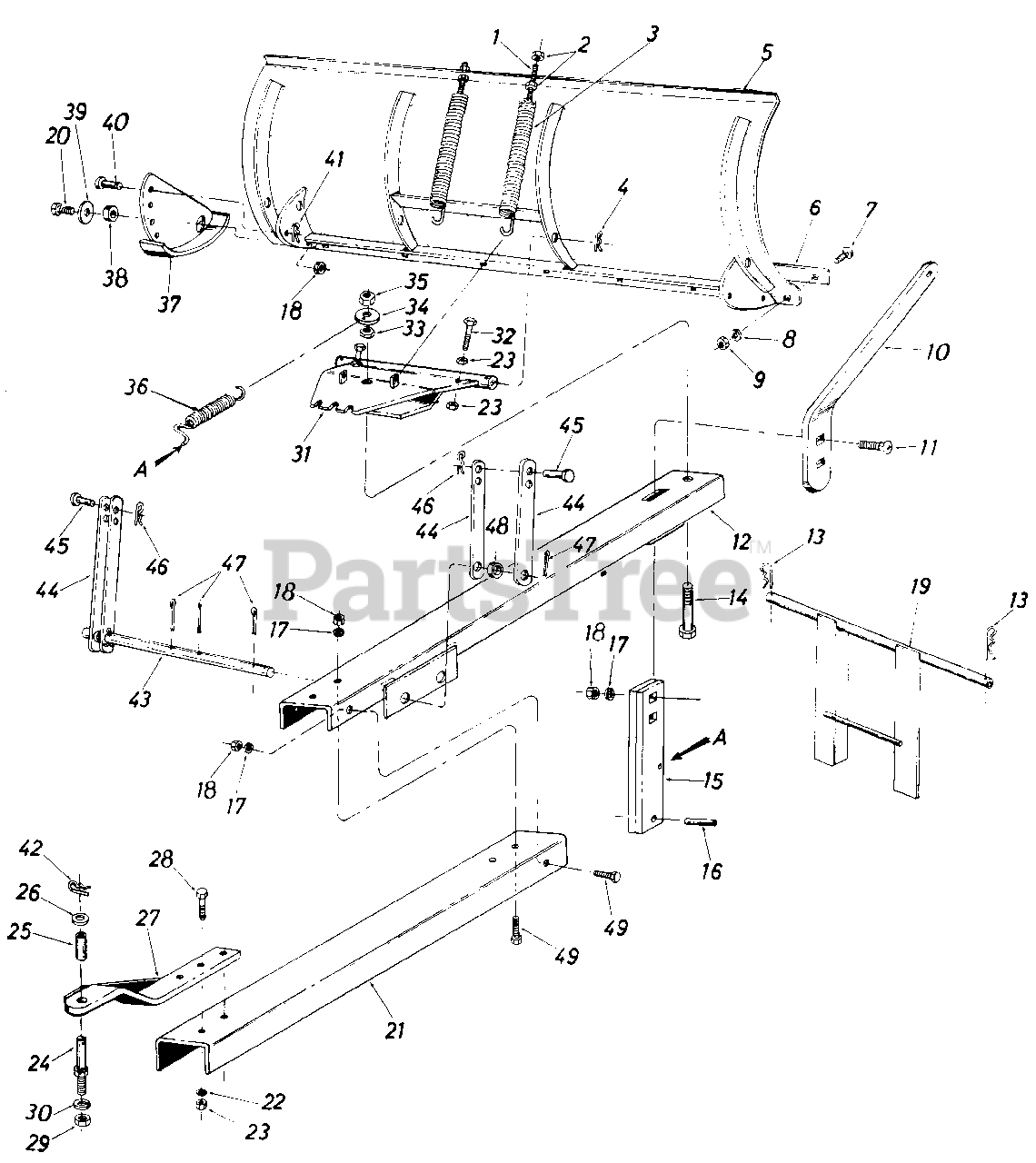

Snow Blade Assembly Parts Diagram

  • Title
1

MTD Part# 710-0693

Hex Scr. 3/8-16 x 4.50" Lg.
Usually ships in 1 day

$

$10.32

0

2

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.06

0

3

MTD Part# 732-0359

Blade Adjustment Spring
Usually ships same day

Not available

$

$

4

MTD Part# 714-0117

Hair Pin Cotter, 5/32
Usually ships in 1 day

$

$3.05

0

5

MTD Part# 05674

54" Blade Ass'y.
Usually ships same day

Currently unavailable

$

$

6

MTD Part# 05687

Wear Plate
Usually ships same day

Not available

$

$

7

MTD Part# 710-0451

Carriage Bolt 5/16-18 x .75" Lg.
Usually ships in 1 day

$

$2.84

0

8

MTD Part# 736-0119

L.-Wash. 5/16" Scr.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

9

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

10

MTD Part# 05666

Lock Extension Bar
Usually ships same day

Not available

$

$

11

MTD Part# 710-0305

Carriage Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-0431)
Usually ships in 1 day

$

$3.37

0

12

MTD Part# 05649

Front Push Bar Ass'y.
Usually ships same day

Not available

$

$

13

MTD Part# 714-0117

Hair Pin Cotter, 5/32
Usually ships in 1 day

$

$3.05

0

14

MTD Part# 710-0741

Hex Scr. 3/4-10 x 3.50" Lg.
Usually ships same day

Currently unavailable

$

$

15

MTD Part# 05665

Angle - Lock Bar
(Superseded to AF-23151)
Usually ships in 5 to 10 days

$

$30.21

0

16

MTD Part# 715-0114

Spring Pin Spiral .25" Dia. x 1.00" Lg.
(Superseded to 915-0114)
Usually ships in 1 day

$

$6.89

0

17

MTD Part# 736-0169

L.-Wash. 3/8" Scr.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

18

MTD Part# 712-0375

Hex L.-Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.19

0

19

MTD Part# 05707

Guide Bracket Ass'y.
Usually ships same day

Not available

$

$

20

MTD Part# 710-0216

Hex Scr. 3/8-16 x .75" Lg.
Usually ships in 1 day

$

$3.12

0

21

MTD Part# 05611

Rear Push Bar Channel
Usually ships same day

Not available

$

$

22

MTD Part# 736-0921

L-Wash. 1/2" Scr.
(Superseded to 936-0921)
Usually ships in 5 to 10 days

$

$3.11

0

23

MTD Part# 712-0206

Hex Nut 1/2-13 Thd.
(Superseded to 912-0206)
Usually ships in 1 day

$

$3.11

0

24

MTD Part# 711-0497

Link Clevis Pin
Usually ships same day

Not available

$

$

25

MTD Part# 1648-047

Spacer 1" O.D. x 21/32" I.D. x .75" Lg.
Usually ships same day

Currently unavailable

$

$

26

MTD Part# 736-0156

Fl-Wash. 21/32 I.D. x .090 O.D.
Usually ships in 1 day

$

$3.14

0

27

MTD Part# 05646

Hitch Hanging Bar Ass'y.

Variations

MTD Part# 05646-0637

PLATE ASSY - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

28

MTD Part# 710-0474

Hex Scr. 1/2-13 x 1.25" Lg.
Usually ships same day

Not available

$

$

29

MTD Part# 712-0923

Hex Jam L.-Nut 5/8-18 Thd.
Usually ships in 5 to 10 days

$

$4.81

0

30

MTD Part# 736-0158

L.-Wash. 5/8" Scr.
(Superseded to 936-0158)
Usually ships in 1 day

$

$3.11

0

31

MTD Part# 05677

Pivot Plate Ass'y.
(Superseded to AF-62556)
Usually ships same day

Not available

$

$

32

MTD Part# 710-0489

Hex Scr. 1/2-13 x 2.00" Lg.
Usually ships in 5 to 10 days

$

$5.02

0

33

MTD Part# 712-0301

Hex Jam Nut 3/4-10 Thd.
Usually ships in 1 day

$

$5.76

0

34

MTD Part# 736-0306

Fl.-Wash. 3/8"

Note: (Special)

Usually ships same day

Not available

$

$

35

MTD Part# 712-0205

Hex Lock Nut 3/4-10 Thd.
Usually ships same day

Not available

$

$

36

MTD Part# 732-0360

Angle Lock Spring
(Superseded to AF-43348)
Usually ships in 5 to 10 days

$

$25.76

0

32

MTD Part# 05655

Skid Assembly
Usually ships same day

Not available

$

$

37

Part#

UNKNOWN
Usually ships same day

Not available

$

$

38

MTD Part# 750-0437

Bushing, Pivot Skid
(Superseded to AF-42846)
Usually ships same day

Not available

$

$

39

MTD Part# 736-0258

Fl.-Wash..385" I.D. x 1.00" O.D.
Usually ships in 1 day

$

$3.15

0

40

MTD Part# 711-0688

Clevis Pin 5/16" Dia. x 3/4" Lg.
Usually ships same day

Currently unavailable

$

$

41

MTD Part# 714-0101

Hair Pin Cotter 3/32"
(Superseded to 914-0101)
Usually ships same day

Not available

$

$

42

MTD Part# 714-0117

Hair Pin Cotter 5/32
Usually ships in 1 day

$

$3.05

0

43

MTD Part# 738-0428

Lift Shaft
Usually ships same day

Not available

$

$

44

MTD Part# 13788

Lift Link
Usually ships same day

Currently unavailable

$

$

45

MTD Part# 711-0310

Clevis Pin 1/2" Dia. x 1.00" Lg.
(Superseded to 911-0310)
Usually ships same day

Not available

$

$

46

MTD Part# 714-0101

Hair Pin Cotter 3/32"
(Superseded to 914-0101)
Usually ships same day

Not available

$

$

47

Part# 714047

Cotter Pin 1/8" Dia. x 1.50" Lg.
Usually ships same day

Not available

$

$

48

MTD Part# 750-0142

Spacer, Lift Link
(Superseded to 950-0142)
Usually ships in 5 to 10 days

$

$7.63

0

49

MTD Part# 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)
Usually ships in 1 day

$

$3.01

0
