190-985-190 - White Outdoor 54" Snow Blade (1988) 54" Snow Blade Parts Diagram

54" Snow Blade

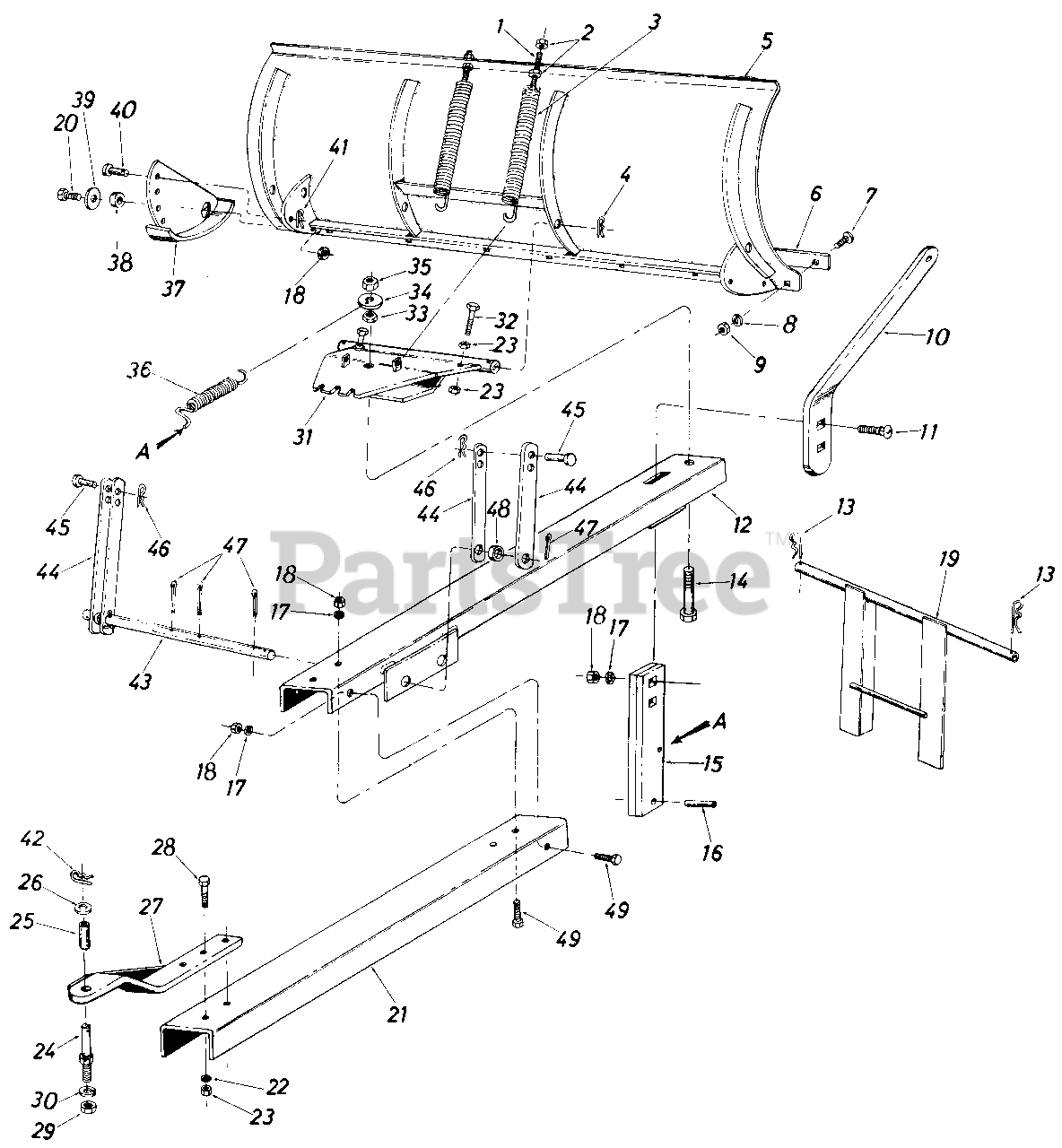

54" Snow Blade Parts Diagram

  • Title

1

White Outdoor 710-0693

Hex Scr. 3/8-16 x 4.50" Lg.*

$13.99

$

In Stock, only 2 left!

0

2

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

In Stock, only 2 left!

0

3

White Outdoor 732-0359

Blade Adjustment Spring

$

$

Not available

4

White Outdoor 714-0117

Hair Pin Cotter, 5/32

$3.99

$

In Stock, Qty 11

0

5

05674

54" Blade Ass'y.

$

$

Not available

6

White Outdoor 05687

Wear Plate

$

$

Not available

7

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

10

White Outdoor 05666

Lock Extension Bar

$

$

Not available

11

White Outdoor 710-0305

Carriage Bolt 3/8-16 x 1.25" Lg.*
(Superseded to 710-0431)

$4.49

$

Usually ships in 3-6 days

0

12

White Outdoor 05649

Front Push Bar Ass'y.

$

$

Not available

13

White Outdoor 714-0117

Hair Pin Cotter, 5/32

$3.99

$

In Stock, Qty 11

0

14

710-0741

Hex Scr. 3/4-10 x 3.50" Lg.*

$

$

Not available

15

White Outdoor 05665

Angle-Lock Bar
(Superseded to AF-23151)

$35.99

$

Usually ships in 3-6 days

0

16

White Outdoor 715-0114

Spring Pin Spirol .25" Dia. x 1.00" Lg.

$8.49

$

In Stock, Qty 9

0

17

White Outdoor 736-0169

L.-Wash. 3/8" Scr.*

$3.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0375

Hex L.-Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

19

White Outdoor 05707

Guide Bracket Ass'y.

$

$

Not available

20

White Outdoor 710-0216

Hex Scr. 3/8-16 x . 75 " Lg. *

$3.99

$

In Stock, Qty 17

0

21

White Outdoor 05611

Rear Push Bar Channel

$

$

Not available

22

White Outdoor 736-0921

L.-Wash. 1/2" Scr.*

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 712-0206

Hex Nut 1/2-13 Thd. *

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 711-0497

Link Clevis Pin

$

$

Not available

25

1648-047

Spacer 1 " O.D. x 21/32" I.D. x .75" Lg.

$

$

Not available

26

White Outdoor 736-0156

Fl-Wash. 21/32 I.D. x .090 O.D.

$3.99

$

In Stock, Qty 13

0

27

White Outdoor 05646

Hitch Hanging Bar Ass'y.
(Superseded to 05646-0637)

Variations

White Outdoor 05646-0637

PLATE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 710-0474

Hex Scr. 112-13 x 1.25" Lg.*

$

$

Not available

29

White Outdoor 712-0923

Hex Jam L.-Nut 5/8-18 Thd.

$6.49

$

Usually ships in 3-6 days

0

30

White Outdoor 736-0158

L.-Wash. 5/8" Scr.*

$4.49

$

In Stock, only 1 left!

0

31

White Outdoor 05677

Pivot Plate Ass'y.
(Superseded to AF-62556)

$

$

Not available

32

White Outdoor 710-0489

Hex Scr. 1/2-13 x 2.00" Lg.*

$6.99

$

Usually ships in 3-6 days

0

33

White Outdoor 712-0301

Hex Jam Nut 3/4-10 Thd.

$7.49

$

In Stock, only 1 left!

0

34

White Outdoor 736-0306

Fl.-Wash. 3/8"

Note: (Special)

$

$

Not available

35

White Outdoor 712-0205

Hex Lock Nut 3/4-10 Thd.

$

$

Not available

36

White Outdoor 732-0360

Angle Lock Spring
(Superseded to AF-43348)

$34.99

$

In Stock, only 1 left!

0

37

White Outdoor 05655

Skid Assembly

$

$

Not available

38

White Outdoor 750-0437

Bushing, Pivot Skid
(Superseded to AF-42846)

$

$

Not available

39

White Outdoor 736-0258

Fl.-Wash. .385" I.D. x 1.00" O.D.

$4.49

$

In Stock, only 4 left!

0

40

White Outdoor 711-0686

Clevis Pin 5/16" Dia. x 3/4" Lg.

$

$

Not available

41

White Outdoor 714-0101

Hair Pin Cotter 3/32"

$4.49

$

In Stock, only 4 left!

0

42

White Outdoor 714-0117

Hair Pin Cotter, 5/32

$3.99

$

In Stock, Qty 11

0

43

White Outdoor 738-0428

Lift Shaft

$

$

Not available

44

White Outdoor 13786

Lift Link

$

$

Not available

45

White Outdoor 711-0310

Clevis Pin 1/2" Dia. x 1.00" Lg.

$9.49

$

Usually ships in 3-6 days

0

46

White Outdoor 714-0101

Hair Pin Cotter, 3/32"

$4.49

$

In Stock, only 4 left!

0

47

714-047

Cotter Pin 1/8" Dia. x 1.50," Lg.*

$

$

Not available

48

White Outdoor 750-0142

Spacer, Lift Link
(Superseded to 950-0142)

$

$

Not available

49

White Outdoor 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.*
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0
