190-993-190 - White Outdoor 50" Mower Deck (1993)

50" Mower Deck

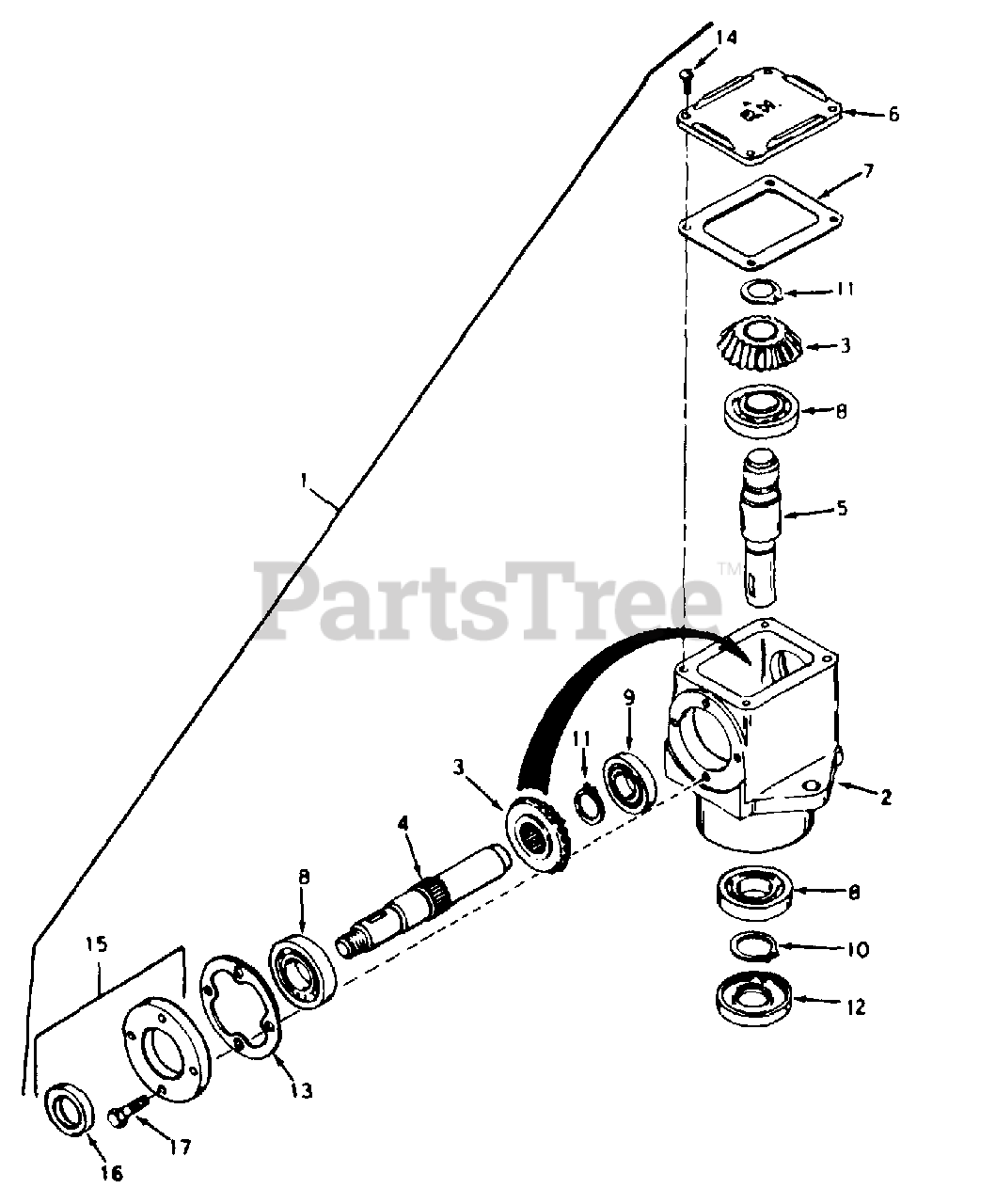

190-993-190 - White Outdoor 50" Mower Deck (1993) > Parts Diagrams (2) > Right Angle Drive Box - Peerless 2604-P91

  • Title
PE-794111

1

Head Ass'y. R.H.

Part# PE-794111

Note: (Incl. Nos. 2 thru 15)

Not available

PE-770026

2

Housing, Right Angle Drive

Part# PE-770026

Not available

PE-778046

3

Gear, Miter

Part# PE-778046

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $50.27

PE-776149

4

Shaft, Input

Part# PE-776149

Not available

PE-776129

5

Shaft, Output

Part# PE-776129

Not available

PE-772034

6

Cover, Right Hand

Part# PE-772034

Not available

PE-788028

7

Gasket, Cover

Part# PE-788028

Not available

PE-780034

8

Bearing, Ball

Part# PE-780034

Not available

PE-780024

9

Bearing, Ball

Part# PE-780024

Not available

PE-788019

10

Ring, Snap

Part# PE-788019

Not available

PE-788018

11

Ring, Snap

Part# PE-788018

Not available

PE-788029

12

Seal, Oil

Part# PE-788029

Not available

PE-788030

13

Gasket, Cap

Part# PE-788030

Not available

PE-792025

14

Screw, Rd. Hd. Self-Tap. 10-24 x 1/2

Part# PE-792025

Not available

PE-786029

15

Cap & Seal Ass'y., Retainer

Part# PE-786029

Note: (Incl. Nos. 16 & 17)

Not available

PE-788031

16

Seal, Oil

Part# PE-788031

Not available

PE-792026

17

Screw, Hex Hd. 1/4-20 x 7/8

Part# PE-792026

Not available
