190-993-190 - White Outdoor 50" Mower Deck (1998)

50" Mower Deck

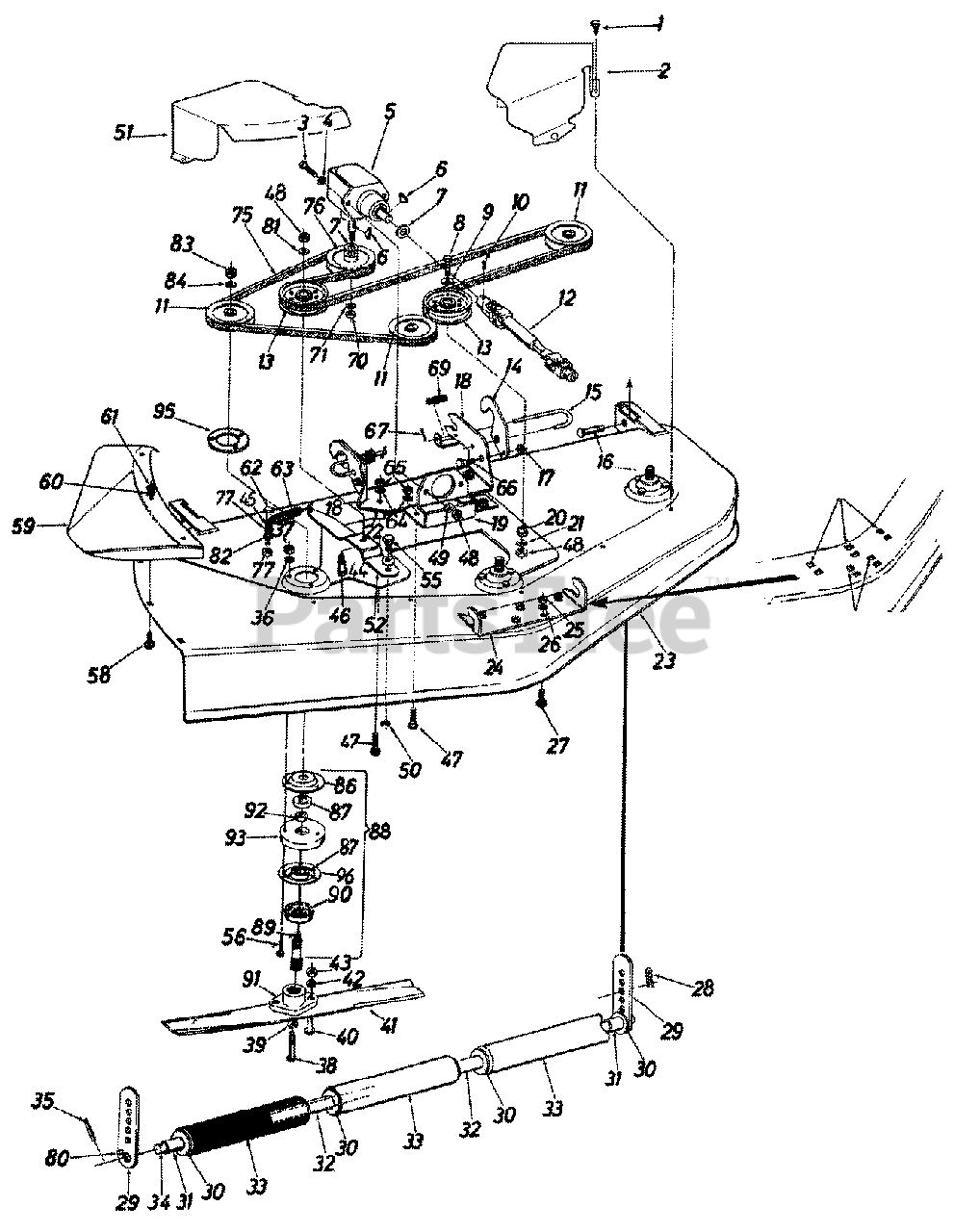

190-993-190 - White Outdoor 50" Mower Deck (1998) > Parts Diagrams (3) > Deck Ass'y

  • Title
710-0599

1

Hex TT-Tap Scr. 1/4-20 x .5" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

783-0131

2

Belt Cover - L.H.

Part# 783-0131

OEM Warranty Repair Part for White Outdoor

Variations

BRILLIANT GREEN (0480)

GUARD-BELT LH

Part# BRILLIANT GREEN (0480)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.71

CHARCOAL GRAY (0483)

GUARD-BELT LH

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.71

OLD CUB YELLOW (0498)

No Longer Available GUARD-BELT LH

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

GUARD-BELT LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.71

MTD/TROY-BILT RED (0638)

GUARD-BELT LH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.71

TECH GRAY (0648)

GUARD-BELT LH

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.71

YARDMAN GREEN (0665)

GUARD-BELT LH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

710-0342

3

Hex Bolt 3/8-16 x 1.25" Lg.

Part# 710-0342 (Superseded to 710-3005)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

736-0148

4

Ext. L-Wash. 3/8" I.D.

Part# 736-0148

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.36

5

Right Angle Drive

Part#

Not available

714-0126

6

#9 Hi-Pro Key 3/16 x 3/4" Dia.

Part# 714-0126 (Superseded to 914-0126)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.00

736-0181

7

Fl-Wash. 29/32" I.D.

Part# 736-0181

OEM Warranty Repair Part for White Outdoor

Not available

710-0756

8

Hex Bolt 3/8-16 x 2.25" Lg.

Part# 710-0756

OEM Warranty Repair Part for White Outdoor

Not available

736-0300

9

Fl-Wash. 3/8" I.D.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0357

10

Sq. Hd. Set Scr. 3/8-16 x .50"

Part# 710-0357

OEM Warranty Repair Part for White Outdoor

Not available

756-0519

11

Deck Pulley

Part# 756-0519

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $55.37

717-0401

12

Universal Drive Shaft Ass'y.

Part# 717-0401

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $657.53

717-0439

Universal Drive Male Half

Part# 717-0439

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $370.19

717-0440

Universal Drive Female Half

Part# 717-0440

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $370.19

711-0306

13

Deck Idler Pulley

Part# 711-0306

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $75.10

12564

14

Hanger Lock

Part# 12564

OEM Warranty Repair Part for White Outdoor

Not available

747-0160

15

Release Pin

Part# 747-0160

OEM Warranty Repair Part for White Outdoor

Not available

711-0310

16

Clevis Pin .50" Dia.

Part# 711-0310 (Superseded to 911-0310)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.94

712-0158

17

Hex L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.10

12648

18

Rear Deck Hanger Brkt.

Part# 12648

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BRACKET-DECK HANGE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

13705

19

Gear Box Mounting Brkt. Ass'y.

Part# 13705

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BRACKET ASSY

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

711-0598

20

Idler Adapter

Part# 711-0598

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

21

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

750-0776

22

Spacer .33" I.D. x .88" O.D.

Part# 750-0776

OEM Warranty Repair Part for White Outdoor

Not available

12640

23

Deck Ass'y.

Part# 12640

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

No Longer Available

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

No Longer Available

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

12646

24

Front Deck Hanger Brkt.

Part# 12646

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-DECK HANGE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

712-3010

25

Hex Nut 5/16-18 Thd.

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

736-0119

26

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0451

27

Carriage Bolt 5/16-18 x .75" Lg.

Part# 710-0451

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

714-0101

28

Internal Cotter Pin

Part# 714-0101 (Superseded to 914-0101)

OEM Warranty Repair Part for White Outdoor

Not available

12650

29

Height Adjuster

Part# 12650

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Height Adjuster, Powder Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.53

WINE RED (4008)

Height Adjuster

Part# WINE RED (4008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.53

736-0188

30

Fl-Wash. .75" I.D. x 1.5" O.D.

Part# 736-0188

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

750-0212

31

Spacer .758" I.D. x 1.25" O.D. .530

Part# 750-0212 (Superseded to 950-0212)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.31

750-0288

32

Spacer Tube

Part# 750-0288

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

SPACER-TUBE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

731-0335

33

Roller

Part# 731-0335

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $47.07

738-0295

34

Roller Shaft

Part# 738-0295

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $81.10

715-0246

35

Roll Pin 3/16 x 1.25"

Part# 715-0246 (Superseded to 915-0246)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

736-0119

36

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-3057

?37

Hex L-Nut 5/16-24 Thd.

Part# 712-3057 (Superseded to 912-3057)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

710-0180

38

Hex Self-Tap Scr. 3/8-24 x .75" Lg.

Part# 710-0180

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.40

736-0217

39

L-Wash. 3/8" I.D. H.D.

Part# 736-0217 (Superseded to 936-0217)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-0888

40

Hex Bolt 5/16-24 x 1" Lg.

Part# 710-0888

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

742-0171B

41

Blade 17"

Part# 742-0171B (Superseded to 942-0171B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.64

736-0119

42

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0237

43

Hex L-Nut 5/16-24 Thd.

Part# 712-0237 (Superseded to 912-0237)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 8 to 14 business days

Your price: $3.23

736-0141

44

Spr. Wash. .445" I.D.

Part# 736-0141 (Superseded to 936-0141)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

736-0176

45

Fl-Wash. 1/4" I.D.

Part# 736-0176 (Superseded to 936-0176)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.94

738-0150

46

Shld. Bolt .625" Dia. x .96"

Part# 738-0150 (Superseded to 938-0150)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $18.08

710-0262

47

Carriage Bolt 5/16-18 x 1.5" Lg.

Part# 710-0262

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.69

712-3017

48

Hex Nut 3/8-16 Thd.

Part# 712-3017 (Superseded to 912-3017)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

736-0169

49

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

712-0290

50

Hex L-Nut 7/16-14 Thd.

Part# 712-0290

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

783-0130

51

Belt Cover - R.H.

Part# 783-0130

OEM Warranty Repair Part for White Outdoor

Variations

BRILLIANT GREEN (0480)

GUARD-BELT RH

Part# BRILLIANT GREEN (0480)

OEM Warranty Repair Part for White Outdoor

Not available

CHARCOAL GRAY (0483)

GUARD-BELT RH

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

OLD CUB YELLOW (0498)

No Longer Available GUARD-BELT RH

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

SILVER FLAKE (0629)

No Longer Available GUARD-BELT RH

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

GUARD-BELT RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

GUARD-BELT RH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

TECH GRAY (0648)

GUARD-BELT RH

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

No Longer Available GUARD-BELT RH

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

GUARD-BELT RH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

09489

52

Deck Spring Idler Brkt.

Part# 09489

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available BRACKET-SPRING IDL

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

738-0163

55

Shld. Bolt .625" Dia. x .26"

Part# 738-0163

OEM Warranty Repair Part for White Outdoor

Not available

710-0672

56

Hex Bolt 5/16-24 x 1.5" Lg. (Grade 5)

Part# 710-0672

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

710-0451

58

Carriage Bolt 5/16-18 x .75" Lg.

Part# 710-0451

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.76

12649

59

Chute Guard

Part# 12649

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

GUARD-CHUTE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $109.40

MTD/TROY-BILT RED (0638)

GUARD-CHUTE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $109.40

TECH GRAY (0648)

GUARD-CHUTE

Part# TECH GRAY (0648)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

GUARD-CHUTE

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

GUARD-CHUTE

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

No Longer Available GUARD-CHUTE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

60

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-3010

61

Hex Nut 5/16-18 Thd.

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

710-0559

62

Hex Bolt 1/4-28 x 1-3/4" Lg.

Part# 710-0559

OEM Warranty Repair Part for White Outdoor

Not available

732-0180

63

Extension Spring

Part# 732-0180 (Superseded to 932-0180)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.02

736-0119

64

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-3010

65

Hex Nut 5/16-18 Thd.

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

738-0296

66

Shld. Bolt

Part# 738-0296 (Superseded to 938-0296)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.88

715-0129

67

Roll Pin 1/8" Dia.

Part# 715-0129

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

732-0306

69

Compression Spring

Part# 732-0306 (Superseded to 932-0306A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.64

712-0923

70

Hex L-Nut 5/8-18 Thd.

Part# 712-0923

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.45

736-0158

71

L-Wash. 5/8" I.D.

Part# 736-0158 (Superseded to 936-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

754-0197

75

"V"-Belt

Part# 754-0197 (Superseded to 954-0197)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $64.55

756-0632

76

Drive Pulley

Part# 756-0632

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $73.34

712-0138

77

Hex L-Nut 1/4-28 Thd.

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.44

715-0108

80

Spring Pin Spiral 1/4" Dia. 1.00" Lg.

Part# 715-0108

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.24

736-0105

81

Bell-Wash. 3/8" I.D. x .87" O.D.

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0329

82

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0318

83

Hex Jam Nut 5/8-18 Thd.

Part# 712-0318

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.44

736-0158

84

L-Wash. 5/8" I.D.

Part# 736-0158 (Superseded to 936-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

08253B

86

Bearing Housing

Part# 08253B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $13.19

741-0919

87

Ball Bearing

Part# 741-0919 (Superseded to 941-0919B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.76

14199A

88

Deck Spindle Ass'y.

Part# 14199A

OEM Warranty Repair Part for White Outdoor

Not available

738-0469B

89

Spindle

Part# 738-0469B (Superseded to 938-0469B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $79.10

13703

90

Bearing Shield

Part# 13703

OEM Warranty Repair Part for White Outdoor

Not available

748-0235

91

Blade Adapter

Part# 748-0235

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $15.40

750-0456

92

Spacer

Part# 750-0456 (Superseded to 950-0456)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

14088B

93

Spindle Spacer Plate

Part# 14088B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Spindle Spacer

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $19.05

14249A

95

Spindle Reinforcement Plate

Part# 14249A

OEM Warranty Repair Part for White Outdoor

Not available

15296A

96

Open Bearing Housing

Part# 15296A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.80
