1900-0 - Craftsman 2,600 PSI Pressure Washer Main Unit Parts Diagram

2,600 PSI Pressure Washer

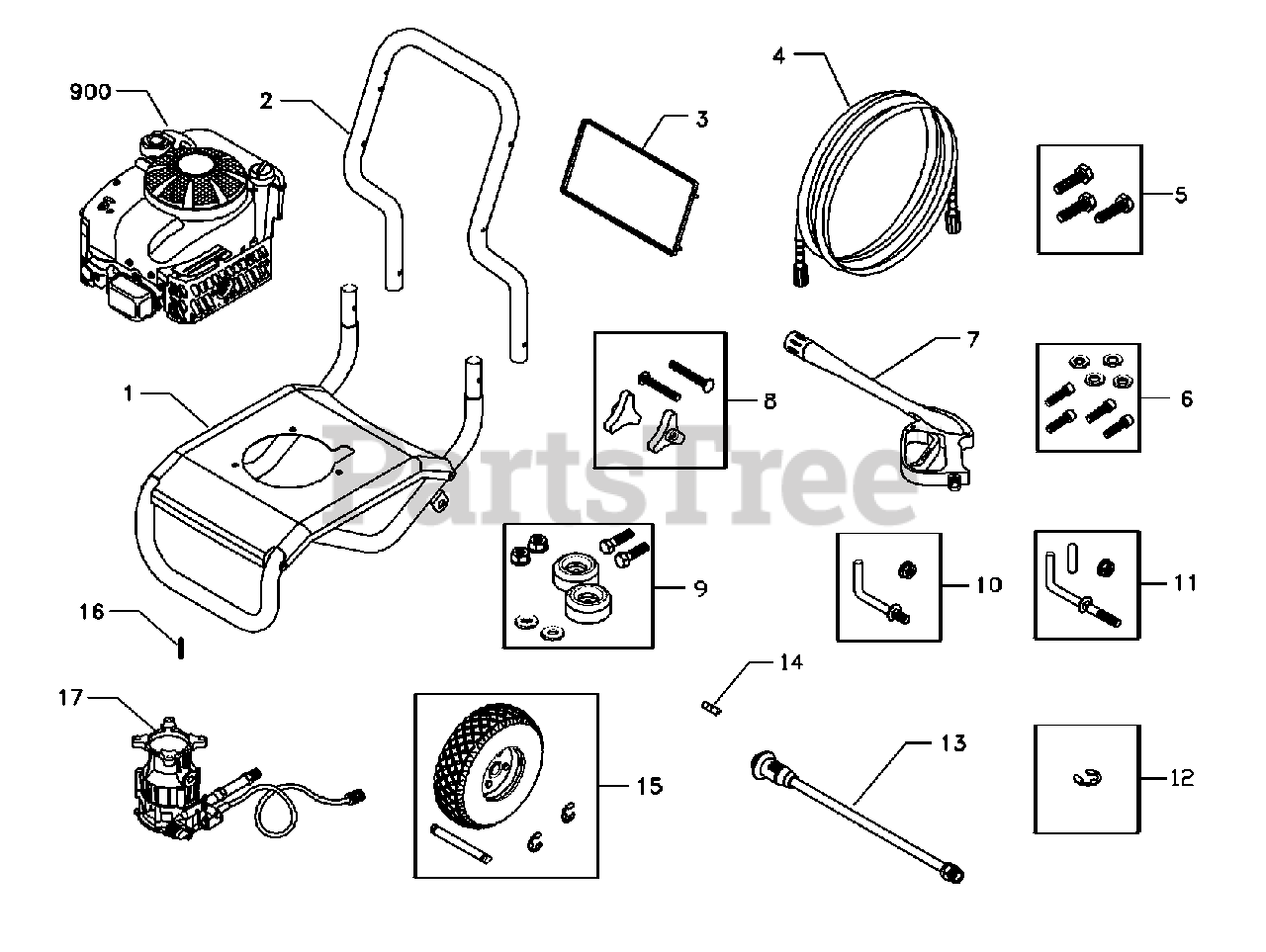

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 192393GS

BASE

$

$

Not available

2

Briggs & Stratton E191886GS

HANDLE
(Superseded to E194719GS)

$99.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 191909GS

BILLBOARD

$

$

Not available

4

Briggs & Stratton 190246GS

HOSE
(Superseded to 708962)

$

$

Not available

5

Briggs & Stratton 192133GS

KIT, Engine Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B3263GS

GUN

$93.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 3 left!

0

9

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 6

0

10

Briggs & Stratton 192309GS

KIT, Hook

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 192128GS

KIT, Hook
(Superseded to 194264GS)

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 191265GS

KIT, E-Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton B3335AGS

WAND, Adjustable Nozzle
(Superseded to 188792AGS)

$67.99

$

In Stock, only 3 left!

0

14

Briggs & Stratton 94804GS

ORIFICE

$9.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 192317GS

KIT, Wheel

$53.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 189942GS

ASSY, Pump
(Superseded to 206376GS)

Note: (see "Pump")

$385.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

Briggs & Stratton 192063GS

MANUAL, Owner's

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192319GS

KIT, Decals

Note: Items Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL, Bottle

Note: Items Not Illustrated

$

$

Not available

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199GS

Rotating Brush Kit

Note: Optional Accessories Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175115GS

HOSE, 4000PSI, 3/8" x 25'

Note: Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, Qty 9

0

Briggs & Stratton 7174400GS

Turbo Nozzle

Note: Optional Accessories Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174401GS

HOSE, 4000PSI, 3/8" x 25'

Note: Optional Accessories Not Illustrated

$120.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: Optional Accessories Not Illustrated

$21.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessories Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessories Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessories Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessories Not Illustrated

$

$

Not available
