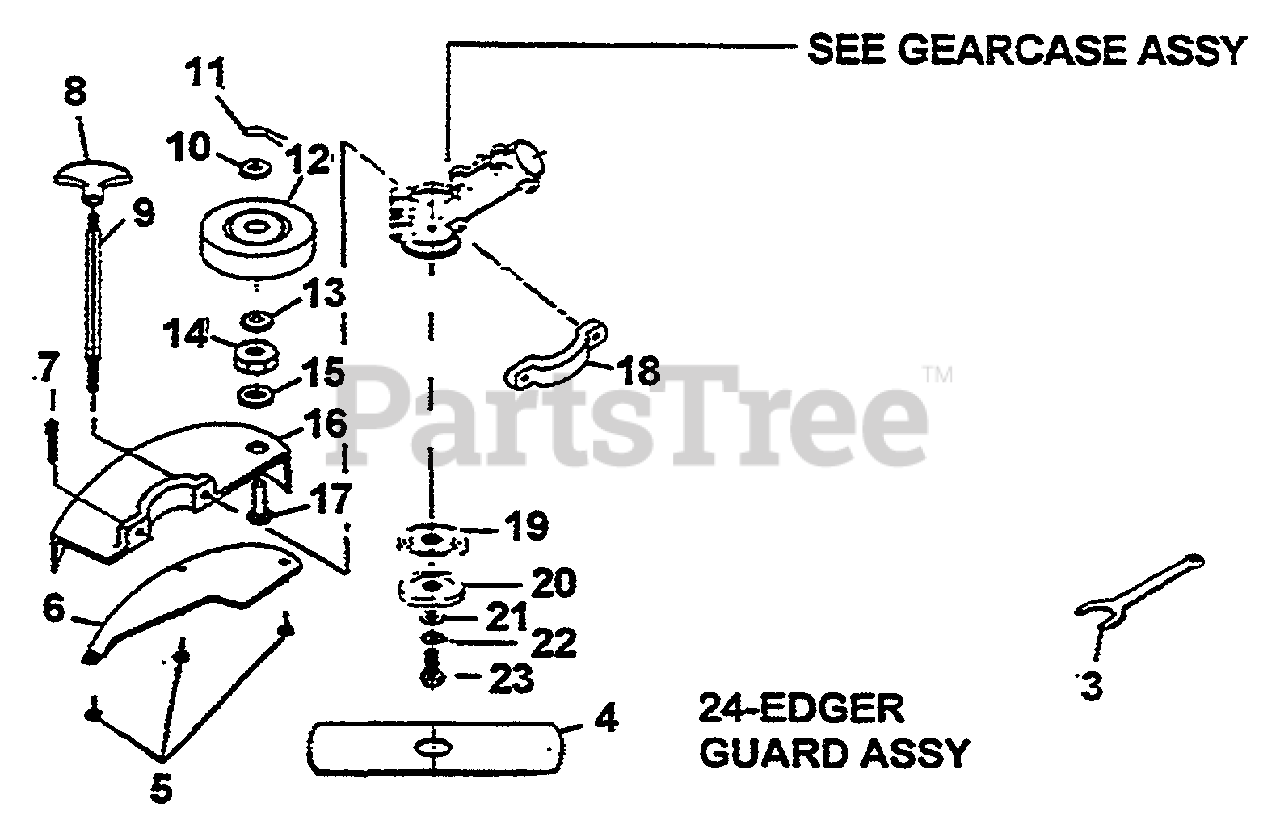

1900 E - Green Machine Edger Guard & Blade Parts Diagram

Edger

Guard & Blade Parts Diagram

  • Title

3

Homelite GM300190

SPANNER WRENCH

$

$

Not available

4

Homelite GM237001

EDGER BLADE
(Superseded to DG07812)

$

$

Not available

5

Homelite GM011310

SCREW
(Superseded to UP04157)

$

$

Not available

6

Homelite GM236909

EDGER SHIELD

$

$

Currently unavailable

7

Homelite GM237604

SCREW

$

$

Not available

8

Homelite GM285204

KNOB
(Superseded to UP04138)

$

$

Not available

9

Homelite GM280640

SHAFT & KNOB KIT

$

$

Currently unavailable

10

Homelite GM236908

WASHER

$

$

Currently unavailable

11

Homelite GM236907

COTTER PIN

$

$

Not available

12

Homelite GM235102

WHEEL

$

$

Not available

13

Homelite GM236908

WASHER

$

$

Currently unavailable

14

Homelite GM051017

NUT
(Superseded to UP08039)

$

$

Not available

15

Homelite GM041007

WASHER

$

$

Not available

16

Homelite GM236113

EDGER GUARD

$

$

Not available

17

Homelite GM237610

EDGER AXLE

$33.99

$

Usually ships in 3-7 days

0

18

Homelite GM236110

BRACKET

$

$

Currently unavailable

19

Homelite GM300070

HOLDER A

$

$

Not available

20

Homelite GM300075

HOLDER B
(Superseded to UP06798)

$5.99

$

Usually ships in 3-7 days

0

21

Homelite GM041003

WASHER

$

$

Not available

22

Homelite GM040007

WASHER
(Superseded to UP06519)

$

$

Not available

23

Homelite GM300080

BOLT
(Superseded to UP08260)

$

$

Not available

24

Homelite GM230611

EDGER GUARD ASSY
(Superseded to A08162)

$

$

Not available
