1900 E (UT-26100-A) - Green Machine Edger Air Filter & Carburetor Parts Diagram

Edger

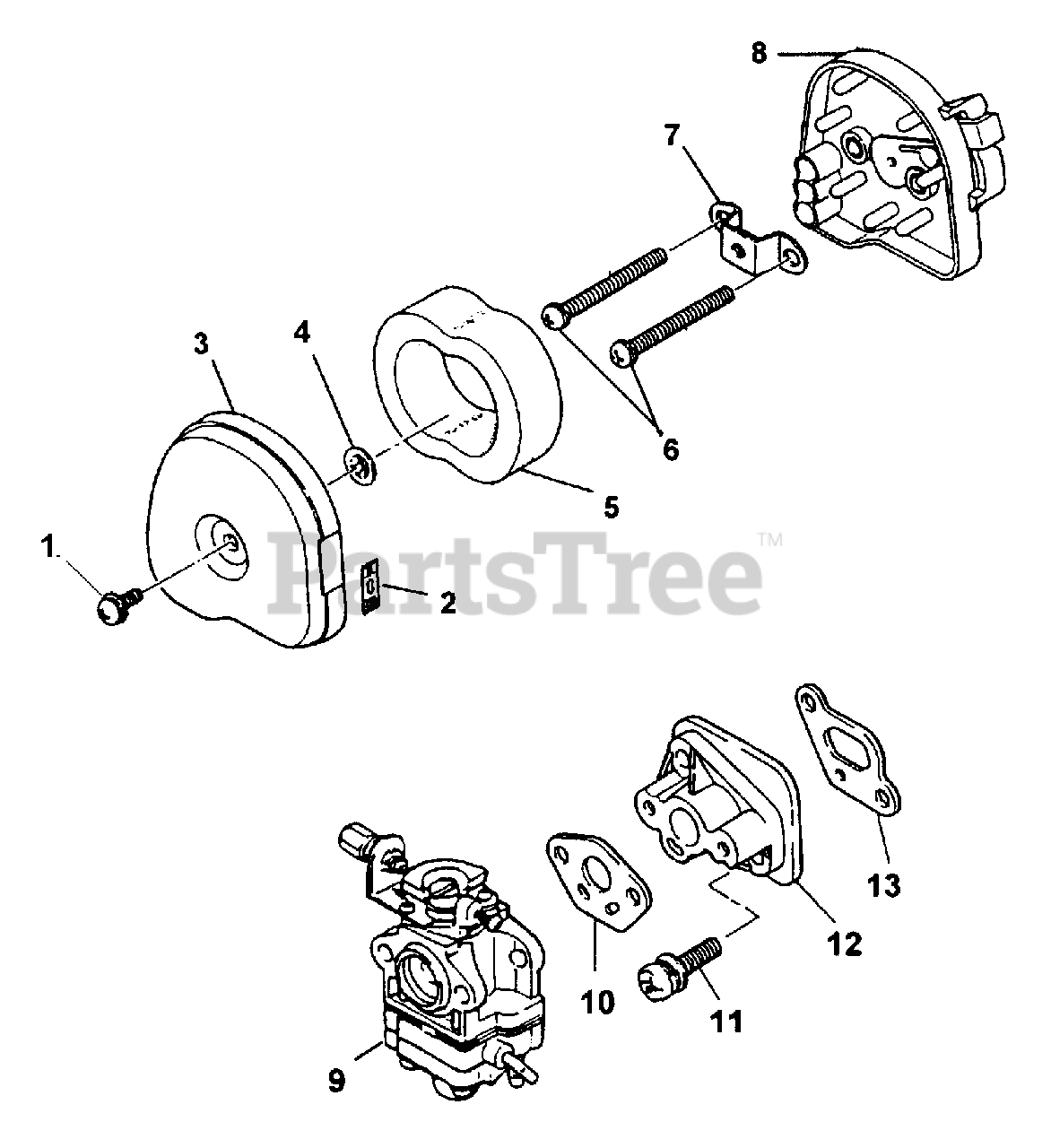

Air Filter & Carburetor Parts Diagram

  • Title

1

Homelite 07752

SCREW & WASHER
(Superseded to UP07226)

Note: Torque Specifications: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

2

Homelite 07754

LABEL, CHOKE

$

$

Not available

3

Homelite 07751

COVER

$

$

Not available

4

Homelite 07753

NUT

$

$

Not available

5

Homelite 07750

ELEMENT

$

$

Not available

6

Homelite 07749

SCREW & WASHER

Note: Torque Specifications: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

7

Homelite 07748

BRACKET

$

$

Not available

8

Homelite 07747

BASE

$51.99

$

Usually ships in 3-7 days

0

9

Homelite A08000

CARBURETOR

$

$

Not available

10

Homelite 07743

GASKET, CARB

$

$

Not available

11

Homelite GM002804

SCREW & WASHER

Note: Torque Specifications: 35-45 In/Lbs; 4-5 Nm

$

$

Currently unavailable

12

Homelite 07742

INSULATOR

$31.99

$

Usually ships in 3-7 days

0

13

Homelite 07741

GASKET, INSULATOR

$4.49

$

In Stock, only 3 left!

0
