1900 - Weed Eater String Trimmer CUTTING HEAD & DRIVE SHAFT Parts Diagram

String Trimmer

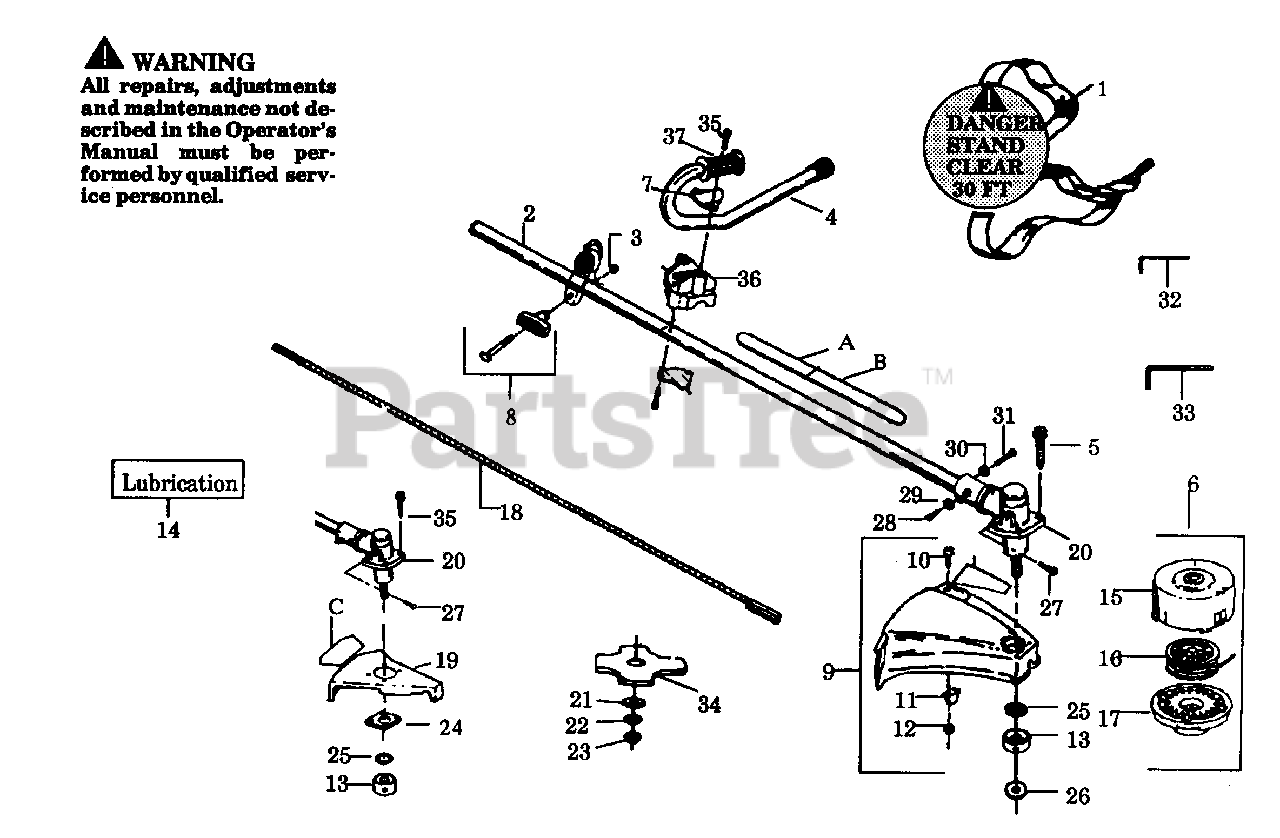

CUTTING HEAD & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 530094417

Shoulder Strap

$

$

Not available

2

Poulan 530094626

Drive Shaft Housing

$

$

Not available

3

Poulan 530015197

Nut

$6.49

$

In Stock, Qty 5

0

4

Poulan 530010723

Handlebar

$

$

Not available

5

Poulan 530015790

Screw
(Superseded to 530092243)

$3.99

$

In Stock, Qty 11

0

6

Poulan 952701608

Cutting Head Ass'y. (Inc.15,16,17)
(Superseded to 952701643)

$

$

Not available

7

Poulan 530094572

Handlebar Bracket

$3.99

$

In Stock, only 1 left!

0

8

Poulan 530069252

"T" Handle" Ass'y.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

9

Poulan 530069256

Shield Kit Ass'y. (Inc.10,11,12)

$

$

Not available

10

Poulan 530015037

Screw

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 530094570

Line Limiter

$3.99

$

In Stock, only 2 left!

0

12

Poulan 530015217

Locknut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530094639

Dust Cup

$7.99

$

Usually ships in 3-10 days

0

14

Poulan 530030102

Shaft Lubrication
(Superseded to 952708514)

$

$

Not available

15

Poulan 530094557

Hub Ass'y
(Superseded to 952701643)

$

$

Not available

16

Poulan 952701589

Spool w/Line

$6.99

$

In Stock, Qty 6

0

17

Poulan 530094494

Cover

$

$

Not available

18

Poulan 530094585

Drive Shaft

$

$

Not available

19

Poulan 530094627

Shield
(Superseded to 530094633)

$

$

Not available

20

Poulan 530094568

Gear Box Ass'y.
(Superseded to 530071781)

$

$

Not available

21

Poulan 530015792

Washer

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 530015492

Washer
(Superseded to 530016240)

$6.49

$

In Stock, Qty 5

0

23

Poulan 530093748

Nut 3/8

$

$

Not available

24

Poulan 530027615

Shield Retention Plate

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530094640

Seal

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530094571

Grass Washer

$1.99

$

Usually ships in 3-10 days

0

27

Poulan 530094616

Screw

$

$

Not available

28

Poulan 530094612

Screw

$0.99

$

Usually ships in 3-10 days

0

29

Poulan 530015328

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530001677

Lockwasher

$

$

Not available

31

Poulan 530001711

Screw

$1.99

$

In Stock, only 1 left!

0

32

Poulan 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

33

Poulan 530031098

Hex Wrench (3/16)

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 952701611

Weed Blade
(Superseded to 952711585)

$

$

Not available

35

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 530012207

Handlebar Clamp

$8.99

$

Usually ships in 3-10 days

0

37

Poulan 530092086

Handlebar Grip

$

$

Not available

A

Poulan 530027432

Safety Label (Upper)

$

$

Not available

B

Poulan 530027433

Safety Label (Lower)

$

$

Not available

C

Poulan 530027749

Blade Direction Decal (Not a serviceable part)

$

$

Not available
