19023C - MTD Grassbag Assembly (1986) Grass Parts Diagram

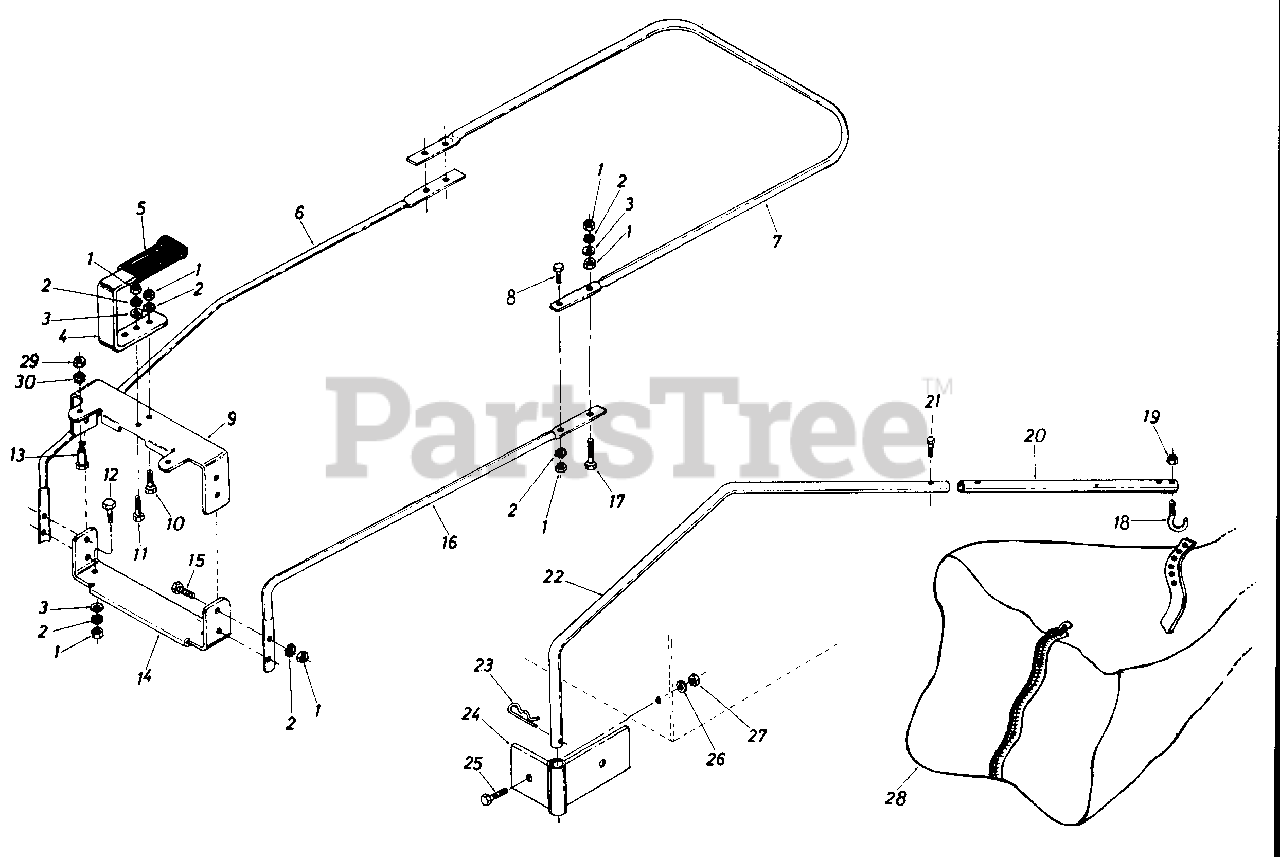

Grassbag Assembly

Grass Parts Diagram

  • Title

1

MTD 712-0287

14 Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 2 left!

0

2

MTD 736-0222

12 Ext. L.-Wash. 1/4" Scr.

$5.99

$

In Stock, only 3 left!

0

3

MTD 736-0142

Fl.-Wash. .281 I.D. x .50" 0. D.

$4.99

$

In Stock, only 3 left!

0

4

MTD 11707

Handle

Variations

MTD 11707-0637

Handle - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 720-0142

Grip-Black

$3.99

$

Usually ships in 3-6 days

0

6

MTD 11704

Lower Frame Arm

$

$

Not available

7

MTD 11706

Upper Frame Half

$

$

Not available

8

MTD 710-0597

Hex Scr. 1/4-20 x 1.00" Lg.

$3.99

$

In Stock, Qty 18

0

9

MTD 11703

Upper Opening Support

$

$

Not available

10

MTD 710-0258

Hex Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0252

Hex Scr. 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0289

Hex Scr. 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

Usually ships in 3-6 days

0

13

MTD 738-0141

Shld. Scr. .437" Dia. x .350
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 8

0

14

MTD 11702

Lower Opening Support

$

$

Not available

15

MTD 710-0597

Hex Scr. 1/4-20 x 1.00" Lg;

$3.99

$

In Stock, Qty 18

0

16

MTD 11705

Lower Frame Tubing

$

$

Currently unavailable

17

MTD 710-0606

Hex Scr. 1/4-20 x 1.50" Lg.

$5.49

$

In Stock, Qty 13

0

18

MTD 711-0576

Hook

$

$

Not available

19

MTD 712-0324

Hex Ins. L.-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

20

MTD 11710

Upper Holding Arm

Variations

MTD 11710-0637

No Longer Available ARM-UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 710-0179

Hex C-Tap. Scr. 1/4-20 x .50" Lg.

$

$

Currently unavailable

22

MTD 11709

ILower Holding Arm

$

$

Not available

23

MTD 714-0117

Internal Cotter Pin 5/8" Dia.

$4.49

$

In Stock, Qty 10

0

24

MTD 13981

Hitch Bracket

$

$

Currently unavailable

25

MTD 710-0198

Hex Sems Scr. 5/16 18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

26

MTD 736-0119

L.-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 764-0121

Grass Catcher Bag

$

$

Not available

29

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0607

Ext. L.-Wash. 5/16" Scr.

$3.99

$

In Stock, Qty 20+

0
