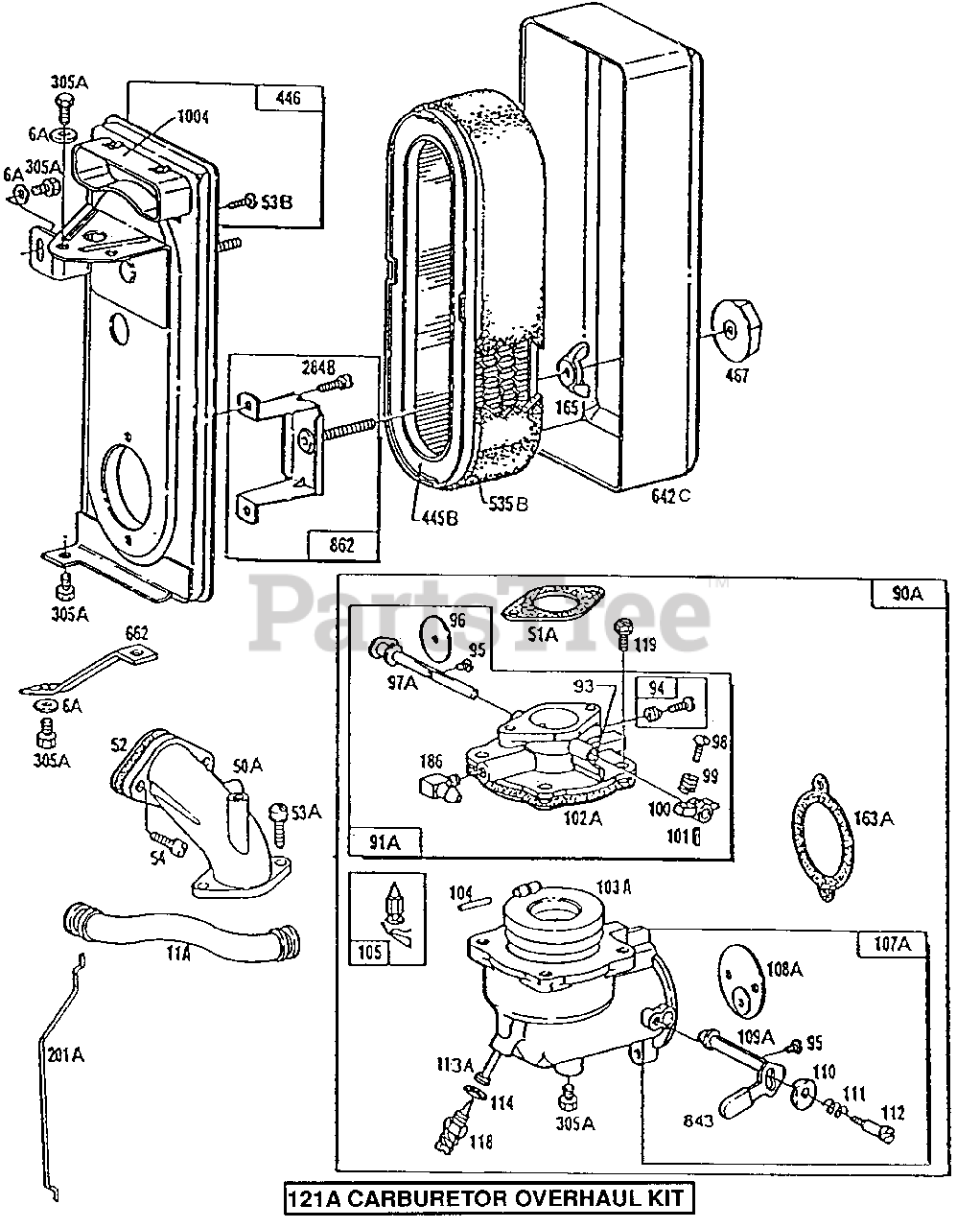

190403-2638-01 - Briggs & Stratton Horizontal Engine Carburetor, Air Cleaner Grp Parts Diagram

Horizontal Engine

Carburetor, Air Cleaner Grp Parts Diagram

  • Title
6A

Briggs & Stratton 62199

Washer, Steel
(Superseded to 692810)

$5.49

$

Usually ships in 2-12 days

0

11A

Briggs & Stratton 280716

Tube-Breather

$10.99

$

Usually ships in 2-12 days

0

50A

Briggs & Stratton 213169

Manifold-Intake

$

$

Not available

51A

Briggs & Stratton 270267

Gasket-Intake Elbow
(Superseded to 692214)

Note: Included in Carburetor Overhaul Kit-Part No. 492024

$4.99

$

In Stock, Qty 9

0

52

Briggs & Stratton 27828

Gasket-Spacer To Cylinder Mounting
(Superseded to 27828S)

Note: Included in Gasket Set-Part No. 299577

$4.99

$

In Stock, only 2 left!

0

53A

Briggs & Stratton 93357

Screw-Sem, Phillips Hex. Hd.
(Superseded to 690953)

$5.99

$

In Stock, Qty 9

0

53B

Briggs & Stratton 94073

Screw, Hex Washer H
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

$8.49

$

In Stock, Qty 6

0

90A

Briggs & Stratton 490419

Carburetor Assembly

$

$

Not available

91A

Briggs & Stratton 491560

Body Assembly-Upper Carburetor

$52.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Overhaul Kit-See Ref. 121. Included in Carburetor Overhaul Kit-Part No. 492024

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 223370

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

97A

Briggs & Stratton 491484

Shaft And Lever-Throttle

$35.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 212904

Stop-Throttle Lever
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin-Throttle Stop And Governor Shaft
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102A

Briggs & Stratton 270268

Gasket-Carburetor Body
(Superseded to 692215)

Note: Included in Carburetor Overhaul Kit-Part No. 492024

$5.49

$

In Stock, only 2 left!

0

103A

Briggs & Stratton 298514

Float-Carburetor
(Superseded to 692265)

$11.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-See Ref 121. Included in Carburetor Overhaul Kit-Part No. 492024

$3.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 394681

Kit-Needle/seat (Gravity Feed)

Note: Included in Carburetor Overhaul Kit-See Ref 121. Included in Carburetor Overhaul Kit-Part No. 492024

$7.99

$

In Stock, Qty 8

0

105

Briggs & Stratton 394682

Kit-Needle/seat (For Gravity Feed).

$9.99

$

In Stock, Qty 6

0

105

Briggs & Stratton 394683

Kit-Needle/seat (Pump Feed)

$12.99

$

In Stock, Qty 6

0

107A

Briggs & Stratton 490422

Body Assy.-Lower Carburetor

$43.99

$

Usually ships in 2-12 days

0

108A

$6.49

$

Usually ships in 2-12 days

0

109A

$16.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 222712

Washer-Friction

$5.49

$

In Stock, only 1 left!

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 8

0

112

Briggs & Stratton 23123

Screw-Shoulder
(Superseded to 691587)

$6.49

$

In Stock, only 2 left!

0

113A

Briggs & Stratton 491520

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 492024

$29.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 68667

Washer, Fiber (Viton Seat)
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-See Ref. 121. Included in Carburetor Overhaul Kit-Part No. 492024

$6.49

$

In Stock, Qty 6

0

118

Briggs & Stratton 99525

Valve-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-See Ref. 121. Included in Carburetor Overhaul Kit-Part No. 492024. Includes: 22235 Washer-Brass 26336 Spring 65978 O-Ring 394033 Valve-Needle

$12.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 94152

Screw, Sem Hex Head (10-32 X 3/4")
(Superseded to 691090)

$3.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 492024

Carburetor Overhaul Kit

$74.99

$

In Stock, only 1 left!

0

163A

Briggs & Stratton 271910

Gasket-Air Cleaner Mtg.

$

$

Not available

165

Briggs & Stratton 94289

Nut-Wing
(Superseded to 691331)

$5.99

$

In Stock, Qty 5

0

186

Briggs & Stratton 67218

Connector, Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 8

0

201A

Briggs & Stratton 262307

Link-Throttle

$6.49

$

Usually ships in 2-12 days

0

284B

Briggs & Stratton 94271

Screw-Phillips Hd. Sem

$13.99

$

Usually ships in 2-12 days

0

305A

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

445B

$32.99

$

In Stock, only 1 left!

0

446

Briggs & Stratton 490430

Base-Air Cleaner

$

$

Not available

467

Briggs & Stratton 493903

Knob-Air Cleaner
(Superseded to 691668)

$5.49

$

Usually ships in 2-12 days

0

535B

$6.99

$

Usually ships in 2-12 days

0

642C

Briggs & Stratton 223751

Cover-Air Cleaner

$27.99

$

Usually ships in 2-12 days

0

662

Briggs & Stratton 223820

Strap-Support

$5.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 280149

Sleeve-Lever
(Superseded to 691895)

$4.99

$

In Stock, only 1 left!

0

862

Briggs & Stratton 490431

Strap-Cleaner Mounting

$35.99

$

Usually ships in 2-12 days

0

1004

$6.49

$

Usually ships in 2-12 days
