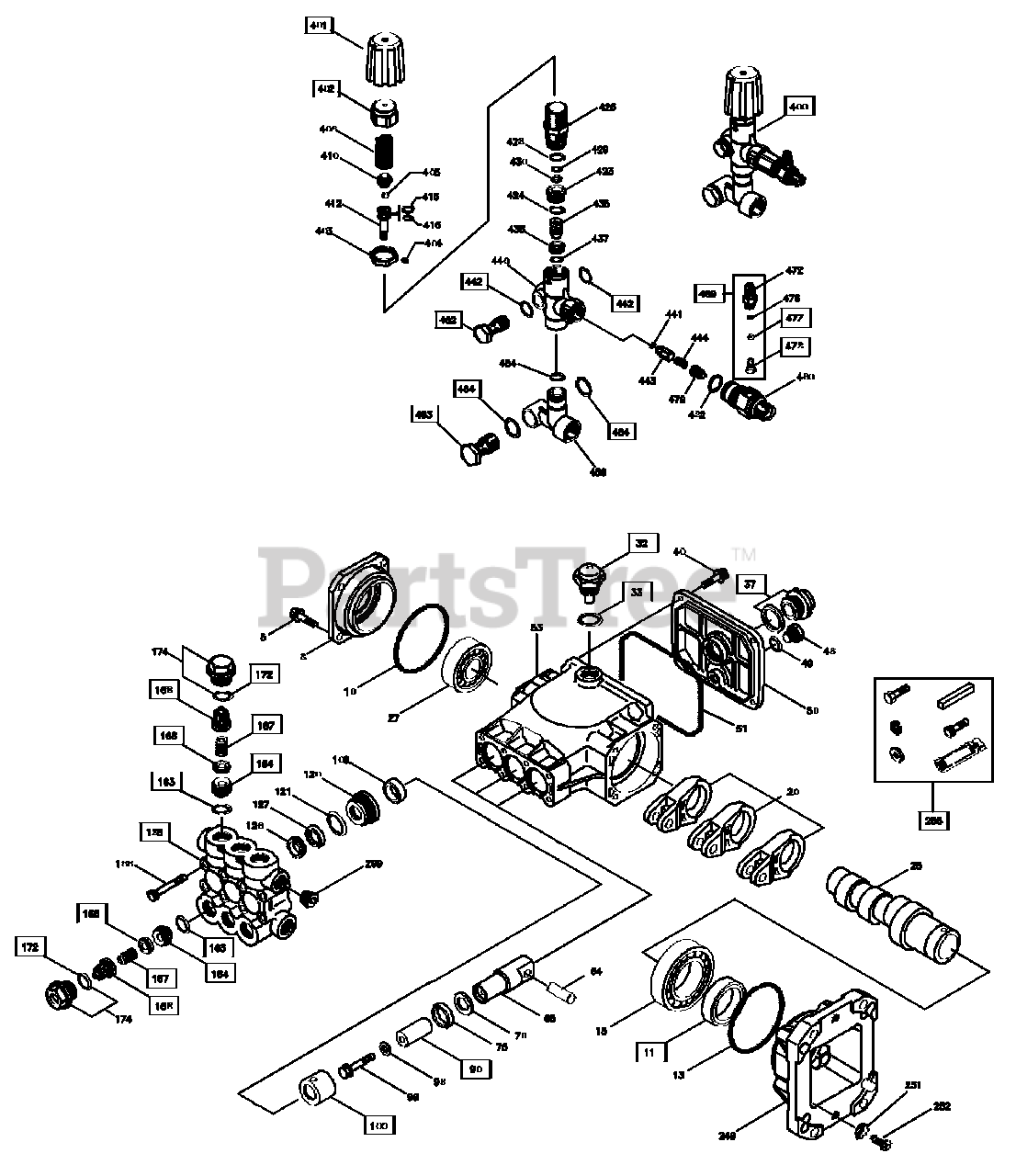

1906-1 - Husqvarna 3,700 PSI Pressure Washer Pump & Unloader Parts Diagram

3,700 PSI Pressure Washer

Pump & Unloader Parts Diagram

  • Title

11

Briggs & Stratton 188111GS

SEAL, Oil, Crankshaft

$64.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 192995GS

DOMED, Oil Filler

$

$

Currently unavailable

33

Briggs & Stratton 188118GS

O-RING, Filler Cap

$6.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 188119GS

GAUGE, Oil Sight w/Gasket

$27.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 188133GS

PLUNGER

$127.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 188140GS

RETAINER, Seal

$6.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 188149GS

O-RING, Seat

$4.49

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 193000GS

SEAT

$

$

Currently unavailable

166

Briggs & Stratton 188152GS

VALVE

$45.99

$

Usually ships in 2-12 days

0

167

Briggs & Stratton 188153GS

SPRING

$11.99

$

Usually ships in 2-12 days

0

168

Briggs & Stratton 188154GS

RETAINER, Spring

$11.99

$

Usually ships in 2-12 days

0

172

Briggs & Stratton 188155GS

O-RING, Valve Plug

$4.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 193001GS

MANIFOLD

$

$

Currently unavailable

255

Briggs & Stratton 193003GS

KIT, Mounting Bolt

$

$

Currently unavailable

299

Briggs & Stratton 188535GS

PLUG

$

$

Currently unavailable

300

Briggs & Stratton 188198GS

KIT, Seal

Note: (Includes: 98, 106, 121, 127, 128)

$310.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 188199GS

KIT, Valve

Note: (Includes: 163, 164, 166, 167, 168, 172)

$217.99

$

Usually ships in 2-12 days

0

400

Briggs & Stratton 192194GS

ASSY, UNLOADER, COMPLETE

$571.99

$

Usually ships in 2-12 days

0

401

Briggs & Stratton 192195GS

HANDLE, Adj.

$

$

Currently unavailable

402

Briggs & Stratton 188162GS

CAP, Adjusting

$

$

Currently unavailable

442

Briggs & Stratton 188182GS

WASHER, Seal

$25.99

$

Usually ships in 2-12 days

0

462

Briggs & Stratton 188187GS

SCREW, Flow-thru

$57.99

$

Usually ships in 2-12 days

0

463

Briggs & Stratton 188188GS

SCREW, Flow-thru

$101.99

$

Usually ships in 2-12 days

0

464

Briggs & Stratton 188189GS

WASHER, Seal

$34.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 188201GS

KIT, O-Ring
(Superseded to 187953GS)

Note: (Includes: 415, 416, 424, 428, 429, 430, 437, 441, 454)

$329.99

$

Usually ships in 2-12 days

0

469

Briggs & Stratton 188200GS

ASSY, Fixed Barb

Note: (Includes: 472, 476, 477, 478)

$86.99

$

Usually ships in 2-12 days

0

477

Briggs & Stratton 188192GS

BALL

$11.99

$

Usually ships in 2-12 days

0

478

Briggs & Stratton 188193GS

SPRING

$16.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 188212GS

OIL, Bottle, CAT

$24.99

$

Usually ships in 2-12 days

0
