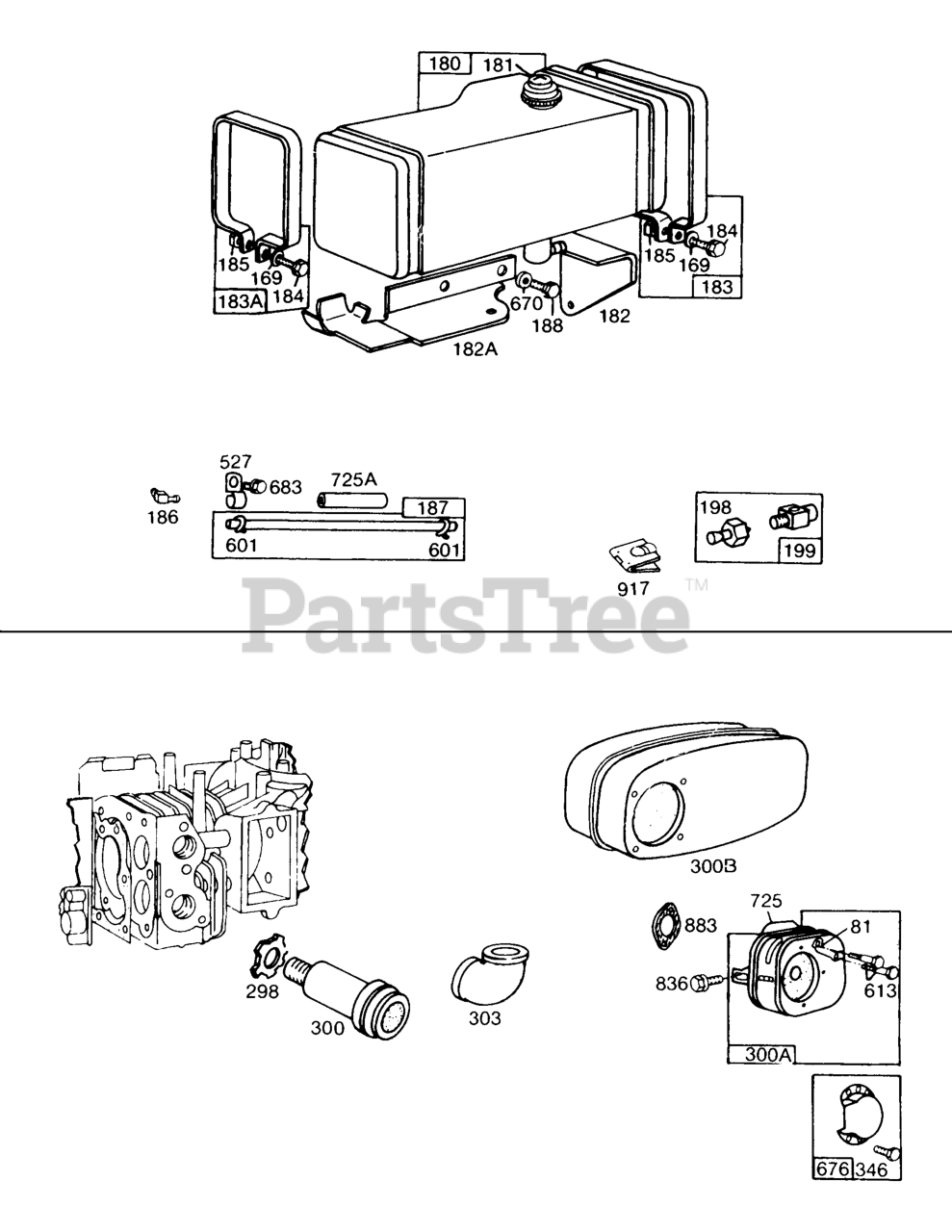

190702-1143-XX - Briggs & Stratton Vertical Engine Fuel Tank, Mufflers & Parts Parts Diagram

Vertical Engine

Fuel Tank, Mufflers & Parts Parts Diagram

  • Title

81

Briggs & Stratton 222263

Lock, Screw Head (3/8" Dia. Bolt Holes)
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 390225

Tank-Fuel (3 Quart, Plastic)

$

$

Not available

181

Briggs & Stratton 392300

Cap, Tank Assy (1-9/16" I.d.) (Metal)
(Superseded to 394818S)

$33.99

$

In Stock, only 2 left!

0

182A

Briggs & Stratton 223157

Support-Fuel Tank

$6.99

$

Usually ships in 2-12 days

0

182A

Briggs & Stratton 222112

Bracket, Rear Tank (L.H.)
(Superseded to 692867)

$23.99

$

Usually ships in 2-12 days

0

182

Briggs & Stratton 222813

Bracket, Tank (R.H.)
(Superseded to 691214)

$17.99

$

Usually ships in 2-12 days

0

183A

Briggs & Stratton 390405

Strap, Tank Assy (L.H.)
(Superseded to 692030)

$16.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 390406

Strap, Tank Assy (R.H.)
(Superseded to 698459)

$17.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 93803

Screw-Hex. Hd.
(Superseded to 697935)

$3.99

$

In Stock, only 1 left!

0

185

Briggs & Stratton 90970

Nut, Square (1/4-20)
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 67218

Connector, Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 8

0

187

Briggs & Stratton 296004

Line-Fuel (23" Cut To Length)
(Superseded to 791745)

$10.99

$

In Stock, Qty 8

0

188

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

198

Briggs & Stratton 293934

Valve, Shutoff Assy
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

199

Briggs & Stratton 390303

Outlet-Fuel Tank
(Superseded to 492649)

$28.99

$

Usually ships in 2-12 days

0

298

Briggs & Stratton 261409

Locknut, Muffler/El
(Superseded to 690453)

$4.49

$

In Stock, Qty 10

0

300A

Briggs & Stratton 391313

Muffler-Exhaust
(Superseded to 692304)

$34.99

$

In Stock, Qty 7

0

300B

Briggs & Stratton 392101

Muffler Assy (Super Lo-tone)
(Superseded to 498984S)

$84.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 393010

Muffler Assy (Round Lo-tone)
(Superseded to 393010S)

$22.99

$

In Stock, only 2 left!

0

303

Briggs & Stratton 91219

Elbow, Exhaust (45 Degree Street)
(Superseded to 94089)

$13.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

527

Briggs & Stratton 221428

Breather Tube Clamp
(Superseded to 690394)

$4.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 93704

Screw-Muffler Mtg.

$15.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 4 left!

0

676

Briggs & Stratton 393757

Deflector-Muff (Side Outlet)
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

683

Briggs & Stratton 93804

Screw-Clamp Mtg.
(Superseded to 690664)

$5.49

$

In Stock, Qty 5

0

725A

Briggs & Stratton 222175

Deflector, Heat
(Superseded to 690403)

$6.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 221885

Shield-Heat

$12.99

$

In Stock, only 1 left!

0

836

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

883

Briggs & Stratton 270918

Gasket-Muffler
(Superseded to 692237)

$5.49

$

In Stock, Qty 20+

0

917

Briggs & Stratton 223271

Valve Handle-Fuel Shut-Off
(Superseded to 691737)

$7.49

$

In Stock, only 1 left!

0
