Grass Catcher Assembly

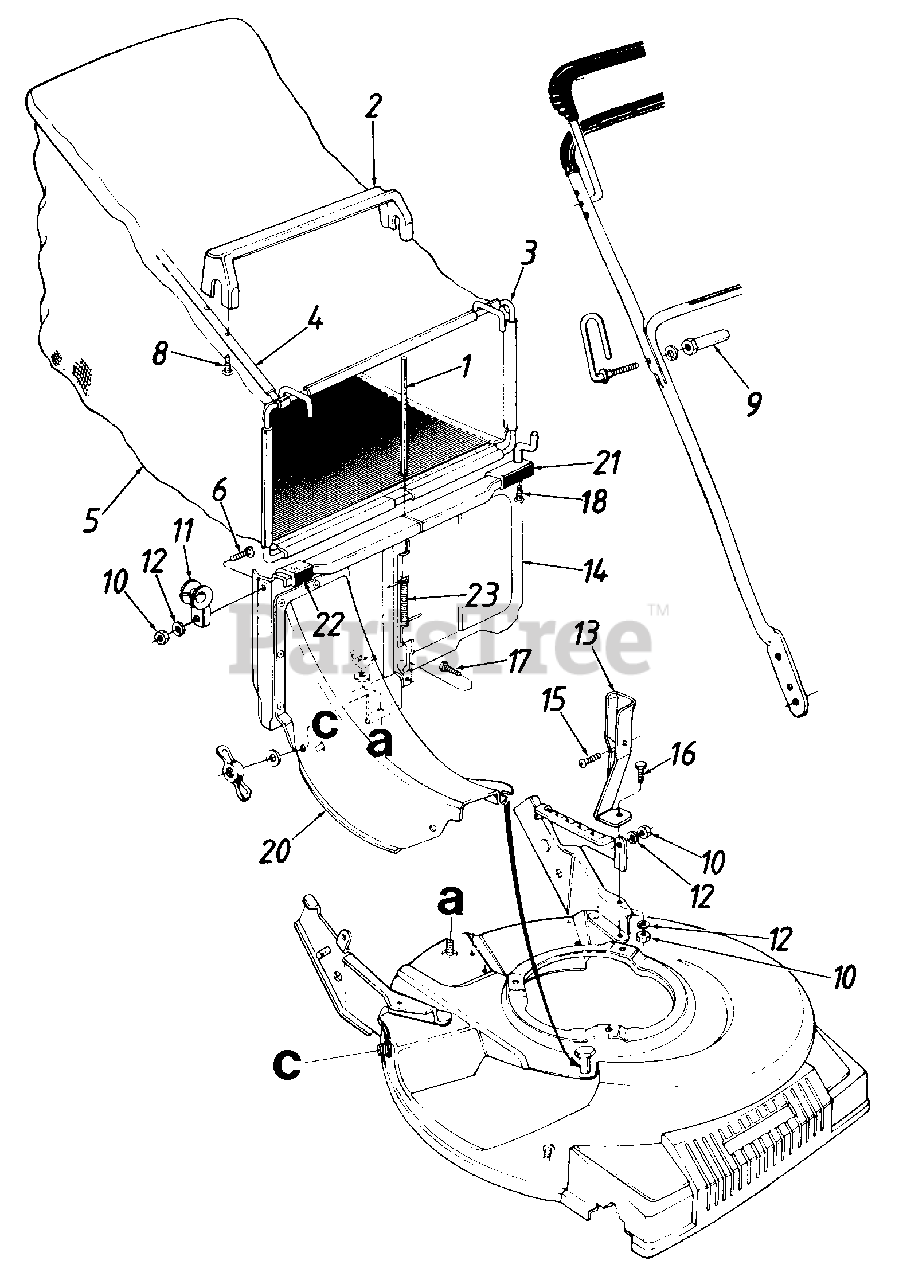

19074-7 - MTD Grass Catcher Assembly (1987) > Parts Diagrams (1) > Grass

  • Title
747-0547

1

Chute Rod

Part# 747-0547

OEM Warranty Repair Part for MTD

Not available

731-0801

2

Bag Handle

Part# 731-0801

OEM Warranty Repair Part for MTD

Not available

747-0541

3

Front Frame Ass'y.

Part# 747-0541

OEM Warranty Repair Part for MTD

Not available

749-0723

4

Rear Frame

Part# 749-0723

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available FRAME-CATC

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

764-0240

5

Grass Bag

Part# 764-0240

OEM Warranty Repair Part for MTD

Not available

710-0255

6

Truss Mach. Scr. 1/4-20 x .75"

Part# 710-0255 (Superseded to 710-0924)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

710-0969

8

Truss Mach. Tap Scr.

Part# 710-0969

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

711-0807

9

Catcher Support Pin

Part# 711-0807

OEM Warranty Repair Part for MTD

Not available

712-0287

10

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

719-0279

11

Rope Guide

Part# 719-0279

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.40

736-0329

12

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

17061

13

Grass Catcher Bracket

Part# 17061

OEM Warranty Repair Part for MTD

Not available

17062

14

Chute Door

Part# 17062

OEM Warranty Repair Part for MTD

Not available

710-0286

15

Truss Mach. Scr. 1/4-20 x .5'

Part# 710-0286

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

710-0289

16

Hex Bolt 1/4-20 x .5" Lg.

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.34

710-0429

17

Hex B-Tap Scr. #10 x .38"

Part# 710-0429 (Superseded to 910-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.37

710-0895

18

Hex AB-Tap Scr. 1/4 X .75"

Part# 710-0895

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.28

731-0864

20

Top Discharge Chute Ass'y.

Part# 731-0864

OEM Warranty Repair Part for MTD

Not available

731-0882

21

Door Clip

Part# 731-0882

OEM Warranty Repair Part for MTD

Not available

731-0883

22

Panel Clip

Part# 731-0883

OEM Warranty Repair Part for MTD

Not available

732-0558

23

Torsion Spring

Part# 732-0558

OEM Warranty Repair Part for MTD

Currently unavailable
