19079-9 - MTD Grass Catcher Assembly (1989) Grass Parts Diagram

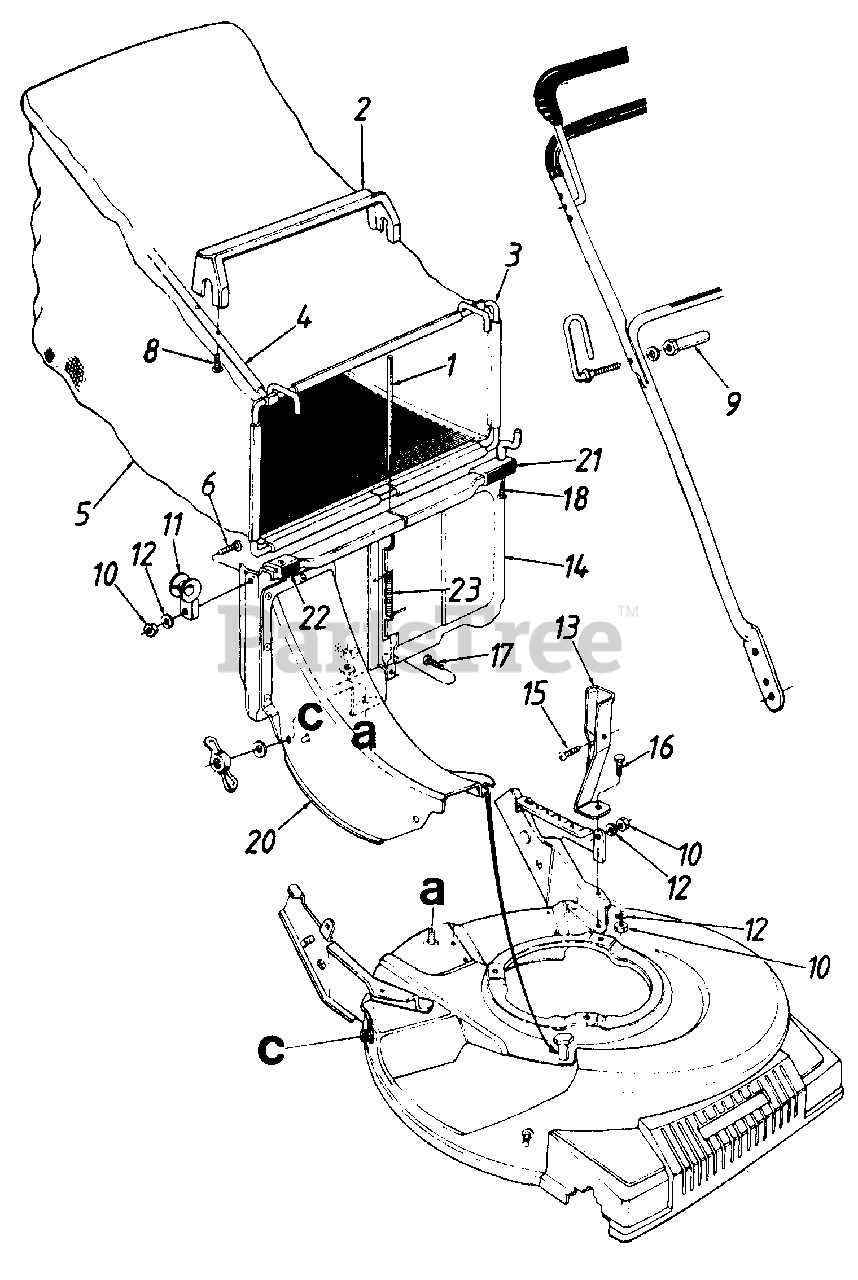

Grass Catcher Assembly

Grass Parts Diagram

  • Title

1

MTD 747-0547

Chute Rod

$

$

Not available

2

MTD 731-0801

Bag Handle

$

$

Not available

3

MTD 747-0707

Front Frame Ass'y.

$

$

Not available

4

MTD 749-0723

Rear Frame

Variations

MTD 749-0723-0637

No Longer Available FRAME-CATC - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 764-0259

Grass Bag

$

$

Not available

6

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.99

$

In Stock, Qty 20+

0

8

MTD 710-1025

Truss Mach. Tap Scr.

$6.99

$

Usually ships in 3-6 days

0

9

MTD 711-0807

Catcher Support Pin

$

$

Not available

10

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

11

MTD 719-0279

Rope Guide

$16.99

$

Usually ships in 3-6 days

0

12

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

13

MTD 17061

Grass Catcher Bracket

$

$

Not available

14

MTD 17062

Chute Door

$

$

Not available

15

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5"

$4.99

$

Usually ships in 3-6 days

0

16

MTD 710-0289

Hex Bolt 1/4 20 X .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

17

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

18

MTD 710-0895

Hex AB-Tap Scr. 1/4 X .75"

$6.99

$

In Stock, Qty 20+

0

20

MTD 731-0864

Top Discharge Chute Ass'y.

$

$

Not available

21

MTD 731-0882

Door Clip

$

$

Not available

22

MTD 731-0883

Panel Clip

$

$

Not available

23

MTD 732-0558

Torsion Spring

$

$

Currently unavailable
