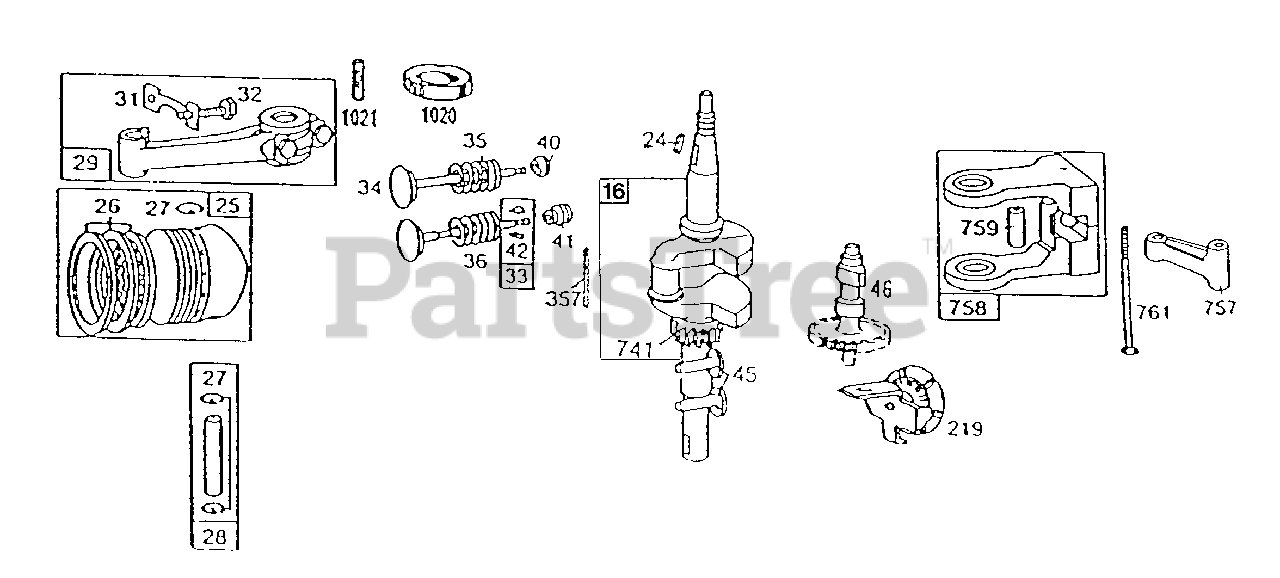

191707-6030-01 - Briggs & Stratton Vertical Engine Piston Group Parts Diagram

Vertical Engine

Piston Group Parts Diagram

  • Title

16

Briggs & Stratton 396876

Crankshaft

Note: Order 94388 Key or 230978 Pin For Loose Timing Gear Retaining Device

$225.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 391673

Piston/Ring Kit (Std.)
(Superseded to 499907)

$78.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391674

Piston/Ring Kit (.010" O.S.)

$

$

Not available

25

Briggs & Stratton 391675

Piston/Ring Kit (.020" O.S.)
(Superseded to 499909)

$149.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391676

Piston/Ring Kit (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 299743

Ring Set-Std Chr
(Superseded to 690014)

$51.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 391669

Ring, Piston Kit (Std.)
(Superseded to 499921)

$47.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 391670

Ring, Piston Kit (.010" O.S.)

$18.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391671

Ring, Piston Kit (.020" O.S.)
(Superseded to 690019)

$59.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 391672

Ring, Piston Kit (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 68546

Lock-Piston Pin
(Superseded to 691073)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295840

Pin-Piston Std
(Superseded to 499302)

$15.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295841

Pin-Piston 005

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390402

Rod-Connecting (Standard)

Note: For Connecting Rod With .020" Undersize Crankpin Bore-Order No. 390773

$84.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222114

Lock-Rod Screw

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92659

Screw-Connecting Rod And Bracket Mtg.
(Superseded to 690352)

$6.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 390419

Valve-Exhaust (Includes Retainer Ref. No. 42)
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261055

Valve-Intake
(Superseded to 261055S)

$32.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, Qty 8

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 93630

Keeper, Valve (2)
(Superseded to 494553)

$7.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 211689

Gear-Cam.
(Superseded to 691167)

$36.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 491397

Oil Slinger, Gov. Gear & Brkt Assy
(Superseded to 691980)

$

$

Not available

357

Briggs & Stratton 91540

Key, Pulley (1/4")
(Superseded to 691483)

$6.99

$

In Stock, only 3 left!

0

741

Briggs & Stratton 261195

Gear-Timing (For Use With Pin)

$17.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262479

Gear, Timing (For Use With Key)
(Superseded to 691288)

$21.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 212359

Link-Counterwieght
(Superseded to 691714)

$26.99

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 390172

Pin-Counterweight
(Superseded to 690619)

$49.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 4 left!

0

761

Briggs & Stratton 93874

Screw, Hex Head Cap
(Superseded to 690346)

$7.49

$

Usually ships in 2-12 days

0

1020

Briggs & Stratton 261190

Eccentric
(Superseded to 691268)

$11.99

$

Usually ships in 2-12 days

0

1021

Briggs & Stratton 94160

Pin-Groove
(Superseded to 691679)

$4.49

$

Usually ships in 2-12 days

0
